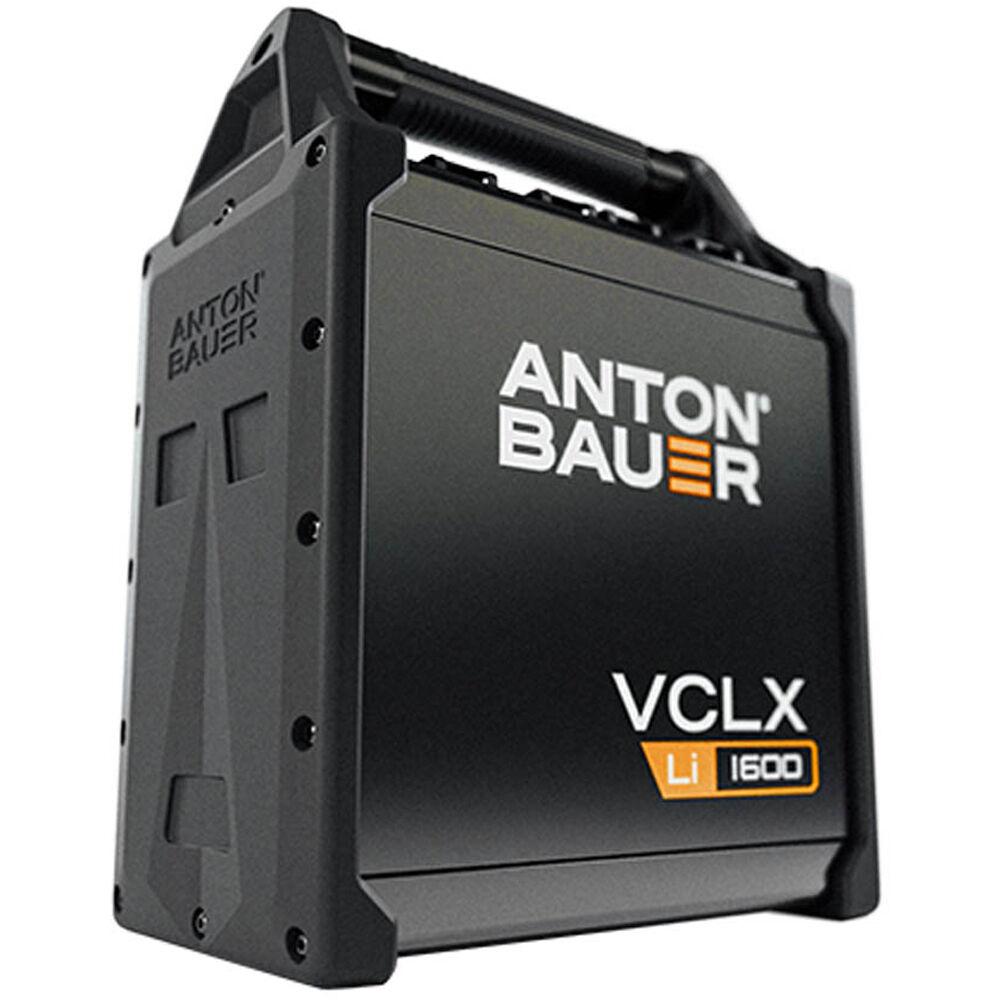

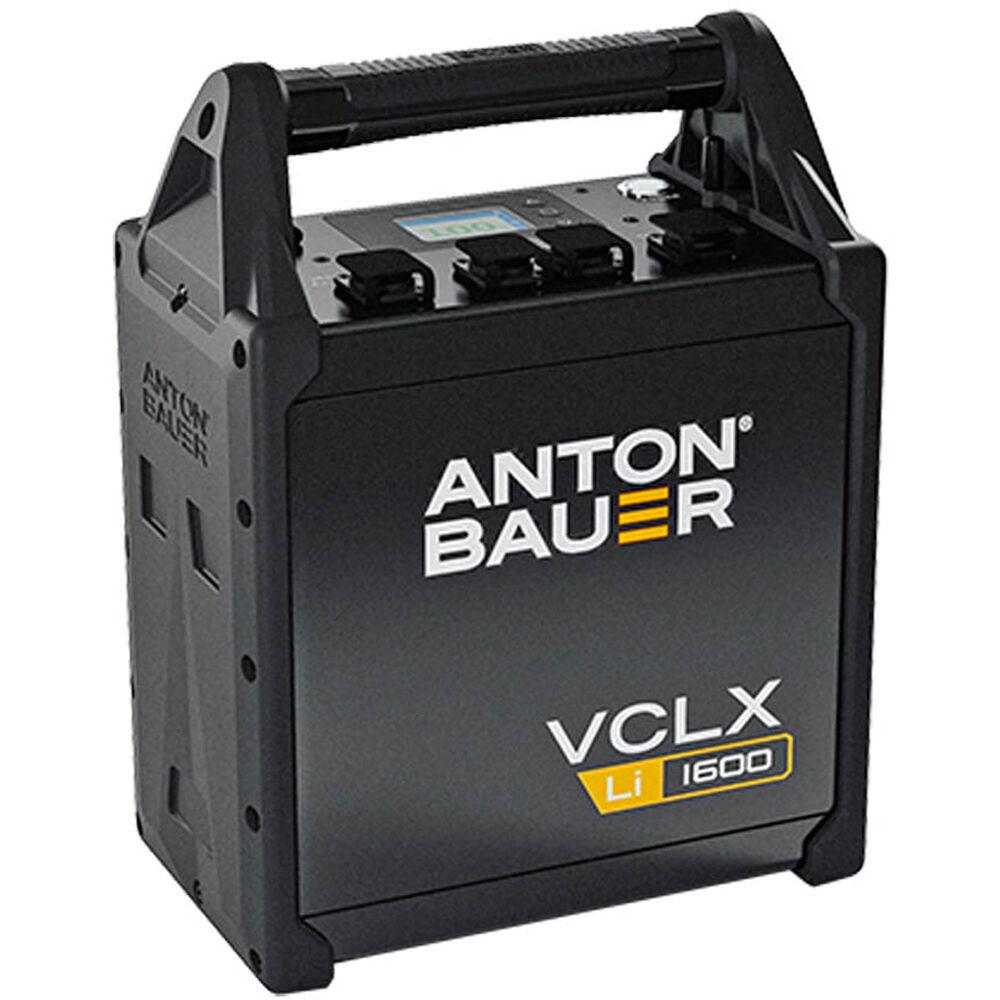

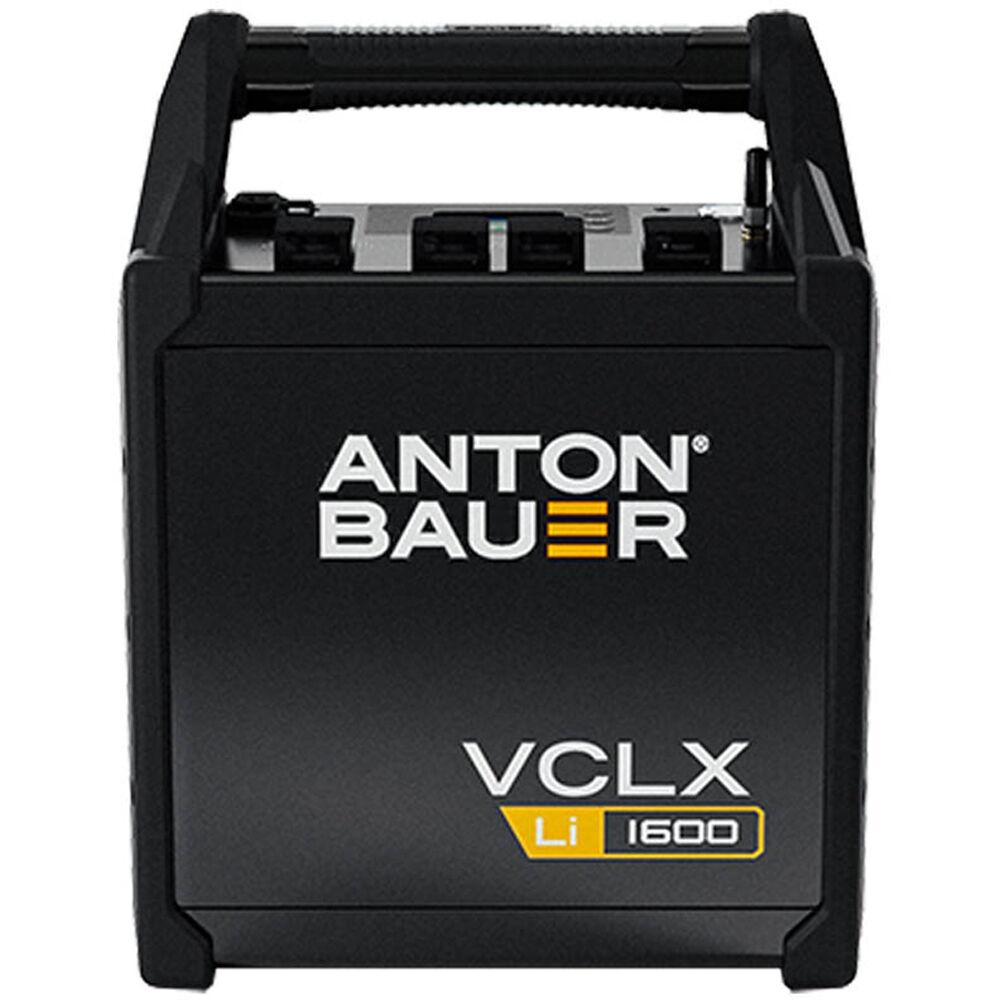

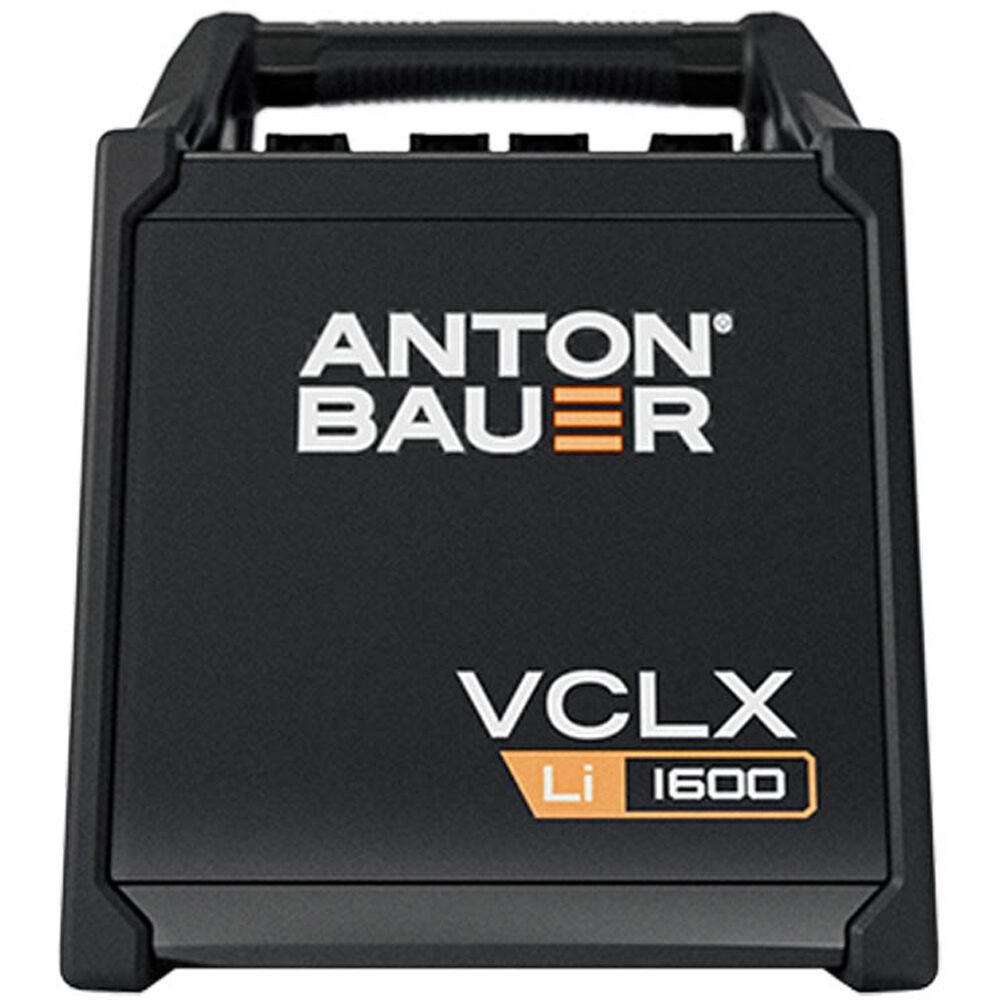

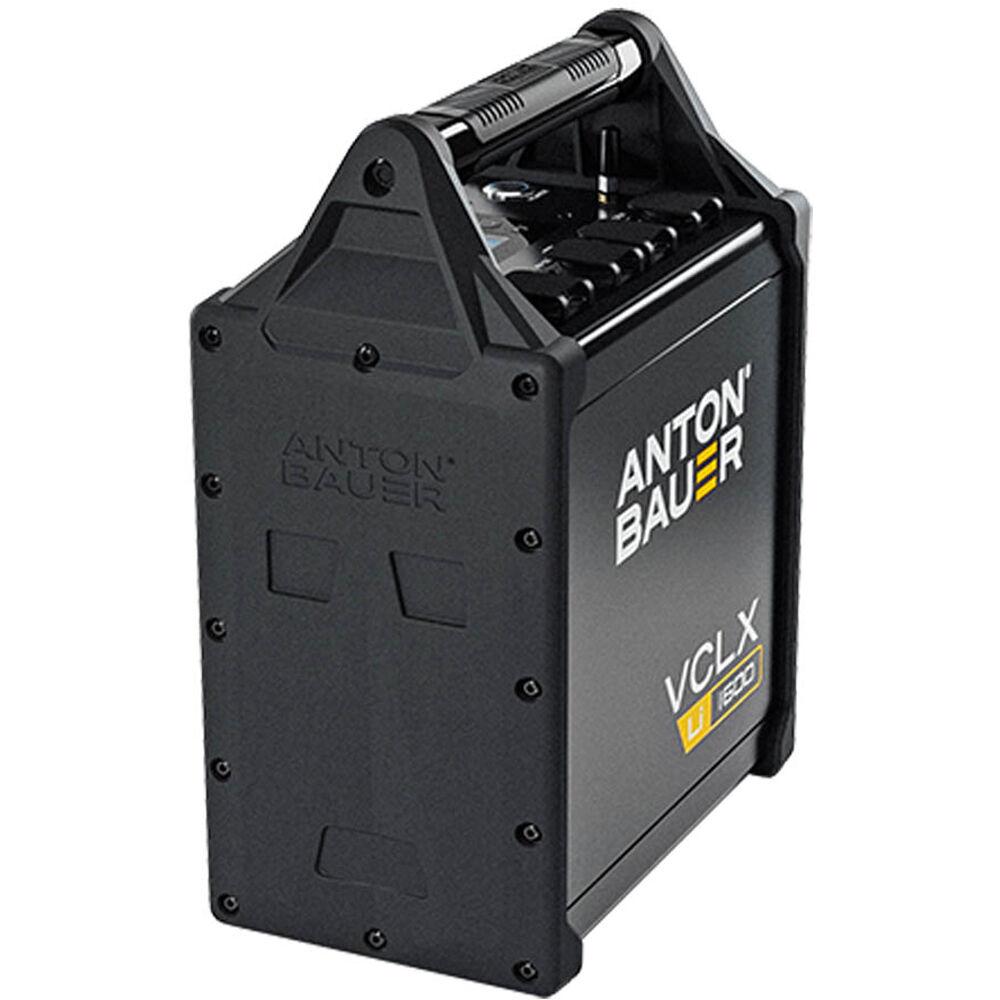

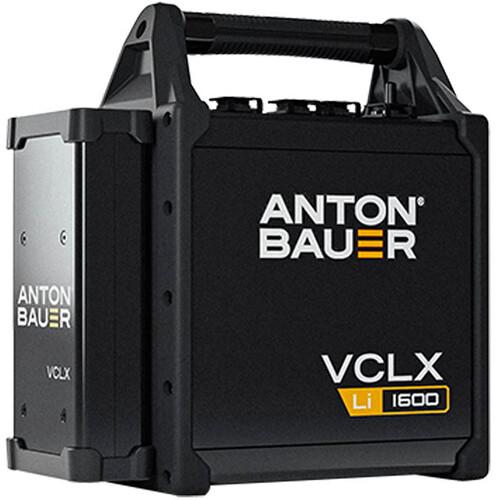

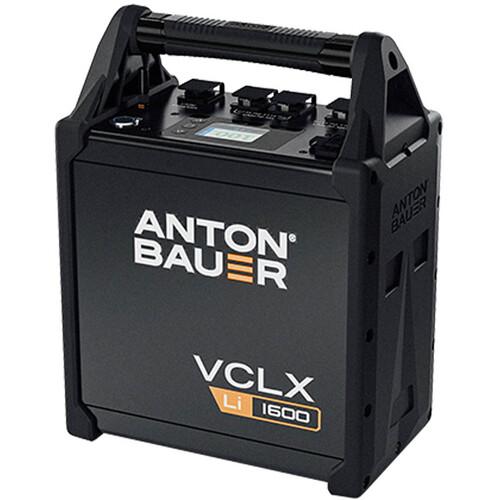

Anton/Bauer VCLX LI Lithium Ion 1600Wh Freestanding Battery
Anton/Bauer VCLX LI Lithium Ion 1600Wh Freestanding Battery
Anton/Bauer VCLX LI Lithium Ion 1600Wh Freestanding Battery
Anton/Bauer VCLX LI Lithium Ion 1600Wh Freestanding Battery
Anton/Bauer VCLX LI Lithium Ion 1600Wh Freestanding Battery
Anton/Bauer VCLX LI Lithium Ion 1600Wh Freestanding Battery
Anton/Bauer VCLX LI Lithium Ion 1600Wh Freestanding Battery
Anton/Bauer VCLX LI Lithium Ion 1600Wh Freestanding Battery
Anton/Bauer VCLX LI Lithium Ion 1600Wh Freestanding Battery
Anton/Bauer VCLX LI Lithium Ion 1600Wh Freestanding Battery
Anton/Bauer VCLX LI Lithium Ion 1600Wh Freestanding Battery
Anton/Bauer VCLX LI Lithium Ion 1600Wh Freestanding Battery
Anton/Bauer VCLX LI Lithium Ion 1600Wh Freestanding Battery
Anton/Bauer VCLX LI Lithium Ion 1600Wh Freestanding Battery
Anton/Bauer VCLX LI Lithium Ion 1600Wh Freestanding Battery
Anton/Bauer VCLX LI Lithium Ion 1600Wh Freestanding Battery
Anton/Bauer VCLX LI Lithium Ion 1600Wh Freestanding Battery
Anton/Bauer VCLX LI Lithium Ion 1600Wh Freestanding Battery
Anton/Bauer VCLX LI Lithium Ion 1600Wh Freestanding Battery
Anton/Bauer VCLX LI Lithium Ion 1600Wh Freestanding Battery

Anton/Bauer VCLX LI Lithium Ion 1600Wh Freestanding Battery

Brand: ANTON BAUER

MFR: 8675-0175

SKU: SF-2443-SXUF

Price Available Upon Request
  • 1642Wh Lithium-Ion Battery
  • Two 4-Pin XLR | 14.4V, 12A Each Output
  • One 3-Pin XLR | 28V, 16A or 48V, 12A
  • USB-A 5V Output
  • 2.4" LCD Screen, Integrated Wi-Fi
  • IP65 Rated, Fleet Management

Items Included

  • Anton/Bauer VCLX LI Lithium Ion 1600Wh Freestanding Battery
  • Limited 2-Year Manufacturer Warranty
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Battery Power Stations , Battery Power Stations

For long-lasting power, the Anton/Bauer VCLX LI Lithium Ion 1600Wh Freestanding Battery has dual 14.4V outputs and a single switchable 28/48V output, providing a single solution that can handle a wide variety of camera needs. This 1642Wh lithium-ion battery provides dual simultaneous outputs and is ideal for high-current applications. Power is outputted via two 4-pin XLR connectors for 14.4V at 12A and one 3-pin XLR connector for selectable 28 or 48V at 16A.

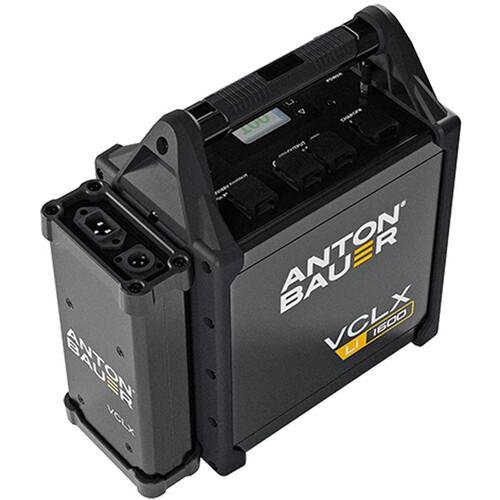

A USB-A port outputs 5V to charge peripheral accessories on set. A 2.4" LCD screen offers real-time monitoring, smart electronic fuses, and integrated Wi-Fi for easy data management using the Anton/Bauer Fleet Management software. The battery is IP65 rated to withstand the elements for maximum durability on set. Once depleted, the battery recharges with the separately available VCLX 2 charger in eight hours.

High-Current Outputs
The VLCX LI delivers 24A from the 4-pin XLR outputs and 16A from the selectable 3-pin XLR output, making it ideal for light panels and camera rigs.
Accurate Monitoring

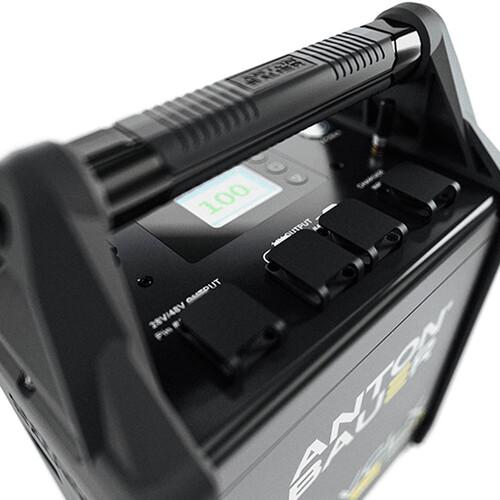

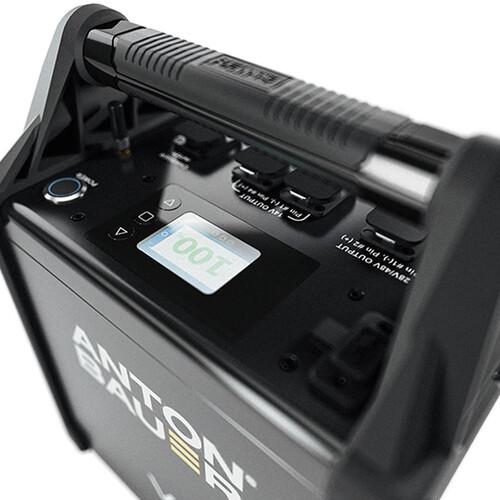

The 2.4" LCD makes monitoring remaining runtime, charge time, or active power draw easy. You can even perform real-time onboard diagnostics to ensure your battery performs perfectly. The battery calculates what is being powered by each port for maximum efficiency.
Fleet Management
Built-in fleet management allows you to download vital information instantly. View details on the learned capacity of the battery, the number of cycles it has run, the percentage charge, and any errors with time stamps for quick repairs.

General
Power I/O
2 x 4-Pin XLR
1 x 3-Pin XLR
1 x USB-A
Display
2.4" LCD
IP Rating
IP65
Battery
Battery Chemistry
Lithium-Ion
Battery Capacity
1642 Wh
Output Voltage
14.4 VDC
28 VDC
48 VDC
Charging Power
850 W(48 VDC / 16 A)
Recharge Time
8 Hours
Physical
Operating Conditions
32 to 104°F / 0 to 40°C
Charging Temperature
23 to 95°F / -5 to 35°C
Discharging Temperature
32 to 122°F / 0 to 50°C
Dimensions
12.99 x 10.04 x 6.02" / 32.99 x 25.5 x 15.29 cm
Weight
25.49 lb / 11.56 kg
Packaging Info
Package Weight
31.06 lb
Box Dimensions (LxWxH)
18.1 x 12.3 x 8.1"
