Anton/Bauer VCLX NM2 Package
Anton/Bauer VCLX NM2 Package

Anton/Bauer VCLX NM2 Package

Brand: ANTON BAUER

MFR: 8275-0155

SKU: SF-2443-9RTX

Price Available Upon Request
  • VCLX NM2 NiMH 600Wh Battery Station
  • VCLX 2 Charger with XLR Charging Cable
  • 600Wh NiMH Battery
  • One 3-Pin XLR; 28V/16A or 48V/12A
  • Two 4-Pin XLR; 14.4V/12A Each Output

Items Included

    • Limited 2-Year Manufacturer Warranty
    • IEC US Power Cord
    • Limited 2-Year Manufacturer Warranty
    • Limited 2-Year Manufacturer Warranty
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Battery Power Stations , Battery Power Stations

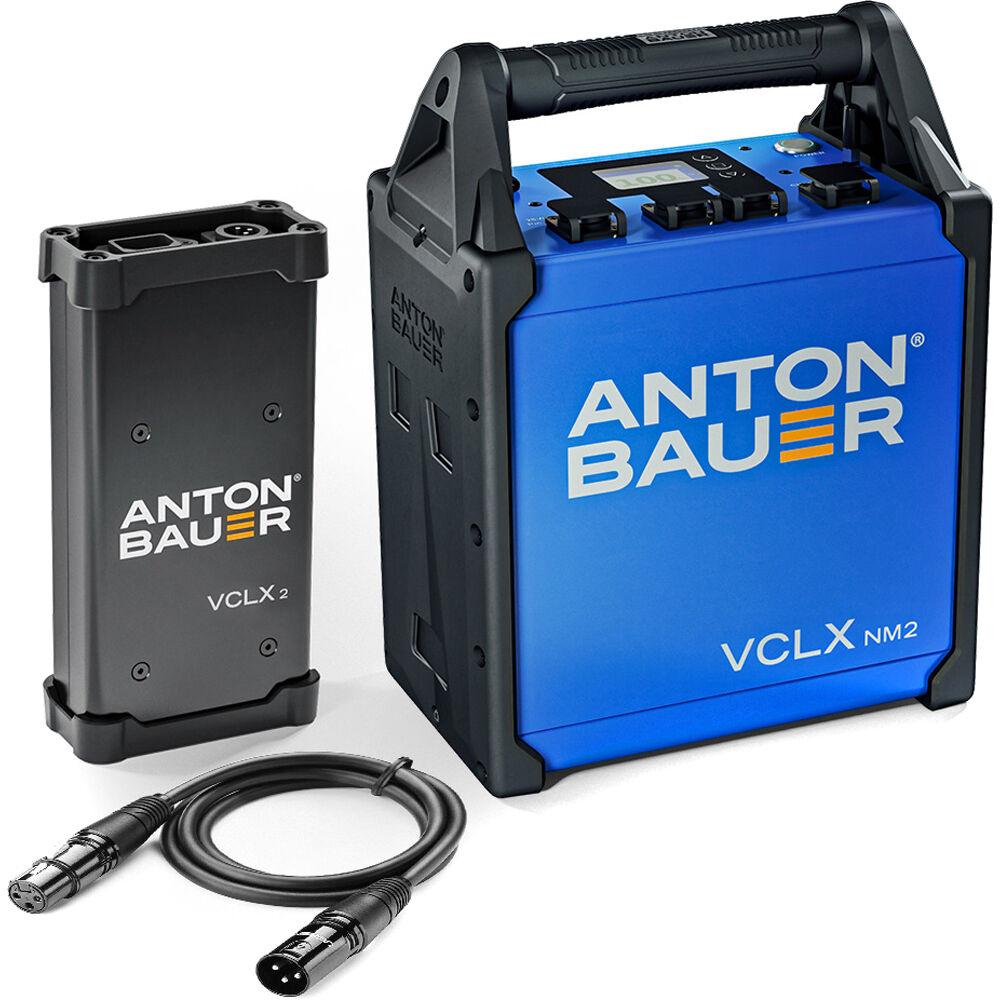

Add a full power station and charging kit to your production setup with this VCLX NM2 Package from Anton/Bauer. The package includes the VCLX NM2 NiMH 600Wh Free-Standing Battery, the VCLX 2 Charger for the VCLX NM2, and a 48" long XLR charging cable.

The multi-cell NiMH VCLX NM2 battery station provides multiple outputs to charge your gear, including a dual-voltage 28V/16A or 48V/12A 3-pin XLR, two 14.4V/12A 4-pin XLR outputs, and a 5V USB output. The included charger mounts onto the side of the VCLX NM2 and connects to its power input via the included 3-pin charging cable. It can charge the VCLX NM2 to full in approximately five hours.

Anton/Bauer VCLX NM2 NiMH 600Wh Free-Standing Battery

For long-lasting power, the Anton Bauer VCLX NM2 NiMH 600Wh Free-Standing Battery has dual 14.4V outputs and single switchable 28/48V output, providing a single solution that can handle a wide variety of camera needs. This 600 NiMH battery provides dual simultaneous outputs and is ideal for high-current applications. Power output is via two 4-pin XLR connectors for 14.4V and one 3-pin XLR connector for 28/48V output.

This battery connects to the VCLX 2 charger (not included) and has an onboard computer that continuously communicates with the charger for maximum power efficiency. Exchanged information includes the battery age, self-discharge, charge/discharge rate, cell imbalance, and previously experienced charge/discharge cycles. Also built into the battery is an LCD screen that accurately displays the remaining battery capacity percentage at all times.

Outputs
The battery features two 4-pin XLR outputs f14.4V, one 3-pin XLR output that is switchable between 28 and 48V, and one 5V USB Type-A output that supports up to 2A.
Microprocessor Fuel Computer
Accurately monitors the energy put into and taken out of the battery. This data is processed with sophisticated programs that take into account battery age, self-discharge, charge/discharge rate, cell imbalance, and previously experienced charge/discharge cycles. The battery constantly "learns" its precise state of charge and remaining capacity. This data is automatically transmitted to the charger.
Integral RealTime LCD
Provides a monitor for user interaction and three tactile buttons for menu navigation. It accurately displays the percentage of remaining battery capacity at all times.
Multi-Voltage Output
The multi-voltage output—14.4, 28, and 48V—makes this battery the perfect application for film cameras, monitors, lights, and many more accessories.
High-Current Output
Allows for 24 total amp current drawn from 14.4V outputs and 16A draw from 28V output. When set to 48V, the outputs support a draw of up to 12A.
Case Design
Anodized lightweight aluminum chassis and bolted aluminum handle with durable overmolded elastomer end caps and handle grip. VCLX NM2 battery protects the cells from impact and normal operating use.
Charging
This battery connects to the optional VCLX 2 charger and, using an advanced charge algorithm, allows the fastest charge on the block battery market. Information such as the product ID, learned capacity, cycle count, time-stamped errors, condition of the battery packs, and more is viewable either on the VCLX or through Anton Bauer's Fleet Management program, made possible by the built-in Wi-Fi.
Individual Computer Testing
Like all professional Anton Bauer batteries, this battery has been individually computer tested for assurance of optimum capacity, voltage, and overall quality.
Low-Voltage Cutoff
The battery has a low-voltage cutoff to protect against damage to the battery. The low voltage cut-off is set to 12V.
Fuses and Management
Smart electronic fuses controlled internally will prompt a warning on the LCD and automatically reset and self-heal when the battery detects it is safe to do so.  This event is also recorded internally with date and time stamp for reviewing via Fleet Management.
Anton/Bauer VCLX 2 Charger for VCLX NM2 Battery

The Anton Bauer VCLX 2 Charger features a slim and portable design and allows you to charge your Anton Bauer VCLX NM2 battery. It mounts magnetically onto the battery for a slim package, and it charges your battery in approximately five hours using an advanced charging algorithm that provides the fastest possible charge.

While the charger includes a US IEC power cable, it supports 90 to 240 VAC input power, so you can power it throughout the world using an optional IEC power cable of your choice. A built-in 3-pin XLR connector allows you to charge your battery using an optional 3-pin XLR cable.

Anton/Bauer XLR Charging Cable for VCLX 2 Charger (48")

Made tough to stand up to the rigors of the production day while handling the extremes of temperature, the 48" Anton/Bauer XLR Charging Cable for VCLX 2 Charger is made specifically to link your VCLX NM2 battery to the charger. Featuring one male and one female 3-pin XLR connector, and 14 AWG wire gauge cable, you can safely charge your battery with this cable.


General
Compatibility
Not Specified by Manufacturer
Battery
Battery Chemistry
Nickel-Metal Hydride
Battery Capacity
600 Wh
Output Voltage
5 VDC
12 VDC
17 VDC
28 VDC
48 VDC
Cells
48
Recharge Time
5 Hour
Physical
Operating Conditions
12 to 92°F / -20 to 60°C
Dimensions
13 x 10 x 6" / 330 x 255 x 153 mm
Weight
29.3 lb / 13.3 kg
Packaging Info
Package Weight
34.84 lb
Box Dimensions (LxWxH)
15.2 x 12.9 x 9.7"
