Aputure Sidus Four 4-Universe CRMX Transmitter
Aputure Sidus Four 4-Universe CRMX Transmitter
Aputure Sidus Four 4-Universe CRMX Transmitter
Aputure Sidus Four 4-Universe CRMX Transmitter
Aputure Sidus Four 4-Universe CRMX Transmitter
Aputure Sidus Four 4-Universe CRMX Transmitter
Aputure Sidus Four 4-Universe CRMX Transmitter
Aputure Sidus Four 4-Universe CRMX Transmitter
Aputure Sidus Four 4-Universe CRMX Transmitter
Aputure Sidus Four 4-Universe CRMX Transmitter
Aputure Sidus Four 4-Universe CRMX Transmitter
Aputure Sidus Four 4-Universe CRMX Transmitter
Aputure Sidus Four 4-Universe CRMX Transmitter
Aputure Sidus Four 4-Universe CRMX Transmitter

Aputure Sidus Four 4-Universe CRMX Transmitter

Brand: APUTURE

MFR: APR0317A31

SKU: SF-2443-XJDB

9,145.00 ﾹ

  • Transmit to up to 8 Universes
  • Four Bidirectional Wired DMX512 Ports
  • CRMX, Sidus, Art-Net, sACN Support
  • Built-In Wireless Router/Ethernet Node
  • 5.8 GHz over Wi-Fi; 2.4 GHz over CRMX
  • Sidus via Bluetooth
  • Wireless Range: Over 2600' (Wi-Fi/CRMX)
  • V-Mount Plate & Internal Backup Battery
  • IP65 Weather Resistant for Outdoor Use

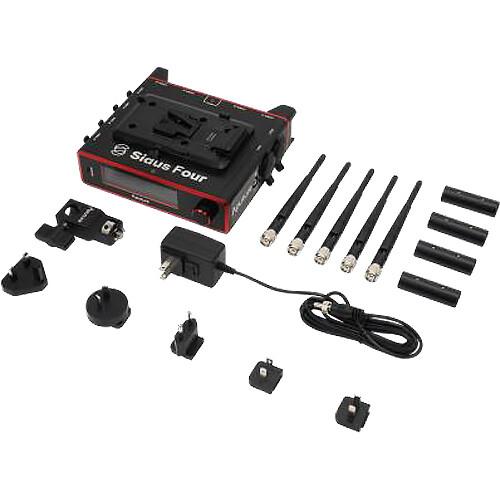

Items Included

  • Aputure Sidus Four 4-Universe CRMX Transmitter
  • 5 x Dual-Band Antenna
  • 3/8" to Baby Pin Receiver Adapter
  • 18W / 9V Power Adapter
  • Power Plug Set
  • 5-Pin XLR Male to 5-Pin XLR Male Adapter
  • Hard-Shell Case
(In Stock)
Quantity

Categories: Light Control

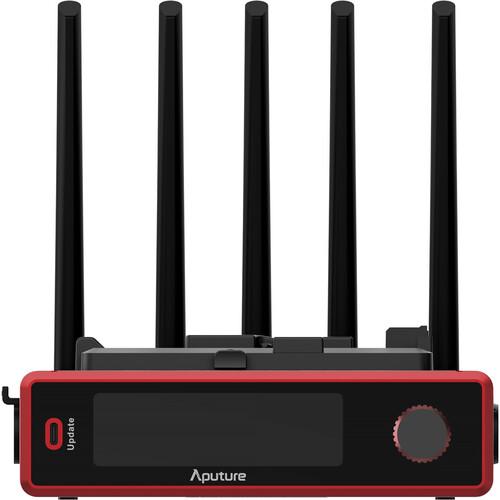

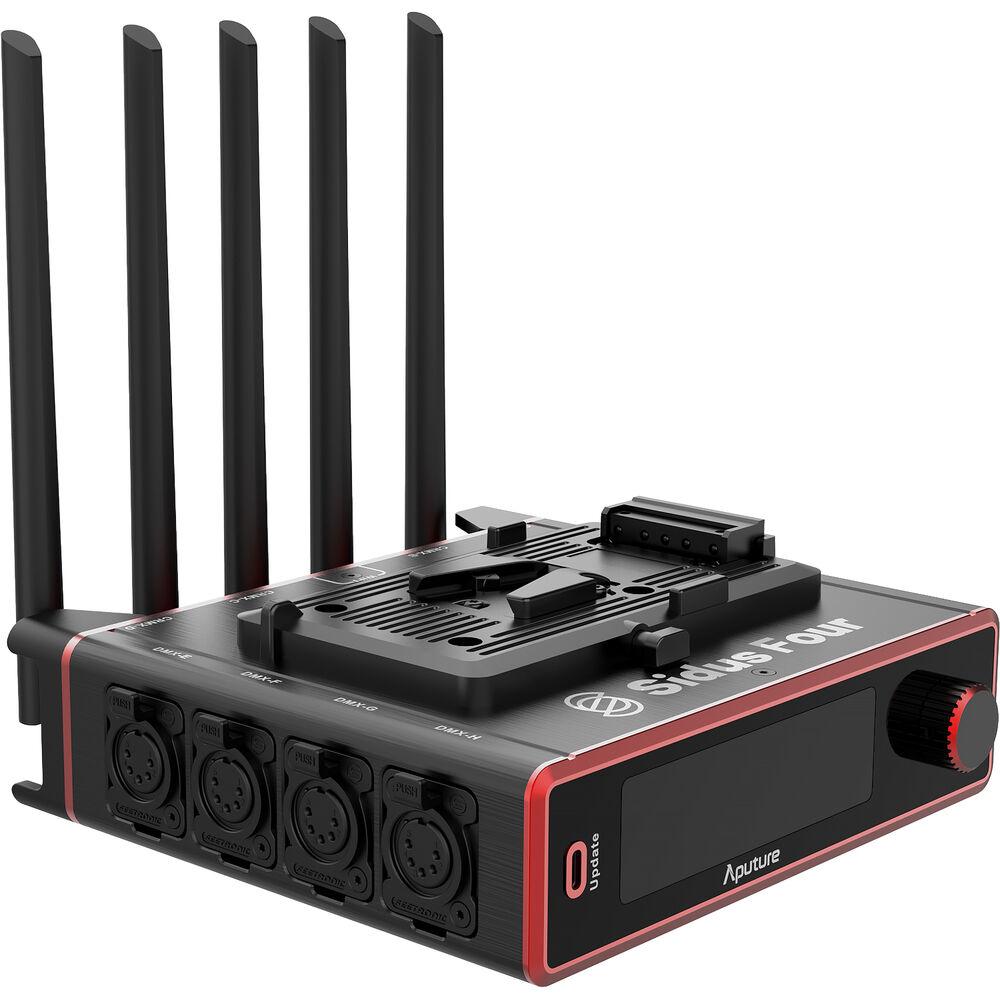

Transmit control via wired and wireless connections to up to 8 universes with the Sidus Four 4-Universe CRMX Transmitter from Aputure. The Sidus Four is a battery-powered transmitter that features four wired 5-pin DMX512 bidirectional ports and support for up to four wireless outputs using CRMX, DMX512, Sidus, Art-Net, and sACN protocols via Wi-Fi, Bluetooth, or Ethernet. The Sidus Four can be expanded to support even more universes.

Other features include a large TFT LCD display, 2.4/5 GHz Wi-Fi, 100 Mb/s Ethernet, a V-mount battery plate, and an internal 1500mAh backup battery for uninterrupted operation for up to 80 minutes. The unit's durable, IP65-rated construction makes it available for use in any filmmaking environment.

Up to Eight DMX Universes
The Sidus Four is a four-universe CRMX transmitter with a built-in wireless router and Ethernet node that supports up to four additional wired DMX universes with its bidirectional 5-pin DMX512 ports. With both wired and wireless in operation, Sidus Four can transmit up to 8 DMX universes.
Transmit Any Protocol
Combined with its high-output dual-band antennas, the Sidus Four is a powerful transmitter for the all popular lighting protocols. It can act as a CRMX/DMX transmitter and a Wi-Fi or Ethernet-based sACN/Art-Net Node.
Quick Network Troubleshooting
The Sidus Four's display screen features an intuitive user interface that clearly communicates network vitals, empowering users to quickly troubleshoot their network health without needing to dive into complex menus.
Minimal Frequency Interference
The transmitter features 2.4 GHz CRMX and 5.8 GHz Wi-Fi operating frequencies, mitigating the risk of network interference due to frequency overlap and improving network reliability.

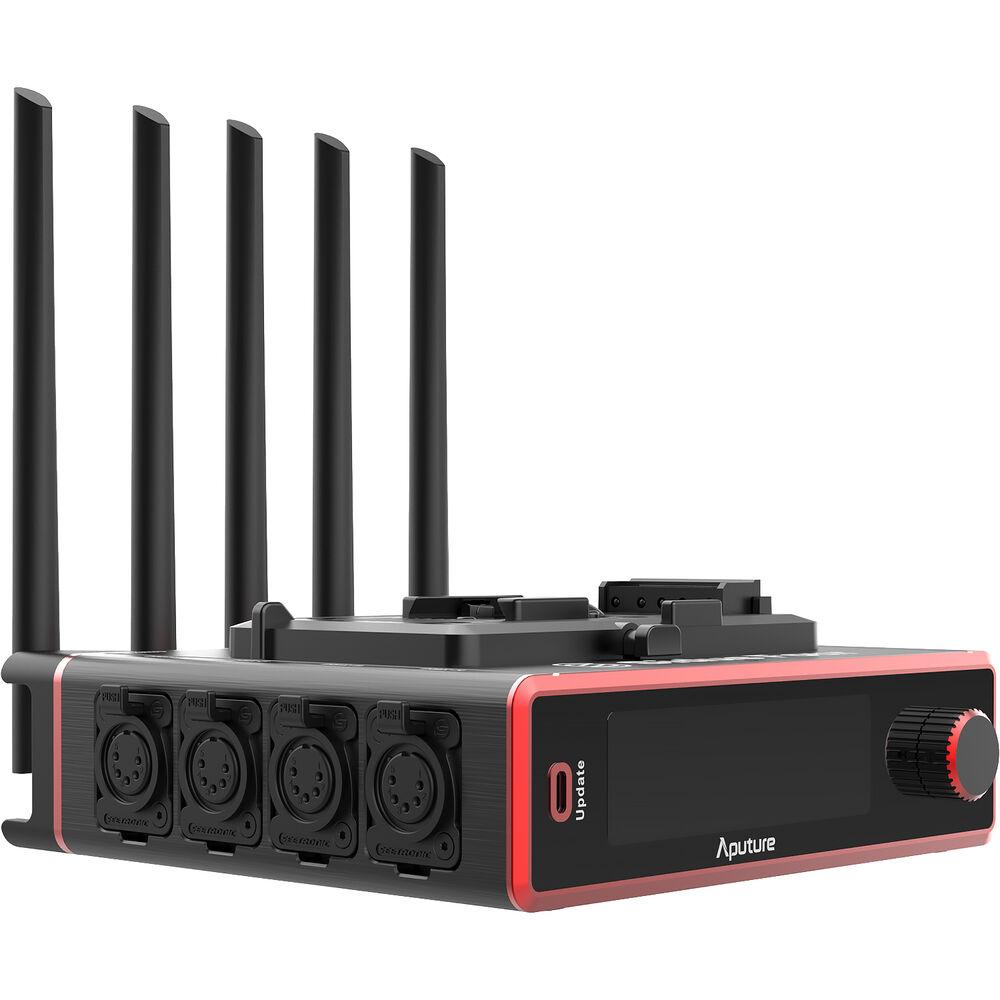

Wired Connectivity Options
The Sidus Four comes features two 100 Mb/s Ethernet RJ45 ports as well as four bidirectional DMX512 XLR ports.

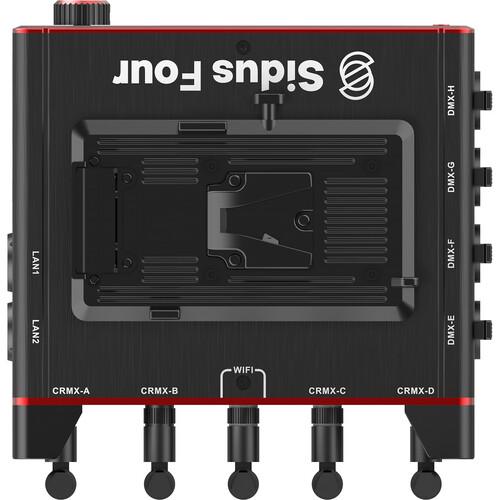

Power Options
With a built-in V-mount battery plate and an 80-minute internal backup battery, the Sidus Four provides multiple battery solutions to choose from to power their device with redundancy.
Weather-Resistant
Made for professional filmmakers and lighting technicians, the Sidus Four is built with a
durable IP65-rated dust- and water-resistant construction for use in any environment.

General
Inputs/Outputs
4x XLR 5-Pin (DMX) Female Input/Output
2x RJ45 (10/100 Ethernet) Female Input/Output
1x USB-C Female Input
1x DC Barrel (Power) Female Input
Channels
4096 (DMX)
Dimming
Optional
Cooling System
Passive
Wireless
5.8 GHz Radio/RF / 2.4 GHz Radio/RF / Bluetooth / ArtNet / Wireless DMX
Wireless Range
2624.7' / 800 m (Wi-Fi)
2624.7' / 800 m (CRMX)
984.3' / 300 m (Bluetooth)
Frequency
2.4 to 5.8 GHz
Power
Power Source
Built-In Rechargeable Battery, USB Power, AC Power
Power Consumption
17 W
Input Power
9 VDC
Runtime
1.5 Hours
Recharge Time
3.5 Hour
Battery Chemistry
Lithium-Ion Polymer (LiPo)
Battery Capacity
1500 mAh
USB Power Output
5 VDC at 2.0 A
Compatibility
Protocol
ArtNet, CRMX, DMX512, sACN
Physical
Operating Conditions
-4 to 131°F / -20 to 55°C
Environmental Resistance
Dust/Weather/Water-Resistant (IP65)
Dimensions
7.4 x 7.3 x 2.7" / 18.7 x 18.6 x 6.9 cm
Weight
49.4 oz / 1.4 kg
Packaging Info
Package Weight
11.17 lb
Box Dimensions (LxWxH)
14.6 x 13.2 x 6.2"

Add your review

Your email address will not be published. Required fields are marked *

Please login to write review!

Upload photos

Looks like there are no reviews yet.

Items Included

  • Aputure Sidus Four 4-Universe CRMX Transmitter
  • 5 x Dual-Band Antenna
  • 3/8" to Baby Pin Receiver Adapter
  • 18W / 9V Power Adapter
  • Power Plug Set
  • 5-Pin XLR Male to 5-Pin XLR Male Adapter
  • Hard-Shell Case
