ARRI cforce mini RF Basic Set 2
ARRI cforce mini RF Basic Set 2
ARRI cforce mini RF Basic Set 2
ARRI cforce mini RF Basic Set 2

ARRI cforce mini RF Basic Set 2

Brand: ARRI

MFR: KK.0040345

Price Available Upon Request
  • Mini RF Motor, Clamp 2, Gear & Antenna
  • Built-In, White-Coded RF Module
  • Eliminates Need for Separate Receiver
  • Adjusts Lens Focus, Iris, or Zoom
  • Power & Run/Stop via CAM Connector
  • 14 Radio Channels
  • Daisy-Chains with Classic cforce Motors
  • Daisy-Chains with LBUS Devices
  • Compatible with WCU-4 Hand Unit
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Wireless Lens Control Solutions , Wireless Lens Control Solutions

cforce mini RF: Intelligent Lens Motor

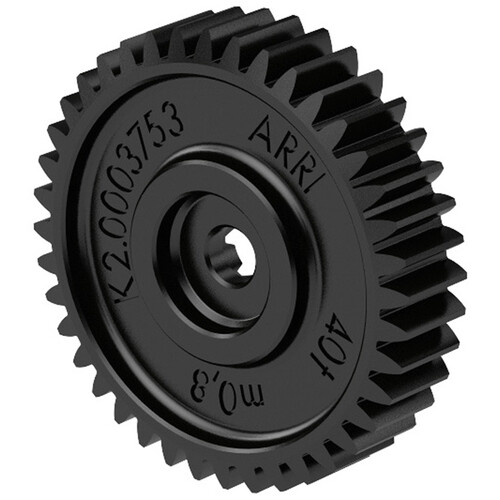

The ARRI cforce mini RF Basic Set 2 is a compact lens control motor set with an integrated white-coded RF radio module that eliminates the need for a separate receiver unit on your camera rig. This cforce mini Basic Set is comprised of one motor, an 08.MOD 40-tooth gear, a 2400 MHz antenna, and a rod clamp. Suited for gimbal, stabilizer, handheld, and drone setups, the cforce mini RF motor can be daisy-chained with classic cforce motors and ARRI LBUS components. Power and run/stop control are supplied for ARRI and select third-party cameras through the motor's CAM connector.

Daisy-Chain up to 3 Motors

  • Link up to three motors for a complete FIZ lens control system
  • Pair with up to three hand units for setups where splitting FIZ control is preferred
  • Daisy-chainable with classic cforce motors and ARRI LBUS components

Note:

The required LBUS cables must be obtained separately

Lens Metadata

  • Lens metadata support for focus mapping
  • Abie to display data on a WCU-4 hand unit

White Radio Module

  • Integrated white ARRI radio module
  • Supports OCU-1 override function
  • Compatible with WCU-4, SXU-1, and legacy, white-coded ARRI hand units

Long Range

Supports up to 4921' wireless range

Run/Stop Function


Provides power and run/stop control for ARRI and select third-party cameras via a CAM connector

14 Radio Channels

  • Compact FIZ motor with integrated 14-channel RF module
  • Improved resistance to interference

Power

Power SourceCamera
DC Input Power12 to 34 VDC
Operating Current6 A

Environmental

CertificationsCE, FCC-A, IC, Kcc

Physical

Mounting1 x 19mm Rod Clamp
1 x 15mm Rod Clam with Reducer
Dimensions5.6 x 3.8 x 1.4" / 142 x 96 x 36 mm (Including Antenna)
Weight5.4 oz / 153 g (Including Gear & Clamp)

Packaging Info

Package Weight0.825 lb
Box Dimensions (LxWxH)7 x 4.9 x 2.6"
