ARRI DRW-1 Two Wheels Set
ARRI DRW-1 Two Wheels Set

ARRI DRW-1 Two Wheels Set

Brand: ARRI

MFR: KK.0021212

Price Available Upon Request
  • Dual SRH-3 Handwheel Control
  • 2 x 5.9" Handwheels
  • 2 x LBUS-Compatible DRW-1 Modules
  • 1 x DRW-1 Mounting Base
  • 1 x 1' LBUS Cable, 1 x 1.5' LBUS Cable
  • Compatible with Optional 3rd Handwheel
  • For SRH-3 Stabilized Remote Head Only
  • Manual Handwheel Brakes
  • Adjustable Drag Rings on Wheels
  • 3/8"-16, Mitchell & Euro Mount Threads
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Gimbal Controllers , Gimbal Controllers

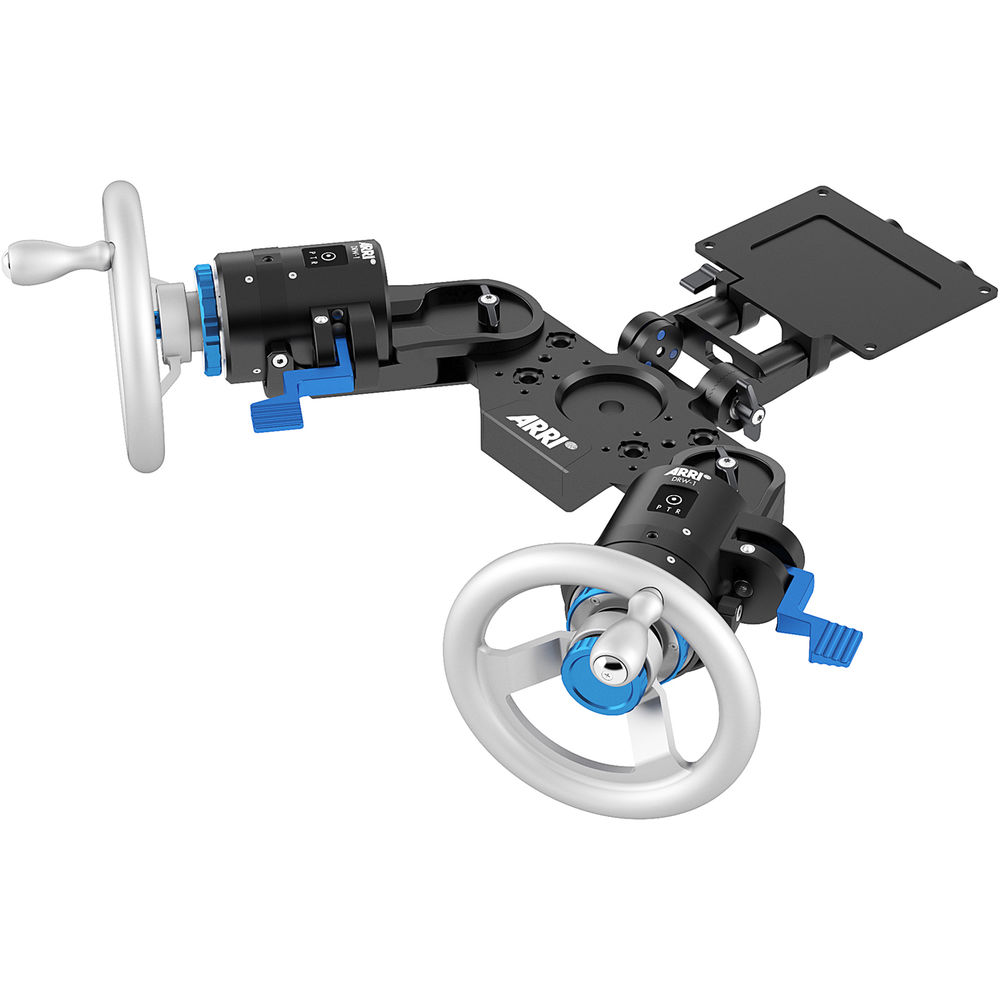

The ARRI DRW-1 Two Wheels Set provides dual-axis, ARRIHEAD-style wheeled control of the separately available ARRI Stabilized Remote Head SRH-3. This set includes two 5.9" handwheels, two LBUS-compatible DRW-1 modules, LBUS cables, and a base for mounting up to three wheels.

Each of the two wheels provides smooth, precise control over one of the SRH-3's axis. Wheel features include adjustable fluid drag rings, mechanical brake levers, and LED lights indicating the lock status. Each DRW-1 module incorporates a push button for assigning the wheel to the head's pan, tilt, or roll axis.

Attach this DRW-1 Set's base to a separately available Mitchell mount, Euro mount, or long camera dovetail plate to mount the wheels on a tripod or stand.

Features

  • Melds digital LBUS protocol with precision manual wheels
  • Offers ARRIHEAD-style wheeled control of SRH-3 Stabilized Remote Head
  • Two wheels can be assigned to pan, tilt, or roll axis
  • Manual brake levers with LED status indicators
  • Fluid drag rings
  • Base can be mounted via 3/8"-16 threads, long camera dovetail, Mitchell, or Euro mount thread sets

Control ProtocolLBUS
Temperature Range-4 to 122°F / -20 to 50°C
Wheel Diameter5.9" / 150 mm
Base MountsMultiple 3/8"-16 Threads
Euro Mount Thread Sets
Mitchell Mount Thread Sets
DimensionsFoam Exterior: 20.4 x 15.4 x 9.0" / 518 x 392 x 229 mm
WeightDRW-1 Module: 1.5 lb / 0.7 kg
DRW-1 Mounting Base: 3.3 lb / 1.5 kg
Handwheel: 1.7 lb / 0.8 kg
