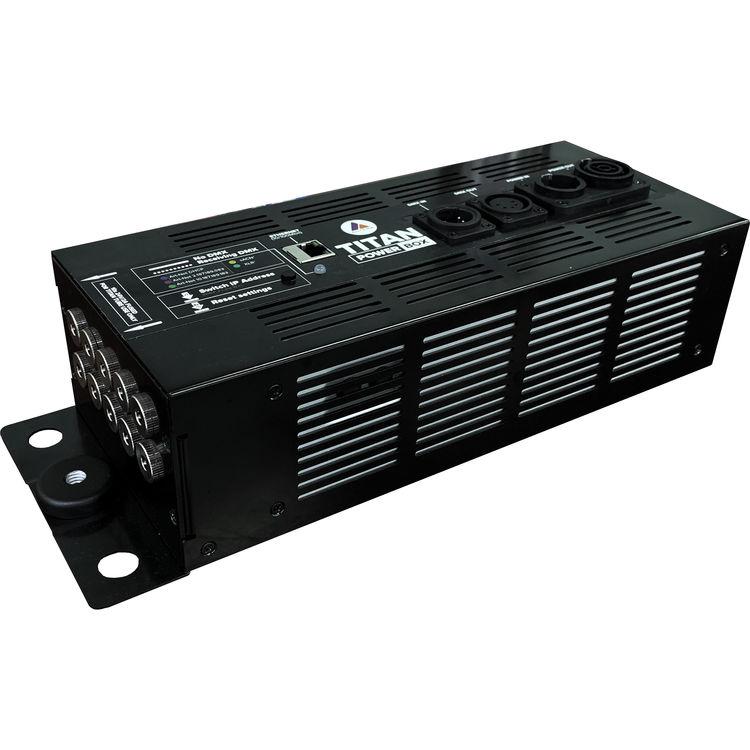

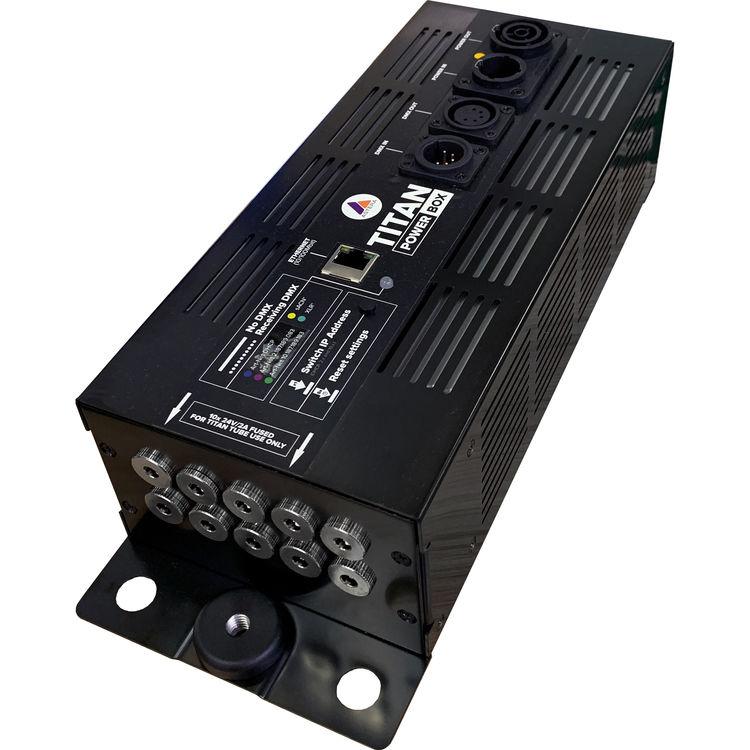

The PowerBox for Titan Tubes charges eight LED tubes simultaneously, although up to ten Titan Tubes can be connected to each PowerBox with a special power+data cable. The maximum cable length is 49'. The PowerBox has a powerCON True1 input and output and a 5-pin XLR input and output, while it also has an RJ45 port for Art-Net and sACN protocols whose signals it converts to DMX. Designed to be used on the floor or hung from a truss, it has a 3/8"-16 thread that can be removed to allow 1/2" clamps to be attached, as well as tapped holes for safety wires. The PowerBox comes with eight 14.6" charging cables.
| Light Compatibility | Astera: Helios Tube / Titan Tube / HydraPanel / PixelBrick / PowerStation |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Output Voltage | 24 VDC |
| Maximum Power Load | 2 A per Circuit |
| Inputs/Outputs | 1x powerCON TRUE1 AC Power Input (100 to 240 VAC, 50 / 60 Hz) 1x powerCON TRUE1 AC Power Thru (100 to 240 VAC, 50 / 60 Hz) 10x Barrel / Coax (2.1 x 5.5 mm) Power Output (24 VDC at 2 A) 1x XLR 5-Pin DMX Input 1x XLR 5-Pin DMX Output 1x RJ45 Network Input |
| Included Adapter / Cable | 1x USA Type-A/B to powerCON Cable 8x Barrel / Coax to Barrel / Coax Cable |
| Mounting | 3/8"-16 Female |
| Environmental Resistance | Dust-Resistant (IP20) |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
| Materials | Metal |
| Dimensions | 12.6 x 4.9 x 3.6" / 321 x 125 x 90.7 mm |
| Weight | 8.37 lb / 3.8 kg |
| Package Weight | 9.985 lb |
| Box Dimensions (LxWxH) | 13 x 7.4 x 4" |
