AVMATRIX 3G-SDI Fiber Optic Extender Transmitter & Receiver Set

AVMATRIX 3G-SDI Fiber Optic Extender Transmitter & Receiver Set

Name: AVMATRIX 3G-SDI Fiber Optic Extender Transmitter & Receiver Set
Brand: AVMATRIX
SKU: SF-2443-JTES
Price: 1620 AED
Availability: InStock

Brand: AVMATRIX

MFR: FE1121

SKU: SF-2443-JTES

1,620.00 ﾹ

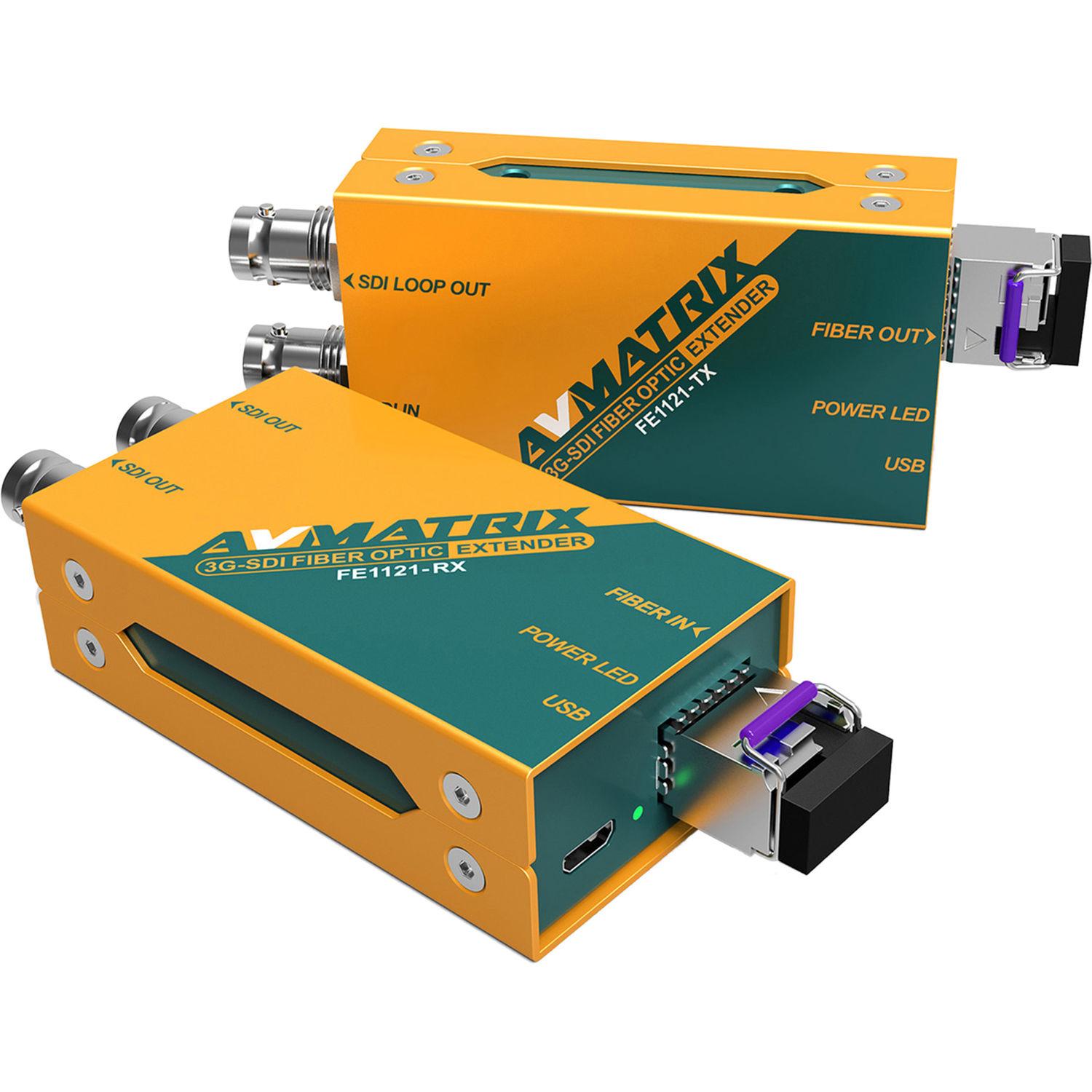

1 x Transmitter & 1 x Receiver
Transmits 1080p up to 12.5 Miles
3Gb/s Maximum Bandwidth
SD-SDI/HD-SDI/3G-SDI Automatic Switching
Dual 3G-SDI Outputs on Receiver
SDI Equalization & Re-Clocking

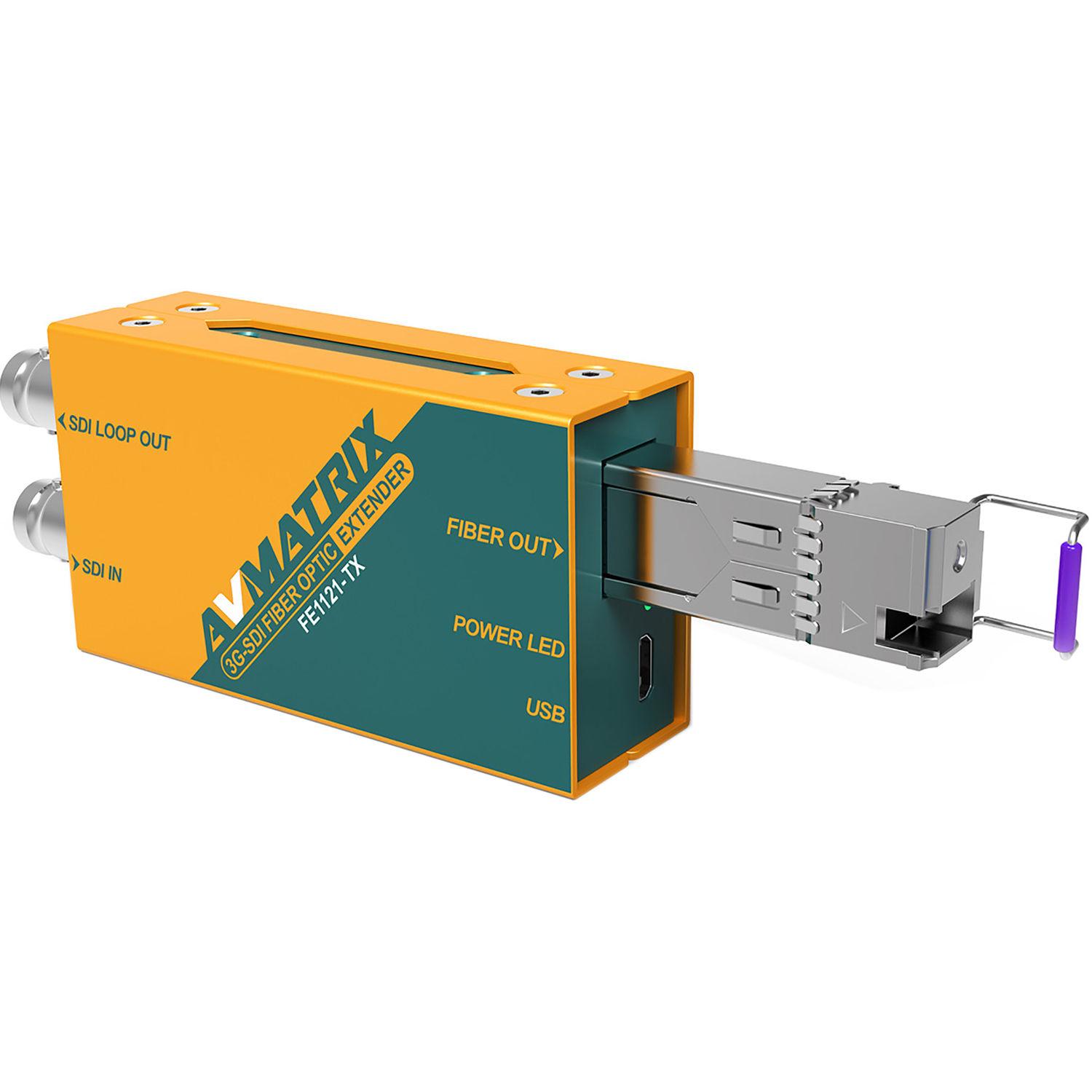

Hot-Pluggable SFP Module with LC Port
2 x USB Cables and 2 x 5V Power Adapters
2 x Mounting Brackets

Items Included

AVMATRIX 3G-SDI Fiber Optic Extender Transmitter & Receiver Set

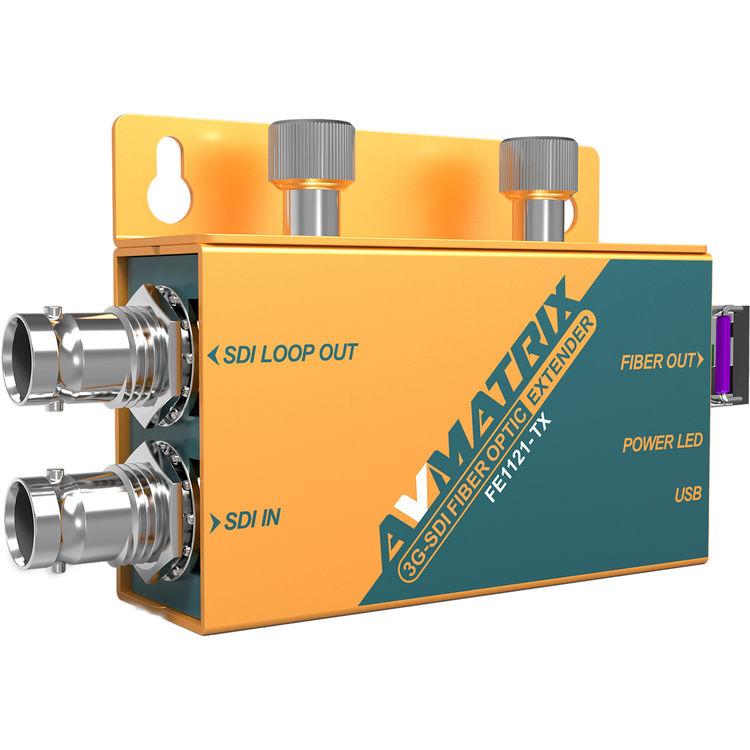

FE1121-TX Transmitter

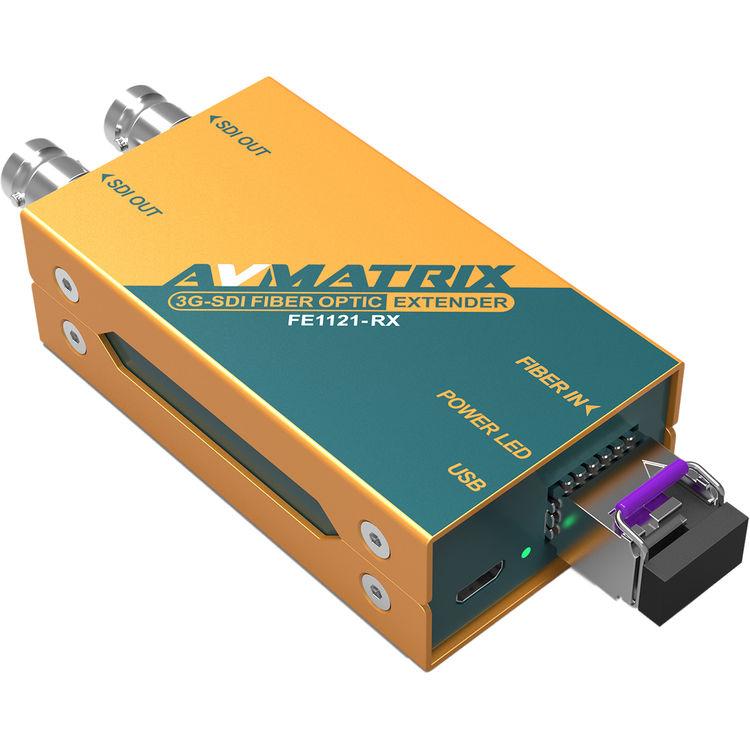

FE1121-RX Receiver
2 x 5V Power Adapters
2 x USB Cables

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Quantity

Categories: Receivers , Transmitter

The 3G-SDI Fiber Optic Extender from AV Matrix extends HD/SD signals up to 3G-SDI using your fiber optic cable network. This transmitter and receiver set has a range of up to 12.5 miles and features dual 3G-SDI outputs on the receiver. Supporting all SDI video resolutions up to 1080p at a bandwidth of up to 3Gb/s, this compact set is compatible with single-mode LC simplex fiber cable. Features include SDI equalization, re-clocking, hot-pluggable SFP modules with LC connectors, and up to 16-channel embedded audio support. This set includes two USB cables, 5V power adapters, and mounting brackets.

Extends HD/SD signals up to 3G-SDI, 1080p over single-mode LC fiber optic cable

Supports range of up to 12.5 miles

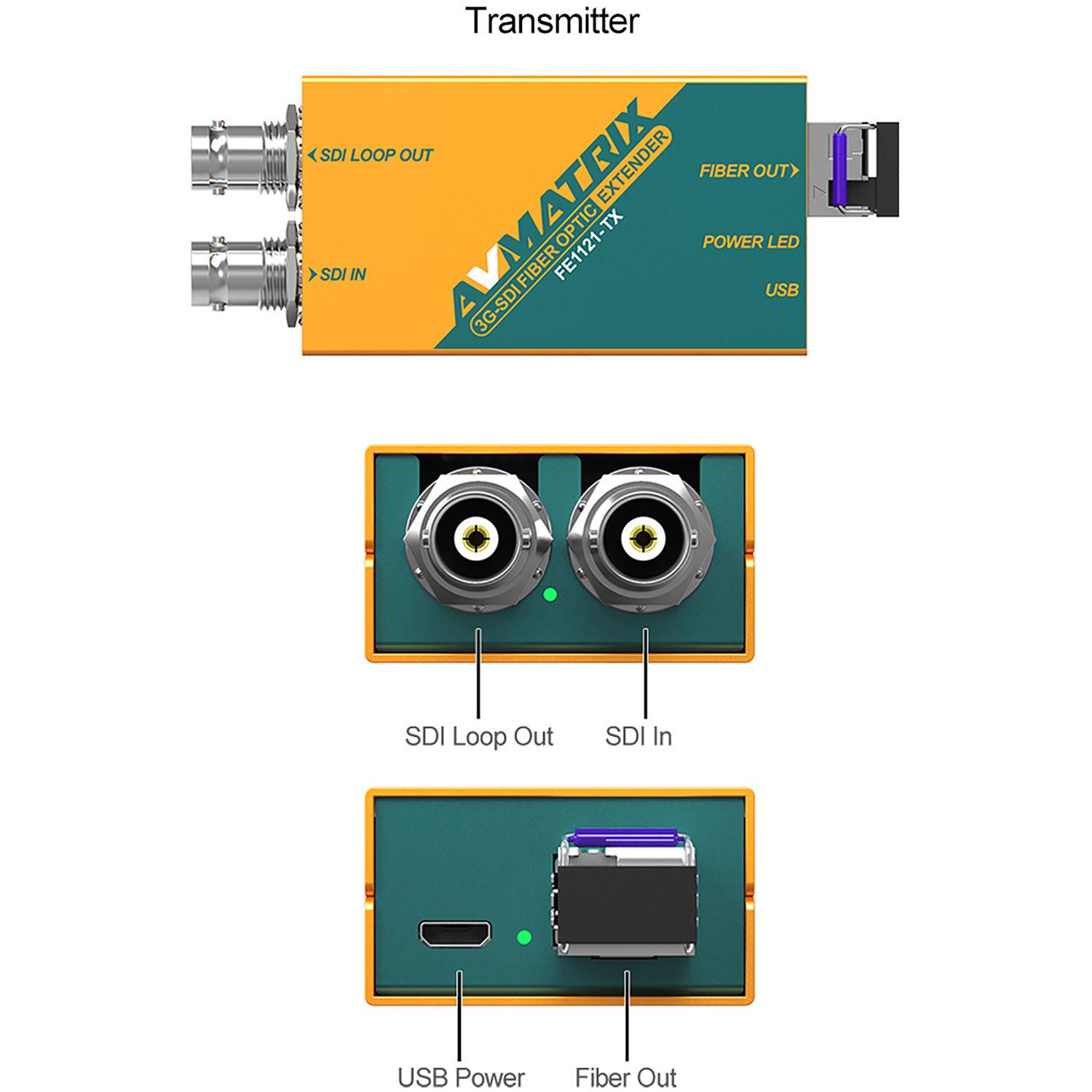

SDI input and loop out, LC single-mode fiber output on transmitter

LC single-mode fiber input, dual SDI outputs on receiver

Supports metadata and 16-channel embedded audio

Signal re-clocking

Compact, USB-powered form

Interfaces

Transmission I/O	Transmitter: 1x BNC (HD-SDI / SD-SDI / 3G-SDI) Input 1x LC (Fiber) Output Receiver: 1x BNC (HD-SDI / SD-SDI / 3G-SDI) Output 1x LC (Fiber) Input
Embedded Audio	SDI: 16-Channel
Power I/O	Transmitter: 1x USB-C (3.3 to 5 VDC) Input Receiver: 1x USB-C (3.3 to 5 VDC) Input

Standards

Video Standard Compliance	SMPTE 425M/297M/274M/292M/296M/259M ITU -R BT.656/BT.601
HDR Support	No
Reclocking	Yes
HDCP Support	No
EDID Support	No

Transmission

Max Transmission Distance	1080p: 12.4 Miles / 20 km (via Single-Mode Fiber)
Video Format	SDI : 1920 x 1080p: 59.94 fps
Supported Cable Types	Single-Mode Fiber

Power

Power Consumption

Transmitter:
1.6 W
Receiver:
1.5 W

General

Operating Conditions	12 to 92°F / -20 to 60°C up to 90% Humidity
Storage Conditions	-22 to 158°F / -30 to 70°C
Dimensions	Receiver: 2.8 x 1.6 x 0.9" / 71 x 41 x 23 mm
Weight	Transmitter: 7.1 oz / 200 g Receiver: 7.1 oz / 200 g
