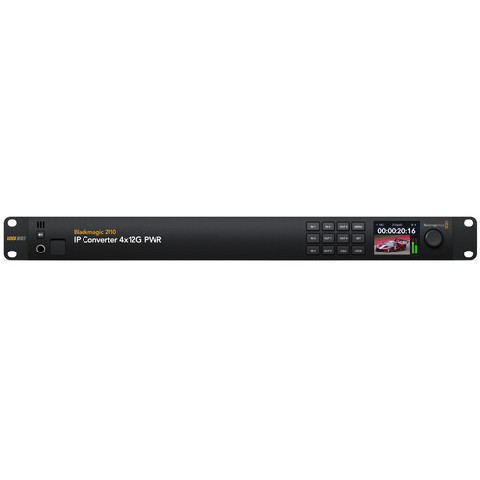

Blackmagic Design 2110 IP Converter 4x12G PWR
Blackmagic Design 2110 IP Converter 4x12G PWR
Blackmagic Design 2110 IP Converter 4x12G PWR
Blackmagic Design 2110 IP Converter 4x12G PWR

Blackmagic Design 2110 IP Converter 4x12G PWR

Brand: Blackmagic Design

MFR: CONVNVIPB4/12GPWR

7,930.00 ﾹ

  • Converts Four 2110 IP Devices to 12G-SDI
  • Simultaneously Powers Devices
  • UHD 4K Resolution Support
  • One 12G-SDI Program Return Feed
  • Redundant Power
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Blackmagic Design 2110 IP Converter 4x12G Overview

Bring your 12G-SDI broadcast gear up to SMPTE-2110 compliance with this 2110 IP Converter 4x12G PWR from Blackmagic Design. The converter provides bidirectional 12G-SDI to SMPTE-2110 IP video conversion connections, and it supports up to four Studio 6K Pro cameras via its 10G Ethernet connections with a 12G-SDI input for each connection. It also supports providing power to the Studio cameras over each 10G Ethernet connection via PoE. Its 1 RU design fits in a standard studio rack, as well as a 12G-SDI return input and redundant power.

Features

  • This converter is designed to add SMPTE-2110 IP video to 12G-SDI broadcast equipment
  • 1 RU design
  • Four independent bidirectional 12G-SDI to SMPTE-2110 IP video converters using RJ-45 10G Ethernet connections
  • It can supply high power to each 10G Ethernet connection guaranteed, so you can connect 4 Blackmagic Studio Camera 6K Pros, all at the same time
  • Each channel has a 12G-SDI input, and there's even a 12G-SDI program return input that sends to all channels

Key Specs

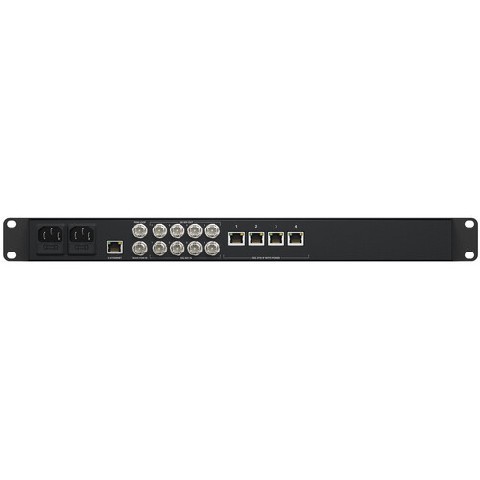

Video I/O

Input
4x BNC (12G-SDI) Female
1x BNC (12G-SDI) Female (Program)
Output
4x BNC (12G-SDI) Female
1x BNC (12G-SDI) Female (Loop Output)

Show More

Audio I/OOutput
1x 1/4" TRS Stereo Analog Female
Video Resolution

BNC Input/Output
4096 x 2160 at 24/25/29.97/30/47.95/48/50/59.94/60 fps
3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080PsF at 25/29.97/30 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps

Show More

WirelessNo
OS CompatibilitymacOS 13 or Later
Windows 10 to 11
Audio I/OOutput
1x 1/4" TRS Stereo Analog Female
Other I/OInput
1x USB-C 3.0 / 3.1/3.2 Gen 1
Input/Output
4x RJ45 (10 GbE)
Input/Output
1x RJ45 (10/100/1000 Ethernet)
Expansion SlotsNo
Video ResolutionBNC Input/Output
4096 x 2160 at 24/25/29.97/30/47.95/48/50/59.94/60 fps
3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080PsF at 25/29.97/30 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps
Embedded AudioLAN (RJ45)/SDI

Standards

Video Standard ComplianceSMPTE: ST-2110
HDCP SupportNo
HDR SupportYes

Hardware

WirelessNo
OS CompatibilitymacOS 13 or Later
Windows 10 to 11
Display2.2" LCD

Power

Power I/O2x IEC C14 (100 to 240 VAC ) Input
PoE SupportPoE Proprietary

General

Operating Conditions41 to 104°F / 5 to 40°C up to 90% Humidity
Storage Conditions-4 to 113°F / -20 to 45°C up to 90% Humidity
Rack Form Factor1 RU
Dimensions19 x 9.22 x 1.74" / 48.3 x 23.42 x 4.42 cm
Weight8.22 lb / 3.73 kg

Packaging Info

Package Weight9.54 lb
Box Dimensions (LxWxH)20.9 x 10.3 x 3.6"
