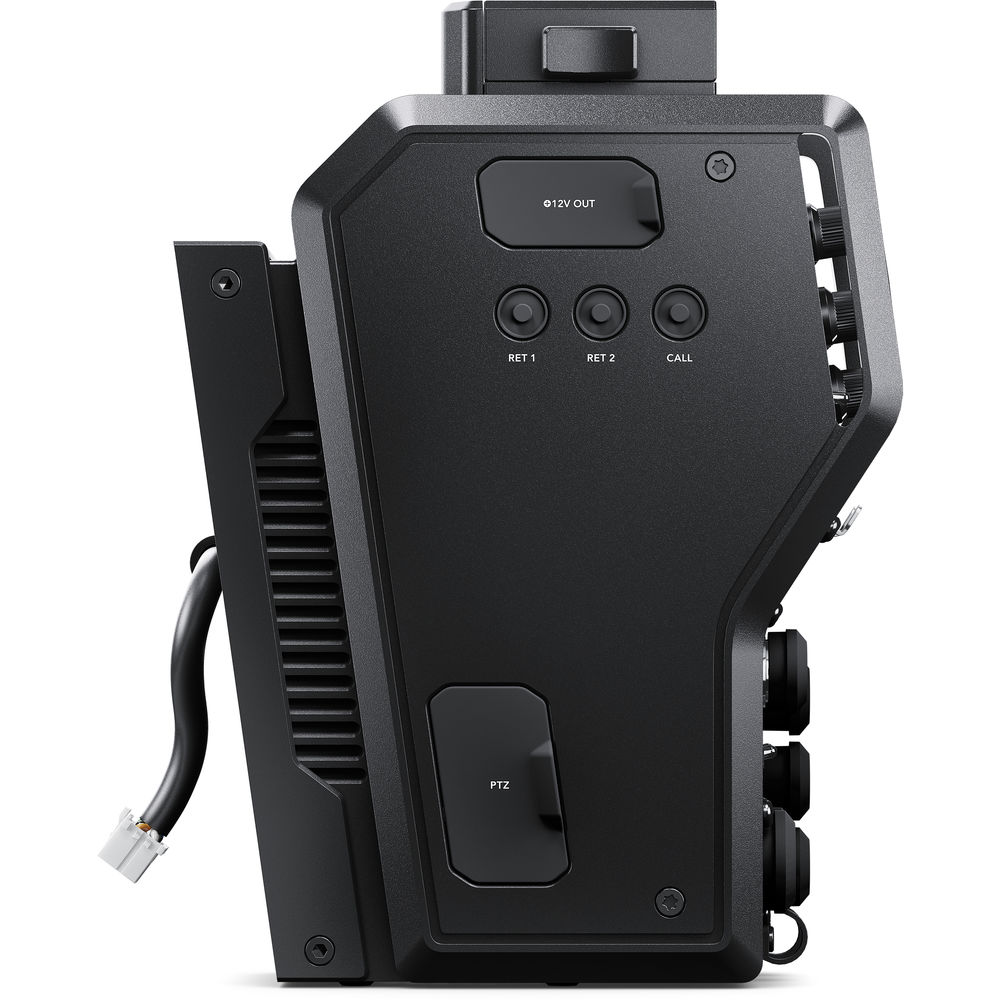

Blackmagic Design Camera Fiber Converter
Blackmagic Design Camera Fiber Converter
Blackmagic Design Camera Fiber Converter
Blackmagic Design Camera Fiber Converter
Blackmagic Design Camera Fiber Converter
Blackmagic Design Camera Fiber Converter

Blackmagic Design Camera Fiber Converter

Brand: Blackmagic Design

MFR: CINEURSANWFRCAM

13,156.00 ﾹ

  • For URSA Broadcast
  • Full Studio Connectivity
  • SMPTE Fiber Interface
  • 12G-SDI Output
  • 3 x 3G-SDI Return Feeds
  • 5-Pin XLR Talkback Headset Connections

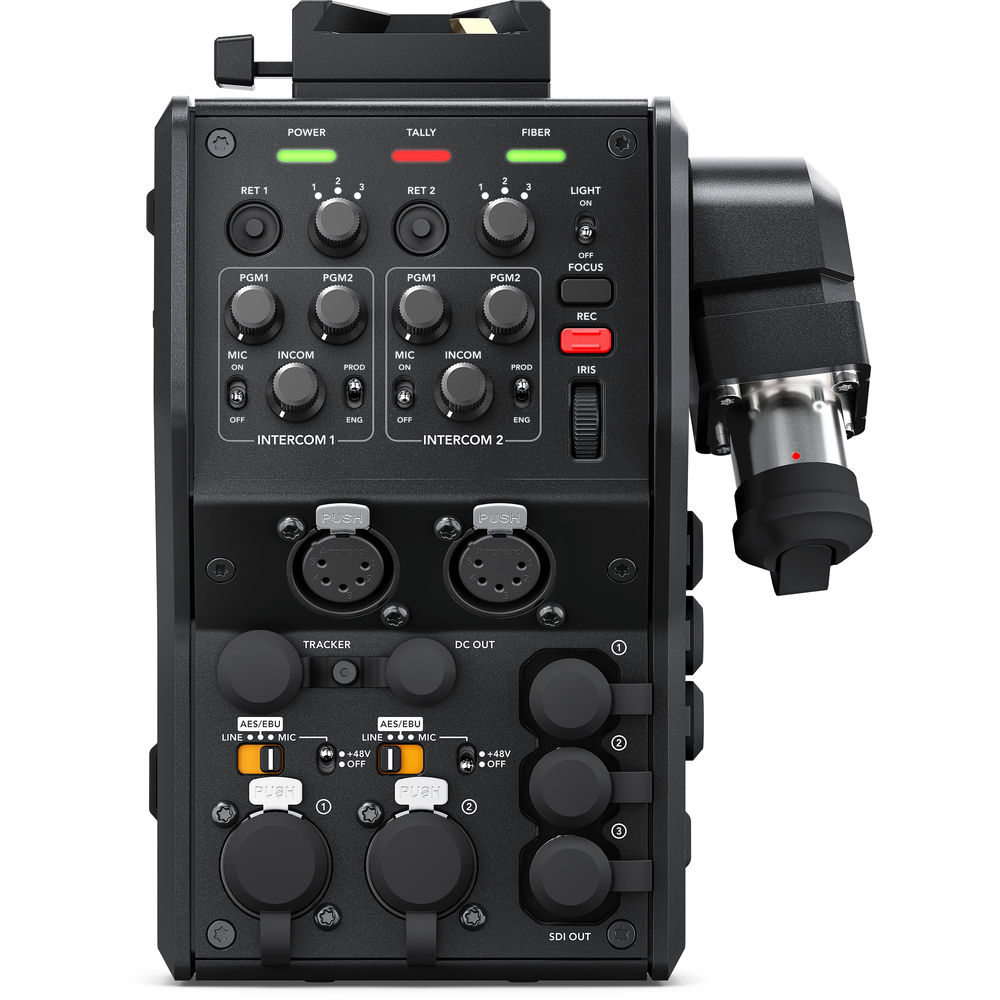

  • Camera Controls Moved to Camera Rear
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: Studio & EFP Camera Components

Secure the Blackmagic Design Camera Fiber Converter to your URSA Broadcast camera to interface with studio infrastructure via SMPTE fiber optic cable and a separately available Studio Fiber Converter for breakout up to 1.6 miles away. The converter moves the most common camera controls to the rear of the camera assembly for ease of operator access. Studio-standard connectivity includes talkback headset 5-pin XLR ports, as well as SDI video for monitor output. In total, the Camera Fiber Converter has a single outgoing 12G-SDI connection for HD or UHD 4K video and three incoming 3G-SDI connections for monitoring with a separate studio viewfinder. Use the V-lock at the top to secure the studio viewfinder. All mounting hardware is included for securing the converter to the camera.


Blackmagic Design CINEURSANWFRCAM Specs

ConnectionsSMPTE Optical Fiber: 1 x SMPTE 304
12G-SDI Input: 1 x BNC
12G-SDI Output: 1 x BNC
3G-SDI Return Output: 3 x BNC
Talkback Headset: 2 x 5-pin XLR
Analog Audio Input: 2 x XLR (AES/mic/line)
Computer: 1 x USB Type-C
Video Standards3840 x 2160: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.9
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SDI StandardsSMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M
Audio Sampling24-bit, 48 kHz
Video Sampling4:2:2
Bit Depth10-bit
Color SpaceREC 709, REC 2020
Dimensions7.5 x 5.5 x 5.4" / 19.1 x 14 x 13.8 cm
Weight4.9 lb / 2.2 kg

Packaging Info

Package Weight5.875 lb
Box Dimensions (LxWxH)10.35 x 8.45 x 8.15"
