Blackmagic Design GPI & Tally Interface for ATEM Production Switchers
Blackmagic Design GPI & Tally Interface for ATEM Production Switchers
Blackmagic Design GPI & Tally Interface for ATEM Production Switchers
Blackmagic Design GPI & Tally Interface for ATEM Production Switchers
Blackmagic Design GPI & Tally Interface for ATEM Production Switchers
Blackmagic Design GPI & Tally Interface for ATEM Production Switchers

Blackmagic Design GPI & Tally Interface for ATEM Production Switchers

Brand: Blackmagic Design

MFR: SWTALGPI8

1,969.00 ﾹ

  • Displays Tallies for Video Signals
  • Indicates On-air Status
  • For ATEM Switchers / Videohub Routers
  • 8 Contact Closure Inputs & Outputs
  • Connects with Multiple Interfaces
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: Tally Lights

The Blackmagic Design GPI & Tally Interface for ATEM Production Switchers is designed to display tallies to indicate the on-air status of video signals. It features 8 contact closure inputs and 8 contact closure outputs for connecting to ATEM switchers and Videohub routers for operation. Additionally, the GPI & Tally Interface can be used with multiple interfaces to increase the number of inputs and outputs.

  • Displays tallies for indicating the on-air status of video signals
  • 8 contact closure inputs & 8 contact closure outputs
  • Compatible with ATEM switchers and Videohub routers
  • Connect to multiple interfaces offering enhance flexibility in operation

Blackmagic Design GPI & Tally Interface Specs

Connectionsdd

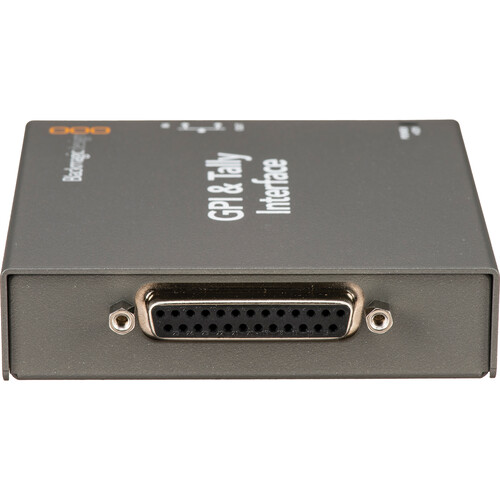

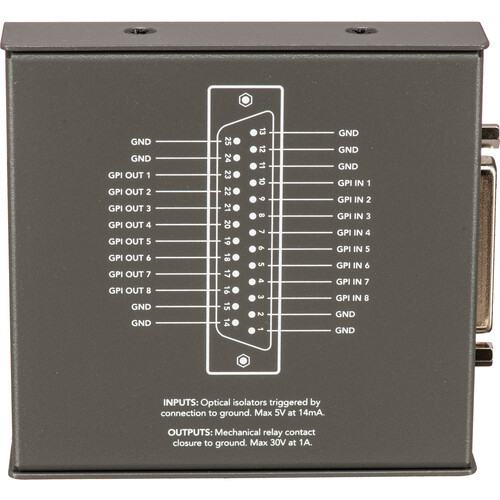

Contact Closure25 pin D-type connector providing 8 up to isolated inputs and 8 relay contact closure outputs
InputsOptical isolators triggered by connection to ground (maximum 5 V @ 14 mA)
OutputsMechanical relay contact closure to ground (maximum 30 V @ 1 A)

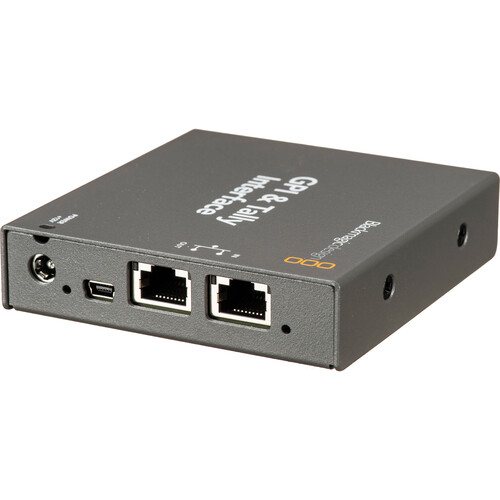

Ethernet10 / 100 BaseT with loop through for connecting to other Ethernet enabled equipment
Computer Interface1 x USB 2.0 high speed interface for configuration and firmware updates
Extras
Software IncludedConfigured via ATEM Switcher utility
Firmware UpgradeFirmware built into software driver. Loaded at system startup or via updater software
Operating SystemMicrosoft Windows 7 and Apple Mac OS X
Power Supply12 V power supply included with international socket adapters for all countries

Packaging Info

Package Weight0.92 lb
Box Dimensions (LxWxH)5.7 x 5.45 x 2.55"
