Blackmagic Design Mini Converter SDI to Analog
Blackmagic Design Mini Converter SDI to Analog
Blackmagic Design Mini Converter SDI to Analog
Blackmagic Design Mini Converter SDI to Analog
Blackmagic Design Mini Converter SDI to Analog
Blackmagic Design Mini Converter SDI to Analog
Blackmagic Design Mini Converter SDI to Analog
Blackmagic Design Mini Converter SDI to Analog

Blackmagic Design Mini Converter SDI to Analog

Brand: Blackmagic Design

MFR: CONVMASA

865.00 ﾹ

  • SDI to Analog Conversion
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: Signal Converters , Signal Converter

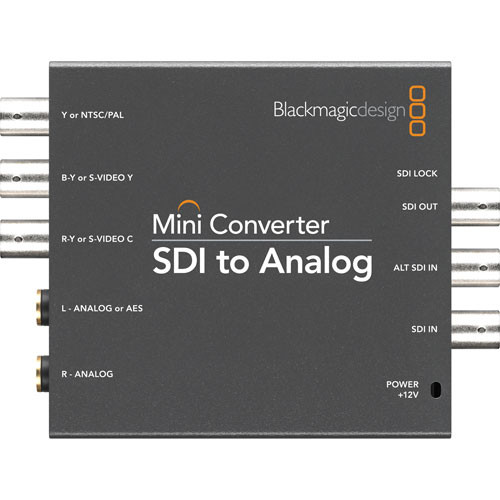

The Mini Converter SDI to Analog from Blackmagic will accept an SDI input signal and convert it to HD/SD component, NTSC, PAL, or S-video output. Also, if your SDI signal has audio embedded, the Converter will let you first de-embed the audio so that you can output it via the analog outs.

SDI to Analog Conversion

Use this device to convert SDI video signals to analog output.

Embedded Audio

The Converter can de-embed audio from an SDI signal so that you can output it via the analog outs.


Blackmagic Design CONVMASA Specs

Input(1) SDI (switchable between SD, HD & 3Gbs SDI)
Output(1) component, NTSC, PAL, and S-video
(1) SDI (switchable between SD, HD & 3Gbs SDI)
AudioAnalog:
(2) channels of professional balanced analog with standard 1/4" jack connections
Digital:
(2) channels of professional balanced digital with standard 1/4" jack connections, AES/EBU standard
Power12VDC
DimensionsNot specified by manufacturer
WeightNot specified by manufacturer

Packaging Info

Package Weight1.155 lb
Box Dimensions (LxWxH)5.85 x 5.6 x 2.65"
