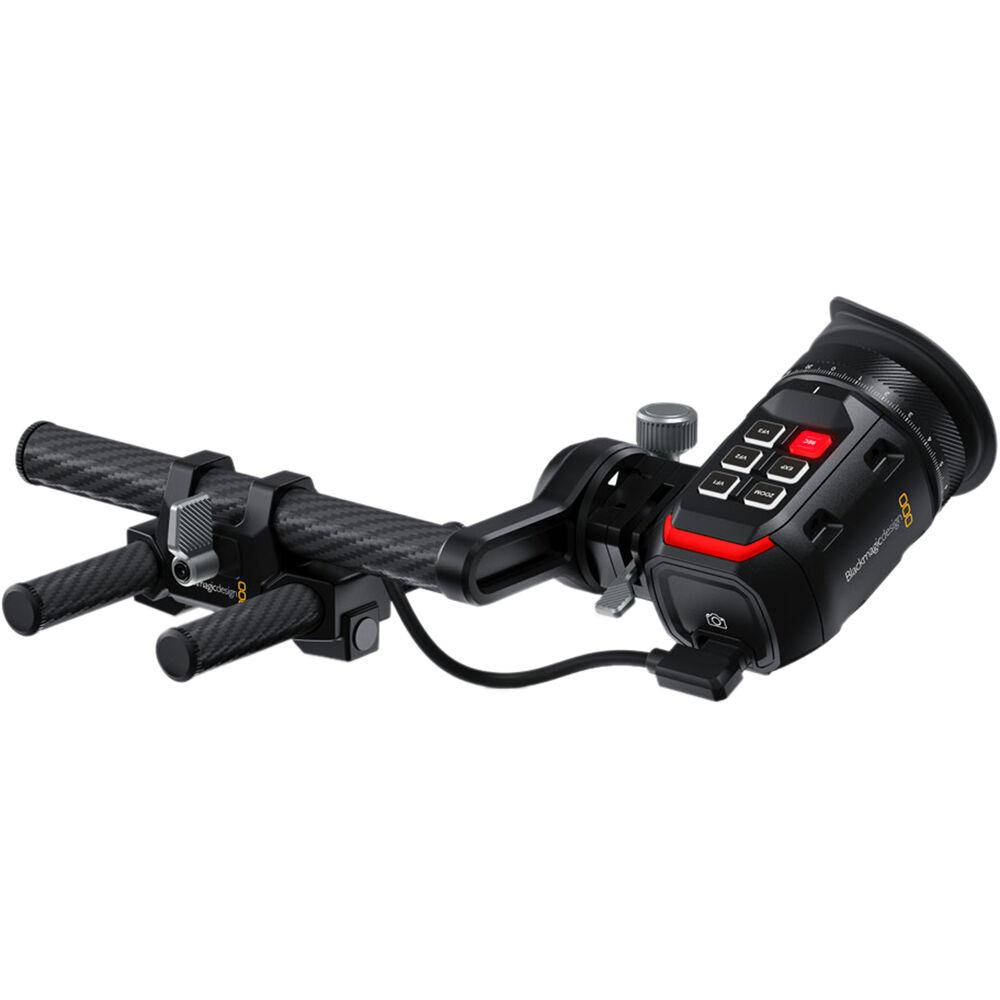

Blackmagic Design URSA Cine EVF
Blackmagic Design URSA Cine EVF

Blackmagic Design URSA Cine EVF

Brand: Blackmagic Design

MFR: CINEURSAB/EVF

6,863.00 ﾹ

  • For URSA Cine 12K Cinema Camera
  • Also Works with PYXIS 6K Cameras
  • 1920 x 1080p60 Resolution OLED Display
  • USB-C Connection to Camera
  • Zoom, Exposure, Record Buttons
  • Rotating Bracket, Tally LED
  • +5/-5 Diopter, 15mm Rod Clamp
  • 19 & 15mm Carbon Fiber Rods
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: Viewfinders

Add the high-resolution URSA Cine EVF to your Blackmagic Design URSA Cine 12K or PYXIS 6K camera for crisp, clear images, making shooting easy in any environment. The EVF features a 1920 x 1080 color OLED display supporting up to 60 fps to view your image with status information, frame guides, and even a built-in focus chart to help you achieve the sharpest focus. It mounts on top of your camera using the included bracket assembly, which includes a 15mm rod clamp, a 19mm cross rod, and two carbon fiber 15mm rods. A tally light allows you to clearly see when the camera is rolling.

The built-in proximity sensor switches on the EVF only when it's in use to save power, and it features a 4-element glass diopter that provides a range of adjustments. The EVF connects to the URSA Cine 12K or PYXIS 6K using a USB-C cable, which is also used for firmware updates. Also included are two different rubber eyecups to give you options for comfort and size.

NOTE: The Blackmagic URSA Cine Handle is required for mounting the EVF onto Blackmagic URSA Cine 12K and Blackmagic PYXIS 6K cameras.

Compatibility

  • Blackmagic URSA Cine 12K LF cameras
  • Blackmagic PYXIS 6K cameras
  • Blackmagic URSA Cine Handle
  • The included Blackmagic URSA Cine EVF Extension is compatible with standard extended viewfinder supports

Panel TypeOLED
Screen Resolution1920 x 1080
Diopter Correction-5.0 to +5.0
Inputs/Outputs1x USB-C 3.0 / 3.1/3.2 Gen 1 Camera Input

Display

Panel TypeOLED
Screen Resolution1920 x 1080
Aspect Ratio16:9
Color Support16.2 Million Colors (6-Bit+FRC)

Optics

Diopter Correction-5.0 to +5.0

Inputs / Outputs

Inputs/Outputs1x USB-C 3.0 / 3.1/3.2 Gen 1 Camera Input
Video FormatUSB
DCI 4K: 60

General

Operating Conditions32 to 104°F / 0 to 40°C up to 90% Humidity
Storage Conditions-4 to 140°F / -20 to 60°C up to 90% Humidity
Tripod/Accessory MountingLeft
1x Accessory Rail

Packaging Info

Package Weight3.445 lb
Box Dimensions (LxWxH)21.7 x 7 x 3.6"
