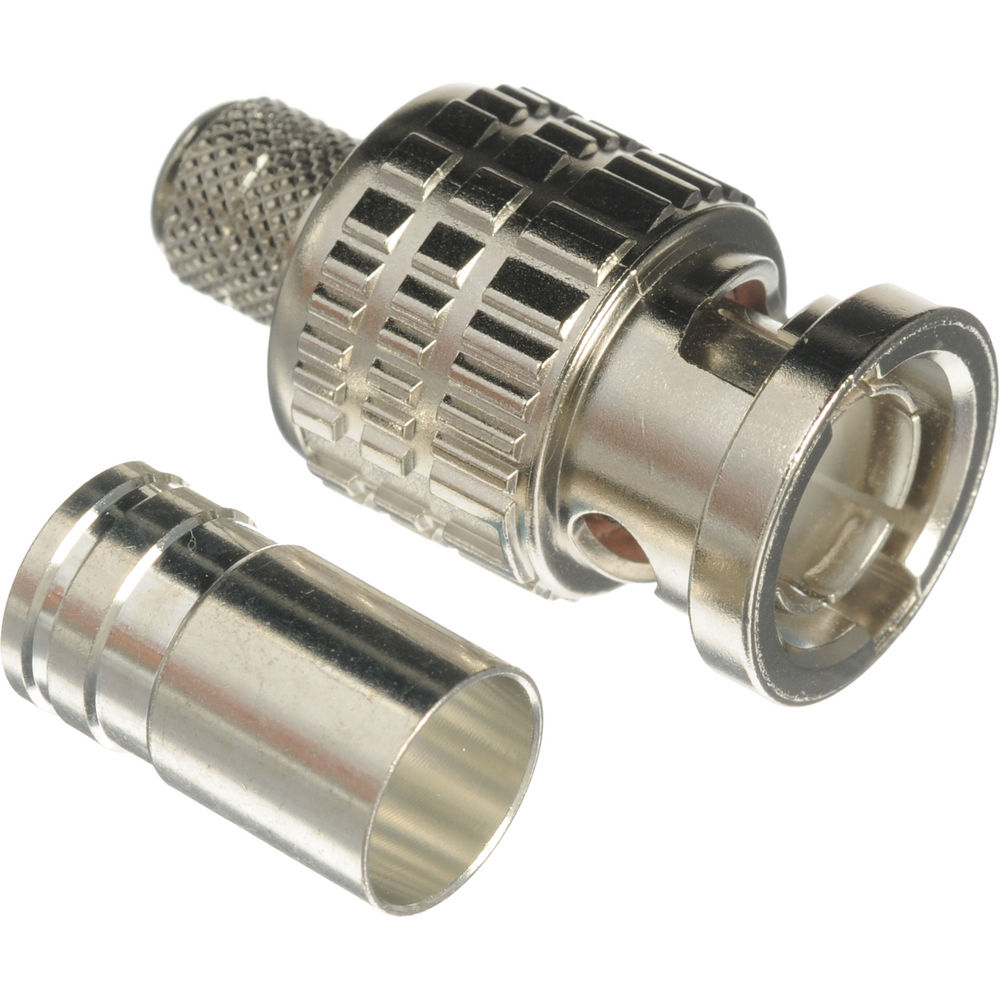

The cost-effective Canare 3.0 GHz 75-Ohm BNC Plug for 1694A Cable is a high-end BNC male cable end connector that easily handles 3 GHz performance and can be cable matched to provide an extremely strong high-end performance. The BCP-B series of plugs exceeds SMPTE 424M 3.0 Gb/s HD-SDI requirements and features a body design with a gold-plated center pin and an elongated crimp sleeve for easy gripping.
Durable Design
Die-cast body for cost-effective high performance
Easy Positioning
Position mark on body
Gold-Plated Pin
Gold-plated center pin with snap lock
Long Sleeve
Elongated sleeve design for easier handling
Tools
Compatible with Canare strip and crimp tools
| Compatibility | 1694A |
| Return Loss | (0 to 3 GHz) - 26 dB or Greater |
| Boot | CB05A |
| Coupling Sleeve | Zinc Alloy Die Casting |
| Center Pin | Gold Plating |
| Dimensions | Not Specified by Manufacturer |
| Weight | Not Specified by Manufacturer |
Packaging Info
| Package Weight | 0.03 lb |
| Box Dimensions (LxWxH) | 2.9 x 2.85 x 1.35" |
