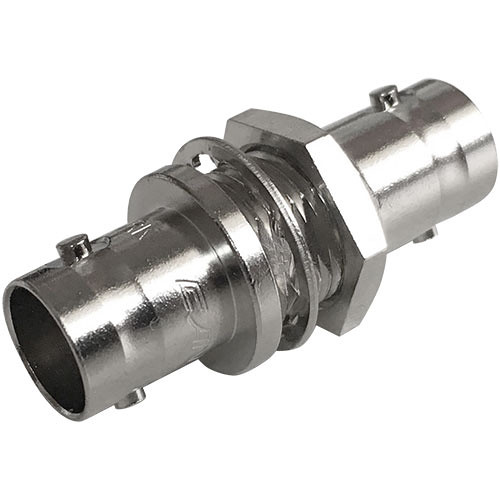

The Canare BCJ-JRK is a BNC to BNC stand-off receptacle designed to provide jack-to-jack patching connectivity for technicians and system integrators in broadcast, television, video, and audio studios. Its 75 Ohms impedance and minimal return loss of 15 dB at 12 GHz makes it ideal for use in 12G-SDI video installations. The stand-off design requires no soldering for installation or cable connections. The receptacle accepts insulation bushing IU-7/16.
| Connector Type | BNC female |
| Impedance | 75 Ohms |
| Bandwidth | VSWR Return Loss DC (2 GHz): <1.1, >26 dB |
| Return Loss | 15 dB at 12 GHz 26 dB at 3 GHz |
| Plating | Center Contact: Beryllium copper/gold Body: Brass/nickel |
| Plate Type | N/A |
| Dielectric | PTFE |
| Insulation Resistance | >1000 MOhms at 500 VDC |
| Voltage Rating | 1500 VAC (RMS) for 1 minute |
| Contact Resistance | Center: <6 mOhms Outer: <3 mOhms |
| Compliance | SMPTE ST 2082-1:2015 |
| Dimensions | Plate Hole (W x H): 0.4 x 0.4" / 9.6 x 11.2 mm Receptacle (D x H): 1.3 x 0.6" / 33.1 x 14.0 mm |
Packaging Info
| Package Weight | 0.03 lb |
| Box Dimensions (LxWxH) | 2.9 x 1.8 x 0.45" |
