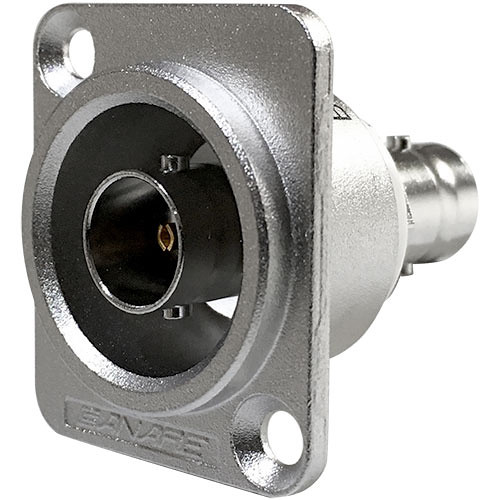

Designed specifically for 12G-SDI / 4K applications, the silver Canare BCJ-JRUDK is a 75-Ohm BNC female to BNC female flush-mount receptacle designed to provide feed-trough patching connectivity for technicians and system integrators in broadcast, television, video, and audio studios.
Note:
Use Canare CANBET12 extraction tool to insert and extract all Canare BNC crimp plugs from recessed or standoff BNC receptacles and DVJ digital video jacks
Key Features
Applications
| Connector Type | BNC female to BNC female |
| Impedance | 75 Ohms |
| Rating | 12G-SDI |
| Return Loss | 26 dB at 3 GHz 20 dB at 6 GHz 15 dB at 12 GHz |
| Material | Center Contact: Beryllium / copper (gold-plated) |
| Plate Type | Neutrik D-Series flange (silver) |
| Dimensions | Plate: 1.2 x 1.0" / 31.0 x 26.0 mm Receptacle Diameter: 0.9" / 23.6 mm |
Packaging Info
| Package Weight | 0.045 lb |
| Box Dimensions (LxWxH) | 3.05 x 1.6 x 0.9" |
