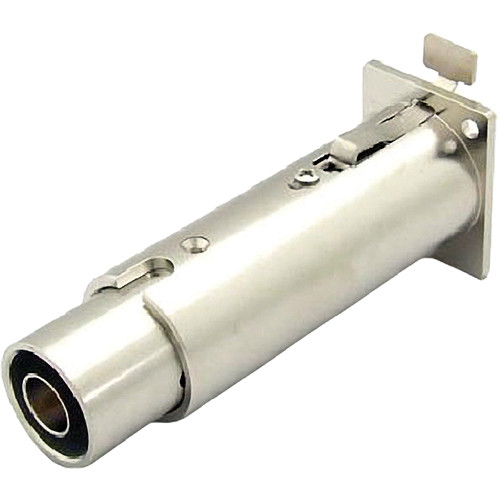

The Canare BCJ-XJ-A10TRC 110-75Ω Digital Audio Impedance Transformer allows 75Ω coaxial transmission of all 2-channel AES/EBU digital audio signals. Easy to use, the Canare I/O adapters are designed to passively convert all standard AES/EBU digital audio signals from an 110Ω/XLR3 output (@ 4.5V) to a 75Ω BNC coaxial cable, and then back again to an 110Ω/XLR3 input (200mV minimum). This transformer is useful in post-production suites, DAT routing, recording studios, and digital audio tie lines. It also provides rejection against hum and noise.
| Form Factor | Inline Adapter |
| Number of Channels | 2 |
| Conversion Formats | AES3, S/PDIF (Coaxial) |
Connectivity
| Digital Audio I/O | 1 x XLR 3-Pin AES3 Input 1 x BNC Coaxial Output |
Performance
| Maximum Input Level | 5 V p-p |
| Impedance | XLR Inputs: 110 Ohms BNC Outputs: 75 Ohms |
Packaging Info
| Package Weight | 0.2 lb |
| Box Dimensions (LxWxH) | 4.5 x 2.5 x 1.7" |
