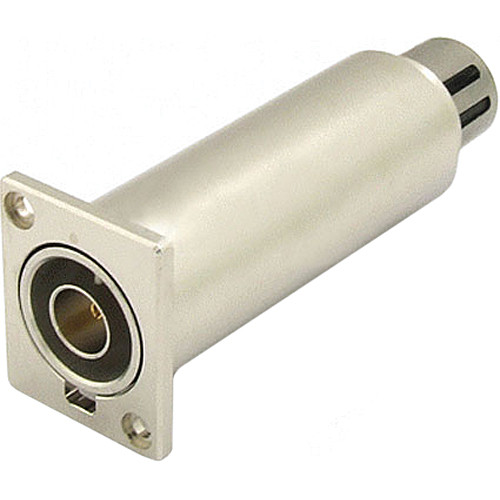

The Canare Panel-Mount Digital Audio Impedance Transformer allows 75Ω coaxial transmission of all 2-channel AES/EBU digital audio signals. This I/O adapter passively converts all standard AES/EBU digital audio signals from a 75Ω BNC coaxial input to a 110Ω / XLR3 output (200mV min). It also provides rejection against hum and noise and fits in all standard bulkhead panels. It has a BNC connector on one side and a 3-pin XLR female connector on the other. It can be used in applications such as post production suites, DAT routing, recording studios, and digital audio tie lines.
| Bandwidth | 0.1 to 6 MHz |
| Maximum Voltage | 5 Vpp |
| VSWR | Less than 1.1 |
| Insertion Loss | Less than 0.3 dB |
| Connectors | BNC and 3-pin XLR female |
| Compatible With | All standard bulkhead panels |
| Dimensions | 0.98 x 1.18 x 3.15" (25.00 x 30.00 x 80.00 mm) |
Packaging Info
| Package Weight | 0.25 lb |
| Box Dimensions (LxWxH) | 5.984 x 2.126 x 1.417" |
