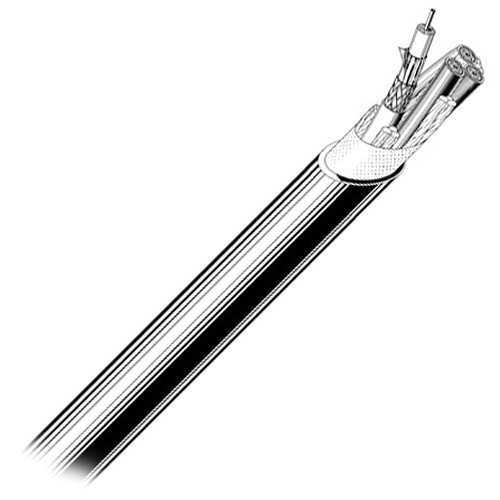

The Canare V5-5CFB Digital Video RG6 Coaxial Cable (500 m) is designed for digital and HDTV facilities. Each coaxial channel includes a foam core PE dielectric, solid bare copper center conductor, and double foil / braid shield. The coaxial cable offers less than 2.2 nanosecond channel-to-channel differential delay time and reduced phase errors in component video setup alignments. Bundled cable helps keep work site neat and clean. It can be confidently used for super high-resistant CG workstation interconnects and digital video installations.
| Number of Channels | 5 (Red, green, blue, white, & yellow) |
| Outer Diameter | Nominal: 0.831" (21.1 mm) Channel: 0.256" (6.5 mm) Conductor: 0.041" (1.05 mm) Insulation: 0.122" (3.1 mm) |
| Thickness | 0.059" (1.50 mm) |
| Brittle Point | -22°F (-30°C) |
| Conductor | AWG: AC-#18 (1/41.3) (Quantity / mm) Cross Sectional Area: 1,341 mm² (5CFB) |
| Dielectric Insulation Type | Foam PE |
| Dielectric Strength | 1000 VAC / min |
| Shield Material Coverage | AL foil 100%, TAC braid >93% |
| Conductor D.C.R. | <2.4 (5CFB) |
| Shield D.C.R | <0.7 |
| Nominal Capacitance | 55 |
| Impedance | 75 ohms |
| Differential | Nominal Delay: <2.2 |
| Velocity of Propagation | 79% |
| Nominal Attenuation | At 10 MHz: 0.7 (2.2) dB At 50 MHz: 1.6 (5.3) dB At 135 MHz: 2.5 (8.1) dB At 270 MHz: 3.5 (11.5) dB At 360 MHz: 4.1 (13.4) dB At 720 MHz: 5.9 (19.4) dB At 1 GHz: 7.1 (23.3) dB At 1.45 GHz: 8.8 (29) dB At 1.8 GHz: 10.1 (33.1) dB At 2GHz: 10.7 (35.1) dB |
