Brand: CARTONI

MFR: KF08-RLM

4,848.00 ﾹ

  • Focus 8 Fluid Head with 75mm Bowl Base
  • Red Lock 3-Tube Aluminum Tripod

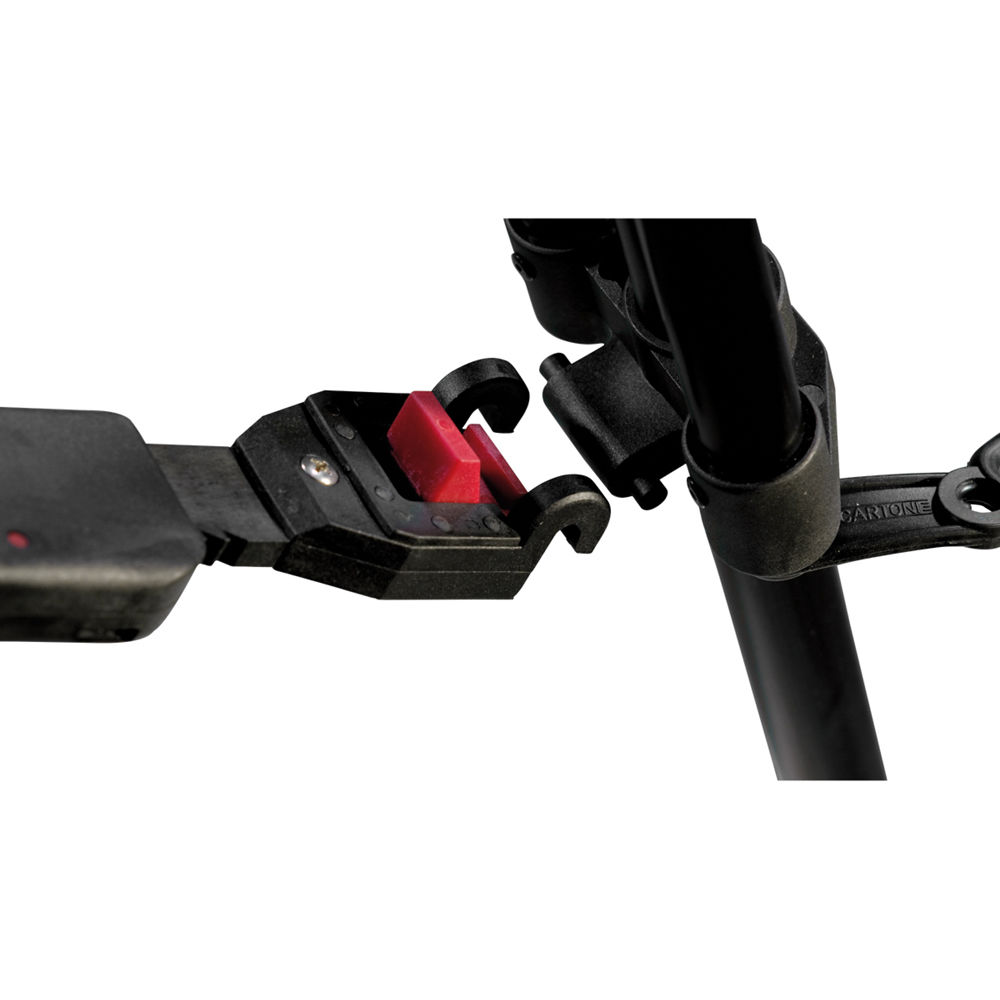

  • Mid-Level Spreader, Sliding Camera Plate
  • 18 lb Maximum Load, 63.5" Maximum Height
  • +/-90° Tilt, Bubble Level
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: Tripod Systems , Tripod Systems

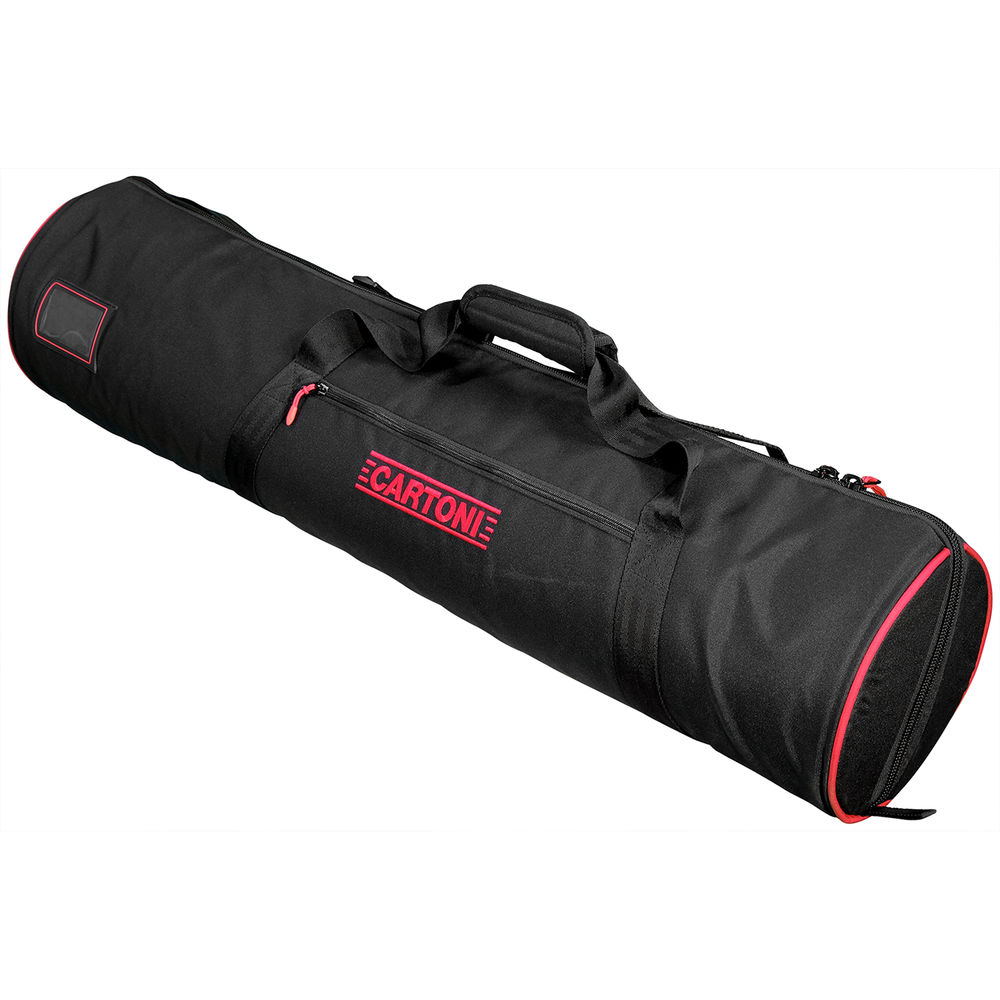

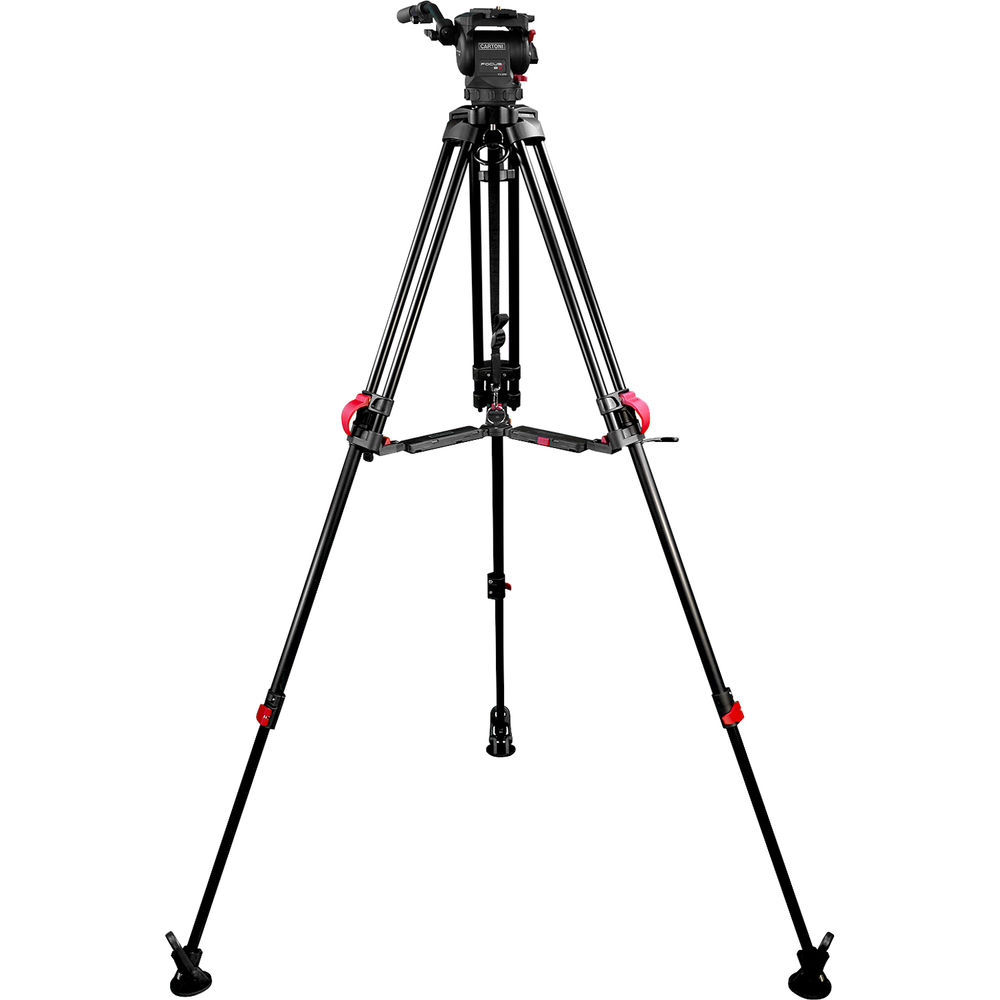

The Focus 8 Fluid Head with Red Lock Tripod System from Cartoni includes the Focus 8 fluid head, Red Lock three-section tripod legs, a mid-level spreader, and a soft carry case. The system is designed for camera rigs weighing up to 18 pounds.

The Focus 8 features a convertible 75/100mm bowl base with the included adapter ring, providing a wide support that makes it suitable for larger cameras. The three-section Red Lock legs feature a minimum height of 20", a maximum height of 58", and a transport length of 30", and the legs utilize flip locks to secure the sections in place. The tripod features spikes and rubber feet that hook on for balancing on different surfaces.

Cartoni Focus 8 Fluid Head

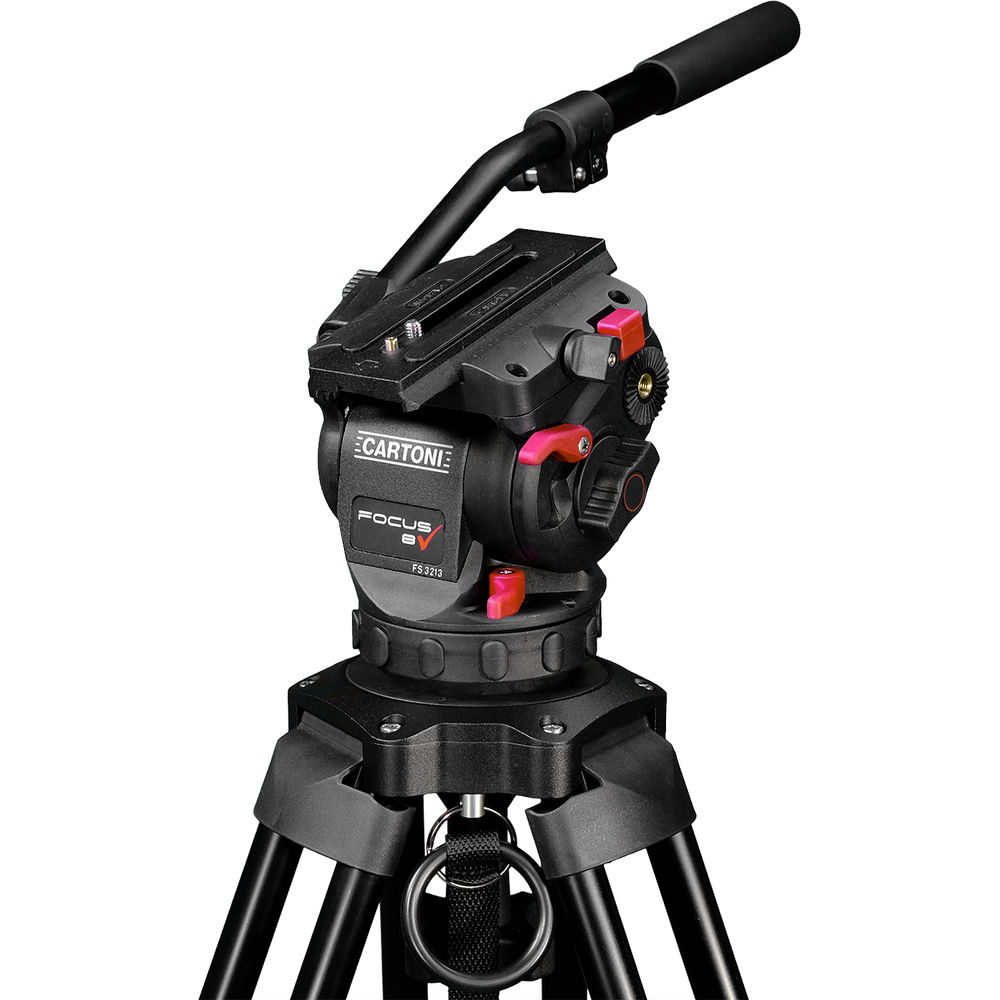

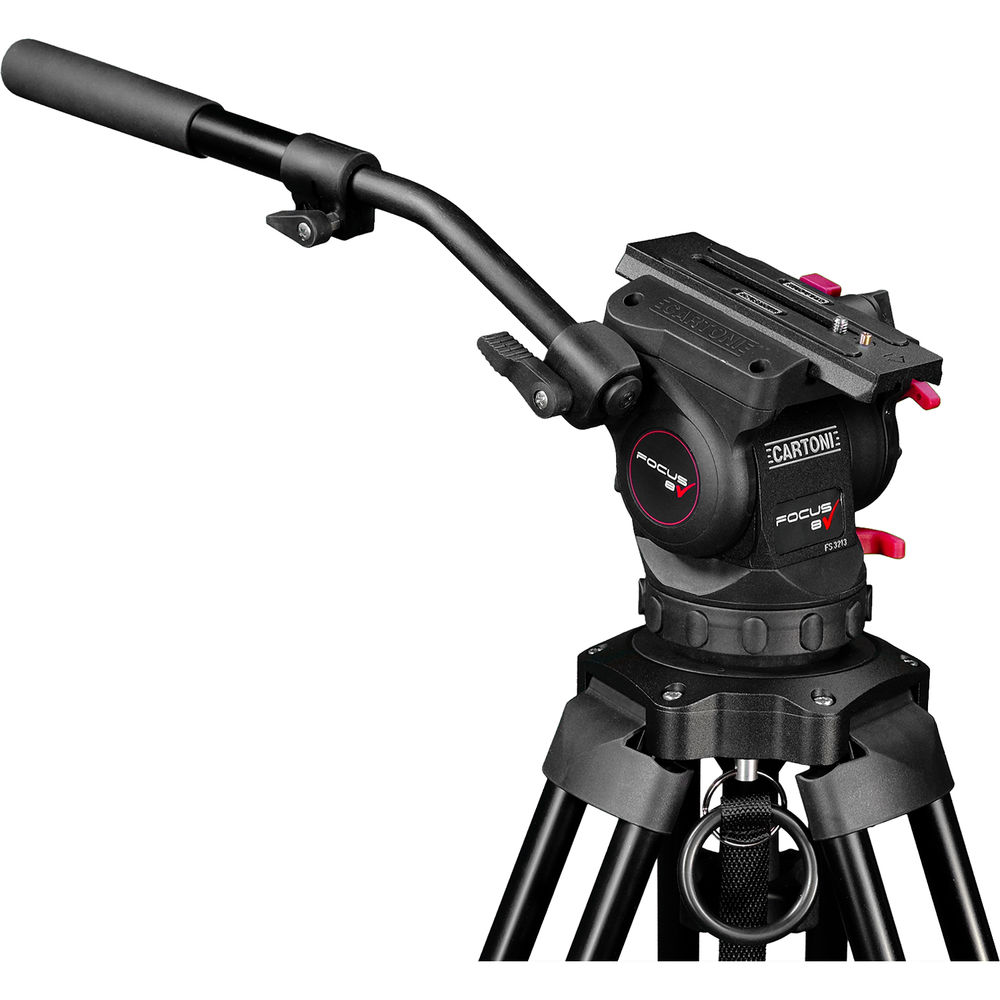

The lightweight Focus 8 Fluid Head from Cartoni is designed to support small rigs that weigh up to 18 lb. The Focus 8 features a fluid damping system, a 75mm ball base, a bubble level, and a telescoping pan bar, and it weighs only 4 lb.

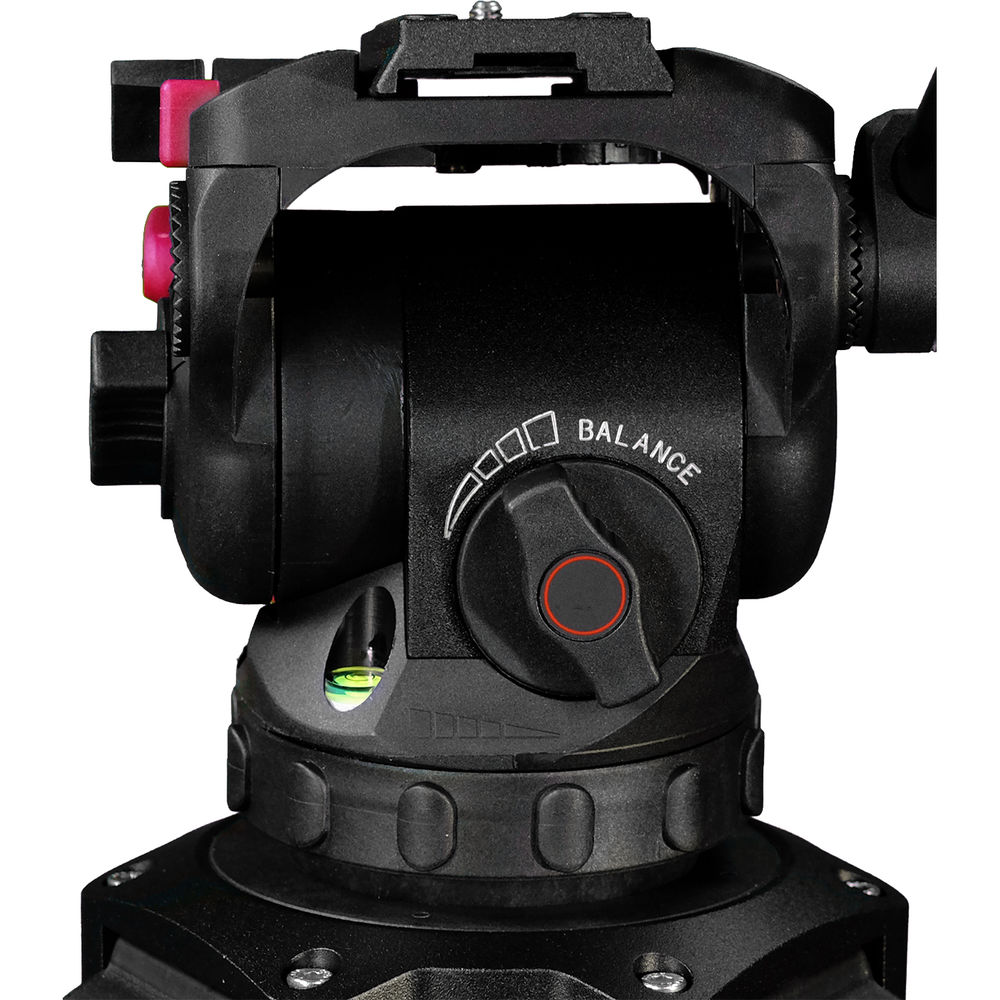

The Focus 8 incorporates the same type of sliding quick release plate as on Sachtler Ace and Manfrotto video heads, and it features +/-90° tilt motion and 360° panning with individual pan and tilt locks. Its fluid design results in smooth, continuous drag, providing damping and dynamic counterbalance throughout its movement.

Quick Features

  • 75mm base
  • Supports loads between 0 and 18 lb
  • Balance along entire +/-90° tilt range
  • Quick release sliding plate system compatible with Sachtler Ace and Manfrotto video heads
  • Independent pan and tilt locks
  • Continuous counterbalance and drag
  • Includes a pan bar



Cartoni Red Lock 3-Tube Aluminum Tripod

  • The Red Lock 3-Tube Aluminum Tripod from Cartoni is designed for use with camera rigs weighing up to 132.3 lb. It features a convertible 75/100mm bowl base with the included adapter ring and provides a wide support that makes it suitable for fluid heads such as the Focus 8, 10, or 12, and for midsize to larger cameras.

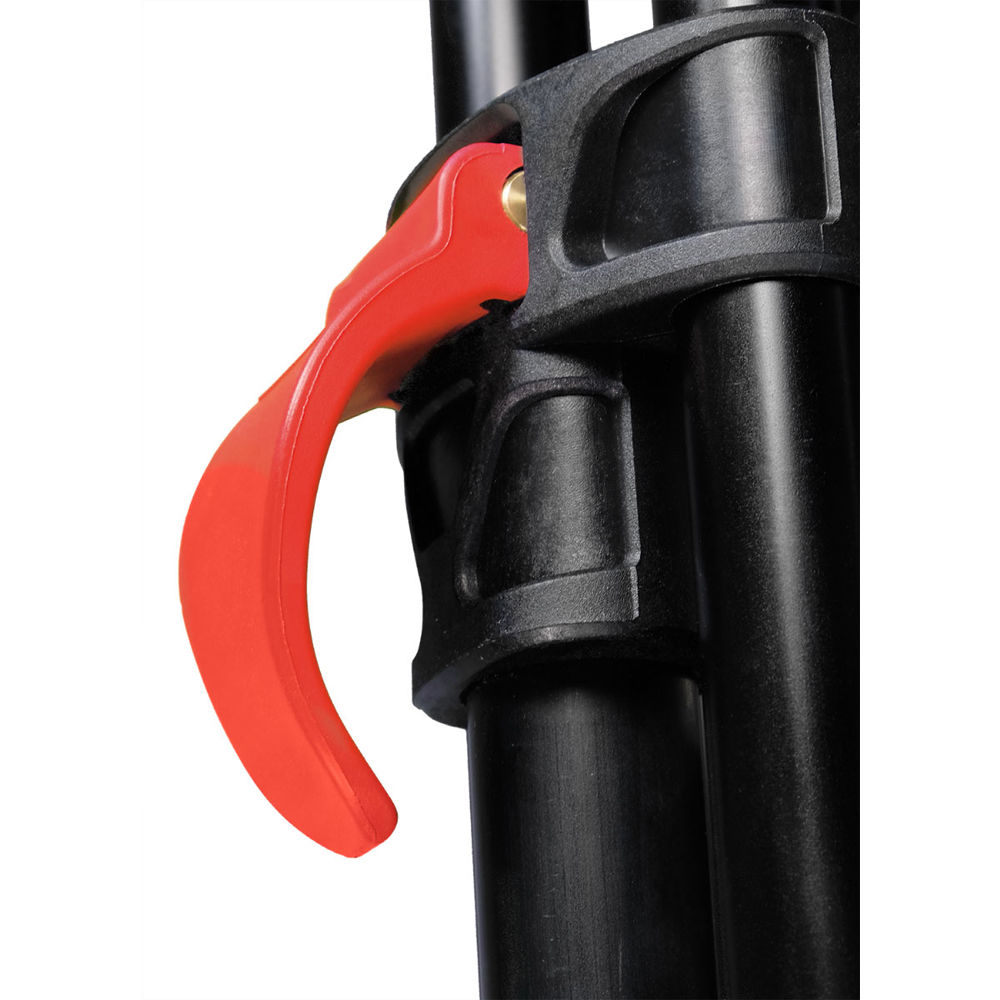

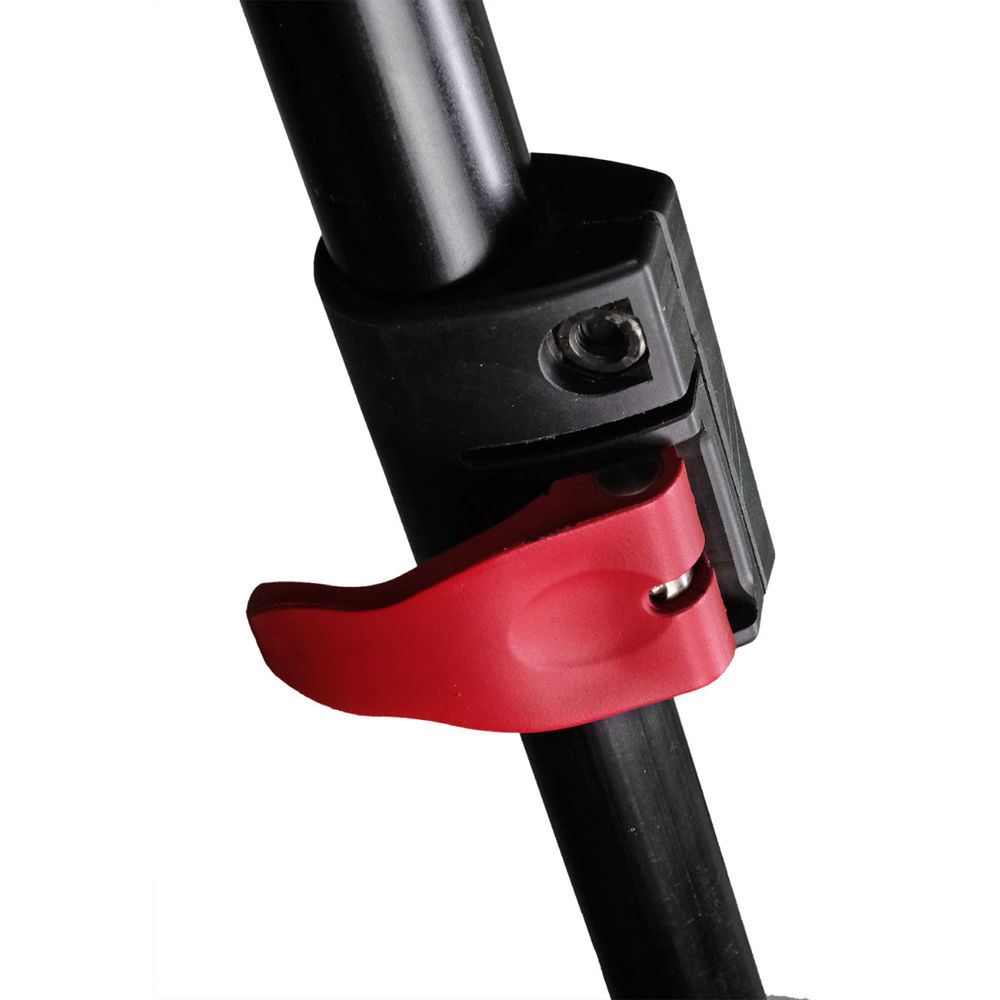

    The three-section legs feature a minimum height of 20.5", a maximum height of 58.3", and a transport length of 29.9", and the legs utilize flip locks to secure the sections in place. The spiked feet allow you to balance the tripod on rough surfaces. The tripod legs weigh 8.8 lb.
  • Three-section, two-stage, three-tube aluminum tripod legs
  • Compatible with all ENG and HD camera rigs weighing up to 132.3 lb
  • Efficiently interfaces with 75 or 100mm bowl-based fluid heads such as the Focus 8, 10, or 12
  • Spiked feet for rough surfaces

Camera Plate

Camera Plate FeaturesSliding Balance Plate
Camera Mounting ScrewNot Specified by Manufacturer

Head

Base Mount75 mm Half Ball
Counter BalanceContinuous
Pan Handle Fittings1 x Fixed
Bubble Level1
Base Diameter2.95" / 75 mm

Pan & Tilt

Drag TypeFluid
Vertical Tilt+90° to -90°
Panning Range360°
Independent Pan LockYes
Independent Tilt LockYes

General

Load Capacity18 lb / 8.16 kg
Operating Temperature-8 to 92°F / -40 to 60°C
Weight4 lb / 1.81 kg

Packaging Info

Package Weight6.115 lb
Box Dimensions (LxWxH)20 x 8.7 x 8.4"

Cartoni Red Lock 3-Tube Aluminum Tripod Specs

General

Head Mount Type75/100 mm Bowl
Maximum Working Height58.3" / 148.1 cm
Minimum Working Height20.5" / 52.1 cm
Closed Length29.9" / 75.9 cm
MaterialsAluminum
Weight8.8 lb / 4 kg

Legs

Leg Lock TypeFlip Lock
Independent Leg SpreadYes
Leg Sections3
Bubble LevelNo
Feet FeaturesSpiked

Packaging Info

Package Weight8 lb
Box Dimensions (LxWxH)37 x 8.6 x 8.5"
