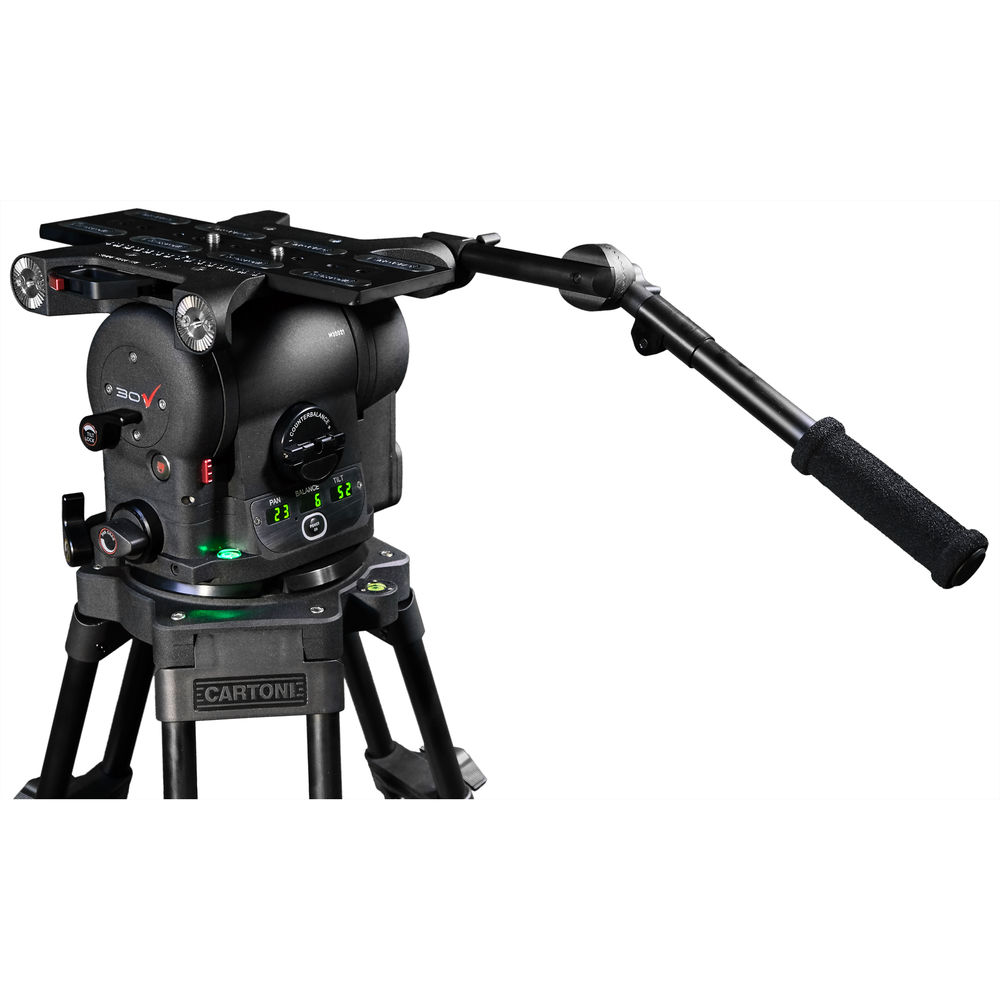

Cartoni MAXIMA 30 Flat Base Fluid Head
Cartoni MAXIMA 30 Flat Base Fluid Head

Cartoni MAXIMA 30 Flat Base Fluid Head

Brand: CARTONI

MFR: HM3100

39,348.00 ﾹ

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: Video Tripod Heads , Video Tripod Heads

The MAXIMA 30 Flat Base Fluid Head from Cartoni includes all the advantages of the Cartoni MAXIMA Fluid Head, but in a compact size. The pan and tilt fluid movements are smooth with progression, going from almost freewheeling to an extremely consistent maximum drag. The wing counterbalance will assist any camera with payloads ranging from 7 to 66 lb with a smooth response throughout the entire ±90° range and can reach up to 88 lb at 100mm CG.

For ease of use, the digital read-out indicates counterbalance, pan and tilt fluid settings at a glance. The head also features an illuminated bubble level. To make the MAXIMA 30 user friendly, the pan and tilt brakes are both placed on the left side of the head, as well as the camera plate latch, which can be activated with one hand to disengage the safety lock and free the camera plate completely.

The camera plate stage accepts all industry standard plates as ARRI, RED, and more, with a sliding run of 140mm. It also features four rosettes attachment for pan bars. The standard configuration comes with right telescopic pan bar and a left front pan handle.


Camera Plate

Camera Plate FeaturesSliding Balance Plate

Head

Base Mount4-Bolt Flat Base
Counter BalanceContinuous

Pan & Tilt

Drag ControlContinuous
Drag TypeFluid
Vertical Tilt+90° to -90°
Panning Range360°

General

Load Capacity7 to 66 lb / 3 to 30 kg
Operating Temperature-40 to 140°F / -40 to 60°C
Weight23.1 lb / 10.5 kg

Packaging Info

Package Weight35.11 lb
Box Dimensions (LxWxH)25.8 x 20.6 x 14.8"
