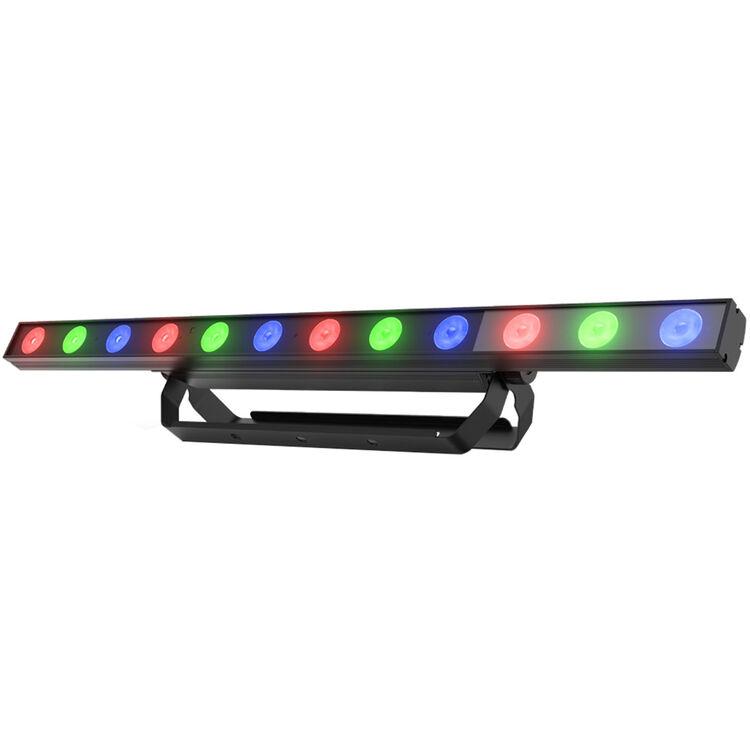

CHAUVET DJ COLORband Pix ILS LED Wash Light (RGB)

936.00

  • Integrated Lighting System (ILS)
  • Full-Sized LED Strip Light
  • Pixel Mapping Effect, Blinder, Wall Wash
  • Built-In RF Receiver for Optional Remote
  • D-Fi USB Compatibility
  • Silent Operation
  • Flicker-Free Video Operation
  • Animations with Individual LED Control
  • Multiple Pre-Built Programs
  • Power Linking for Multiple Units

Items Included


  • CHAUVET DJ COLORband Pix ILS LED Wash Light (RGB)
  • Hanging Bracket with Mounting Hardware
  • Power Cord
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Lighting designers, club owners, and mobile entertainers in search of a professional LED wash strip should look no further than the Chauvet DJ COLORband Pix ILS, an RGB LED strip light that functions as a pixel mapping effect, blinder, or wall-wash light, making it well suited for clubs, bars, special events, broadcast studios, and photography setups.

It is D-Fi USB compatible for wireless primary/secondary or DMX control. Its tricolor LED technology generates a broad spectrum of colors. Twelve zones of control facilitate chase effects with multiple prebuilt programs accessible with or without DMX control. Sound-activated and automated programs can also be accessed with the RFC or RFC-XL remotes (sold separately). The COLORband Pix ILS is suitable for quiet applications due to its silent operation and no moving parts.

  • Full-size LED strip light functions as a pixel mapping effect, blinder, or wall washer
  • Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
  • Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
  • D-Fi USB compatibility for wireless Primary/Secondary or DMX control
  • Create amazing animations and video effects with individual LED control
  • Convenient access to multiple prebuilt programs with or without DMX
  • Easily generate complex shows with ShowXpress Pixels
  • Achieve flicker-free video operation with high-frequency LED dimming
  • Ideal for quiet applications due to silent operation and no moving parts
  • Easily transports in the optional CHS-60 VIP gear bag

Light
Fixture Type
Linear/Bar Light
Light Source
12x Color LED - 3 W / 1 A
Expected Lamp Life
50,000 Hours
Colors
Blue, Green, Red
Pixel Configuration
12x Zone
Photometrics
385 fc / 4142 Lux at 6.56' / 2 m
62 fc / 663 Lux at 16.4' / 5 m
Lumen Output
1402 Lumens
Beam Angle
14°
Field Angle
27°
Shutter / Strobe
Electronic
Iris
No
Focus
Manual
Zoom Adjustment
No
Dimming
No
Performance
Operating Modes
Automatic, Color Change, DMX, Primary/Secondary, Program, Sound-Active
Strobe Rate
0 to 20 Hz
Gobos
No
Control
Control Protocols
DMX512, ILS
DMX Channel Modes
10 Mode(s):
3 / 4 / 6 / 7 / 8 / 9 / 12 / 18 / 36 / 41-Channel
Display / Controls
LED / 4-Button
Remote Control
D-Fi USB (with Optional Equipment)
IR Remote (with Optional Equipment)
Mobile App Compatible
No
Connectivity
Inputs/Outputs
1 x XLR 3-Pin DMX Input
1 x XLR 5-Pin DMX Input
1 x XLR 3-Pin DMX Output
1 x XLR 5-Pin DMX Output
Wireless
IR
*Built-In
Proprietary Wireless
*Via Optional Adapter
Power
AC Power Connector
Input: 1x powerCON
Output: 1x powerCON
Plug Type: NEMA 5-15
Cord Length: 5' / 1.5 m
Input Power
100 to 240 VAC, 50 / 60 Hz
Power / Current Consumption
120 VAC, 60 Hz: 49 W / 0.7 A
230 VAC, 50 Hz: 48 W / 0.4 A
Power Linking
19 Units at 120 VAC
35 Units at 230 VAC
Physical
Environmental Resistance
No
Mounting
Mounting Bracket
Included Accessories
1x Power Cable
Duty Cycle
No
Exterior Color
Black
Cooling
Convection
Certifications
CE, MET, RoHS, UKCA
Dimensions
38.9 x 6.2 x 2" / 98.8 x 15.7 x 5.1 cm
Weight
7 lb / 3.2 kg
Packaging Info
Package Weight
8.75 lb
Box Dimensions (LxWxH)
41 x 8.75 x 3.25"
