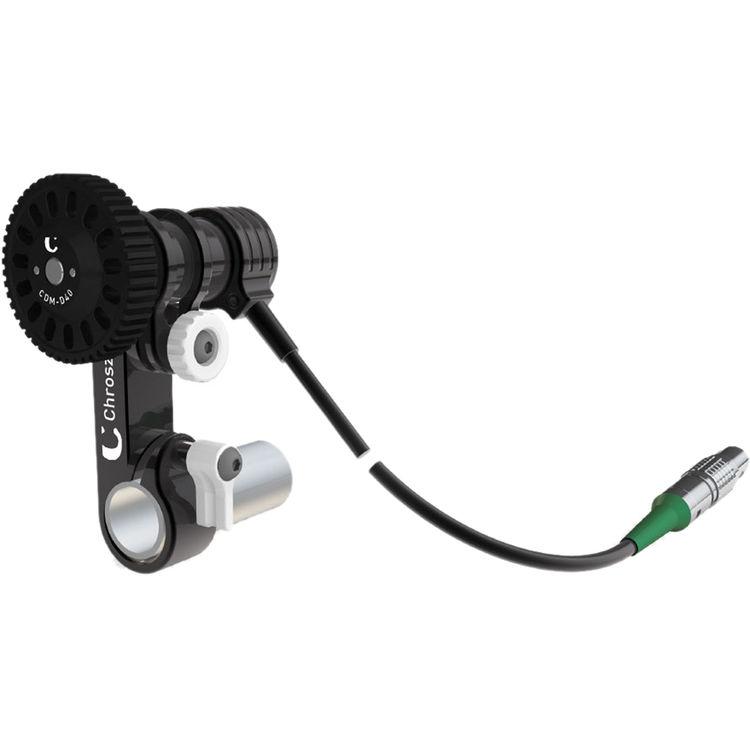

Designed for gimbal and drone setups, Chrosziel's CDM-100W Digital Motor is small at only 19mm in diameter and features an integrated 31.5" LEMO 7-pin 1B cable for connecting to Chrosziel's FIZ systems. Since this motor utilizes a horizontal design and an integrated cable, it can be kept to a low profile when size and weight, or lack thereof, are of prime importance. This motor includes a 19mm clamp with a 15mm adapter for LWS compatibility and two MOD 0.8 gears; one 1.6" and one 2.4" in diameter to compensate for recessed lens control rings.
| Connector | 1 x LEMO 7-pin 1B angled |
| Cable Length | 31.5" / 800mm |
| Voltage | Max 24 V |
| Torque | Max 0.5 Nm |
| Dimensions | Length: 2.4" / 62 mm Diameter: 0.75" / 19 mm (main body only, no gear) |
| Weight | 0.01 oz / 0.3 g |
| Package Weight | 0.495 lb |
| Box Dimensions (LxWxH) | 7.5 x 4.7 x 2.7" |
