Cooke 65mm MACRO Panchro/i Classic T2.4 Full Frame Prime Lens
Categories: Digital Cine Lenses

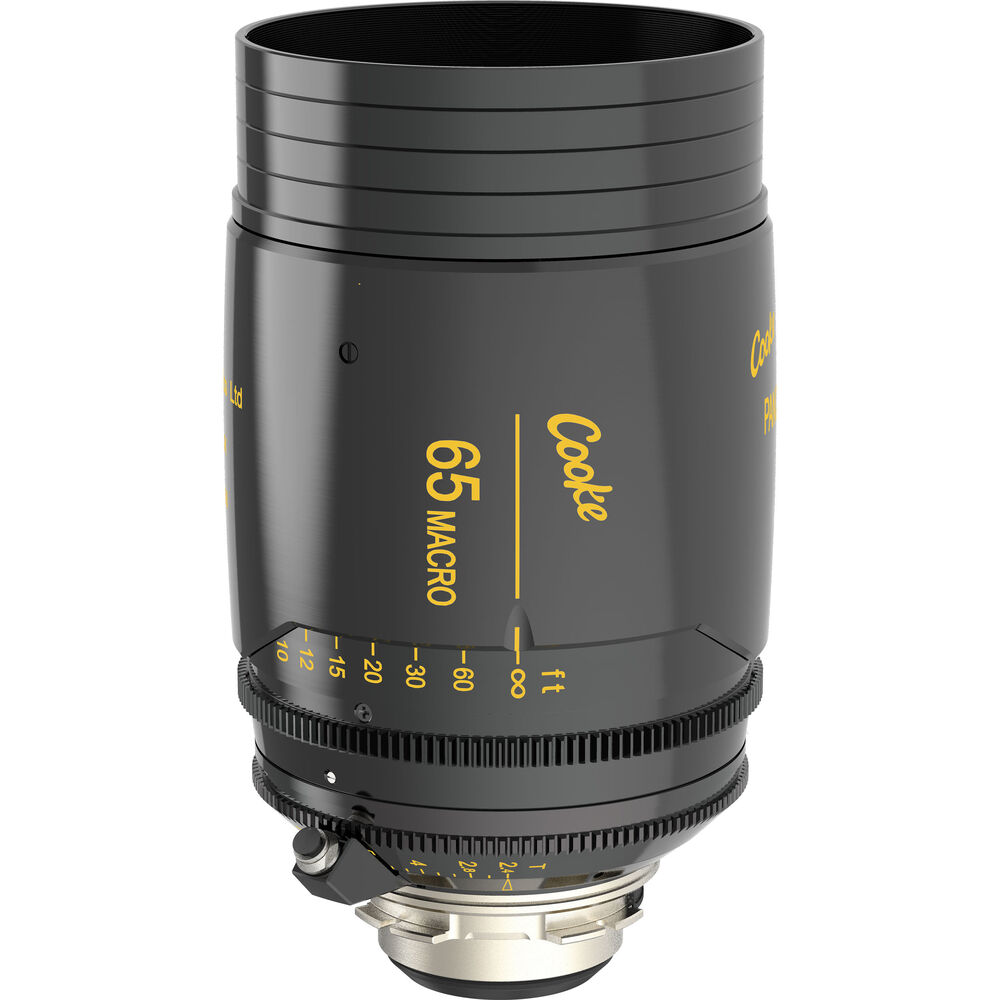

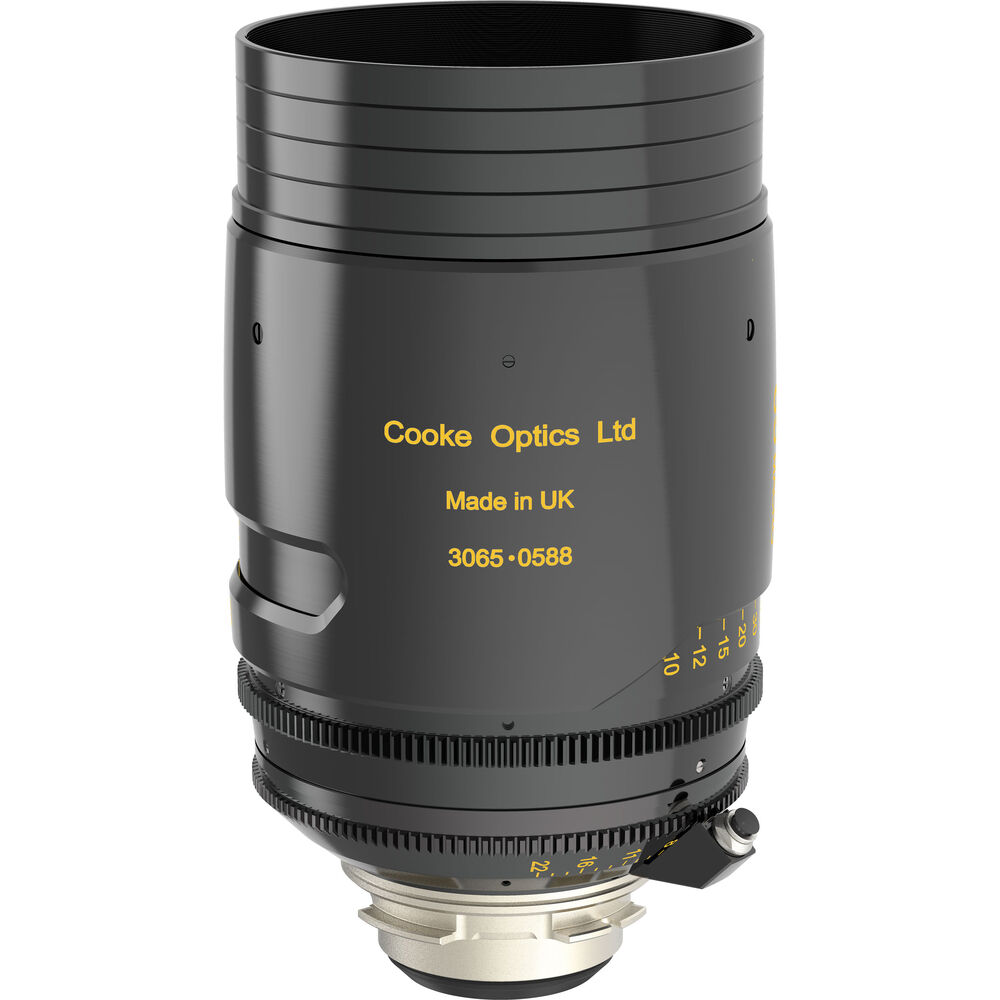

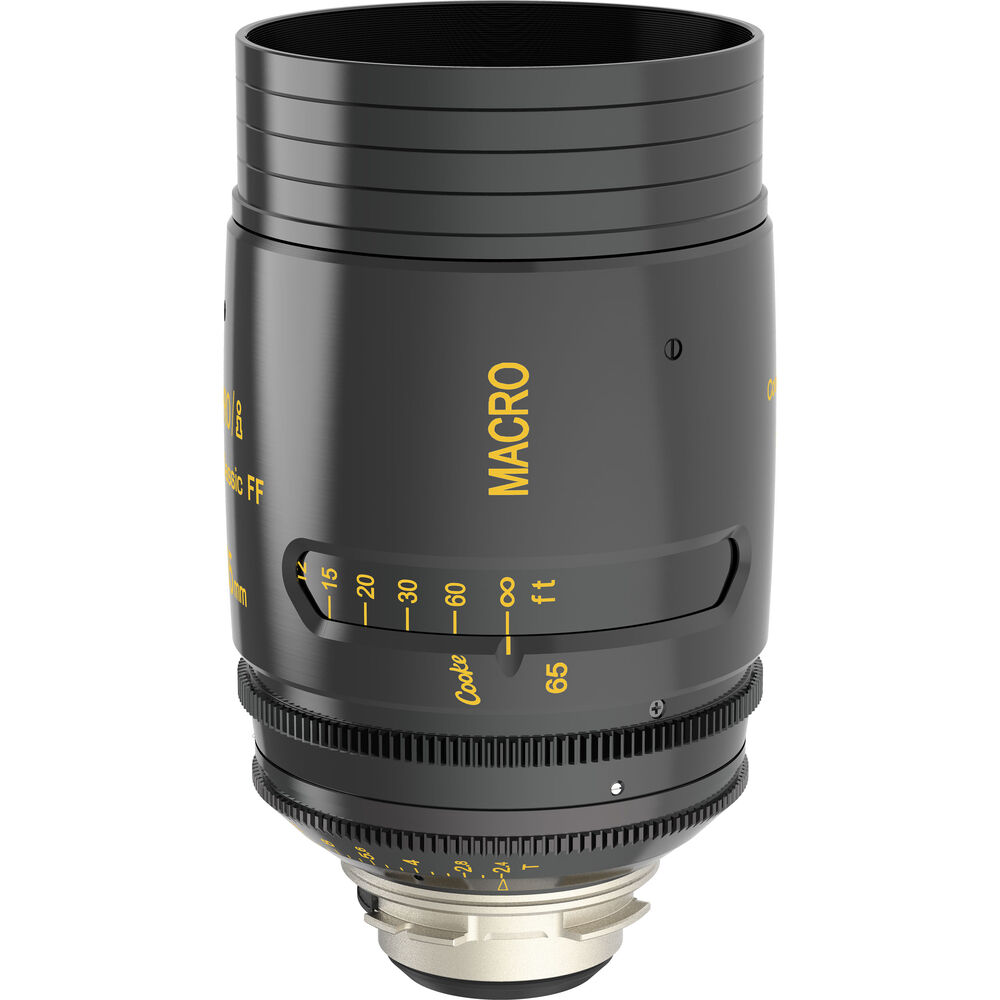

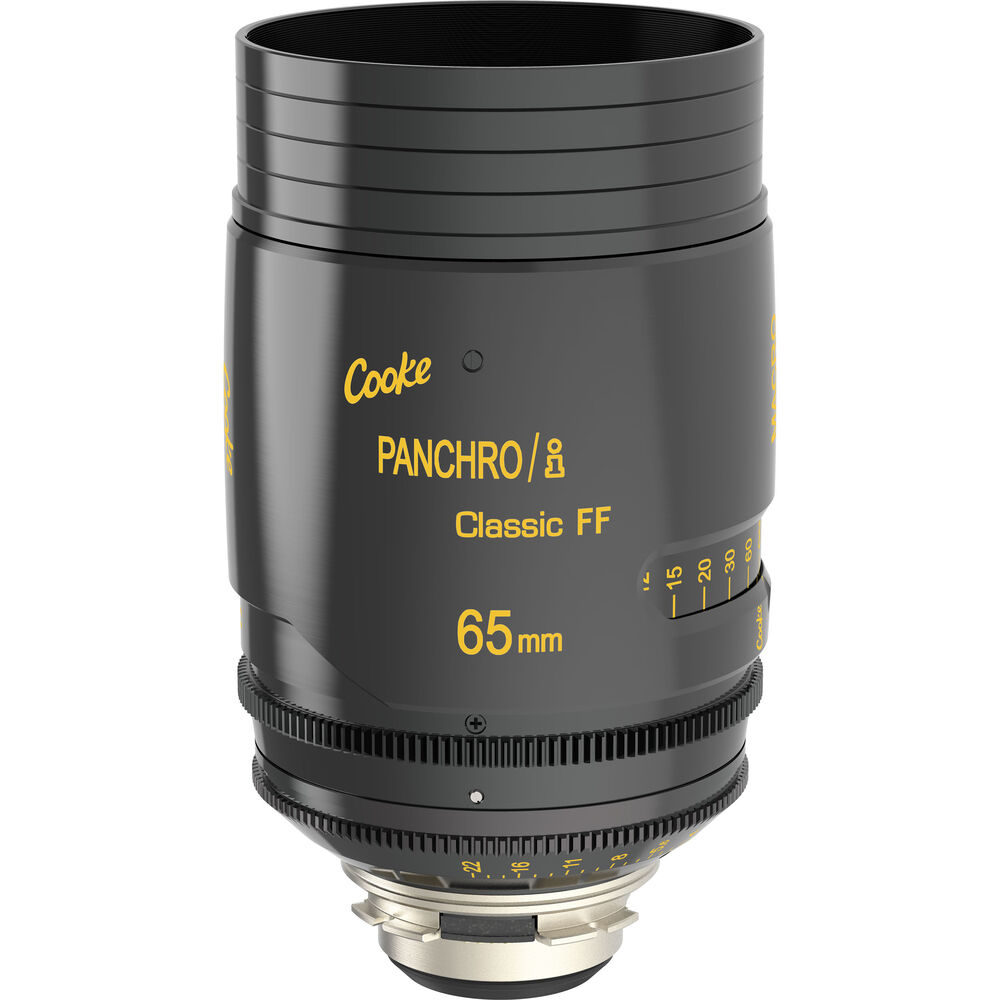

The Cooke 65mm MACRO Panchro/i Classic T2.4 Full Frame Prime Lens combines the warm look of a vintage Cooke Speed Panchro with the convenience of the /i Technology lens data capture system. This updated full frame redesign works with both digital cinema and film cameras, features focus scales on both sides marked in feet, and covers full frame image formats. This is a macro focus lens, which enables close focus and image reproduction of at least 1:1 on the image sensor. One of several focal lengths available, the 65mm MACRO prime incorporates a nine-blade iris for a cinematic bokeh, and it shares a common 110mm front diameter with the entire line. For optimal performance, the aberration, flare, and distortion correction extends over the entire image area and throughout the T2.4 to T22 aperture range. The Panchro/i Classic Primes are color-matched with Cooke's S4/i, 5/i, mini S4/i, and Anamorphic/i lenses.
Each Panchro/i Classic Prime lens sports both a hardened PL mount and a cable connection that uses Cooke's /i Technology to transmit lens data including focal length, aperture, focus, and depth of field to compatible cameras. The 65mm MACRO Panchro/i Classic Prime lens features a 4.5" minimum focus distance, a relatively light weight, and a compact length of 7.7". This lens is constructed with 0.8 MOD geared focus and iris rings for use with follow focus, zoom control, and wireless FIZ systems. A large lens barrel, an increased number of focus marks, and Cooke's cam-style focus movement enable precise focus pulls.
Key Features
/i Technology-Compatible Cameras and Partners
Compatible with but not limited to:
Aaton, Andra, Angenieux, ARRI, Atomos, AVID
Birger Engineering, Blackmagic Design, Canon, Cinematography Electronics
CMotion, Codex, CW Sonderoptics, Element Technica, Fujinon, gbi, IB/E Optics
Mark Roberts Motion Control, OptiTek, Ovide, Panavision, Preston Cinema Systems
RED, Service Vision, Sony, The Foundry, The Pixel Farm, Transvideo, and Vision Research
| Focal Length | 65mm |
| Lens Mount | ARRI PL |
| Lens Format Coverage | Full Frame (36 x 24 mm |
| Maximum Aperture | T2.4 |
| Minimum Aperture | T22 |
| Diagonal Angle of View | Full Frame: 36° |
| Minimum Focus Distance | From Front of Lens: 4.5" / 114 mm |
| Diaphragm Blades | 9 |
| Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch |
| Front Diameter | 110 mm |
| Filter Thread | 105 mm |
| Focus Scales | Imperial |
| Focus Rotation | 270° |
| Iris Rotation | 90° |
| Electronic Communication | Yes |
| Image Stabilization | No |
| Lens Support | None |
| Length | 7.76" / 197 mm |
| Weight | 6.2 lb / 2.8 kg |
Packaging Info
| Package Weight | 7.6 lb |
| Box Dimensions (LxWxH) | 14.2 x 8.5 x 8.5" |
