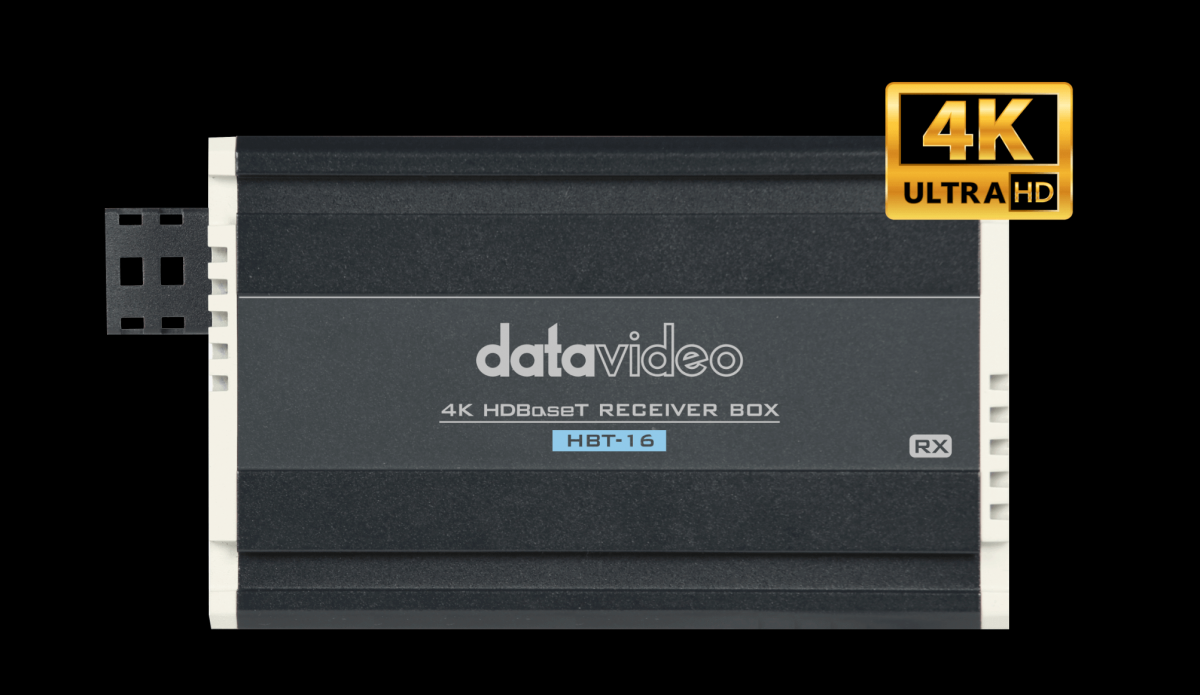

HDBaseT receiver designed to use with an HDBaseT transmitter to receive signal between HDBaseT devices. The receiver accepts up to 4K 2160P image quality video.
Transmits video, audio, DVIP control, RS-422/232 control and PoE+ over a single Cat 7 cable.
1 x HBT-16 main unit
1 x AC cord
1 x DC 56V power adaptor
Categories: Accessories
Video/Audio Input | HDBaseT RJ-45 x1 |

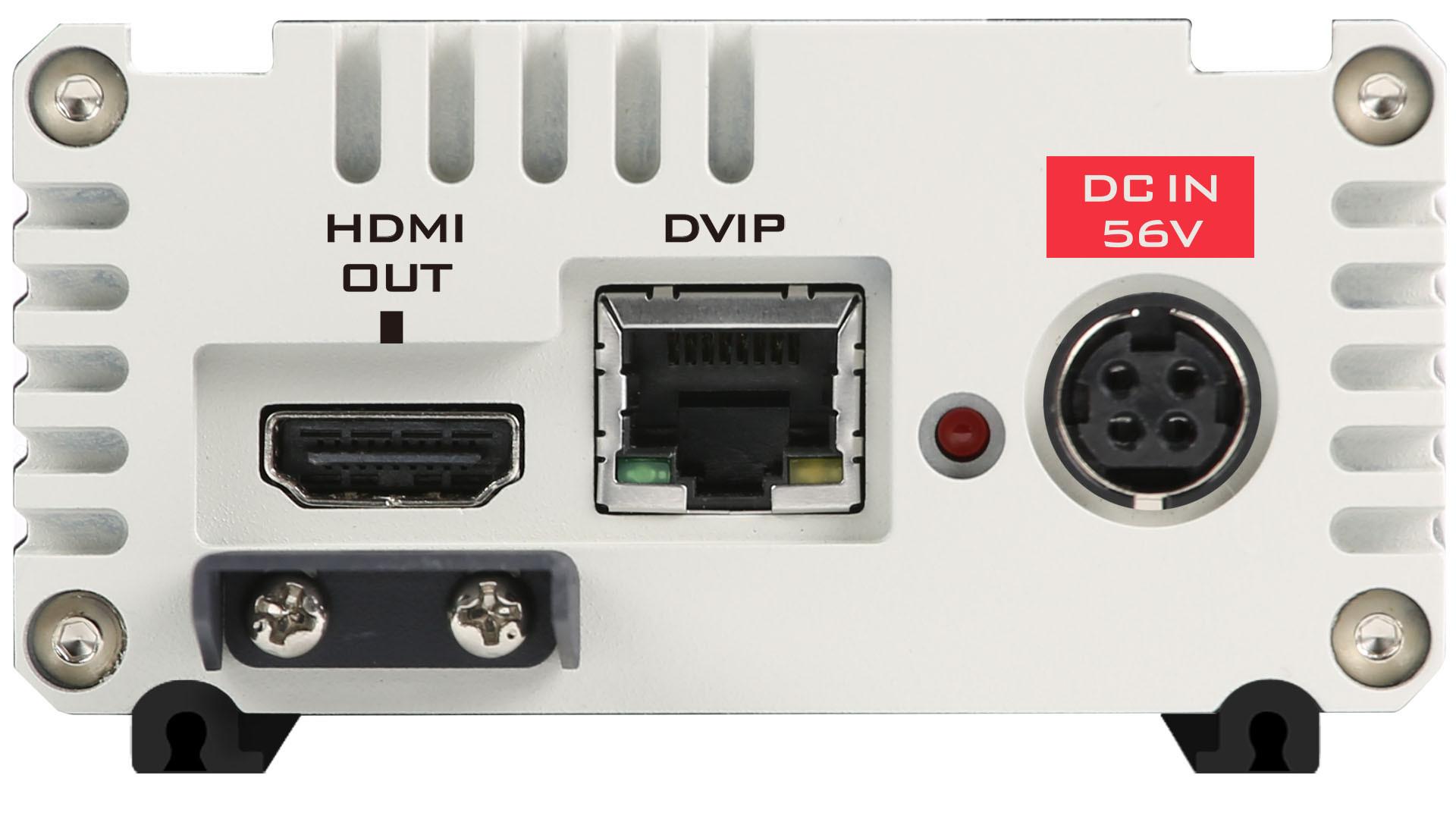

Video/Audio Output | HDMI 2.0 x1 |
Supported Video Format | 2160p: 60/59.94/50/30/29.97/25 1080p: 60/59.94/50/30/29.97/25 1080i: 60/59.94/50 720p: 60/59.94/50 480i: 59.94 576i: 50 |
Video Process | 4K2K60 4:4:4 8bits 4K2K60 4:2:0 10bits |
Video bandwidth | Single-link 600MHz [18Gbps] |
DVIP | RJ-45 x1(input) |

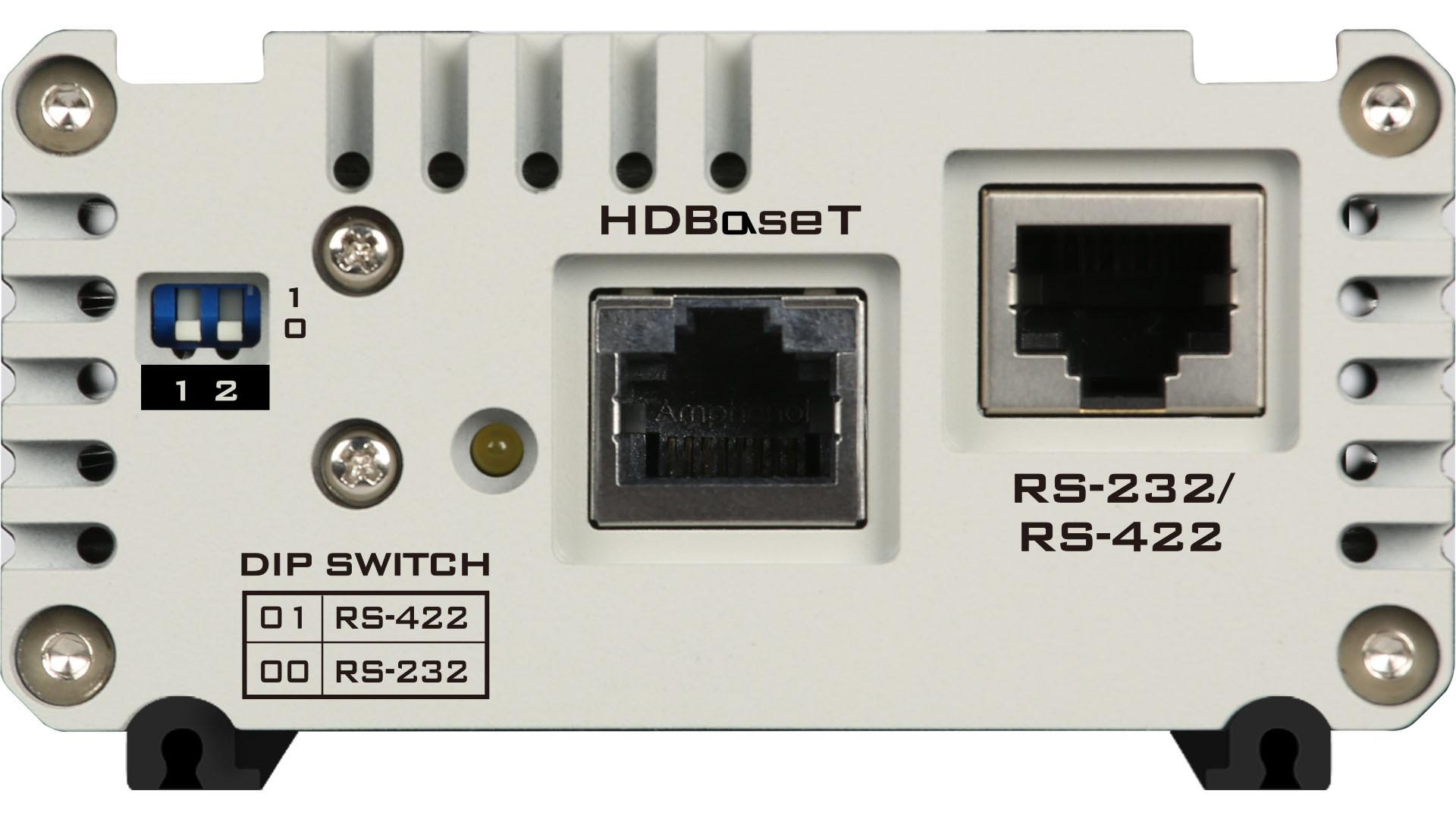

RS-422/ RS-232 | RJ-45 x1 |
Power | DC IN: DC 56V |
PoE Output | 65W |
HDBaseT Distance | 2160p60/59.94/50 Up to 100m by CAT. 6A Cable (Resolution downward supported) |
HDMI compliance | HDMI 2.0 |
HDCP compliance | HDCP 2.2/1.4 (Bypass) |
Audio support | Surround sound (up to 7.1ch) |
Operating Temp. Range | 0~40 °C |
