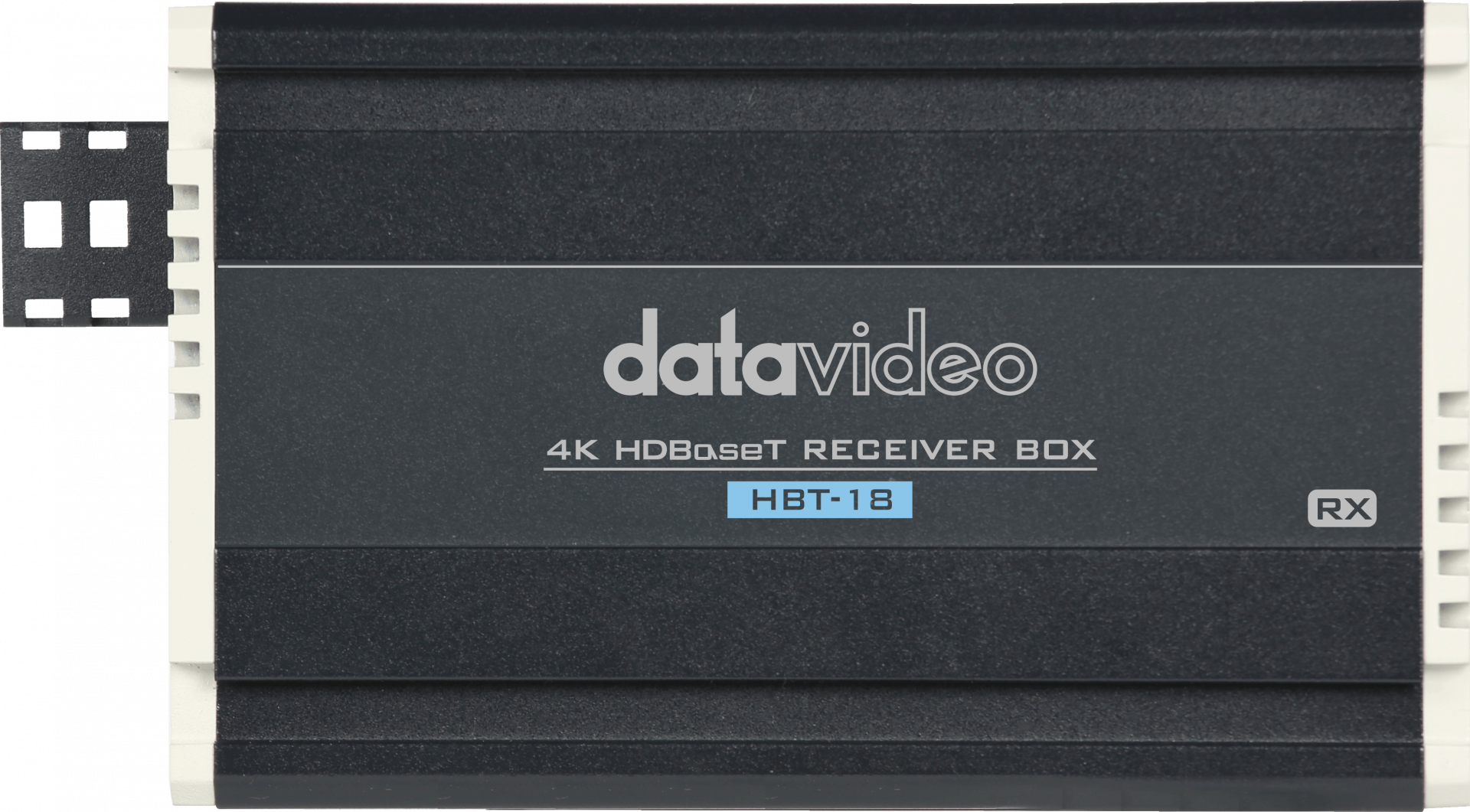

The HBT-18 is an advanced HDBaseT receiver designed to deliver superior video quality and extended transmission distances. Ideal for professional AV setups, it supports up to 4K60 video resolution and ensures seamless connectivity through a single Ethernet cable.
1 x HBT-18 main unit
1 x AC cord
1 x DC 56V power adaptor
Categories: Accessories
Video/Audio Input | HDBaseT RJ-45 x1 |
Video/Audio Output | HDMI 2.0 x1 |
Supported Video Format | 2160p: 60/59.94/50/30/29.97/25 1080p: 60/59.94/50/30/29.97/25 1080i: 60/59.94/50 720p: 60/59.94/50 480i: 59.94 576i: 50 |
Video Process | 4K2K60 4:4:4 8bits 4K2K60 4:2:0 10bits |
Video bandwidth | Single-link 600MHz [18Gbps] |
DVIP | RJ-45 x1(input) |
RS-422/ RS-232 | RJ-45 x1 |
Power | DC IN: DC 48~56V |
PoE Output | 80W |
HDBaseT Distance | 2160p60/59.94/50 Up to 100m by CAT. 6A Cable (HDBaseT certification required) (Resolution downward supported) |
HDMI compliance | HDMI 2.0 |
HDCP compliance | HDCP 2.2/1.4 (Bypass) |
Audio support | Surround sound [up to 7.1ch) |
Operating Temp. Range | 0~40 °C |
