The PTR-15T boasts an extensive range of signal interfaces for seamless integration with the remote head.
These interfaces encompass SDI, HDMI, RS-232, RS-422, DVIP, HDBaseT, Tally, and LANC, providing diverse connectivity options.
PTR-15T Main Unit x 1
DC 19V power adaptor x 1
AC cord x 1
IR remote control x 1
DC with lock to D-Tap cable x 1
HDMI cable x 1
SDI cable x 1
Remote cable (2.5mm phone-jack to mini-din 8pin) x 1
1/4” screw x 2
1/4” to 3/8” screw adaptor x 1

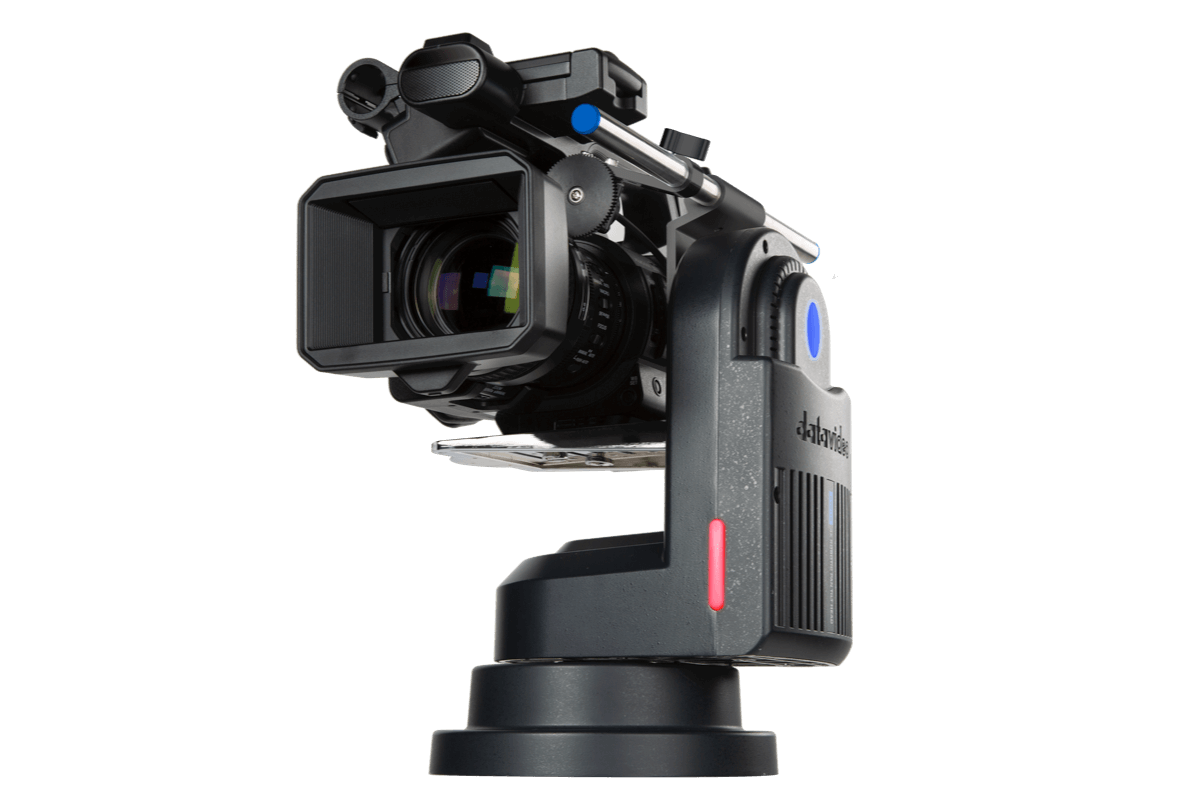

It features an efficient driving system for smooth, precise pan and tilt movements. Compatible with most broadcast-grade cameras, it allows remote control of camera functions like pan, tilt, zoom, and aperture.
With HDBaseT connectivity, the PTR-15T simplifies setups by transmitting 4K video, audio, control signals, and power over a single Ethernet cable, reducing clutter and extending connection distances. However, it's important to note that the PTR-15T can only be used in conjunction with the HBT-18, ensuring optimal performance and connectivity.
The PTR-15T also includes a built-in FreeD virtual tracking feature, using computer vision to track subjects accurately.
Control options include IR, VISCA protocol, Datavideo RMC-180 MARK II, RMC-300A, HS-1600T series, and compatibility with serial and Ethernet (DVIP) connections.
Video Interface
HDMI 2.0 x 1
12G-SDI x 1
3G-SDI x 1
RJ45 x 1 (HDBaseT)
Video Output
2160p 60/59.94/50
2160p 30/29.97/25
1080p 60/59.94/50
1080p 30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50
Control Unit
RMC-180 MARK II
RMC-300A
RMC-300C
SHOWCAST 100
VISCA Protocol Controller IP Control
IR remote
Genlock YES
Timecode YES
Panning / Tilting Range Pan: 340°
Tilt: ±45°
Panning / Tilting Speed Pan: 0.12~15° /Sec
Tilt: 0.06~10° /Sec
Preset Pan/Tilt position 199
Control Distance 1,200M by RS422
100M by DVIP
Control Protocal Sony VISCA
DVIP
Control Input RS-422
HDBaseT
Maximum Load 4 KG Max
Control Output
RS-232
RS-422
IP Control
BX-Lens
LanC
Power Requirement DC 14V~ 20V, 90W
Power Supply DC 24/12V, 24 W Max
Operating Temp. Range 0~40 C°
Operating Humidity Range 10~80%
Storage Temp. Range -10~60C°
Storage Humidity Range 5~80%
