Datavideo RMC-260 Remote Control for SE-1200MU Digital Video Switcher

Brand: DATAVIDEO

MFR: RMC-260

1,982.00

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: Control Panels

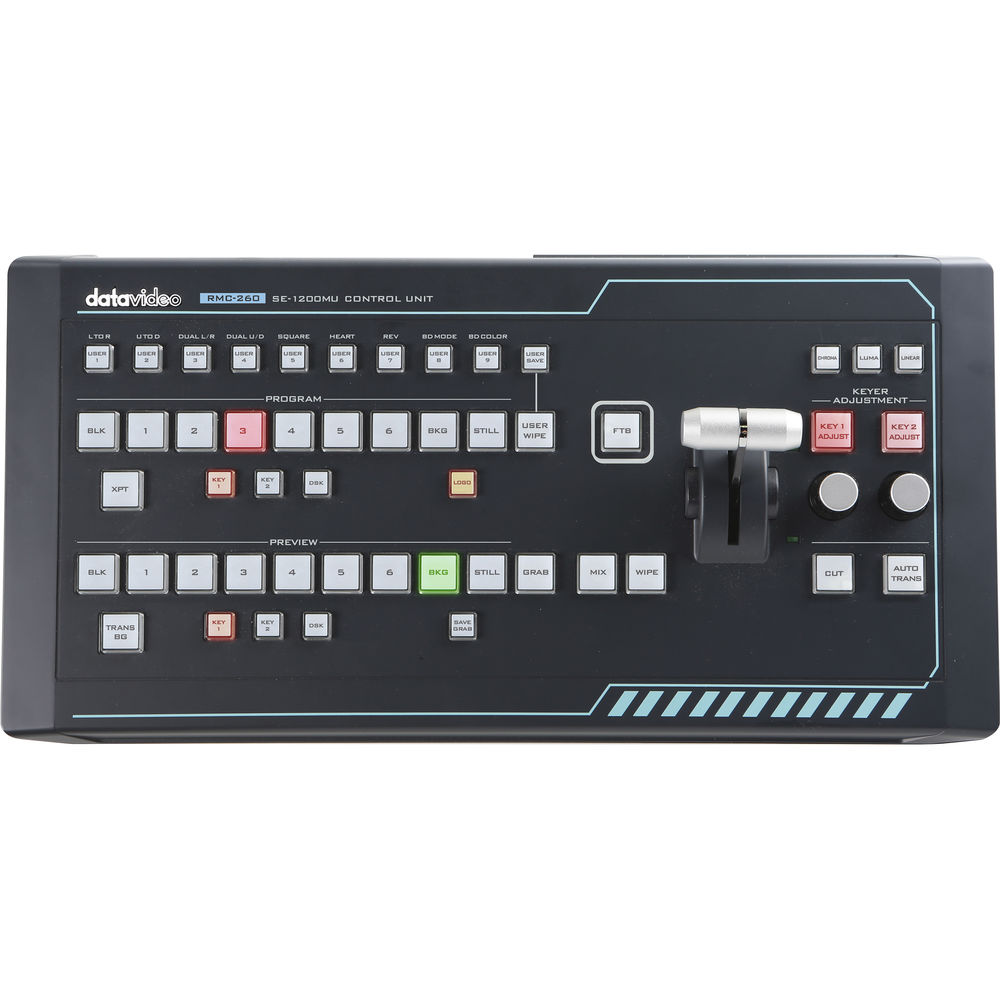

The RMC-260 Remote Control from Datavideo is used for controlling the SE-1200MU Digital Video Switcher (switcher not included) via an RS-232 interface. With hard keys for the main switcher functions and on-screen menu controls for quick and easy adjustment of parameters in the field, the RMC-260 is designed for effortless switching. The RMC-260 can be used with or without the PC Control Software, although the software must be used for upgrades and for import/export of user memory settings, stills, and clips.

  • Clear key definitions
  • Support for keyers enable and quick function assignment
  • Allows you to save user behaviour using the user memory keys for quick access
  • Two keyers with two corresponding knobs for assignment of keyer 1/2 sources
  • XPT (cross-point assignment)
  • Take button to switch between PVW and PGM views
  • FTB button fades the PGM view to a black screen
  • Still Grab function for capturing instantaneous video image

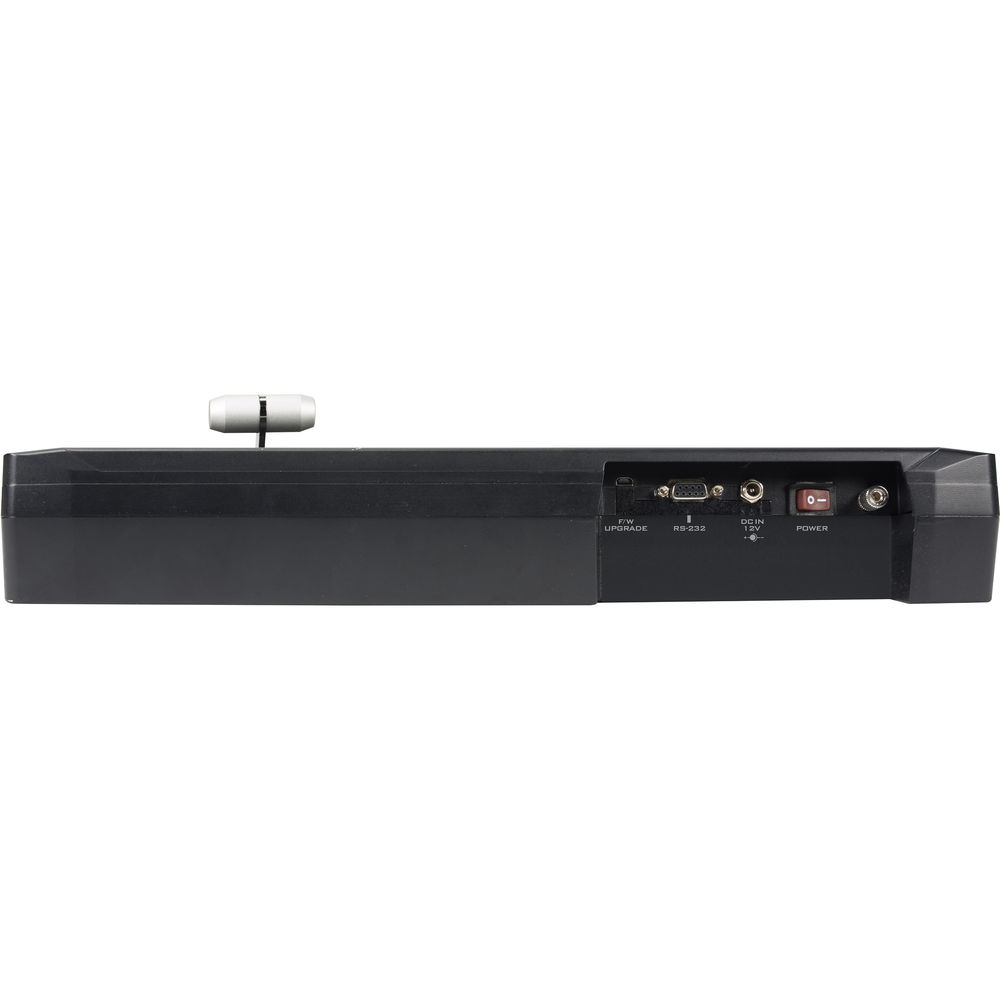

  • RS-232 interface for communication between RMC-260 and SE-1200MU
  • Bright LED lighting

Communication InterfaceRS-232
Baud Rate19200 ODD
Firmware UpdatesVia USB
CertificationCE, FCC
Power SupplyInput: 100 to 240 VAC Switching adapter
Output: 12 VDC
Power Consumption5 W
Operating Temperature32 to 122°F / 0 to 50°C
Storage Humidity10 to 90% (Non-condensing)
Dimensions16.9 x 8.5 x 2.7" / 43.0 x 21.7 x 6.9 cm
Weight2.8 lb / 1.3 kg

Packaging Info

Package Weight5.6 lb
Box Dimensions (LxWxH)21.6 x 11.4 x 8.9"
