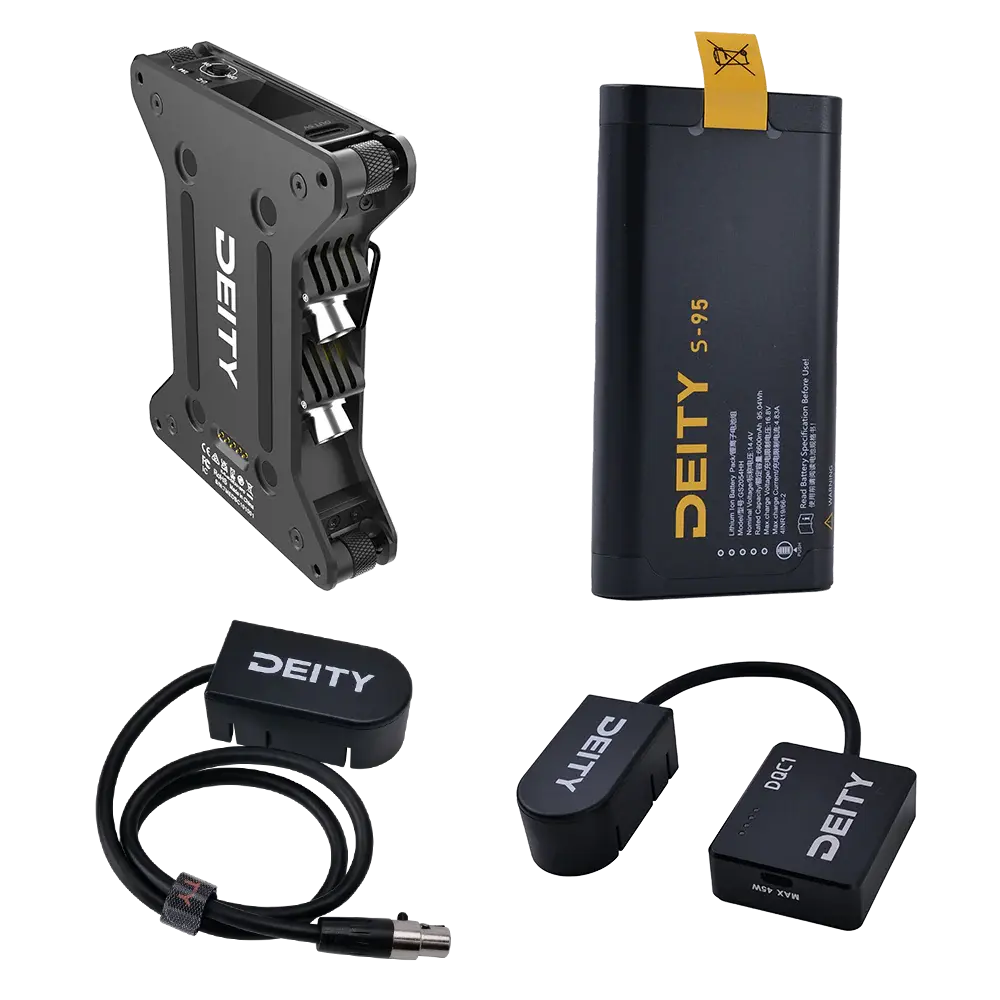

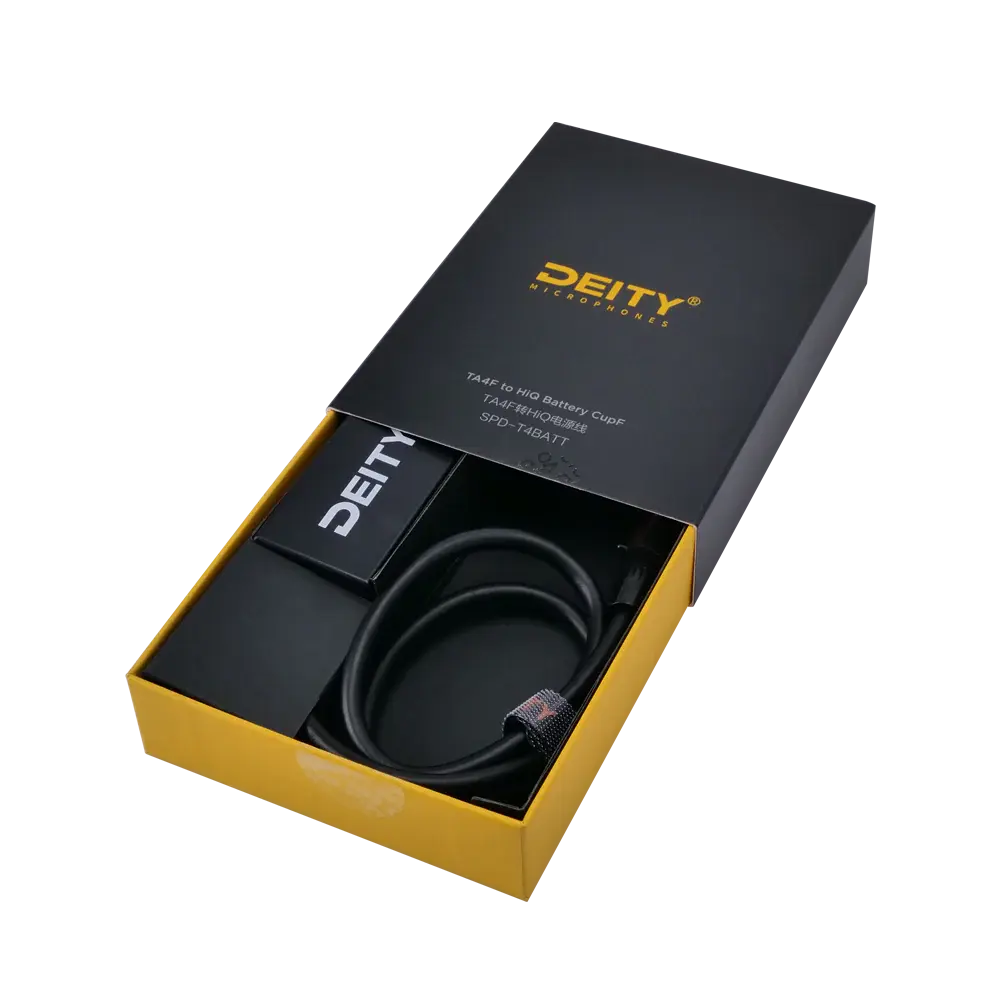

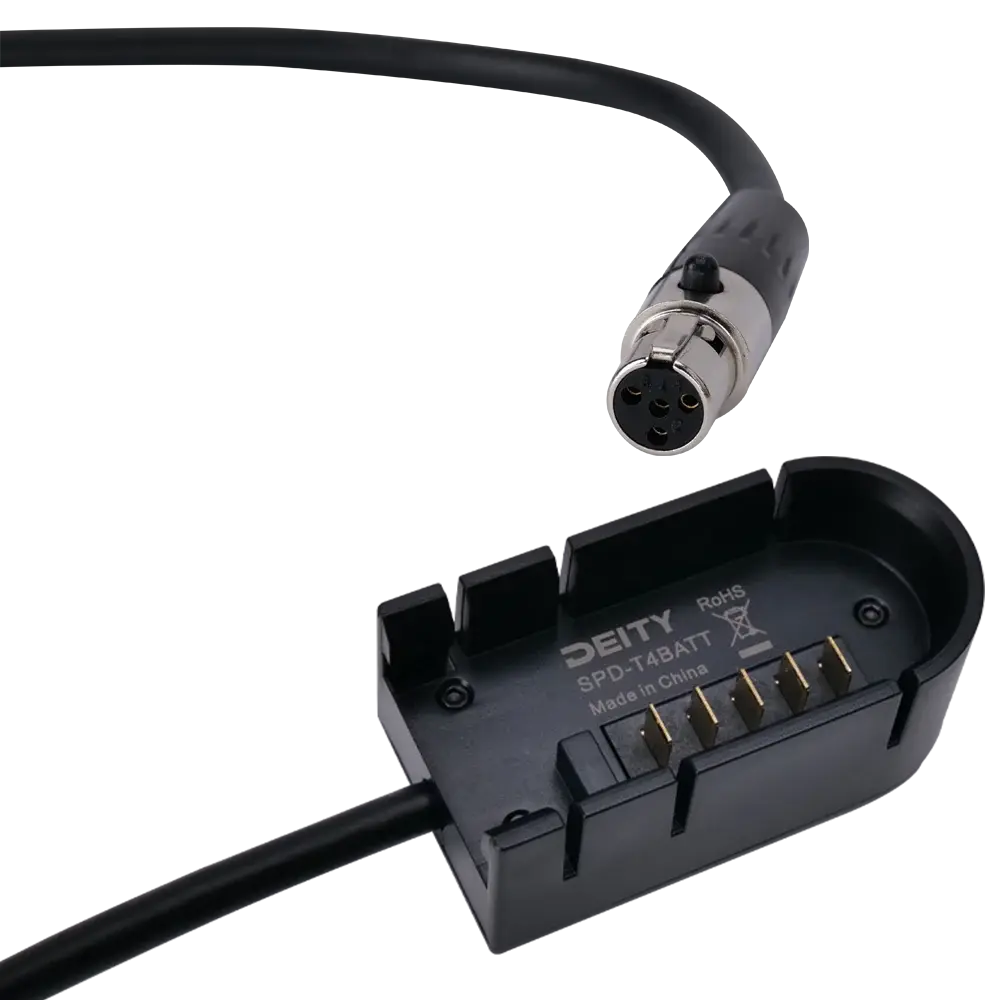

Kit includes the SPD-Mini Power Distro, an S-95 95Wh Smart Battery that can relay battery life data, an SPD-T4BATT TA4F to Smart Battery Cup, and a DQC-1 Smart Battery Charger.

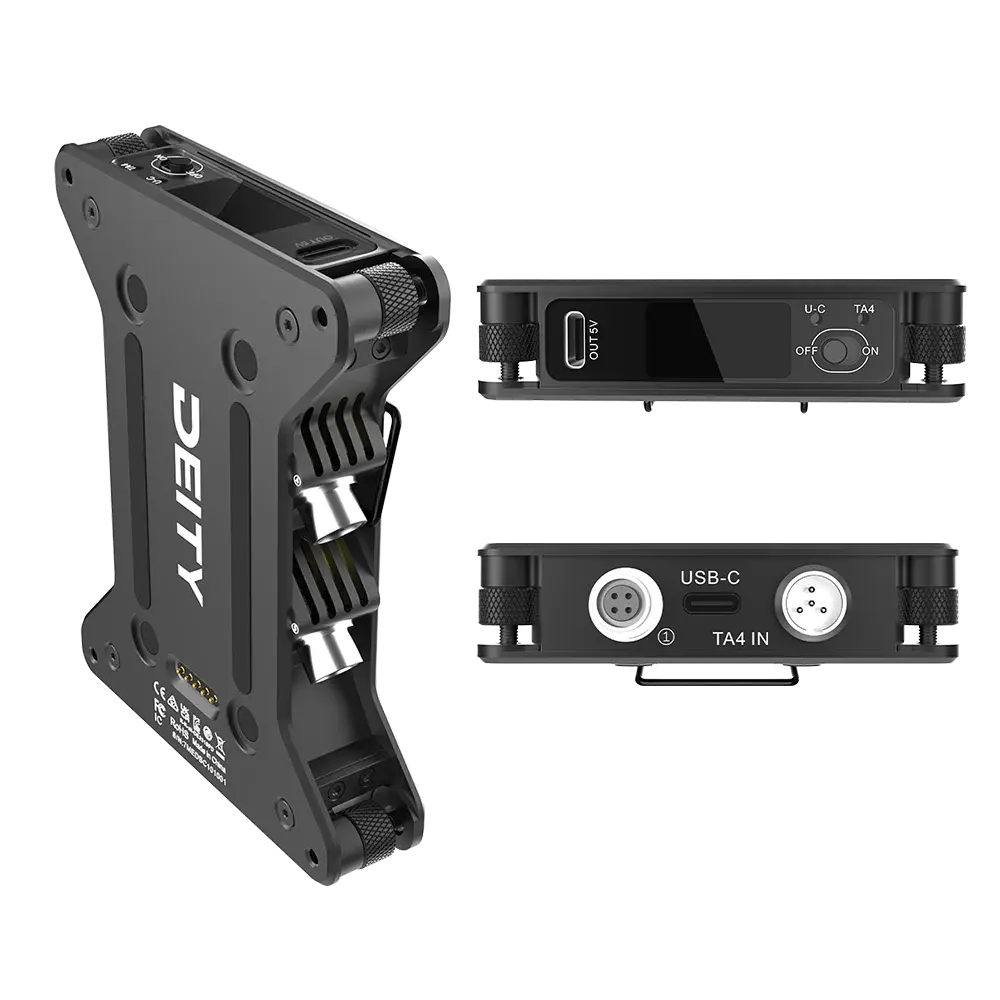

The SPD-Mini is a compact smart power distribution box with screen and five 4-Pin Push-Pull Power ports that can be turned on/off with a top mounted switch.
Color Screen
The SPD-Mini utilizes a bright color screen that can be flipped upside down with flick of a switch. Combined with the two belt clip mounting points, the screen allows you to rig the SPD-Mini how ever you need to in your sound bag.
USB-C Output
The top of the SPD-Mini features a 5V USB-C output with support for 10Ws of power delivery. Perfect for keeping a tablet or phone topped off that's running the Sidus Audio™ app.
Smart Pass Thru
The SPD-Mini supports TA4 Smart Battery cups and USB-C. The USB-C input defaults to the 15V PD standard but is also compatible with the 12V PD standard.
Next to the inputs is the #1 output, an unique output that passes along the smart battery data to audio recorders that can decode the telemetry data like the Sound Devices 8-series. The #1 output on the SPD-Mini is capable of handling the power draw up to a SD 888.
Regional Power System
The SPD-Mini is a part of the Deity Regional Power System. This allows the SPD-Mini to lock together with other compatible devices using 4 threaded mounting points and share power between the devices, giving the SPD-Mini an extra cableless output.

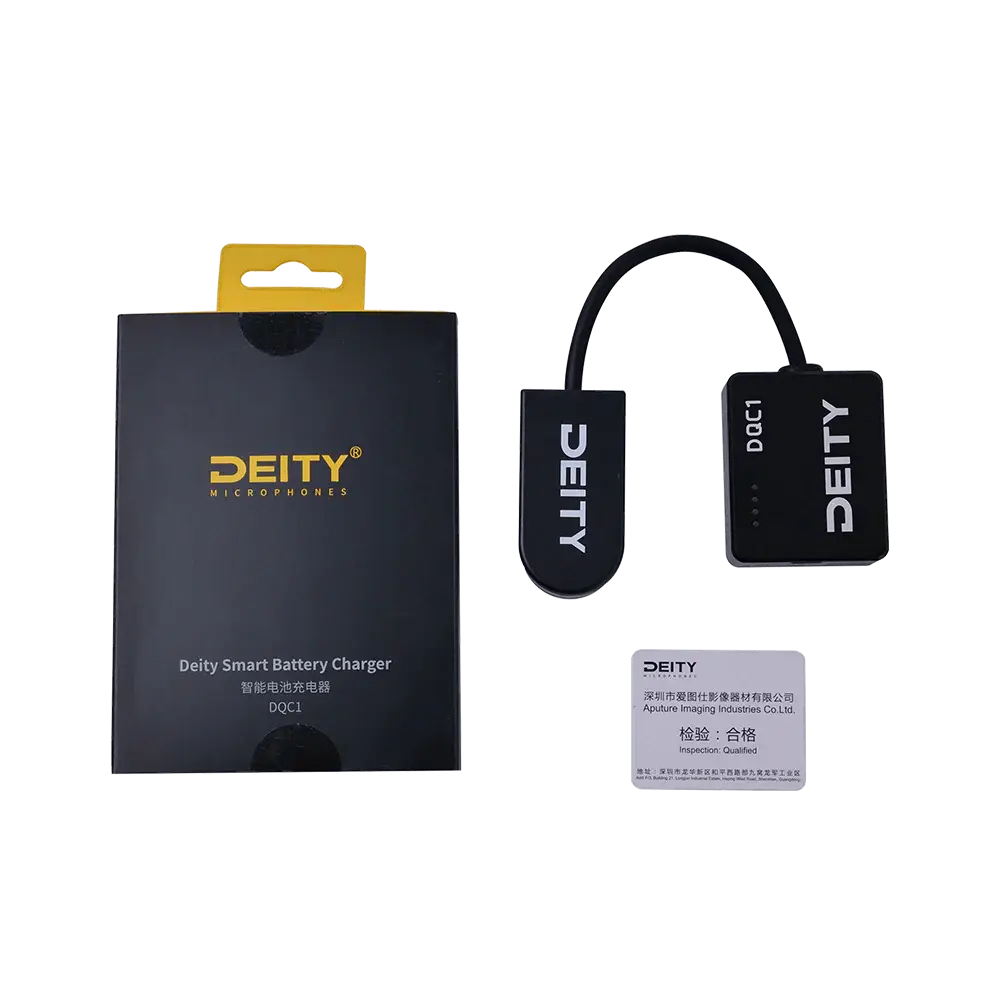

The DQC-1 Smart Battery Charger comes packed with features including a four LED charging meter and a 45-watt USB-C Input for charging the connected battery which can also be used as a USB-C output of up to 45 watts - enough to run a laptop. The charging module is housed inside a metal chassis, making it durable and long- lastin
Deity Microphones SPD-Mini Compact Modular Power Distro System
Display
| Panel Type | TFT LCD |
| Display Size | Not Specified by Manufacturer |
| Touchscreen | No |
Inputs/Outputs
| Power Input | 1 x TA4F 1 x USB-C |
| Power Output | 1 x 4-Pin Push-Pull Aviation Connector (Passes Smart Battery Data) 4 x 4-Pin Push-Pull Aviation Connectors 1 x USB-C |
Power
| Power Source | Battery, USB |
Physical
| Mounting | 2x Belt Clip |
| Color | Black |
| Material of Construction | Aluminum |
| Dimensions | 4.1 x 3.1 x 0.8" / 105.3 x 78 x 20.7 mm |
| Weight | 6.5 oz / 185 g |
