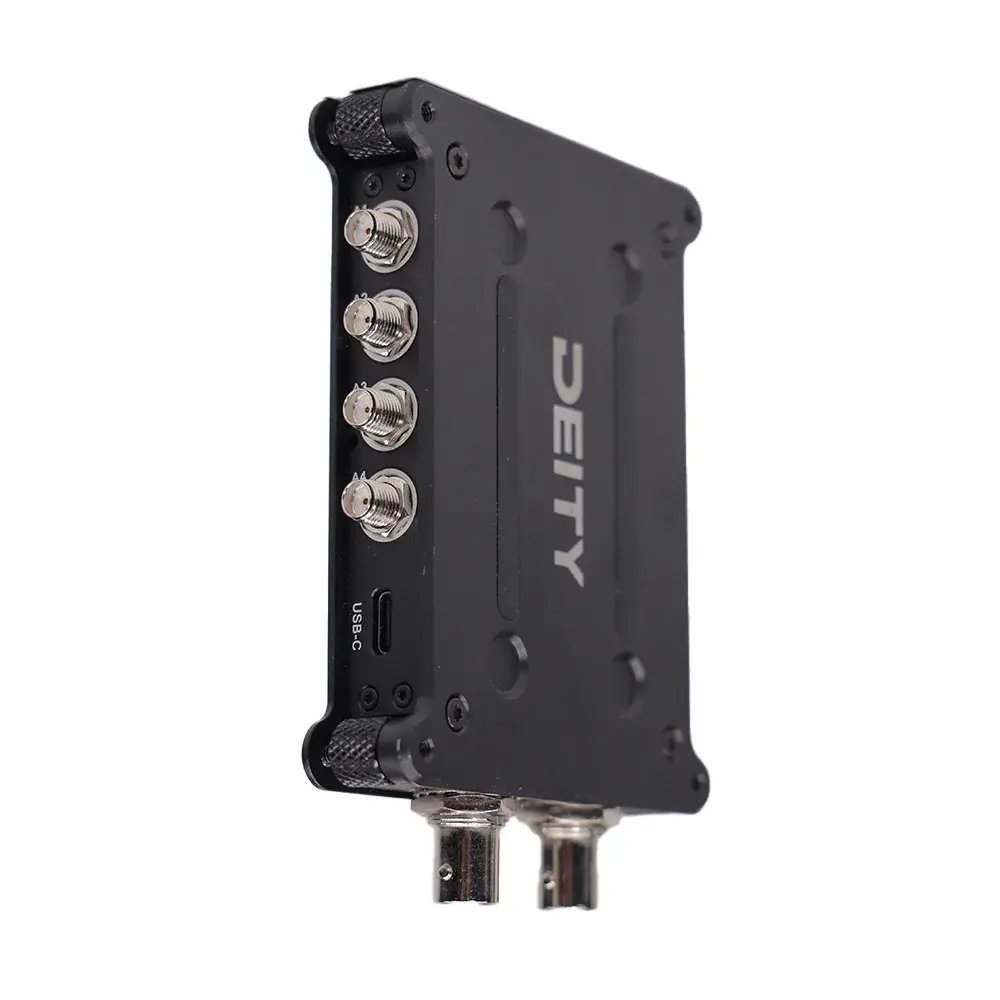

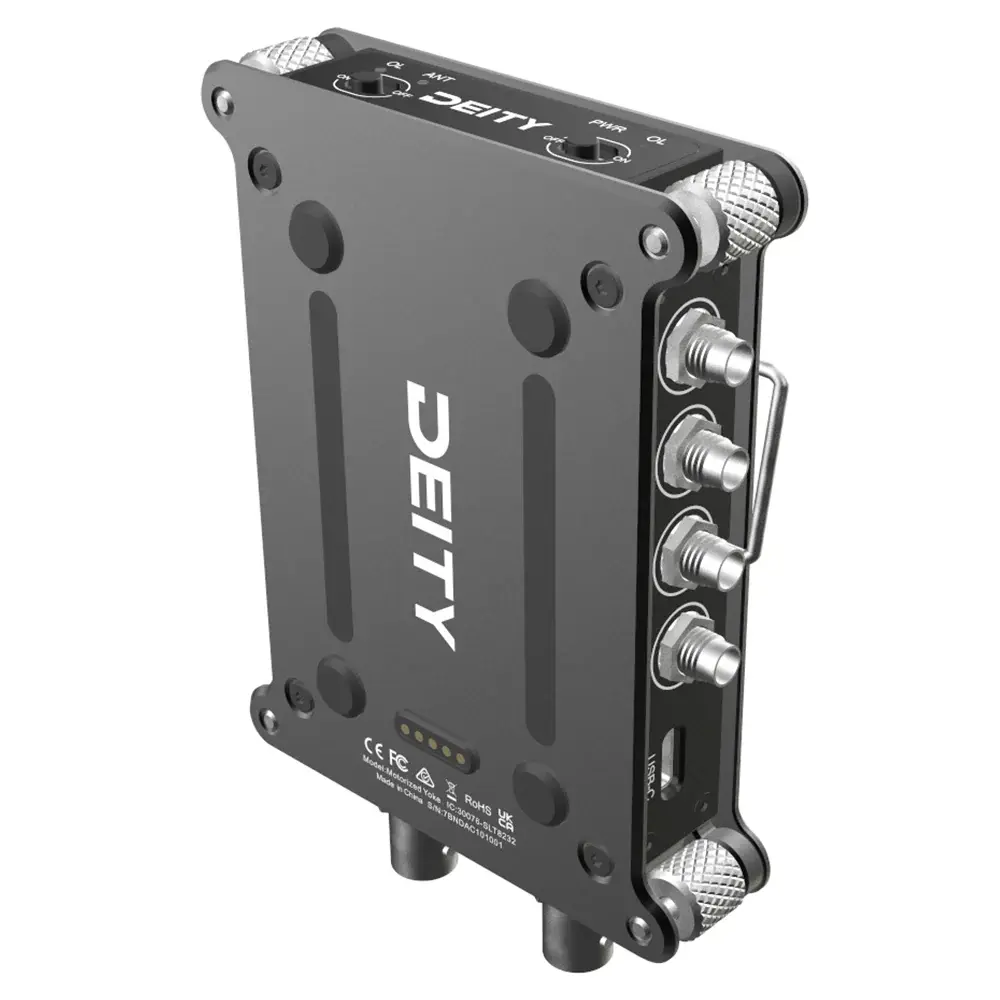

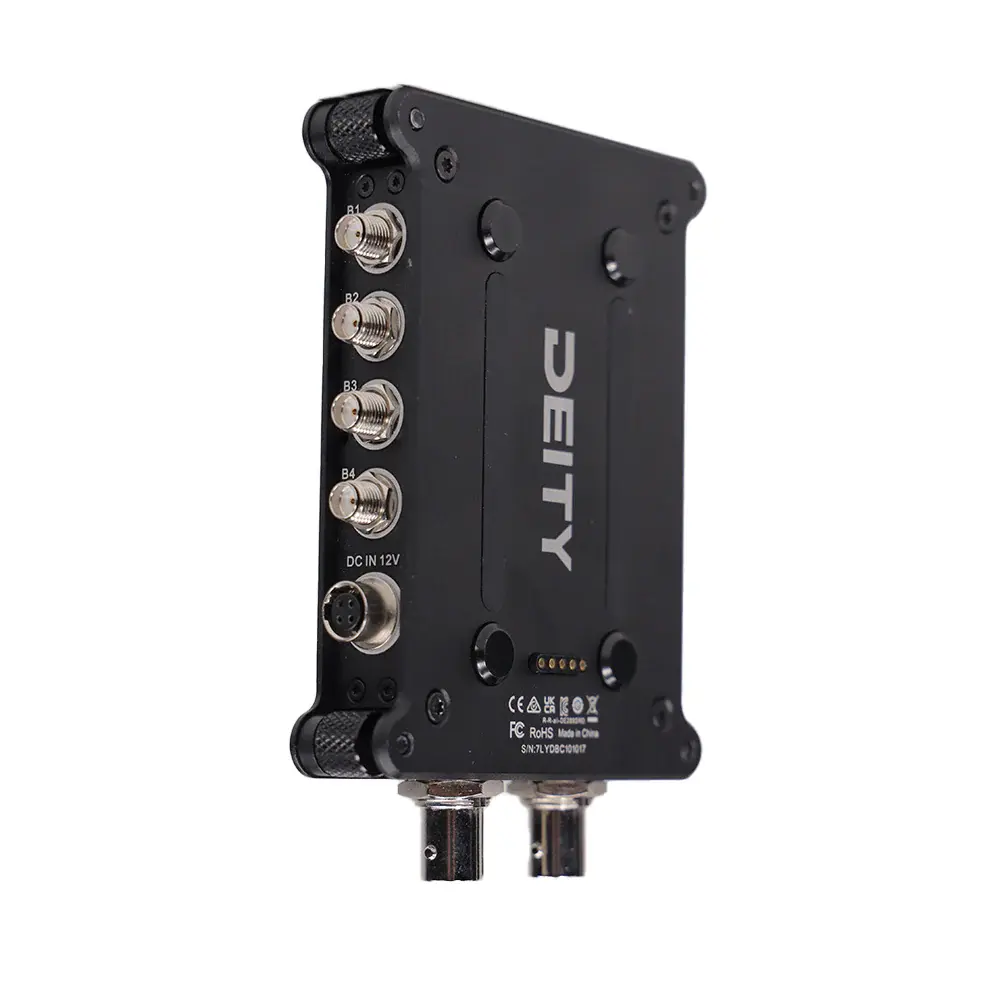

Simplify the management of wireless microphone signals in demanding field conditions with the Deity Microphones SRD-Mini, an ultra-slim, portable 4-channel antenna-distribution system designed specifically for location sound mixers. This RF distro is equipped with two main ins and four outs (A and B), for a 2-to-8 split.

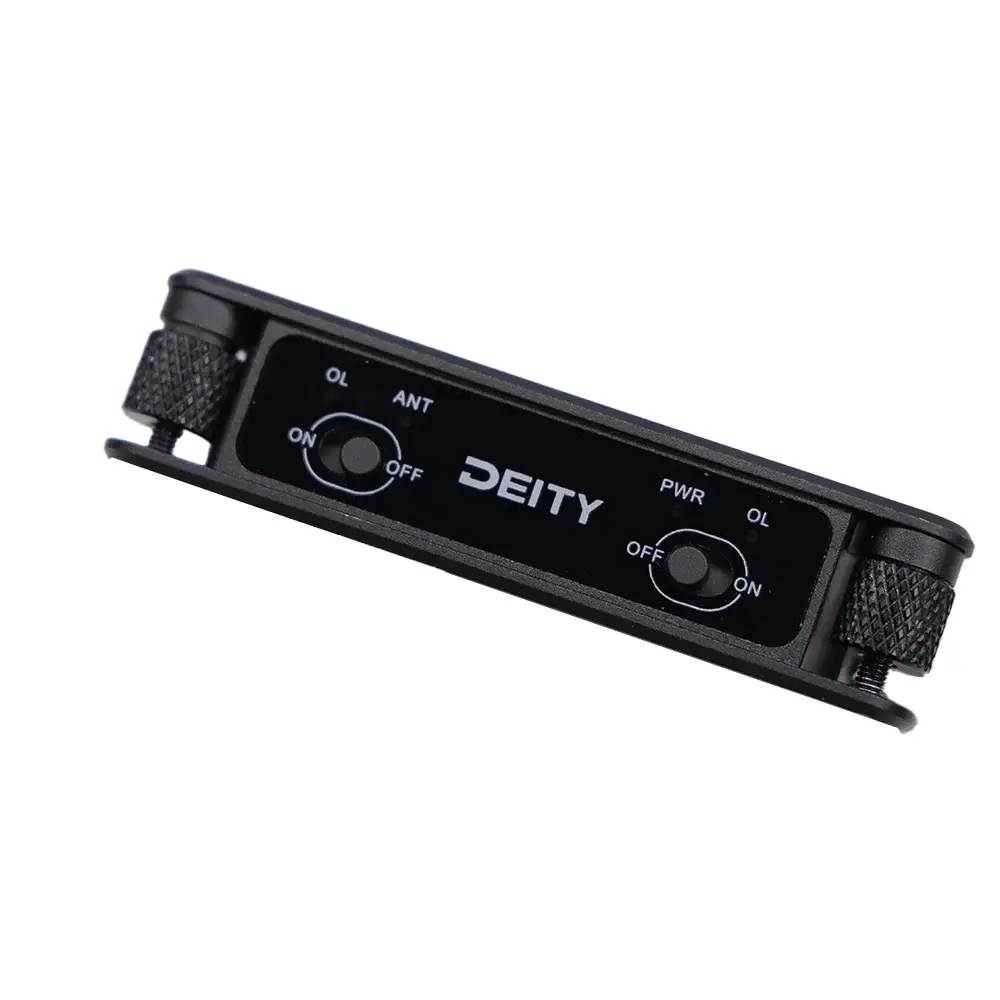

Supporting both passive and active antennas, the SRD-Mini features an active splitter that compensates for gain loss, ensuring that your RF signals remain strong and consistent. The unit also supplies power to external antenna circuitry. Each side of the distro (A / B) can have it's external power toggled on or off independently. The SRD-Mini is made of CNC aluminum and is ultralightweight. Its slim and ergonomic design makes it easy to place it wherever you need to in your sound bag.
Categories: Transmissions
Deity Microphones SRD-Mini Specs
Inputs/Outputs
| USB I/O | 1 x USB-C Female Input |
| RF Input | 2 x BNC Connectors |
| RF Output | 8 x SMA Connectors |
| Impedance | Input: 50 Ohms Output: 50 Ohms |
| Gain | +3 to +9 dB |
| Port Isolation | ＞20 dB (Minimum) |
| Noise Factor | ＜1.5 dB |
Wireless
| Wireless | UHF |
| Frequency Range | 470 MHz to 1 GHz |
| Gain | +3 to +9 dB |
| Port Isolation | ＞20 dB (Minimum) |
| Noise Factor | ＜1.5 dB |
Power
| Power Source | USB, DC Input, Proprietary Interface |
| DC Input Power | 5 to 16.8 VDC at 160 mA |
Physical
| Color | Black |
| Material of Construction | CNC Aluminum |
| Dimensions | 4.5 x 3.1 x 0.8" / 115.5 x 78 x 20.8 mm |
| Weight | 6.5 oz / 185.5 g |
