When recording sound separately or working with multiple cameras on a production—whether it's a feature film, TV show, music video, documentary, or especially reality television—jam-syncing timecode is essential. With increasing devices supporting SMPTE timecode, post-production workflows are more efficient than ever. Instead of manually aligning waveforms, timecode streamlines the process, saving valuable time and resources while ensuring faster project turnaround.
Categories: Wireless Microphone Systems

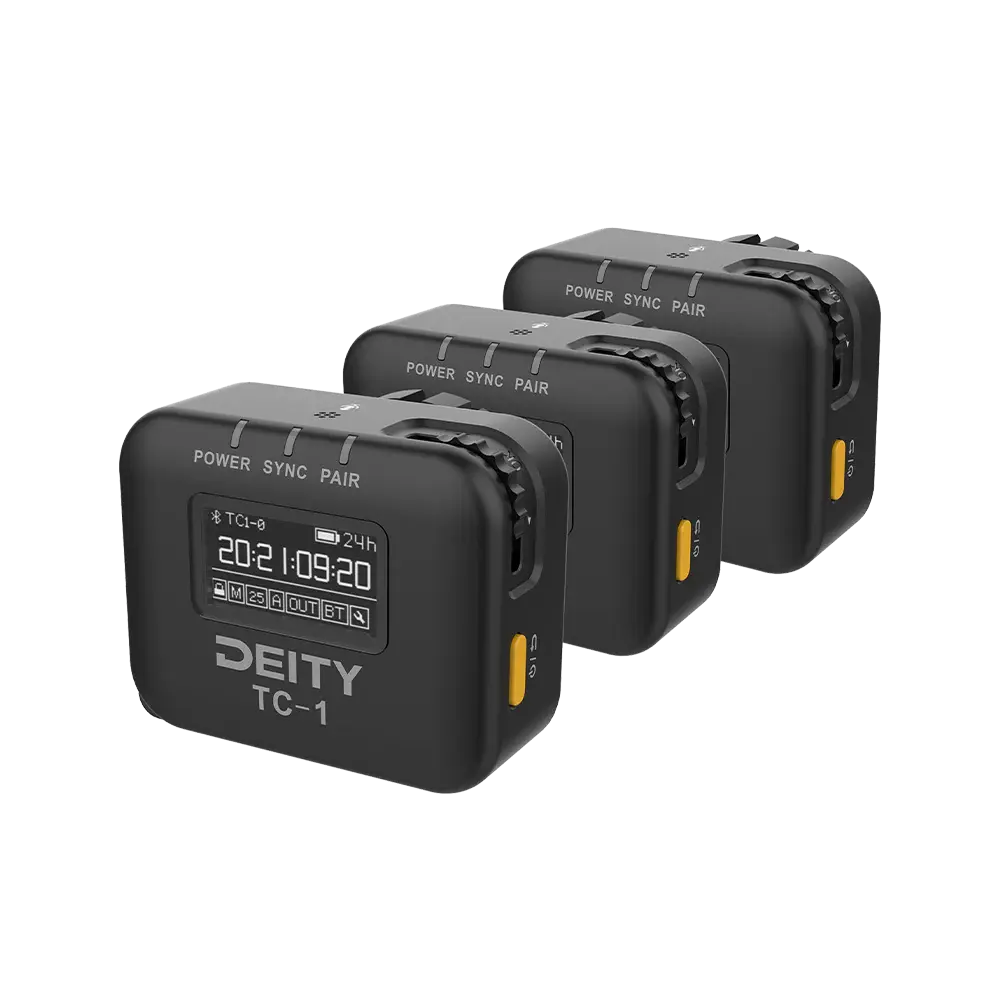

Designed for precision, this advanced timecode generator supports all SMPTE formats and utilizes a high‑accuracy TXCO oscillator rated at ±0.5 ppm, delivering an exceptionally low drift of just one frame every 72 hours. Its wireless syncing capabilities ensure all units remain perfectly aligned throughout the day, maintaining reliable synchronization in demanding production environments.
Bluetooth 5.0 connectivity enables full control through the Sidus Audio mobile app, allowing jam sync and parameter adjustments for up to 48 TC‑1 units at distances reaching 250 ft. For direct, on‑device operation, the built‑in OLED display and control panel provide hands‑on syncing for up to eight units via proprietary 2.4 GHz wireless technology with a range of up to 30 ft.

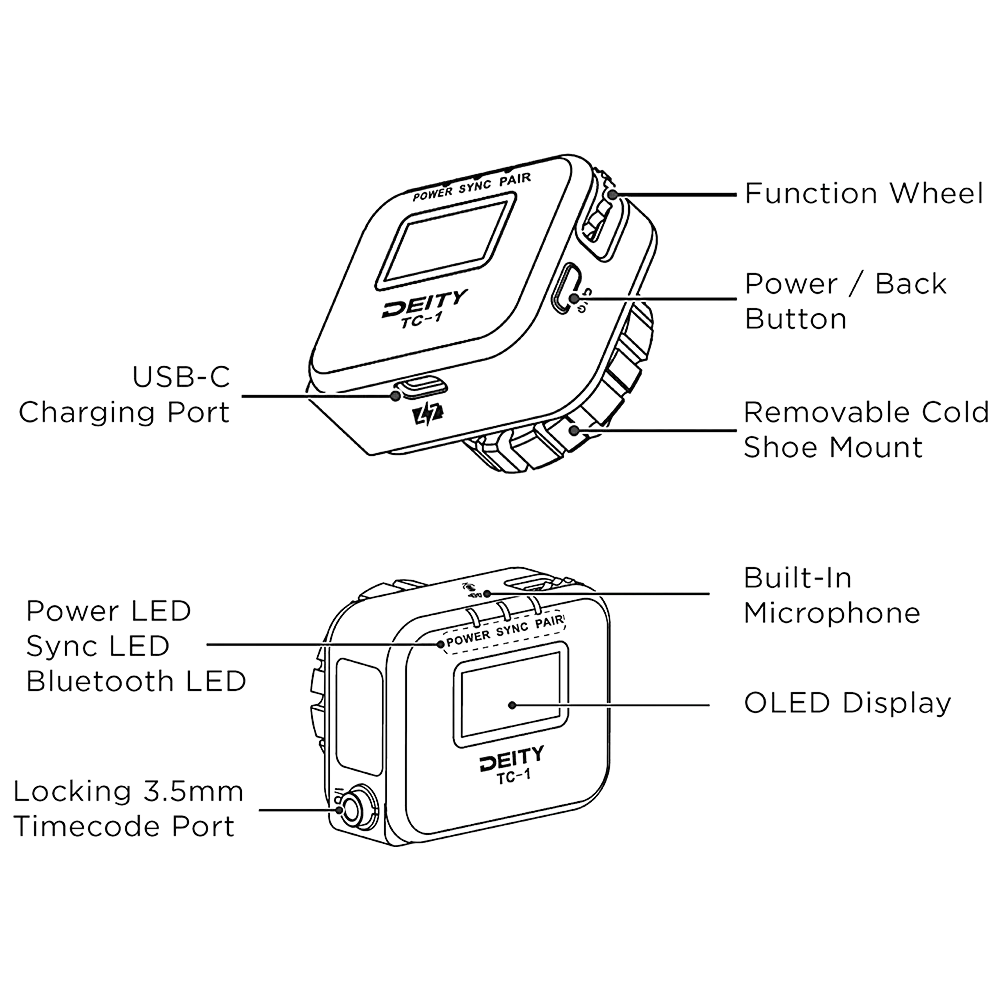

The TC‑1 features a secure locking 3.5 mm TRS timecode port to ensure stable connections during shoots. When used with DSLR or mirrorless cameras, the included TRS cable records timecode on the left channel while preserving the right channel for reference audio captured by the integrated omnidirectional microphone—aligned with the camera lens for accurate backup audio.

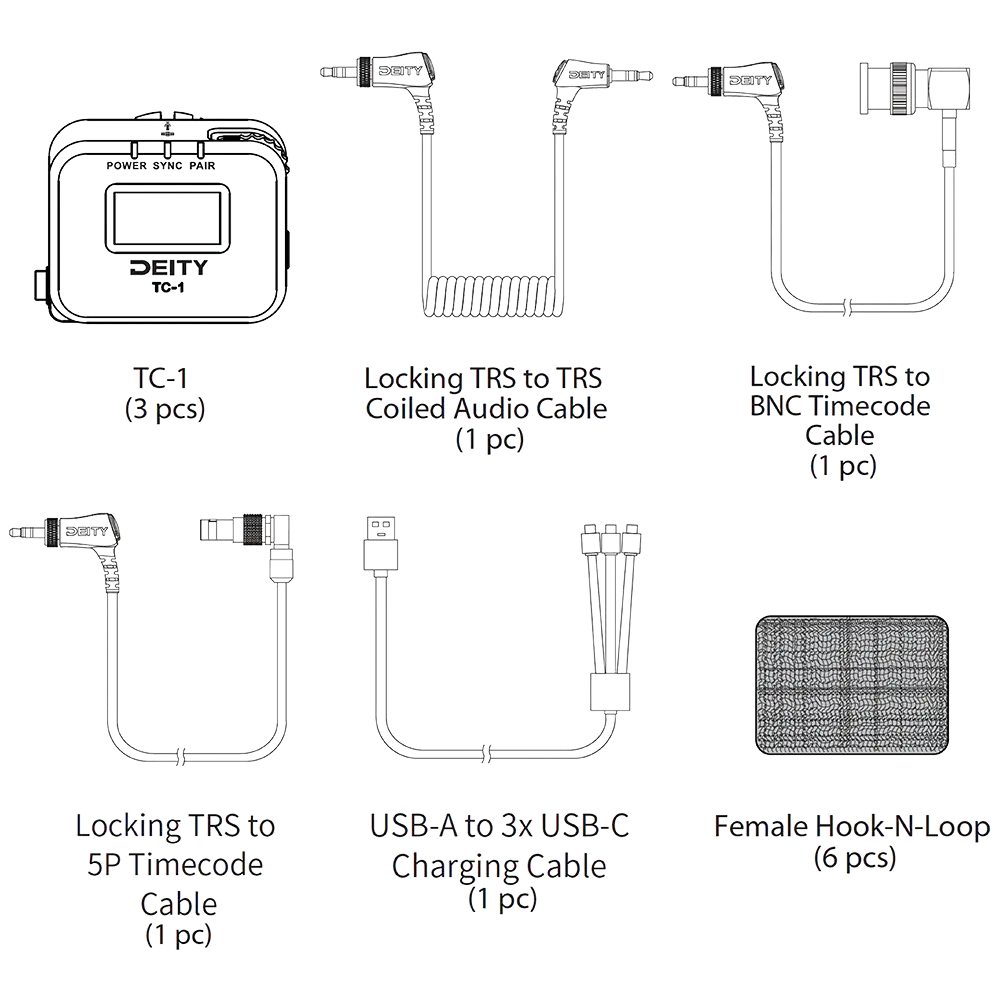

For professional workflows, the TC‑1 includes additional cables supporting 5‑pin LEMO and BNC timecode ports, ensuring seamless compatibility with industry‑standard cameras and audio recorders.
| Category | Specification |
|---|---|
| Panel Type | OLED |
| Display Size | 1" |
| Touchscreen | No |
| USB I/O | 1 × USB‑C Female Input |
| Wireless | 2.4 GHz Radio/RF / Bluetooth 5.0 (Built‑In) |
| Mobile App Compatible | Yes — Android & iOS |
| Battery Chemistry | Lithium‑Ion Polymer (LiPo) |
| Battery Capacity | 950 mAh |
| Recharge Time | 2 Hours |
| Maximum Battery Life | 28 Hours |
| Mounting | 1× Shoe Mount, 1× Hook‑and‑Loop |
| Color | Black |
| Operating Conditions | -4 to 113°F / -20 to 45°C |
| Dimensions | 53.4 × 40 × 21.8 mm |
| Weight | 41 g |
