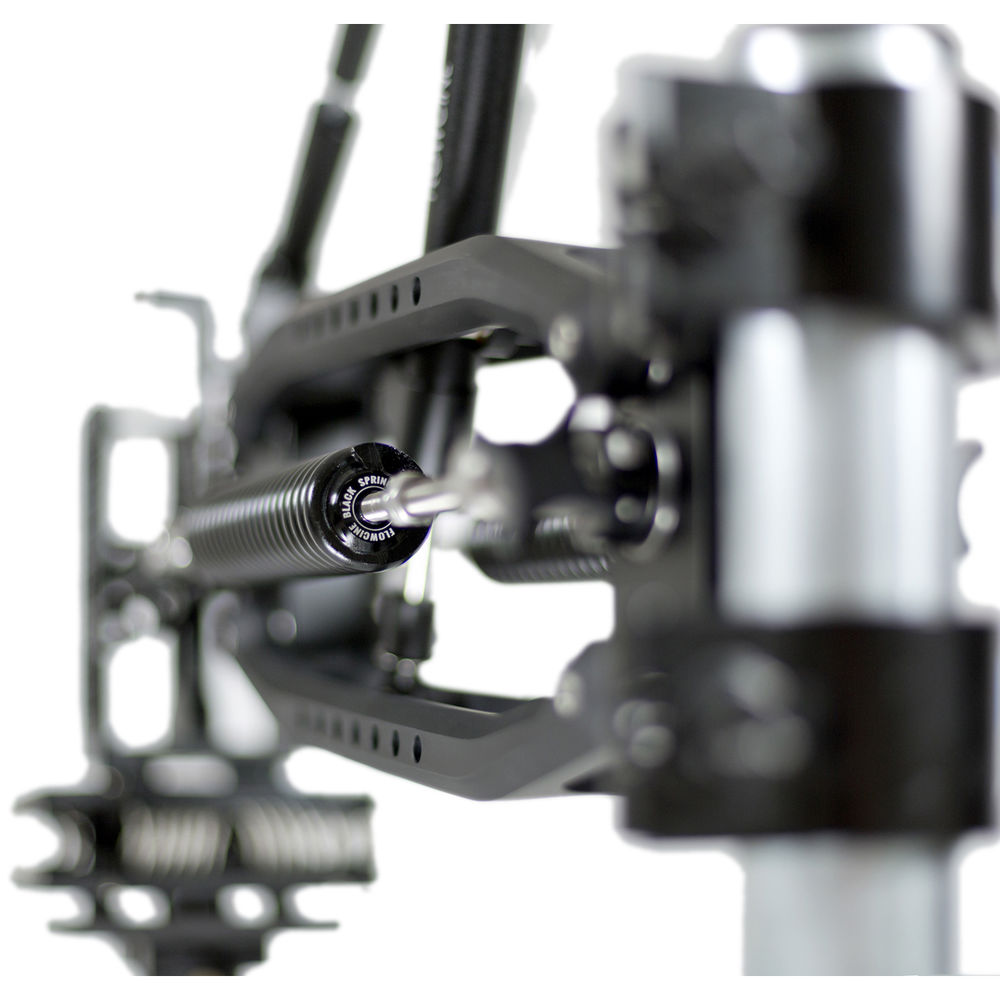

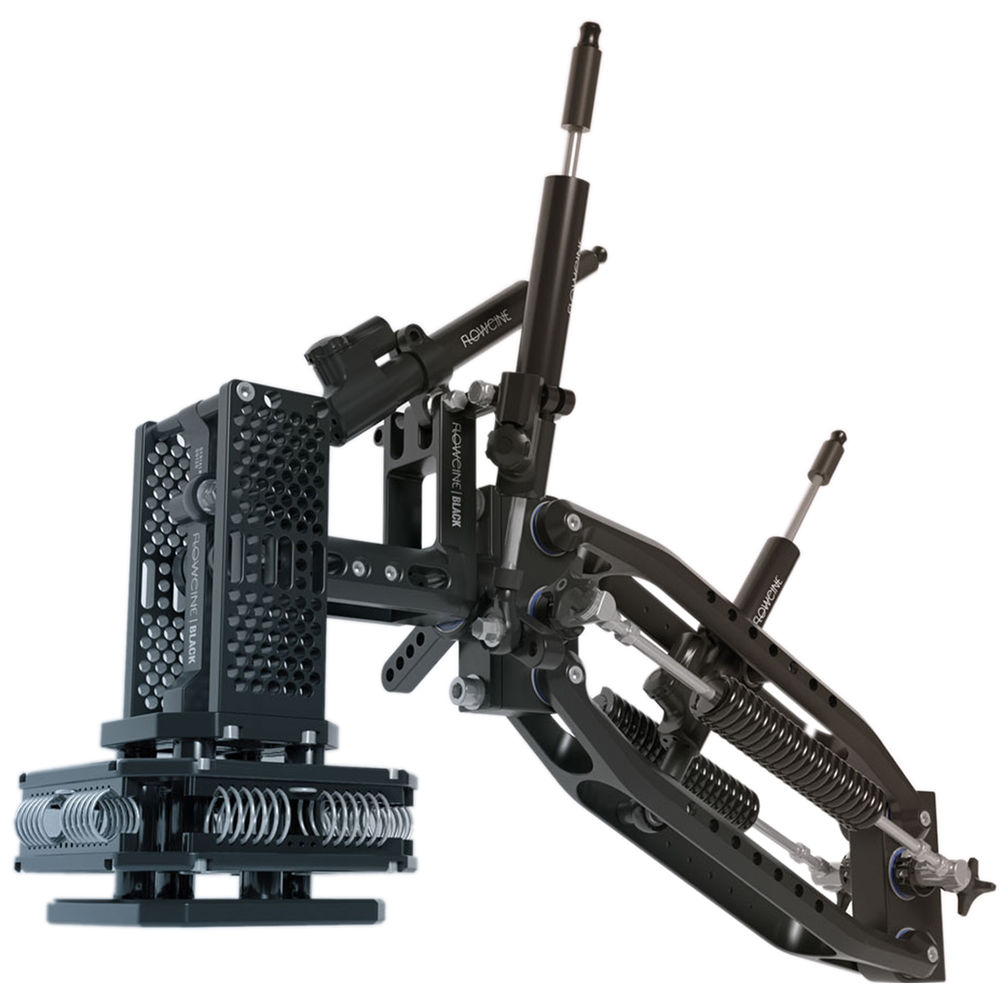

Capture super-stabilized gimbal shots from your car, ATV, boat, snowmobile, or other vehicle with the Black Arm Standard from FLOWCINE. Purely mechanical, this three-axis dampening and vibration-reduction system hard-mounts your gimbal-and-camera setup to your vehicle, stabilizing roll and tilt as well as vertical motion and vibration. The Black Arm's design incorporates a dual-spring arm with adjustable hydraulic dampers, and a platform that levels the separately available gimbal. In addition, between the arm and the mounted gimbal there is an anti-vibration mount capable of handling loads between 22 and 31 lb. Mounting the Black Arm is as simple as clamping it onto a standard 48-52mm speed rail.

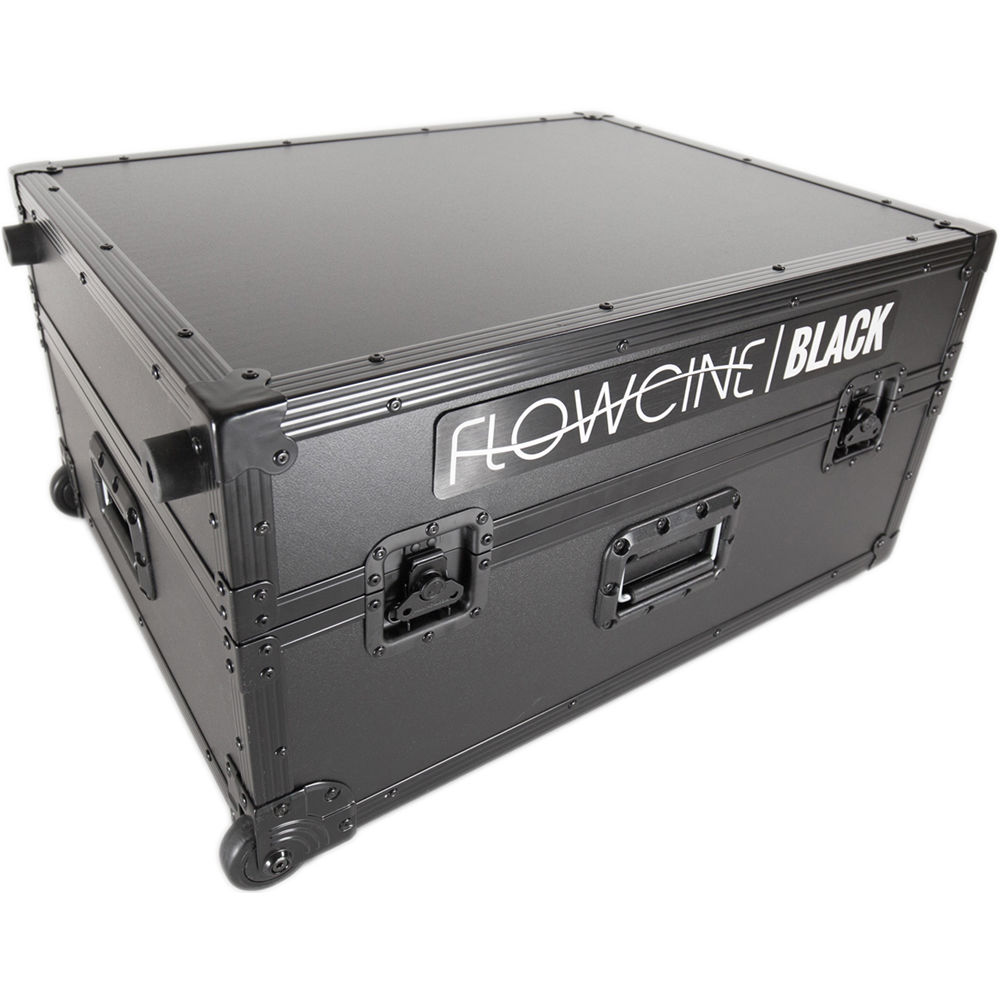

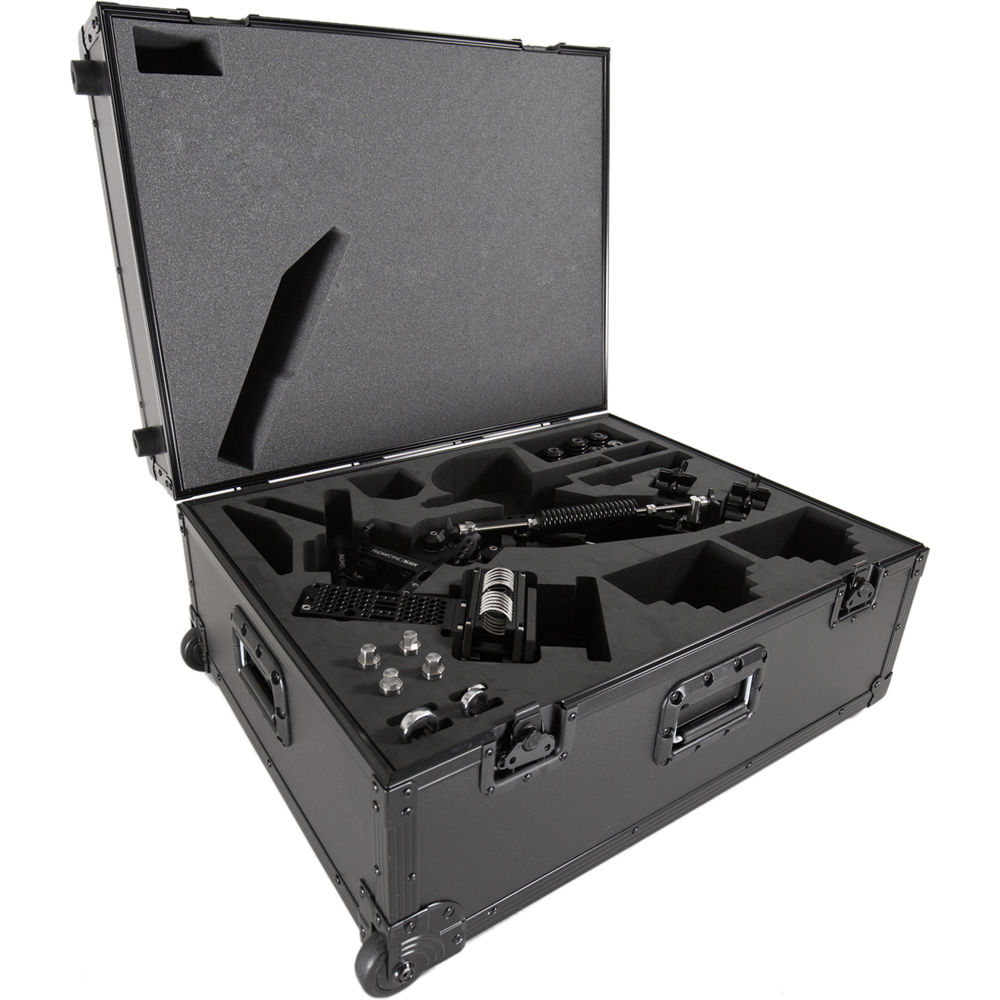

The damping action of all three axes—vertical, tilt, and roll— is brought about by fully adjustable actuator hydraulic dampers. A 22-step knob enables you to precisely dial in the amount of damping you need for your shot. The Black Arm Standard ships with one damper for each of the three axes. Also included is an extra-sturdy wheeled all-black pro case with powder-coated metal corners, butterfly catches, and heavy duty-recessed handles.
| Load Capacity | 22 - 31 lb / 10 -14 kg |
| Mounting Interface | Black Arm to Vehicle: Clamp for 1.9 - 2.0" / 48 - 52 mm speed rail Gimbal to Black Arm: 4 x 1/4"-20 UNC holes - 25 mm CC 5 x 3/8"-16 holes UNC - 25.4 mm CC 4 x 8 mm holes - 98.99 mm CC 6.5 mm holes - 2 x 1.5" CC 3.2 mm holes - 32 mm CC |
| Dimensions | Not specified by manufacturer |
| Weight | Not specified by manufacturer |
