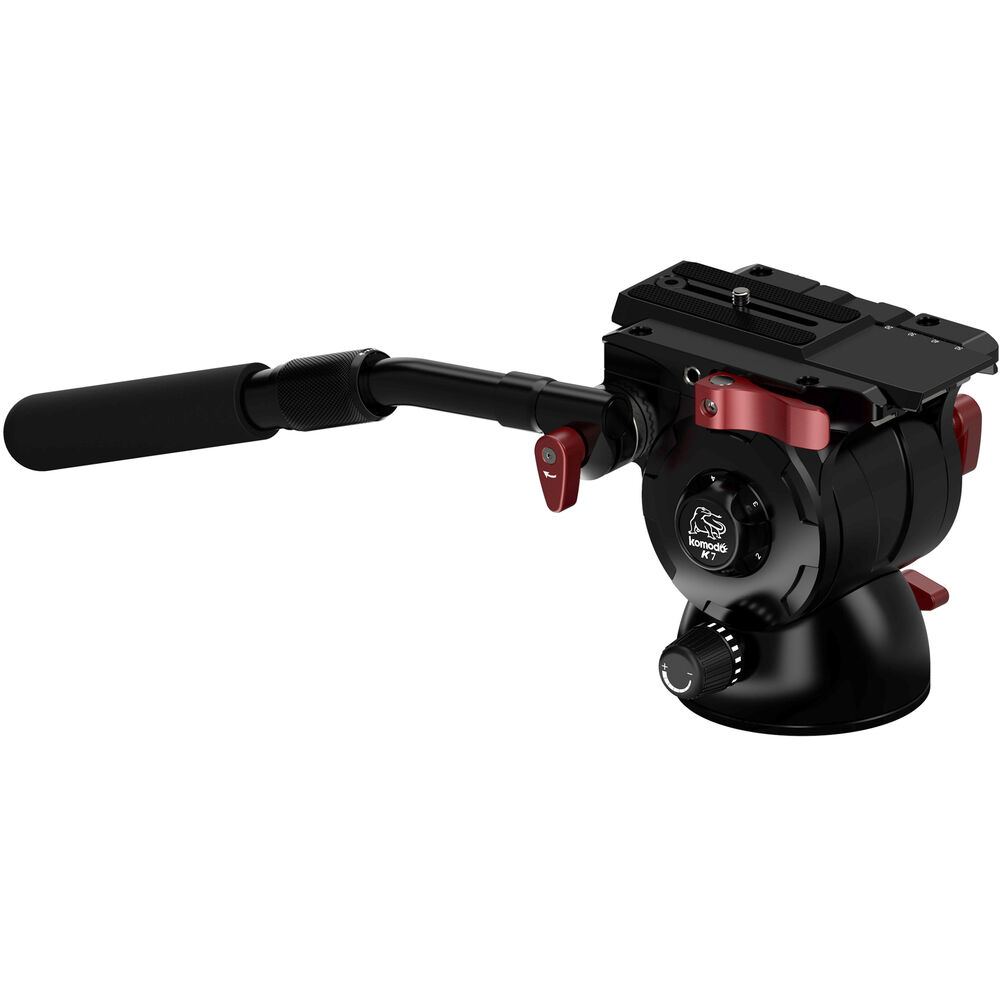

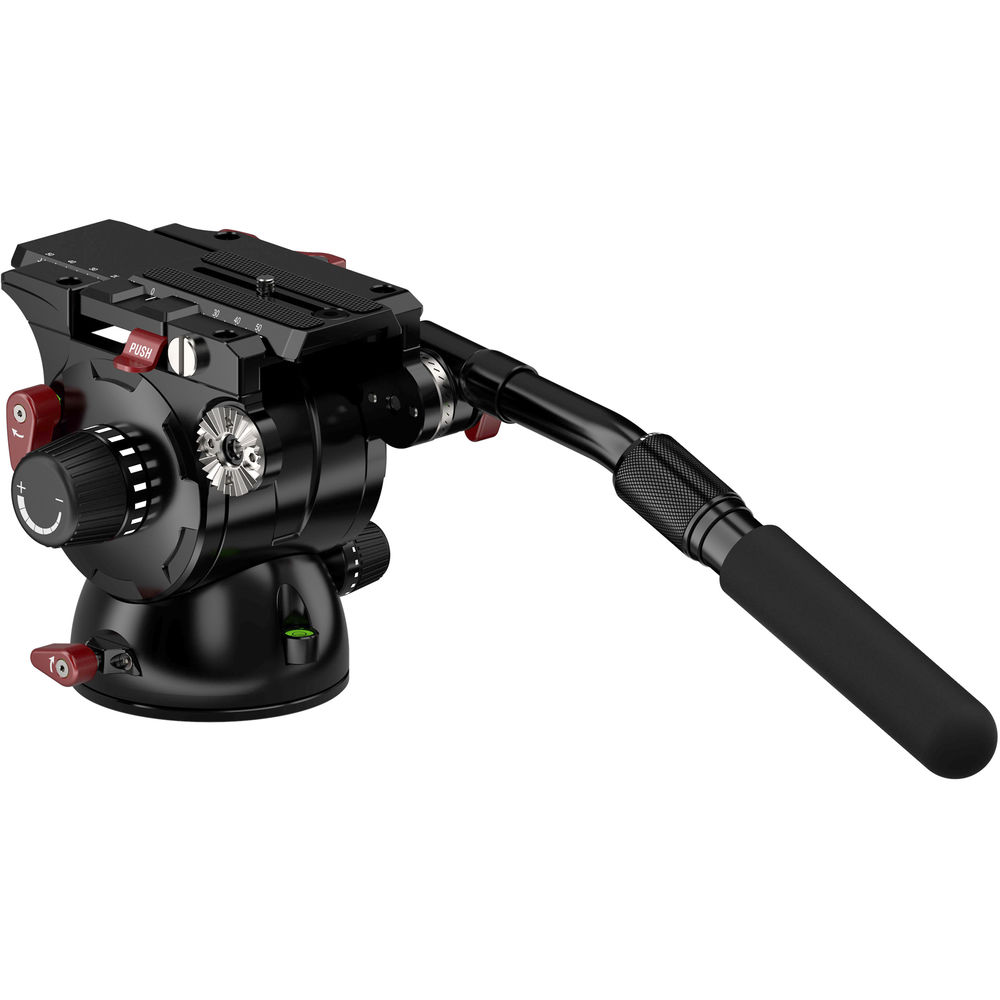

The Komodo K7 Fluid Head from iFootage is designed with a wide-platform flat base for additional stability. It has a 3/8"-16 threaded mounting hole, making it suitable for use on sliders, flat base tripods, and bowl-based tripods with an optional half ball adapter. The fluid head features anodized aluminum construction that makes it lightweight at 4.28 lb, durable, and corrosion-resistant. It supports up to 15.43 lb of camera and rig weight, and it features four steps of counterbalance for fine-tuning the head to match the needs of the shot. You can also set the counterbalance to zero for a completely free operation.
The head has independent pan and tilt drag and locks, allowing you to adjust the settings for one axis without affecting the other. The fluid head features a +90 to -70° tilt range, allowing you to tilt completely straight down and tilt up nearly straight. The 360° of continuous pan allows you to endlessly pan if so desired. The drop-in quick release plate offers over 3" of travel for balance adjustment and is indexed, making it easier to rebalance when you change lenses. The front of the quick release plate is thinner than the rear, where the camera attaches, providing clearance for larger diameter lenses.
Camera Plate
| Camera Plate Features | Sliding Balance Plate |
| Camera Mounting Screw | 1 x 1/4"-20 Male |
| Balance Plate Sliding Range | 3.15" / 80 mm |
| Safety Lock | Yes |
Head
| Base Mount | 3/8"-16 Female Flat Base |
| Counter Balance | Incremental 4-Step Plus 0 (11.02 lb / 5 kg) |
| Pan Handle Fittings | 2 x Rosette |
| Bubble Level | 1 |
| Base Diameter | 3.62" / 92 mm |
Pan & Tilt
| Drag Control | Pan: Continuous Tilt: Continuous |
| Drag Type | Fluid |
| Vertical Tilt | +90° to -70° |
| Panning Range | 360° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
General
| Load Capacity | 15.43 lb / 7 kg |
| Operating Temperature | 17 to 92°F / -15 to 60°C |
| Weight | 4.3 lb / 1.95 kg |
Packaging Info
| Package Weight | 5.905 lb |
| Box Dimensions (LxWxH) | 12.7 x 7.4 x 6.3" |
