MFR: KB-CC70
SKU: SF-2443-UN3W
Categories: Camcorder Supports & Rigs

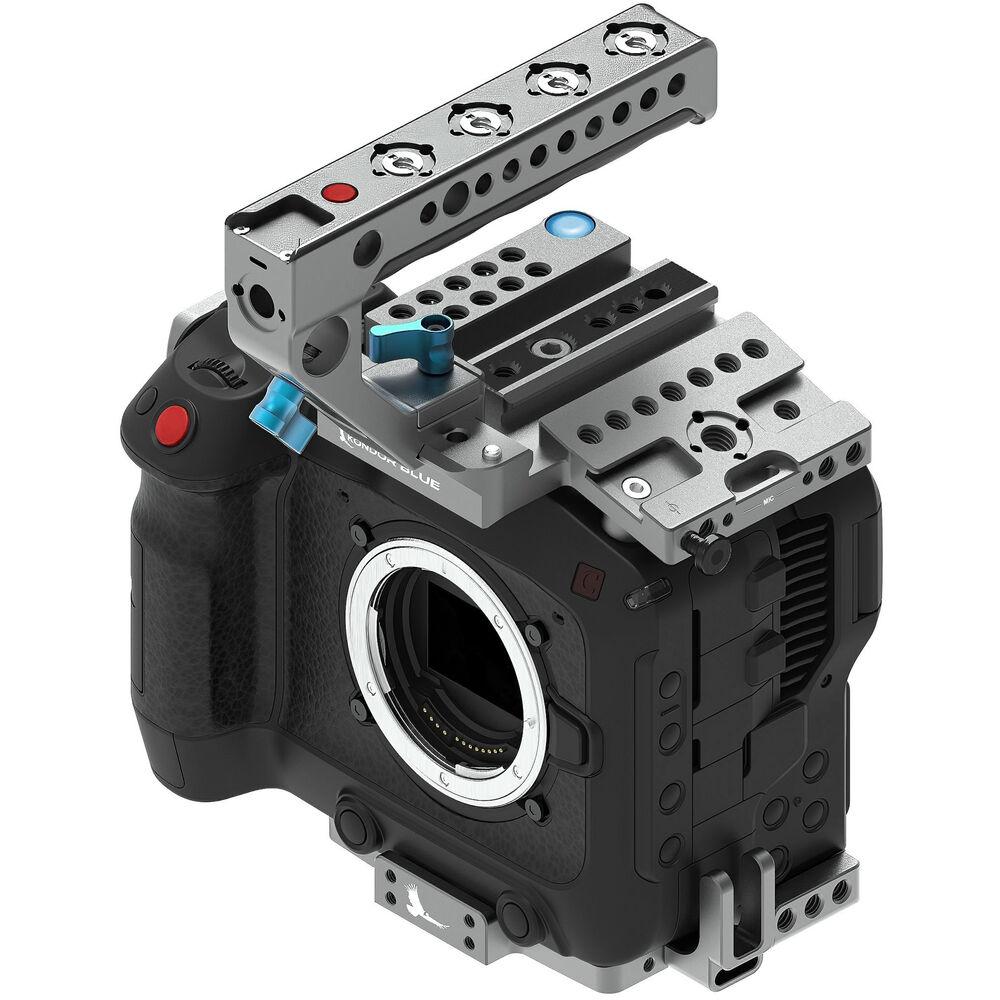

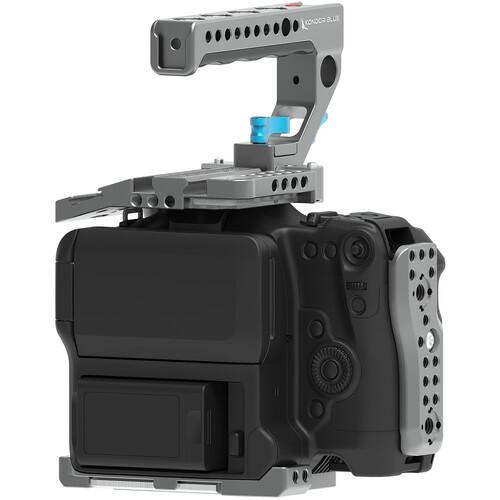

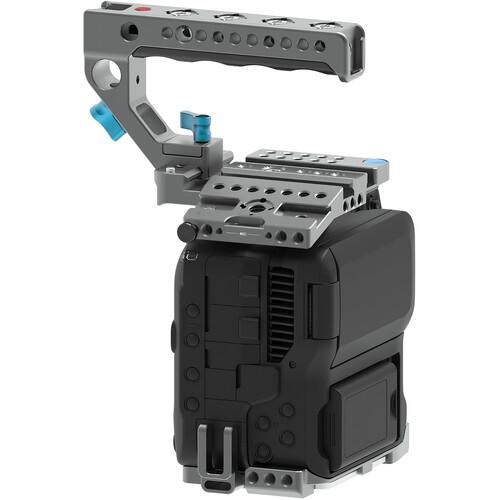

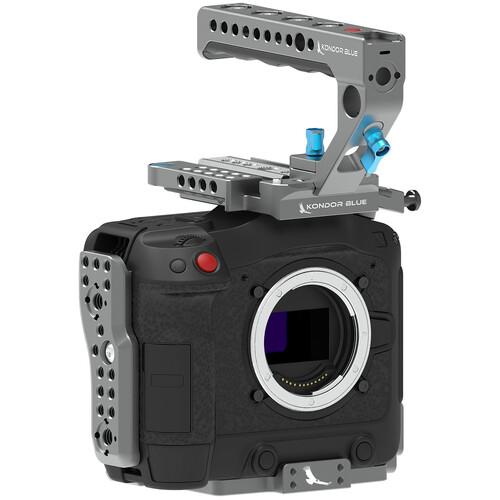

Add protection, a top handle, and a variety of accessories to your Canon EOS C70 camera with this space gray Camera Cage with Top Handle from Kondor Blue. The modular camera cage features a top plate, side plate, and bottom plate, providing an open design that allows you to access all the camera's ports and controls and utilize individual plates if needed. The included top trigger handle features LANC start/stop control and multiple mounting options.
The cage components feature 1/4"-20 threads, 3/8"-16 ARRI-style anti-twist mounts, shoe mounts, a bubble level, M4 lens support threads, an HDMI cable clamp, NATO rails, and magnetic tool storage. The cheese-style top handle features shoe mounts, 1/4"-20 threads, and 3/8"-16 ARRI-style anti-twist mounts, and it mounts onto the top plate with its NATO clamp. It features a start/stop trigger button that connects to the camera with a separately available LANC cable.
Add protection and a variety of accessories to your Canon EOS C70 camera with this space gray Camera Cage from Kondor Blue. The modular camera cage features a top plate, side plate, and bottom plate, providing an open design that allows you to access all the camera's ports and controls and utilize individual plates if needed.

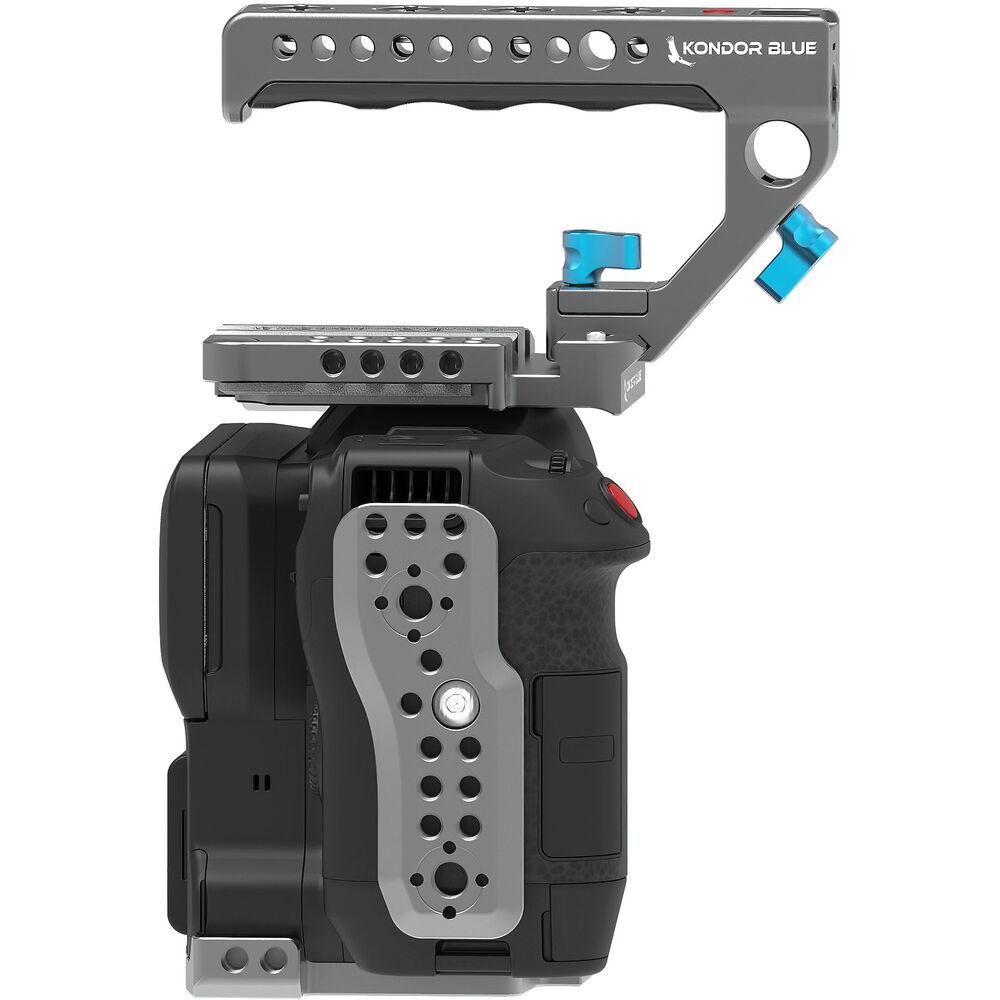

The cage offers an ARRI-style anti-twist thread on the side plate optional side handgrip or extension arm, it is compatible with the camera's original grip strap, and it features multiple 1/4"-20 threads. The top plate features 1/4"-20 threads, 3/8"-16 ARRI-style anti-twist mounts, two shoe mounts, a bubble level, and two integrated NATO rails. Other top plate features include a magnetic tool storage for tightening the screw mounts, and it relocates the sensor plane marker. It is compatible with the original Canon top handle or with the Kondor Blue Trigger Top Handle, and it also works with the Canon Mic Mount.
On the bottom plate, there are 1/4"-20 and 3/8"-16 steel tripod mounting threads, with 1/4"-20 threads on side wings, and one side features an HDMI cable clamp. On the front of the bottom plate are two M4 threads for an optional lens support. Paired with the optional Kondor Blue Bridge Plate, it allows for a standard 3.3" height above an optional 15mm LWS rod system. A magnetic tool stores in the bottom plate.

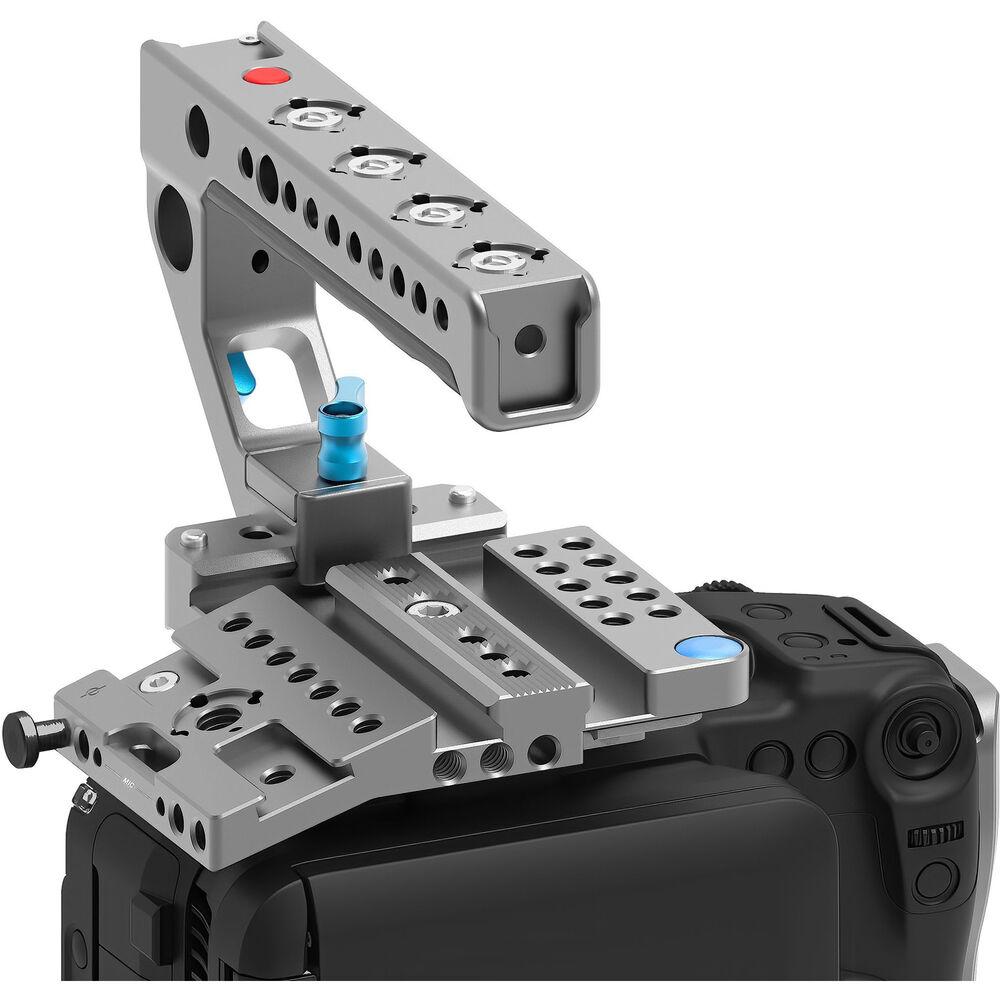

This space gray Cage Top Handle with Start/Stop Camera Control from Kondor Blue mounts on top of your cage or top plate using its NATO clamp. This universal cheese-style handle features multiple 1/4"-20, 3/8"-16, and ARRI-style anti-twist threads, two shoe mounts, and a single 15mm rod port. The ARRI-style threads on the top feature pre-inserted 3/8"-16 to 1/4"-20 bushings so you have additional options for mounting your accessories.
The handle also features a start/stop button and a LANC port that can connect to a wide variety of camera models, such as those from Z CAM, Blackmagic, Sony, Canon, Panasonic, JVC, and more, using a separately available cable. The grip of the aluminum handle features a smooth, ergonomic design for added comfort and grip.
Support Type | Cage |
Grip Type | No |
Camera Compatibility | Canon EOS C70 |
Battery Plate Type | No |
Accessory Mounting | Cage Multiple 1/4"-20 Female Thread Multiple ARRI Anti-Twist 3/8"-16 Female Thread 4x M4 Female Thread |
Camera Mounting | 1/4"-20 Male Screw |
Tripod Mounting | 1/4"-20 Female Thread, 3/8"-16 Female Thread |
Shoe Mounting | Top Plate 2x Cold Shoe |
Rosettes | No |
Rail Mounting | Cage, Top 2x NATO Rail |
Cable Clamp | 1x HDMI Clamp |
Materials | Aluminum, Steel |
Dimensions | Not Specified by Manufacturer |
Weight | Not Specified by Manufacturer |
Package Weight | 1.395 lb |
Box Dimensions (LxWxH) | 6.5 x 5.2 x 2.9" |
