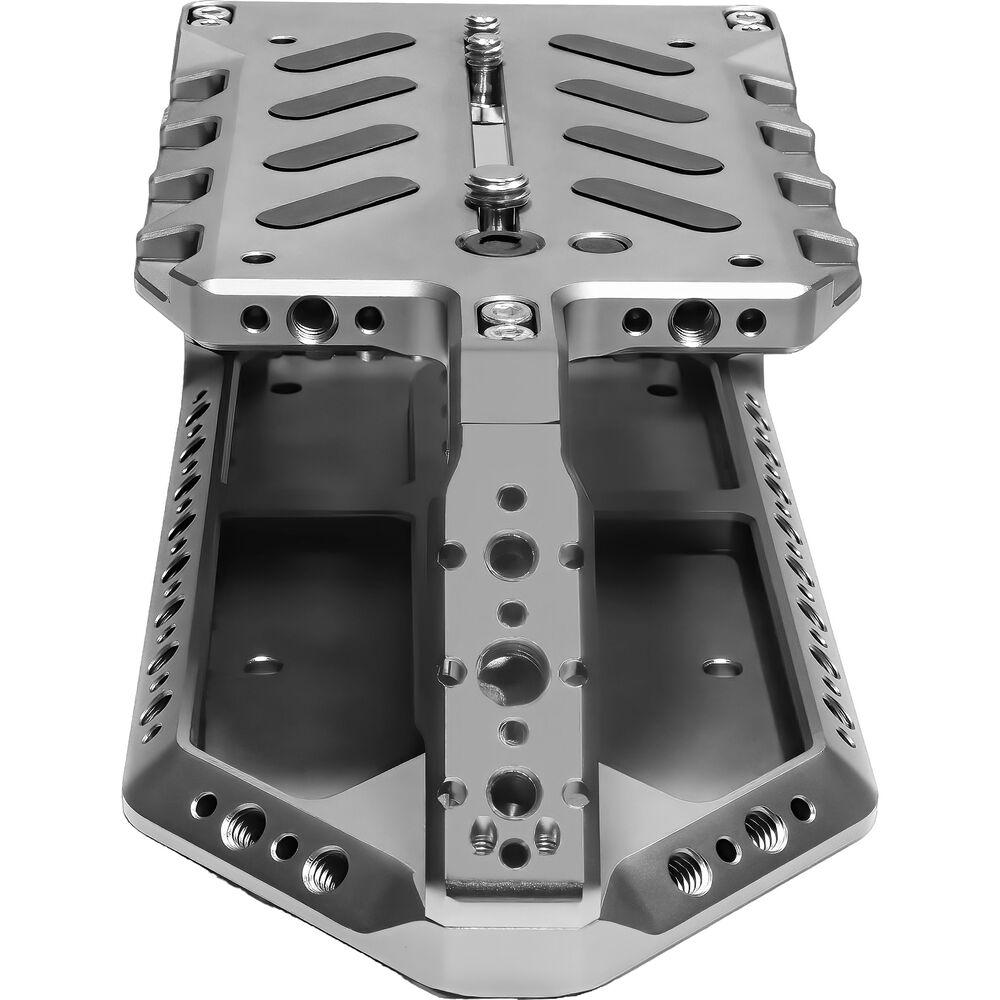

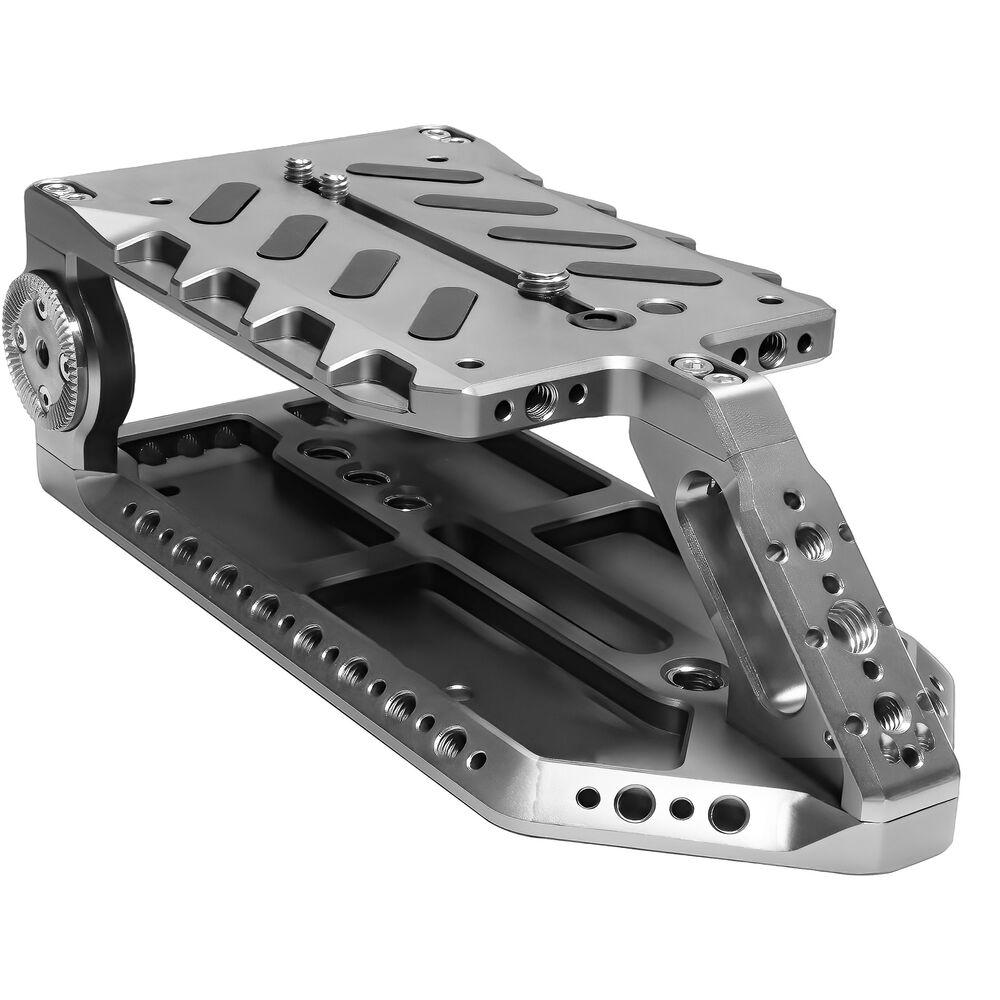

This Riser Baseplate from Kondor Blue is crafted for the Canon BMS-500 camera with a 65mm stack height to align with broadcast lenses and compatible tripod accessories. Constructed from aerospace-grade aluminum with precise machining, it boasts numerous mounts, including 60-tooth ARRI-type rosettes, 30+ mounting holes, including some with anti-twist mounts, and a built-in NATO rail strategically positioned for seamless integration with essential peripherals, such as monitors and wireless transmission modules.
Tailored mounting holes cater to the MS-500’s base, accommodating attachment via four M4 threads or the center slot with multiple 1/4"-20 and 3/8"-16 bolts, all included in the kit. The baseplate's underside features an array of helicoil-reinforced threads for securing your preferred tripod plate.
| Support Type | Baseplate |
| Grip Type | No |
| Camera Compatibility | Canon MS-500 |
| Battery Plate Type | No |
| Accessory Mounting | 1x Anti-Twist 3/8"-16 Female Thread 9x 1/4"-20 Female Thread 24x Anti-Twist 1/4"-20 Female Thread |
| Camera Mounting | 1/4"-20 Male Screw, 3/8"-16 Male Screw, M4 Female Thread |
| Tripod Mounting | 1/4"-20 Female Thread |
| Shoe Mounting | No |
| Rosettes | 2x Rosette w/ 1/4”-20 Female Thread |
| Materials | Aluminum |
| Dimensions | 8.3 x 3.9 x 2.6" / 210 x 100 x 65 mm |
| Weight | 1.57 lb / 0.71 kg |
| Package Weight | 2.32 lb |
| Box Dimensions (LxWxH) | 11.6 x 6.7 x 3.5" |
