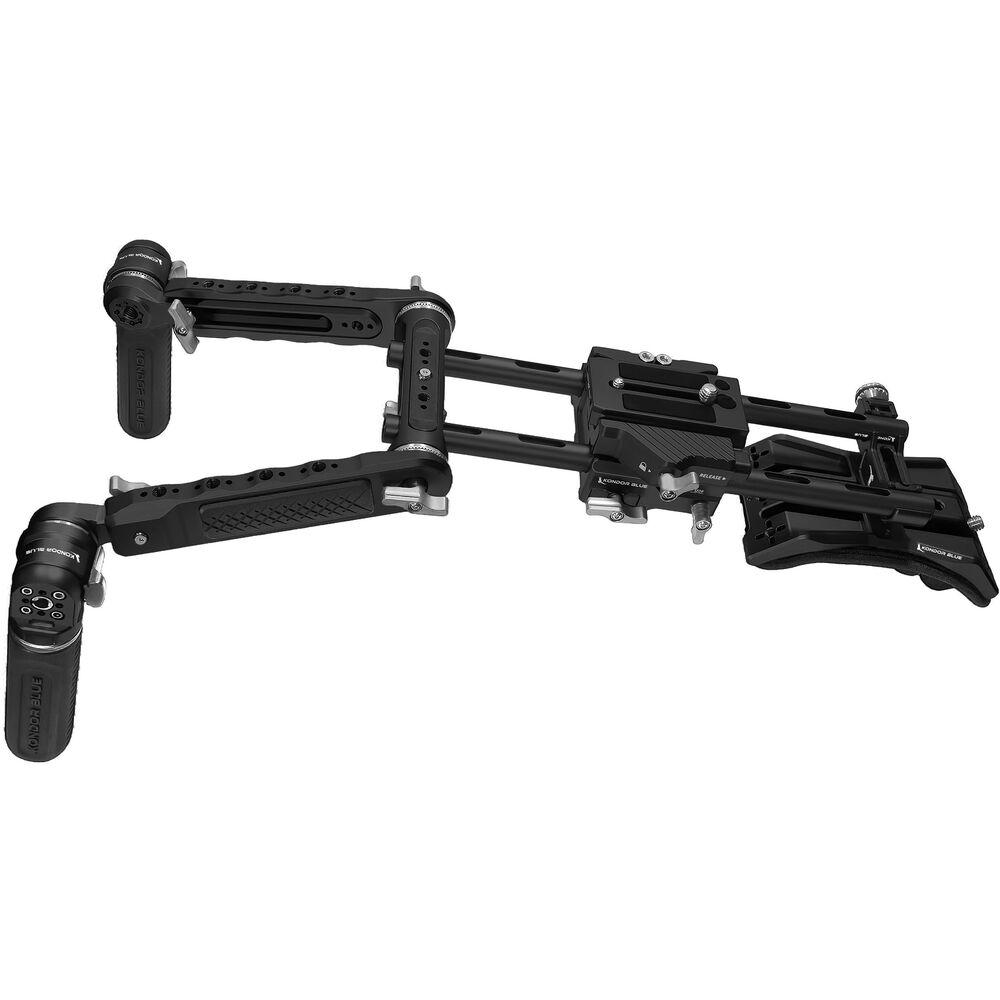

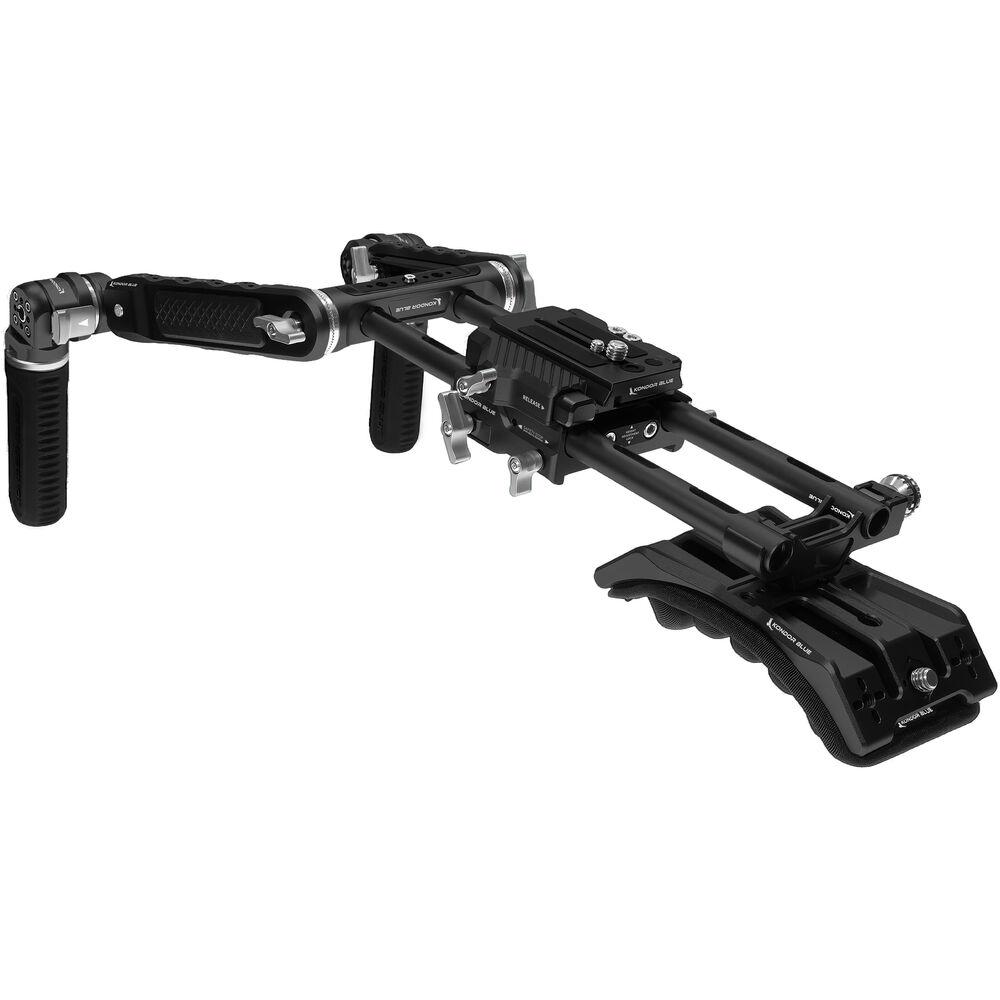

Kondor Blue Shoulder Rig MKII (Raven Black)
Kondor Blue Shoulder Rig MKII (Raven Black)
Kondor Blue Shoulder Rig MKII (Raven Black)
Kondor Blue Shoulder Rig MKII (Raven Black)

Kondor Blue Shoulder Rig MKII (Raven Black)

Brand: KONDOR BLUE

MFR: KB-SPAR2-BK

SKU: SF-2443-4NXU

3,122.00 ﾹ

  • Camera Rig with Shoulder Pad Air MKII
  • Ideal for Handheld or EasyRig Setups
  • Includes Arms, Grips, Rods & Baseplate
  • Countless Configuration Options
  • Removable & Washable Air-Inflated Pad
  • Rosette Grip & Extension Arm Set
  • Height-Adjustable 501 Baseplate
  • Pair of Threaded 12" PPSH 15mm Rods
  • 1/4"-20 & 3/8"-16 Anti-Twist Threads
  • Ultralight Precision Machined Aluminum

Items Included

    • 15mm Dual-Rod Mount
    • Hand Air Pump
    • Limited Lifetime Warranty
    • 2 x Kondor Blue Pro Pivot Reversible Rosette Grip (Raven Black)
    • Rosette Reversible Extension Arm
    • Dual-Rosette Clamp
    • Limited Lifetime Warranty
    • 501-Type QR Plate
    • Allen Key
    • 1/4"-20 Screw
    • 3/8"-16 Screw
    • Limited Lifetime Warranty
    • Limited Lifetime Warranty
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Adapt to the challenges of on-the-go shooting with the Kondor Blue Shoulder Rig MKII. With countless configuration options and an ergonomic design built for utility and comfort, the rig is ideal for handheld or EasyRig use. The rig includes Kondor Blue's Pivot Arms and Grips Bundle, Shoulder Pad Air MKII, 501 Adjustable Baseplate, and two 12" 15mm rods to link each element together.

Kondor Blue Shoulder Pad Air MKII (Raven Black)

The Kondor Blue Shoulder Pad Air MKII is an ultra-lightweight, highly configurable shoulder pad designed for comfort and versatility. By halving the weight of its predecessor while maintaining durability, it offers over a dozen mounting options for streamlined rigging. The removable, air-inflated pad conforms to the user's body for superior comfort. The hourglass-shaped aluminum frame enhances ergonomics, ensuring a secure and stable fit during extended handheld shooting.

The removable dual 15mm rod mount expands rigging possibilities, making it adaptable for various shooting setups. Featuring multiple anti-twist 1/4"-20 and 3/8"-16 threads, the Air MKII ensures the secure attachment of battery plates and other camera accessories. The ends of the shoulder pad are at a 45° angle, and with the addition of separately available M12 anti-twist rod mounts, they can create a gunstock-style setup, ideal for handheld or EasyRig use. An included hand air pump allows quick pad inflation adjustments, while NATO rail compatibility ensures seamless integration with Kondor Blue rigs.

Ergonomic Design
  • Removable and washable air-inflated pad for personalized comfort
  • Hourglass-shaped frame for better contouring and collarbone fit
  • Ultralight precision-machined aluminum for durability without added weight
  • Includes hand air pump for easy inflation adjustments
Adaptable Mounting
  • Removable 15mm dual-rod mount for versatile rigging options
  • Multiple 1/4"-20 and 3/8"-16 threads for accessory mounting
  • 3/8"-16 ARRI anti-twist threads 60mm apart for direct 15mm rod mounting
  • Compatible with Kondor Blue Monitor Cage NATO Rails for seamless integration
Kondor Blue Pro Pivot Arms & Grips Bundle (Raven Black)

This raven black Pro Pivot Arms & Grips Bundle from Kondor Blue has been fully redesigned to favor left and right compatibility. Designed for use with various rosette-compatible accessories, the integrated 60-tooth ARRI-style rosette features an M6 bolt for broad compatibility with any standard grip or arm. The lightweight 3 oz pivot module boasts 30 adjustment positions with an improved mechanism that employs two stainless steel pins for better strength and overall mounting safety. The quick release mechanism offers minimal play, with the ergonomic rubber grip providing a comfortable handle.

Kondor Blue 501 Adjustable Baseplate (501 QR, Raven Black)

The raven black 501 Adjustable Baseplate from Kondor Blue provides locking height adjustability with up to 0.6" of adjustment range. Designed with an integrated ARRI-style dovetail clamp for pairing perfectly with Kondor Blue's own lightweight dovetail plates, this baseplate provides ample mounting capabilities by offering 3/8"-16 and 1/4"-20 helicoil mounting holes, and it features captive M4 ratchet knobs for better tightening reliability, as well as improved 15mm standard rail clamps for adding optional 15mm rods. Machined with precise 1mm adjustments corresponding to laser engravings to facilitate accurate baseplate height adjustability, this model comes with a 501 Manfrotto-type quick release plate. An Allen key is also included in the package.

Kondor Blue PPSH 15mm Rods (Pair, Black, 12")

Add a pair of standard 15mm rods to your rig with this two-pack of 12" PPSH 15mm Rods from Kondor Blue. These black aluminum threaded rods feature PPSH cutouts throughout as part of the design, making them lighter yet still durable.

Each 15mm rod can be used to support various accessories such as follow focus systems, servo motors, lens supports, battery mounts, and more. For custom lengths, multiple units can be combined using optional Kondor M12 rod extension screws.


Physical
Mounting
2x 15 mm Rod Clamps
8x 1/4"-20 Threads
4x 3/8"-16 Threads
1x 3/8"-16 Screw
Color
Raven Black
Material of Construction
Aluminum, Rubber
Dimensions
5.7 x 3.3 x 1.2" / 14.5 x 8.4 x 3 cm (Shoulder Pad)
4 x 1.2 x 0.8" / 10.2 x 3 x 2 cm (Rail Mount)
Weight
10.3 oz / 292 g
Packaging Info
Package Weight
0.99 lb
Box Dimensions (LxWxH)
7 x 4.7 x 3.3"
