KUPO K-LOK 150A Single-pole Female Plug- Blue
KUPO K-LOK 150A Single-pole Female Plug- Blue
KUPO K-LOK 150A Single-pole Female Plug- Blue
KUPO K-LOK 150A Single-pole Female Plug- Blue
KUPO K-LOK 150A Single-pole Female Plug- Blue
KUPO K-LOK 150A Single-pole Female Plug- Blue

KUPO K-LOK 150A Single-pole Female Plug- Blue

Brand: KUPO

MFR: KL-150LFB

68.00 ﾹ

- Number of Contact: Single Pole
- Type: Female Plug
- Color Coded: Blue
- Voltage Rating: 600V Maximum
- Current Rating: 150Amp Maximum
- Base Compound: UV-resistant Santoprene 105 ℃ rated
- NEMA Type 3R
- Contact Material: Brass
- Contact Termination: Double Set Screw
(Torque on Brass Contact min. Required: 85in-lb).
- Terminal Accommodation: #8, #6, #4, #2
- Retaining Pin Material: POM

Not in stock - Order now and we'll deliver when available - Normally ships in 10 - 12 weeks
Quantity

Categories: K-LOK 150A Single Pole Connector

- Number of Contact: Single Pole
- Type: Female Plug
- Color Coded: Blue
- Voltage Rating: 600V Maximum
- Current Rating: 150Amp Maximum
- Base Compound: UV-resistant Santoprene 105 ℃ rated
- NEMA Type 3R
- Contact Material: Brass
- Contact Termination: Double Set Screw
(Torque on Brass Contact min. Required: 85in-lb).
- Terminal Accommodation: #8, #6, #4, #2
- Retaining Pin Material: POM

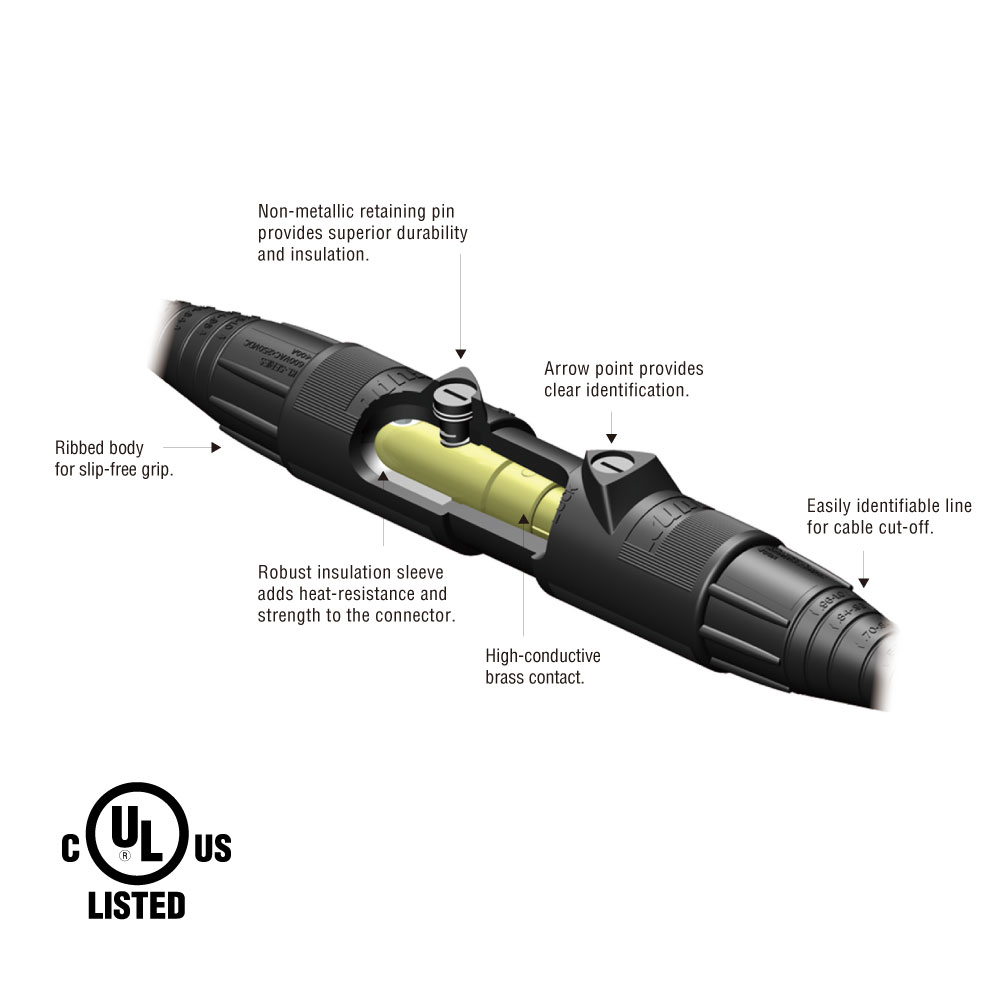

- Outstanding arrow point provides visible mark for mating the connectors.
- Largely-ribbed housing for comfort and secure grip.
- POM sleeve, 2x longer than others, fully encompassing the contact to make greater insulation.
- Cable cut-off identification clearly engraved on the boot.
- Non-conductive retaining pin for upmost safety and insulation.

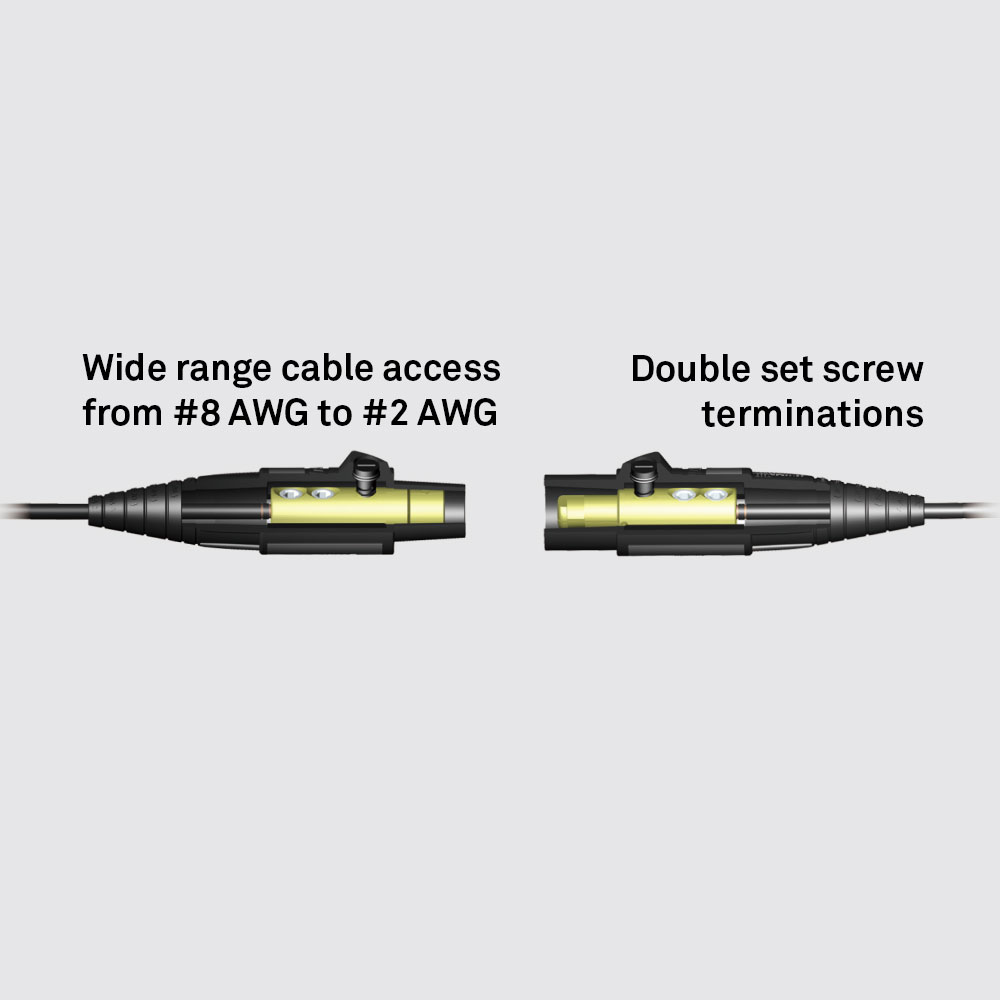

- Wider range of cable accommodation from #8 AWG to #2 AWG
- UL/cUL certified
- Double set screws for cable firmly sit in the position; additional longer set screws are supplied for mating smaller cable.
- Boot made of UV-resistant Santoprene, providing excellent protection. Safer and durable.
- To fit smaller sizes of cable, the brass contact can be made with two smaller dimensions of cable-accessing hole upon request.
- Indentified color coding for USA., Austrila, Europe and UK(harmonised and traditional)
