Categories: Couplers & Clamps
Features:
1. Constructed by rugged die-cast aluminum with TUV Approval.
2. Comes with a 28mm junior socket for luminaire or telescopic hanger.

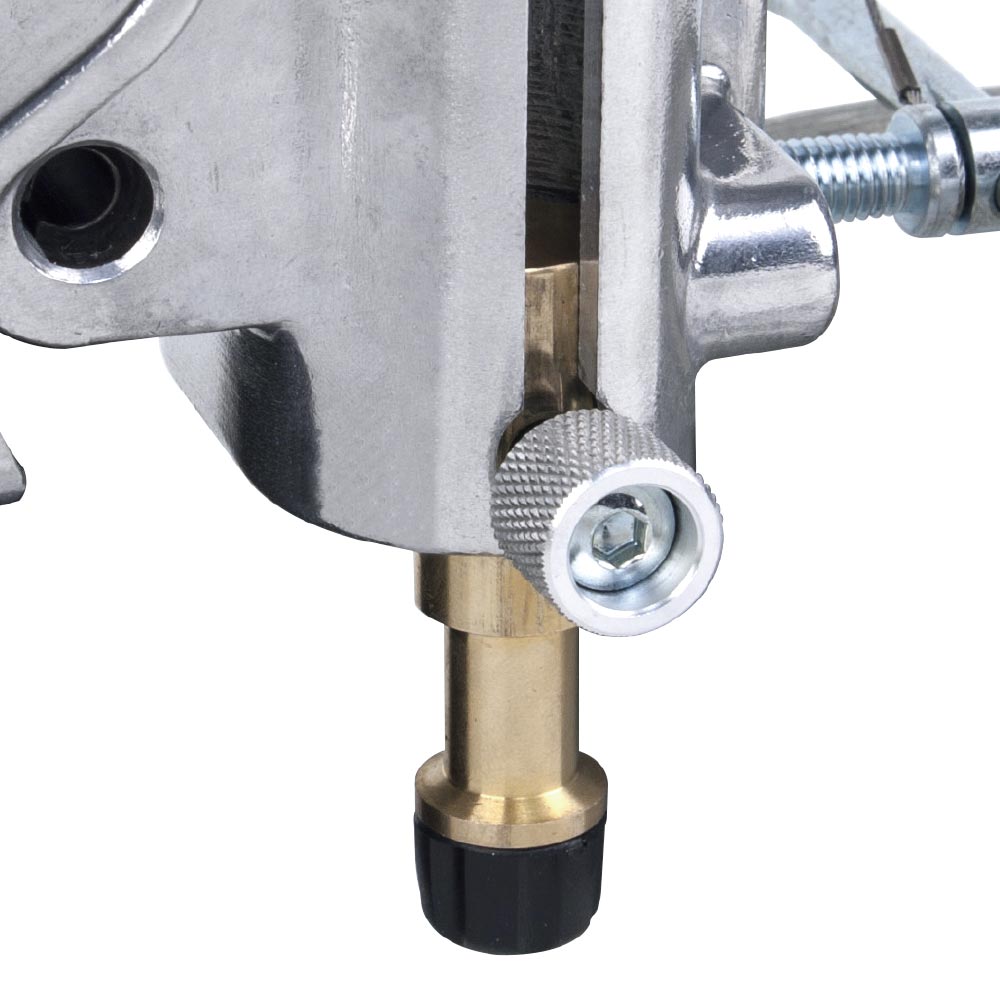

3. The 3/8” threaded 16mm baby stud is also available and alternated with a 16mm baby socket by the spring latch bolt for lightweight luminaire and accessories.
4. Hook strut of the top opening section limits the open space that offers assistance to rig.
5. The safety wire is bult with the clamp to ensure this essential safety aid is always on hand.
6. Linchpin is attached with the safety wire to keep it safe for pan adjustment of luminaire while the knob of clamp is loose.
7. The top opening section is built with rugged gravity cast aluminium for extra strength.

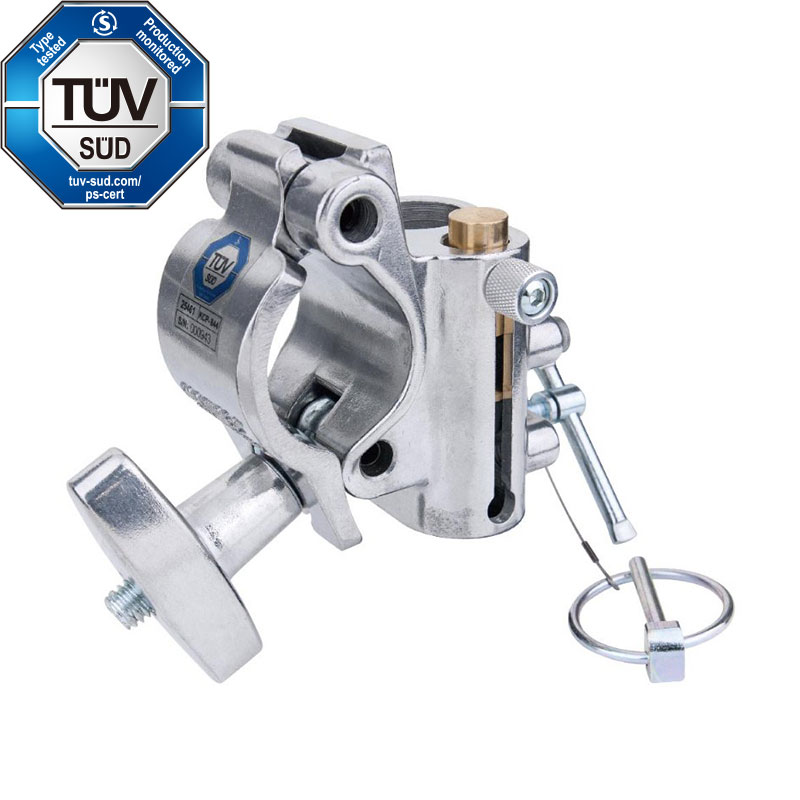

- KUPO TV Coupler (KCP-844) for film or TV studios.

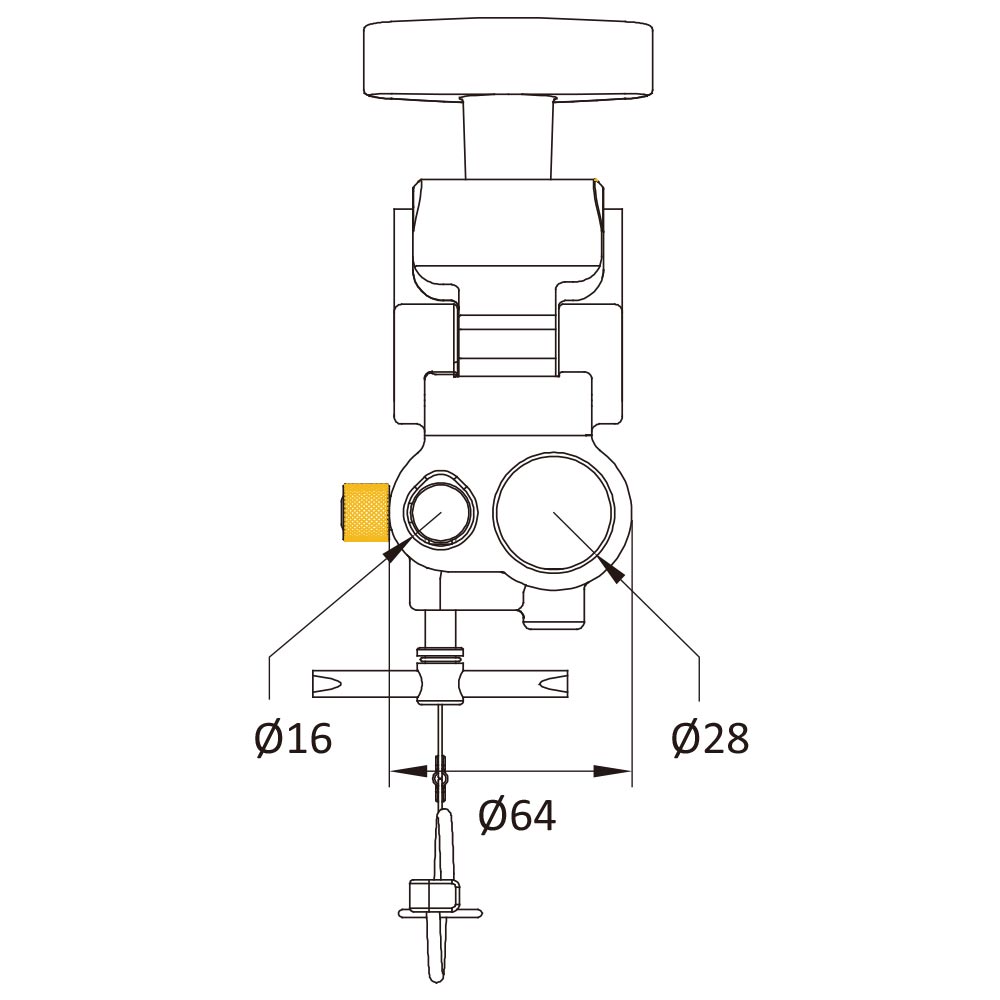

- Features a 5/8" (16mm) baby pin and 1-1/8" (28mm) junior receiver.
- Hinged locking jaw for secure attachment.
- 1-1/8" (28mm) junior receiver for luminaires or telescopic hangers.
- Easy single-handed operation with the restricted hinged locking jaw.
- Built-in safety wire with a safety linchpin for essential safety measures.
- Supports up to 661.4lbs (300kg) on the 28mm attachment
- Supports 88lbs (40kg) on the 16mm attachment.
- TUV certified
- Reliable and robust solution for secure mounting of lighting fixtures
