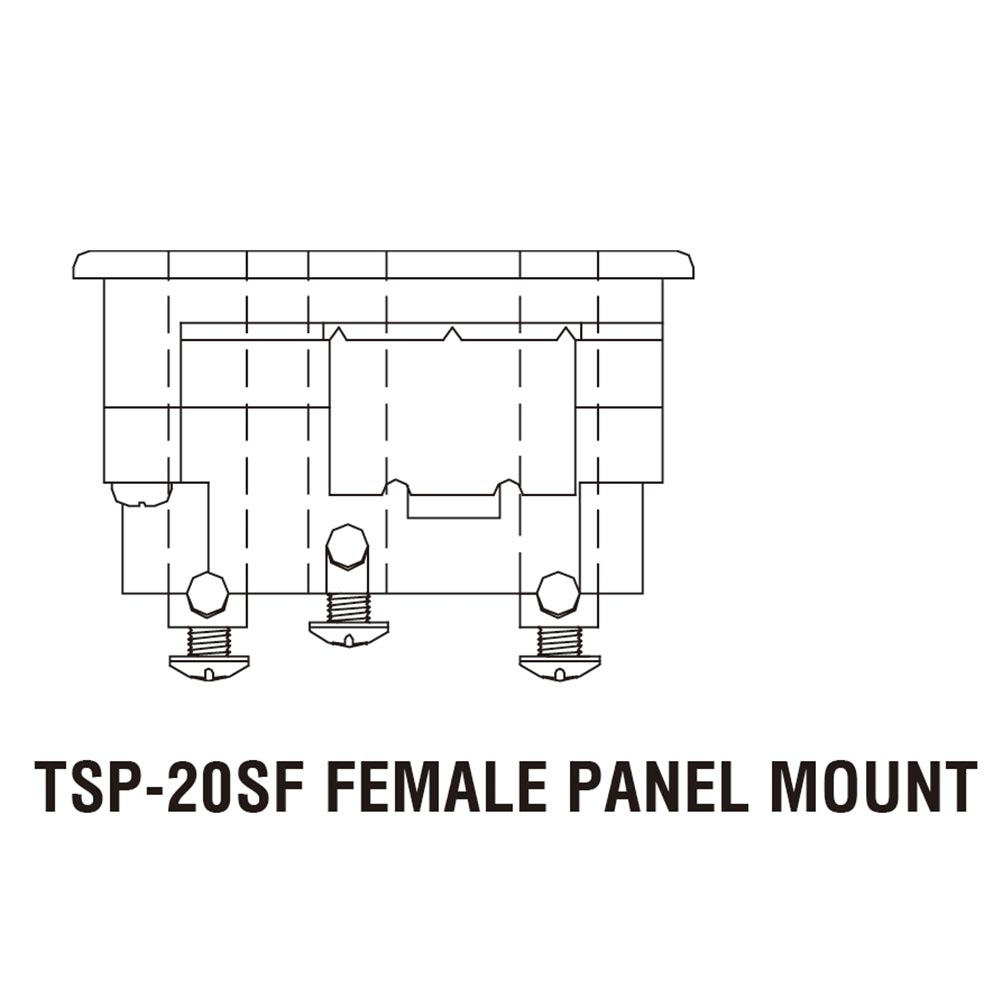

KUPO STAGE PIN CONNECTOR FEMALE PANEL MOUNT
KUPO STAGE PIN CONNECTOR FEMALE PANEL MOUNT

KUPO STAGE PIN CONNECTOR FEMALE PANEL MOUNT

Brand: KUPO

MFR: TSP-20SF

67.00 ﾹ

-Color: Black
-Dimensions: 30.5 x 55.5 x 23.5mm
-Three-pin (2P+E) STAGE PIN Female Panel Mount
-Material: Insulating engineering heat-resistant plastic
-Rating: 125V/20A or 250V/15A
-Temperature Resistance: up to 250°C
International Safety Certification: UL, cUL

Not in stock - Order now and we'll deliver when available - Normally ships in 10 - 12 weeks
Quantity

Categories: Stage Pin Connector

Kupo 20 Amp Stage Pins are designed for professional lighting and theater stage applications. The connector housing is made of engineering plastic, which is heat-resistant and impact-resistant. The connecting pin is made of solid yellow brass rod, and the pin groove can provide the largest contact area during connection, increasing the firmness of the joint and ensuring safe use. The pin and housing have a slight floating design, ensuring stability and matching during connection. The built-in eyelet nail is convenient for assembly without damaging the copper wire. The top cover comes in both black and transparent options. The product has passed UL and cUL safety certifications and is suitable for use with 20A/125V or 15A/250V.


-Compatible with other 20 amp Stage Pin connectors used in the United States.
-Both male and female connectors feature locking tabs, making them easy to mount onto electrical boxes of different thicknesses.
-Comes with captive screws for easy wiring installation.
-Designed to fit industry-standard panel cutouts measuring 0.76" x 2.02", with a panel thickness of 0.60".
-Made of high-temperature (250°C) engineering plastic.
-Clearly labeled according to NEC regulations.
