Categories: Tripods & Support , Tripod Heads

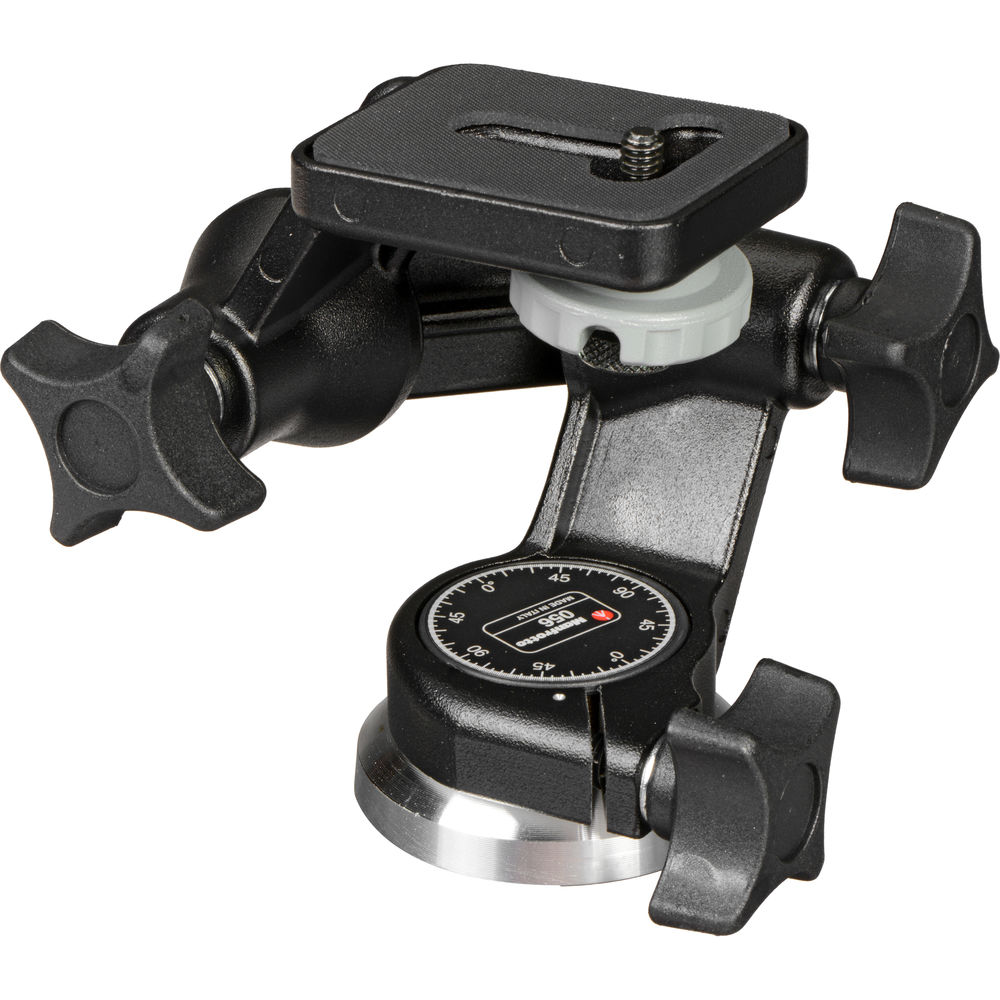

The 056 3-Way, Pan-and-Tilt Head from Manfrotto has a load capacity of 11 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the head's rubberized, non-slip platform. The head can be rotated 360°, and tilted 180° forwards or 30° backwards, as well as 180° sideways. Each of these three movements function independently of each other and can be locked into place. To promote fast and repeatable device positioning, this 056 3-Way, Pan-and-Tilt Head also includes a dedicated angle scale for rotational movements that is designed for easy visibility.
Head
| Head Type | Pan & Tilt Head |
| Base Mount | 3/8"-16 Female |
| Camera Mounting Screw | 1/4"-20 Male |
| Quick Release Plate Type | No Quick Release |
| Lateral Tilt | -180° to +30° |
| Vertical Tilt | +180° to -30° |
| Panning Range | 360° |
General
| Load Capacity | 11 lb / 5 kg |
| Weight | 1.21 lb / 550 g |
Packaging Info
| Package Weight | 1.365 lb |
| Box Dimensions (LxWxH) | 5.2 x 5.05 x 3.6" |
