Categories: Light Stands & Mounting

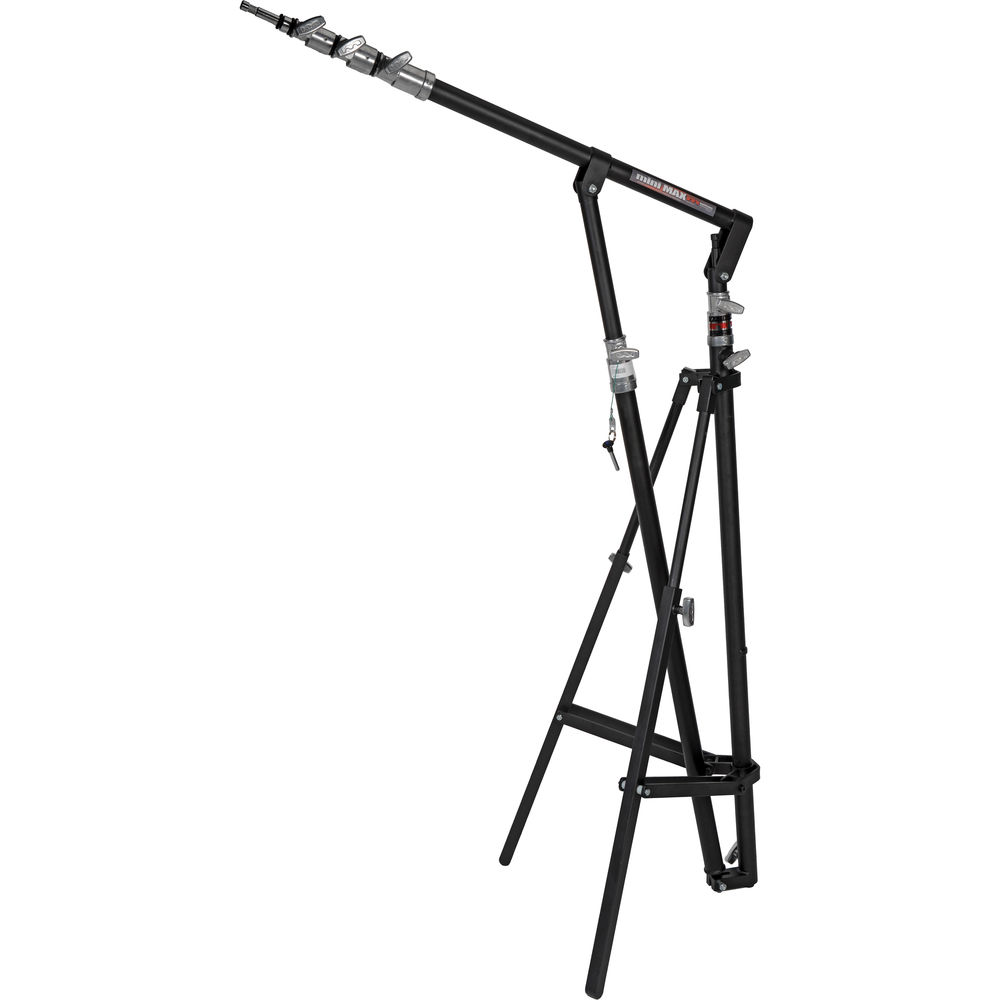

The Mini MAX Boom Stand from Matthews solves the problem of rigging light fixtures in inaccessible spaces on set. Placed far outside of the shot, the Mini MAX can strategically hold lights on a maximum arc of 105".
Mini MAX easily flies fixtures of up to 20 lb on an 8' vertical and 8' horizontal extension. This allows grips to provide a 5/8" baby pin rigging point for top and back lights in shots that would not accommodate traditional light stands. For safety, only sandbags are needed as The Mini MAX doesn't require rear counterbalance to comfortably fit into corners or against walls. The stand is nearly unrestricted in its placement thanks to three adjustable Rocky Mountain legs that can adapt to unsteady terrain. V-shaped brass brakes within the Mini MAX's thick threaded collars provide a strong three-point locking bite to prevent slippage.
| Stand Type | 1 x Boom Stand |
| Maximum Working Height | 8' / 2.4 m, with Boom Arm 16' / 4.9 m, with Boom Arm in Vertical Position |
| Minimum Working Height | Not Specified by Manufacturer |
| Load Capacity | 20 lb / 9.1 kg, with Boom Arm at Maximum Extension |

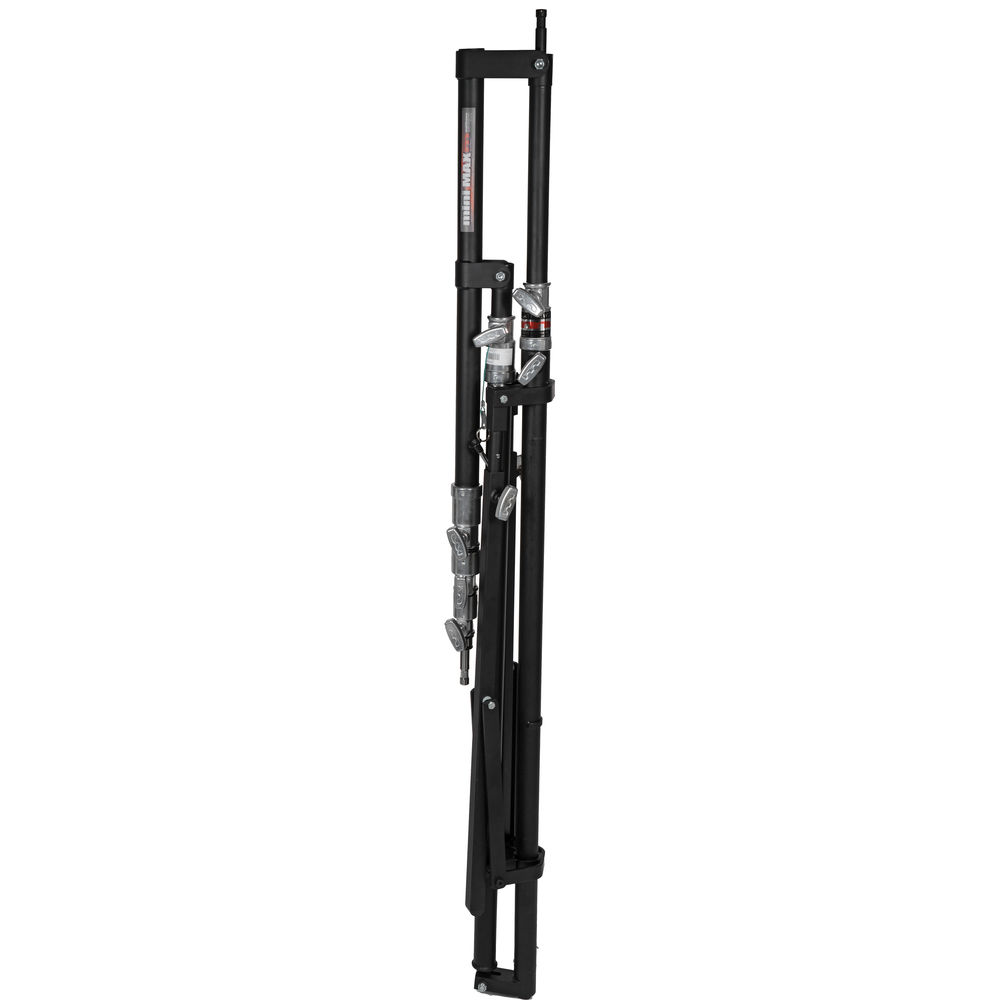

| Closed Length | 5.6' / 1.7 m |
Mounting
| Arm Mount (to Light/Accessory) | 5/8" Stud |
Features
| Accepts Second Riser | No |
| Wheels | Not Compatible |
| Air Cushioned | No |
| Detachable Base | No |
| Leveling Leg | Yes |
| Reverse Legs | No |
General
| Arm Length | 8' / 2.4 m |
| Leg Shape | Round |
| Weight | 44.1 lb / 20 kg |
Packaging Info
| Package Weight | 43 lb |
| Box Dimensions (LxWxH) | 71 x 12.5 x 7.75" |
