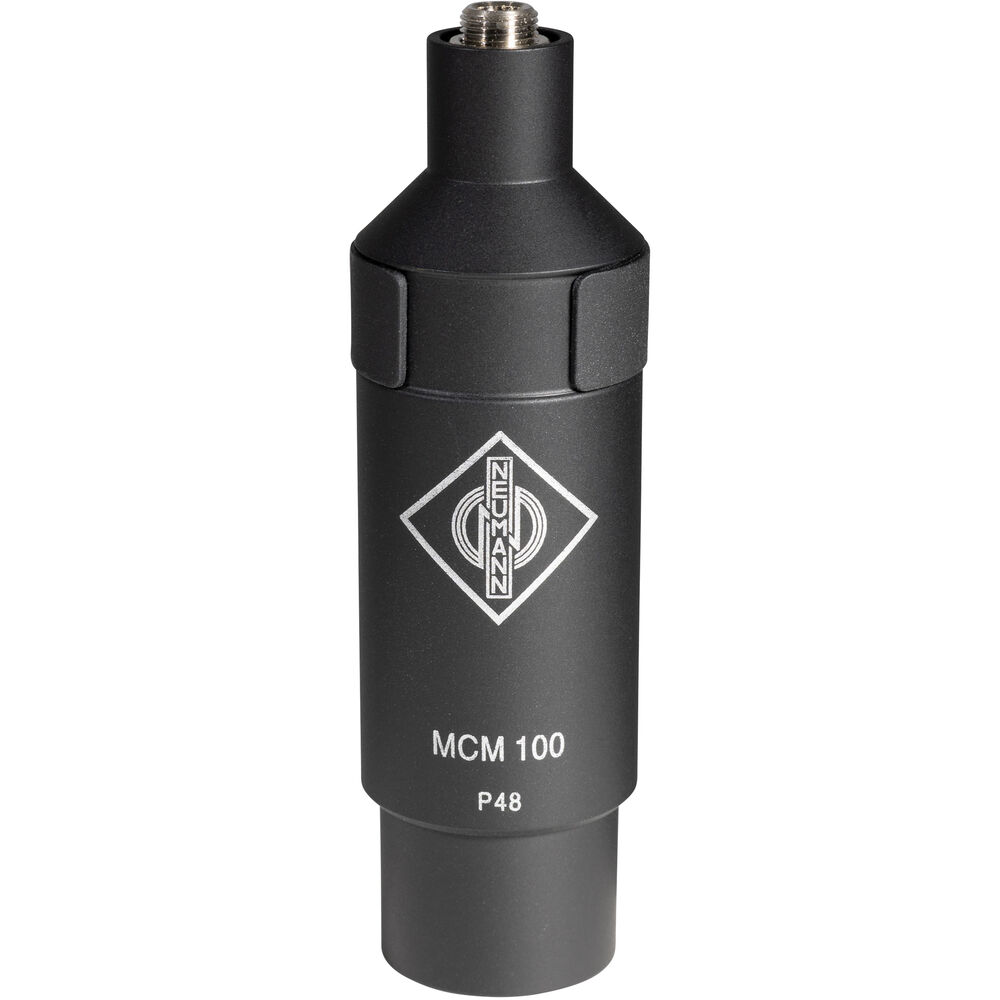

Part of the modular Miniature Clip Mic (MCM) system, the Neumann MCM 100 is an in-line output stage module for the KK 14 capsule. It enables you to run the capsule on +48V phantom power from a traditional mic preamp when plugging the mic into a mixing board via a balanced XLR cable.
The MCM 100 is equipped with a 3.5mm TRS female input connector and a 3-pin XLR male output connector. The AC 31 cable (available separately) is required to connect the KK 14 capsule to the output stage module.
| Connector 1 | Input: 1/8" / 3.5 mm TRS Female, Locking |
| Connector 2 | Output: 3-Pin XLR Female |
| Rated Impedance | 50 Ohms |
| Rated Load Impedance | 1000 Ohms |
| Power Supply | 48 V, ±4 V (P48, IEC 61938), Phantom Power |
| Current Consumption | 3.5 mA |
| Dimensions | Diameter: 0.9" / 22 mm Length: 3.0" / 77 mm |
| Weight | 3.4 oz / 96 g |
Packaging Info
| Package Weight | 0.285 lb |
| Box Dimensions (LxWxH) | 4.6 x 3.8 x 1.6" |
