Neumann MN V Pattern Control Unit
Neumann MN V Pattern Control Unit

Neumann MN V Pattern Control Unit

Brand: NEUMANN

MFR: 008687

Price Available Upon Request
  • For M 49 V Microphone
  • Vintage Neumann Mics with AC 701 Tube
  • Variable Polar-Pattern Control
  • Input Voltage: 100 to 240 VAC
  • 7-Pin Mic-In, XLR Mic-Out Connectors
  • Top-Mounted Carry Handle
  • Dual, Slow-Blow Fuses
  • Includes Power Cable
  • Made in Germany

Items Included

  • Neumann MN V Pattern Control Unit
  • Power Cable
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Accessories

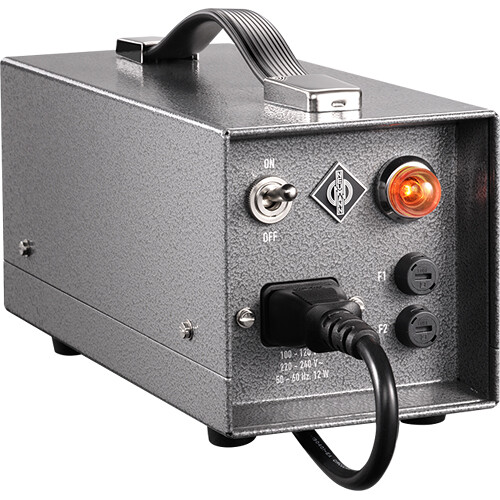

The Neumann MN V Pattern Control Unit is a replacement power supply for the M 49 V large-diaphragm tube condenser microphone. It is also suitable in principle for operating all vintage Neumann microphones utilizing the AC 701 tube, such as the older M 49 and M 249.

  • This classical pattern control unit is designed to remotely operate the microphone. Use the pattern knob to continuously adjust the polar pattern from omnidirectional to cardioid to figure-8 and including intermediate settings.
  • The built-in power supply automatically switches between the 100 to 240 VAC mains voltage ranges for use internationally. Dual, slow-blow fuses enable safe operation. The sturdy power switch minimizes accidentally switching off the unit and a large indicator lamp emits a warm glow when the power supply is on.
  • To ensure a long life, the tube is heated up gently, with current limiting. A very effective filtering inside the NM V ensures very high-quality operating voltages, with a minimum of residual noise voltages.
  • The MN V utilizes a 7-pin XLR jack for connection to your microphone and a 3-pin XLR for standardized connectivity with microphone preamps, mixing consoles, and audio interfaces.
  • Built in Germany, the unit ships with a power cable and features a top-mounted carry handle for easy transport.

Compatibility

M 49 V



Vintage Neumann Microphones Utilizing AC 701 Tube (Older M 49, M 249, and Others)

Polar-Pattern ControlCardioid, Omnidirectional, Figure-8, and All Intermediate Patterns
Supply Voltage100 to 240 VAC, Automatic
Power ConsumptionMax 12 W
Dimensions (L x W x H)8.6 x 3.9 x 4.7" / 220 x 100 x 120 mm
Weight4.8 lb / 2.2 kg
