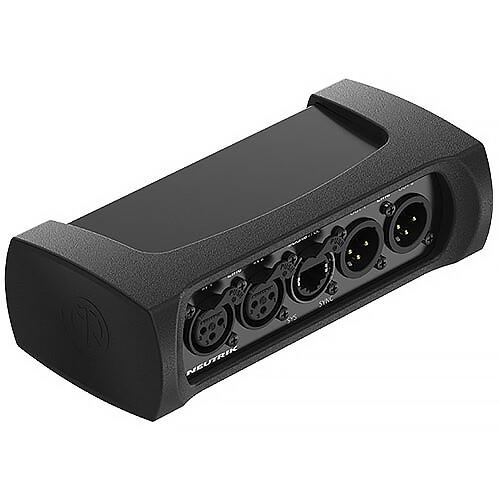

Neutrik NA-2I2O-DLINE Line I/O to DANTE Interface
Categories: Computer Audio , Other Accessories
Add two channels of analog audio inputs and outputs to a DANTE network with the Neutrik NA-2I2O-DLINE Line I/O to DANTE, a rugged breakout box with balanced XLR inputs and outputs that allows you to feed analog audio signals into the DANTE network while simultaneously receiving a mix from another DANTE source.
The I/O to DANTE interface is designed for harsh stage conditions and features lockable chassis connectors for both the audio and network connections. For fixed installations, the rubber protection can be removed. With optional mounting brackets or a rack panel, the box can be mounted below tables, in floor boxes, or in equipment racks.
| Analog Audio Input | Connectors: 2 x XLR-F Input Impedance: 6.6 Kilohms Input Level (Balanced):24 dBu Maximum Frequency Response: 20 Hz to 20 kHz (±0.5 dB) Dynamic Range:>100 dB Signal-to-Noise Ratio:>108 dB THD + Noise: 0.01 % at + 4 dBu, A-Weighting Crosstalk: -110 dB at 20 kHz |
| Analog Audio Output | Connectors: 2 x XLR-M Output Impedance: < 150 Ohms Output Level (Balanced): 24 dBu Maximum Frequency Response: 20 Hz to 20 kHz (±0.5 dB) Dynamic Range:>100 dB Signal-to-Noise Ratio:>108 dB THD + Noise: <0.01 % @ + 4 dBu, A-weighting Crosstalk: -100 dB at 20 kHz |
| Dante | Channels: 2 Inputs (Line Level), 2 Outputs (Line Level) Supported Sampling Rates: 44.1 / 48 / 88.2 / 96 kHz Bit Depth: 16, 24, and 32 Bit Latency: Depending on the Network Configuration, 1 ms (Standard) Ethernet Connection: 100 BASE-TX (PoE support) |
| Environmental | Standard Compliance REACH EC 1907/2006 Directive 2011/65/EU IEC 62368-1:2018 IEC 62368-1:2023 EN IEC 62368-1:2020+A11:2020 UL 62368-1:2019 UL 62368-1:2021 CSA C22.2 No. 62368-1:19 Ingress Protection Class: IP20 Temperature Range: -5 to 60°F / -21 to 16°C Storage Temperature: -40 to 150°F / -40 to 66°C |
| Power | Power Supply: PoE Switch (Power over Ethernet) or PoE Injector (According to IEEE 802.3af/at/bt) Power Consumption: < 2W |
| Dimensions | With Rubber Protector: 6.3 x 3.2 x 2.0" / 16.0 x 8.1 x 5.1 cm Main Unit: 5.9 x 2.6 x 1.6" / 15.0 x 6.6 x 4.1 cm |
| Weight | 1.0 lb / 0.5 kg |
| Package Weight | 1.17 lb |
| Box Dimensions (LxWxH) | 9.6 x 4.6 x 2.6" |
