OConnor 1040 Fluid Head and 30L Tripod System with Ground Spreader
OConnor 1040 Fluid Head and 30L Tripod System with Ground Spreader
OConnor 1040 Fluid Head and 30L Tripod System with Ground Spreader
OConnor 1040 Fluid Head and 30L Tripod System with Ground Spreader
OConnor 1040 Fluid Head and 30L Tripod System with Ground Spreader
OConnor 1040 Fluid Head and 30L Tripod System with Ground Spreader
OConnor 1040 Fluid Head and 30L Tripod System with Ground Spreader
OConnor 1040 Fluid Head and 30L Tripod System with Ground Spreader
OConnor 1040 Fluid Head and 30L Tripod System with Ground Spreader
OConnor 1040 Fluid Head and 30L Tripod System with Ground Spreader
OConnor 1040 Fluid Head and 30L Tripod System with Ground Spreader
OConnor 1040 Fluid Head and 30L Tripod System with Ground Spreader

OConnor 1040 Fluid Head and 30L Tripod System with Ground Spreader

Brand: OCONNOR

MFR: C1040-30L-F

SKU: SF-2443-UFWD

Price Available Upon Request
  • 100mm Ball Head Supports up to 45 lb
  • Dual-Stage Carbon Fiber Tripod
  • Max Height up to 70.5", Ground Spreader
  • 3 Rubber Feet, Soft Carrying Case

Items Included

    • OConnor 1030-268 Large European Quick Release with 120mm Plate
    • OConnor Pan Handle with 30° Bend for 1030B & 1030S Fluid Heads (12")
    • OConnor 2575-135 Bottom Extension of Telescoping Pan Handle
    • OConnor Ball Base for Ultimate 1030D Series Fluid Head (100mm)
    • Sachtler Tie-Down for flowtech 100 Tripod
    • Limited 1-Year Manufacturer Warranty
      Registration Extension: 2-Year (US Only)
    • Limited 1-Year Manufacturer Warranty
      Registration Extension: 2-Year (US Only)
    • Limited 1-Year Manufacturer Warranty
      Registration Extension: 2-Year (US Only)
    • Limited 1-Year Manufacturer Warranty
      Registration Extension: 2-Year (US Only)
  • Rubber Foot Set
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Tripod Systems , Tripod Systems

Get ultra-smooth camera movements and reliable stability for your video camera rig with the 1040 Fluid Head and 30L Tripod System with Ground Spreader from OConnor. Combining the Ultimate 1040 fluid head with the lightweight, carbon fiber 30L tripod, a ground spreader, and rubber feet, this system has a maximum height of 70.5", supports up to 45 lb, and includes a soft carrying case.

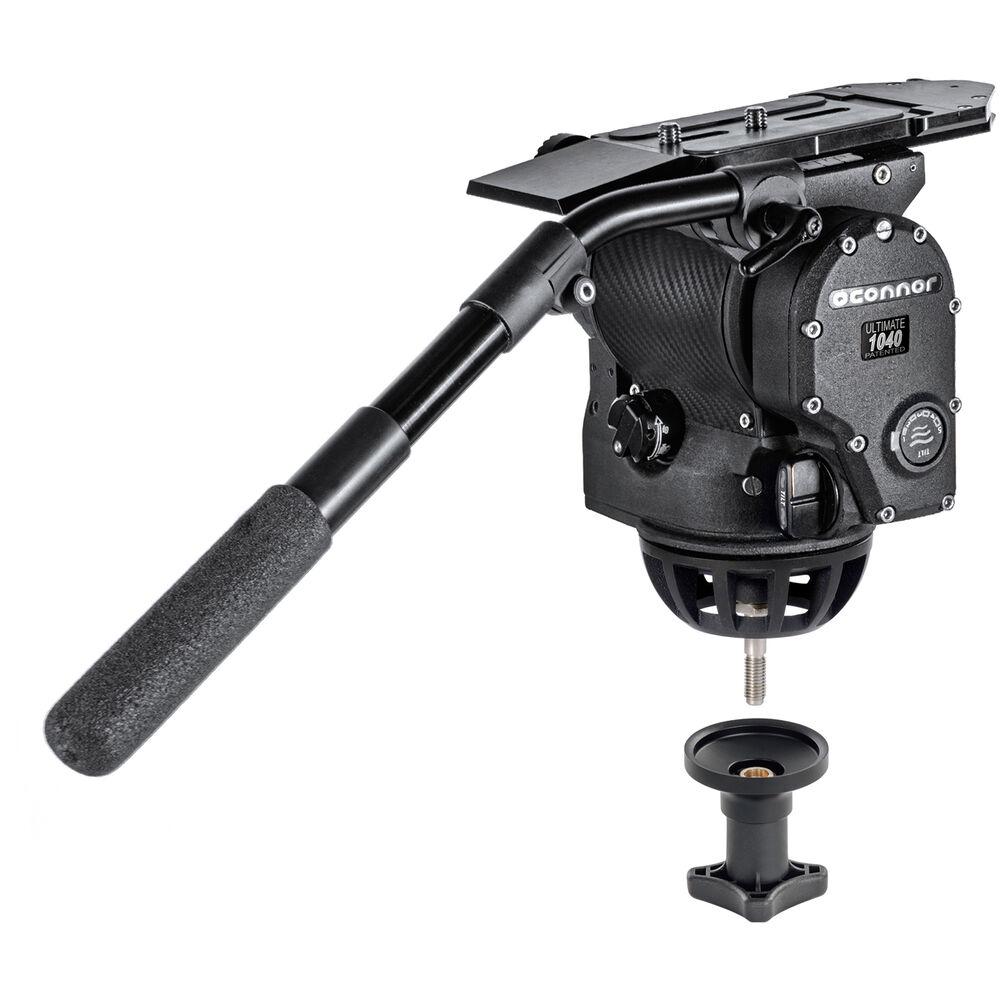

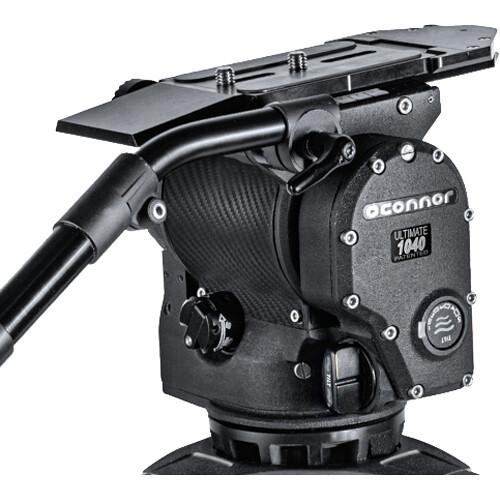

OConnor Ultimate 1040 Fluid Head

The OConnor Ultimate 1040 Fluid Head is a lightweight fluid head that shares features with the other fluid heads in the OConnor Ultimate fluid head line. This allows operators to easily transition between lighter and heavier cameras without having to relearn or think about the differences between fluid heads. The head supports 45 pounds' worth of camera and accessories at a center of gravity (COG) 5 inches above the camera platform. The counterbalance system helps prevent the camera from tilting forward or back on the head on its own and helps the camera to remain in the position the operator places it without requiring additional effort to hold it in place. The counterbalance system on the 1040 is a stepless system, so it is continuously variable from the maximum weight the head can support all the way down to zero. This makes the 1040 extremely versatile and suitable for use with heavy ENG-style cameras all the way down to lightweight cameras, while maintaining the same operational feel.

The 1040 features a large Euro-style quick release plate. The QR plate allows you to mount and remove the camera by lifting straight off the head and not having to slide it in from the back. The fluid head is able to tilt 90 degrees forward and back, allowing you to tilt the camera straight down and then straight up, all in the same shot. The camera also features independent drag controls and locks for both pan and tilt. The included 100mm ball base is removable and can be replaced with other available bases. The included pan handle can be attached to either side of the the fluid head, utilizing the mounting rosette on either side of the head.

Payload and Counterbalance
The 1040 supports cameras and accessories up to 45 pounds at a COG of 5 inches. This is what the counterbalance can cancel out while keeping the head neutral in any position in the tilt range. The sinusoidal counterbalance supports lighter cameras and features near-zero balance error. The stepless counterbalance can be set all the way down to zero to accommodate lightweight cameras.
Tilt Range
The 1040 provides a very wide tilt range of 90 degrees forward and and rear tilt, while supporting camera packages weighing up to 45 pounds (5" COG).
Pan and Tilt Controls
The head features independent controls on the pan and tilt for lock and drag. The pan and tilt locks are easy to operate. Both controls match well with the controls of OConnor's larger 2575 and 2065 heads, making it easy for operators to move between the heads without having to relearn each head.
Ball Leveling
The included 100mm ball base provides a side support base that easily accommodates the heavy loads this fluid head can support. The ball allows you to quickly level your shot without having to adjust the tripod legs. The ball base is also removable and available options include a Mitchell, 150mm ball base, 4-bolt, 3-bolt, or quickfix.

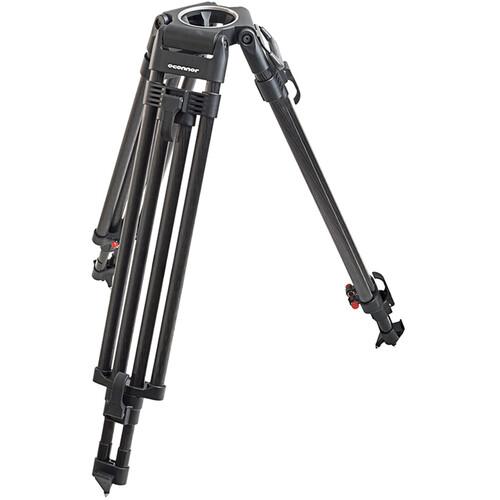

OConnor 30L Two-Stage Carbon Fiber Tripod Legs (100mm Bowl, Standard)

The OConnor 30L Two-Stage Carbon Fiber Tripod is designed to work with tripod heads that have a 100mm ball, such as OConnor's 1030D and 1030Ds. The legs weigh just under 9 pounds, yet can support a payload of up to 209 pounds, and extend from a minimum height of 22" to a maximum height of 62" when using a mid-level spreader (available separately).

Each leg extends or retracts independently, and when detached from a spreader each leg can pivot without affecting the other legs. This is especially useful when working on rough or uneven terrain. The dual spikes at the end of each leg provide extra grip when working on softer ground.

The OConnor 30L's legs feature lever locks for quick and secure clamping. The tripod also incorporates a carrying handle in its design. These features simplify transporting the 30L legs to or from a shoot.

Features
Dual-stage, carbon fiber, 100mm bowl tripod
Weighs only 8.8 pounds but supports up to 209 pounds
For OConnor 1030D/1030Ds and other 100mm-ball heads

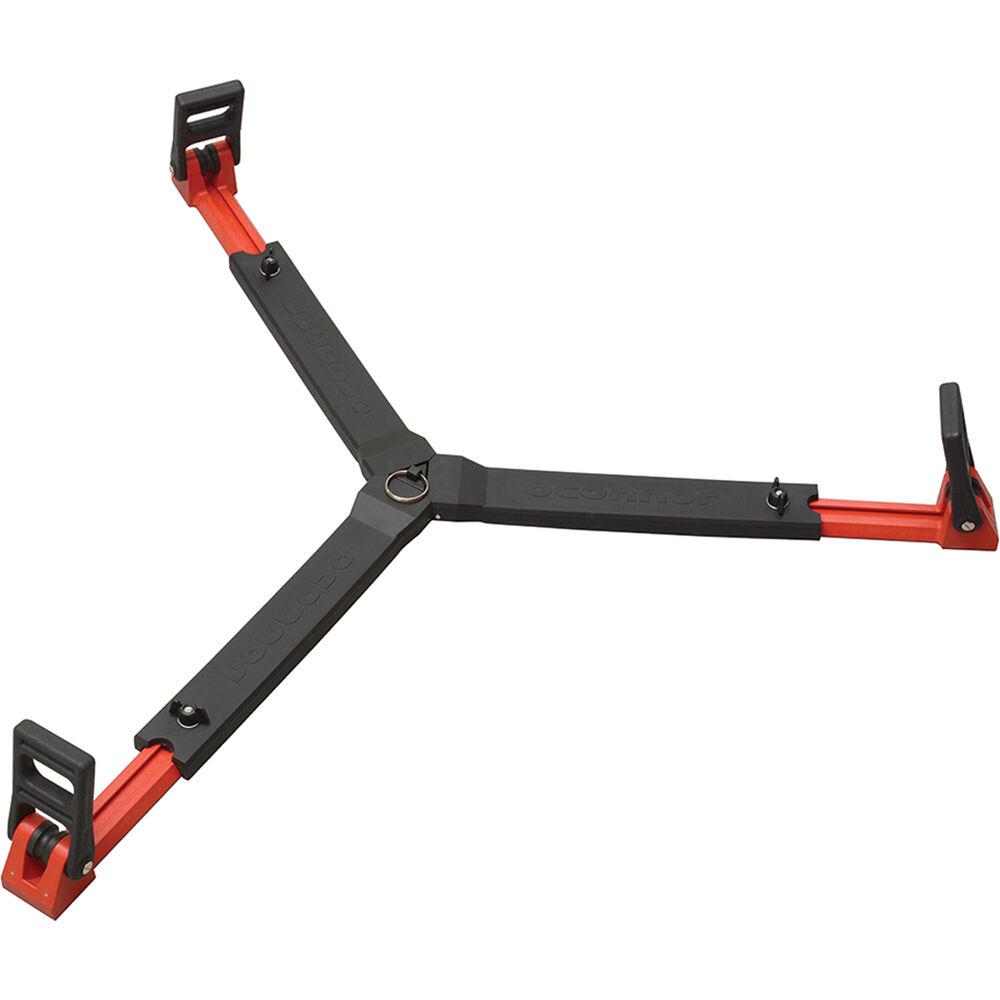

OConnor Floor Spreader for 30L and 60L Tripods

The Floor Spreader from OConnor is designed for use with a 30L or 60L OConnor tripod. The floor spreader is also compatible with all Sachtler 100 and 150 bowl tripods (excluding the DA 100 K, DA 150K, and Cine).

Compatible with 30L and 60L OConnor tripods, as well as all Sachtler 100 and 150 bowl tripods (with exception of DA 100 K, DA 150K, and Cine)
Adjustable spreader legs

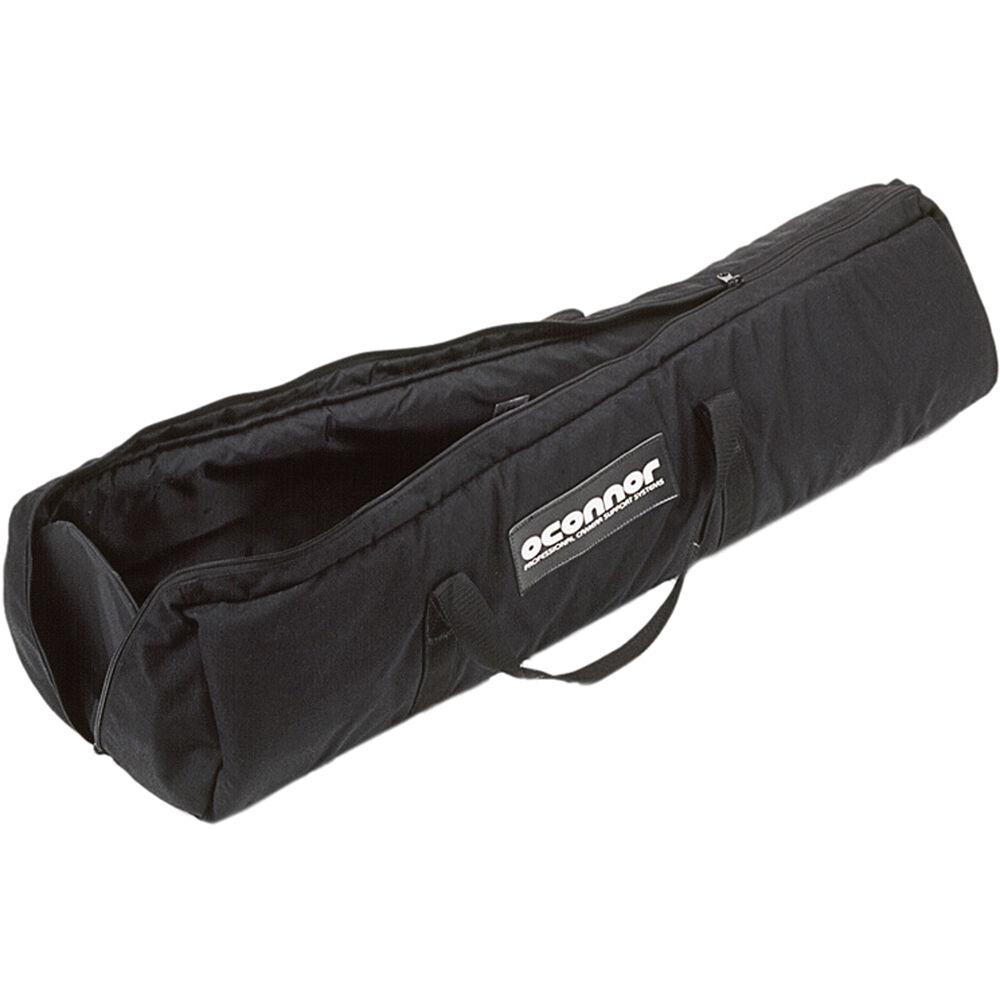

OConnor Soft Carrying Case for 1030 Systems with 30L Tripod (Black)

Store, protect, and transport your 1030 systems with 30L tripods in this black Soft Carrying Case from OConnor. The case features a padded interior, zipper closure and dual carry handles.


Head
Camera Mounting
Dual 3/8"-16 Screws & 1/4"-20 Screw with Locating Pin (Quick Release Plate: Large Euro Plate)
Head Type
Fluid Head
Base Mount
100 mm Half Ball
Counter Balance
Continuous (0 to 45 lb / 0 to 20.41 kg)
Dimensions
Base Diameter: 3.94" / 100.00 mm
Pan & Tilt
Drag Control
Yes
Independent Pan Lock
Yes
Independent Tilt Lock
Yes
Vertical Tilt
+90° to -90°
General
Load Capacity
52 lb / 23.59 kg
Accessory Mounting
2x Pan Handle Fitting
Weight
10.6 lb / 4.81 kg
Packaging Info
Package Weight
14.265 lb
Box Dimensions (LxWxH)
17.6 x 14.1 x 10.4"
