OConnor Ultimate 2575E Fluid Head
OConnor Ultimate 2575E Fluid Head
OConnor Ultimate 2575E Fluid Head
OConnor Ultimate 2575E Fluid Head
OConnor Ultimate 2575E Fluid Head
OConnor Ultimate 2575E Fluid Head
OConnor Ultimate 2575E Fluid Head
OConnor Ultimate 2575E Fluid Head

OConnor Ultimate 2575E Fluid Head

Brand: OCONNOR

MFR: C1275-0002

SKU: SF-2443-9UTP

Price Available Upon Request
  • Fluid Head with 133 lb Payload Capacity
  • Sinusoidal Counterbalance System
  • Ultrasmooth Pan and Tilt Fluid Drag
  • 4 Handle Mount Rosettes
  • Lightweight Carbon Fiber Cover

Items Included

  • OConnor Ultimate 2575E Fluid Head
  • Limited 1-Year Manufacturer Warranty
    Registration Extension: 2-Year
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Video Tripod Heads , Video Tripod Heads

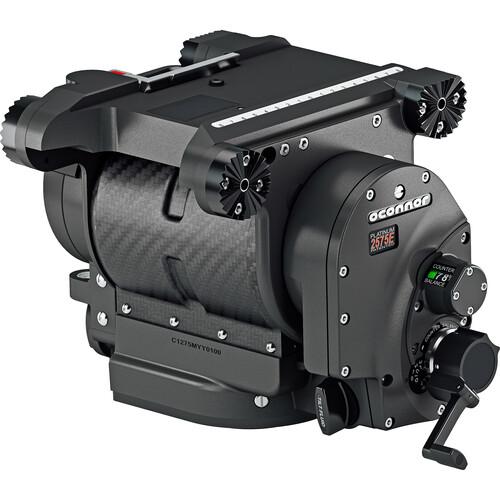

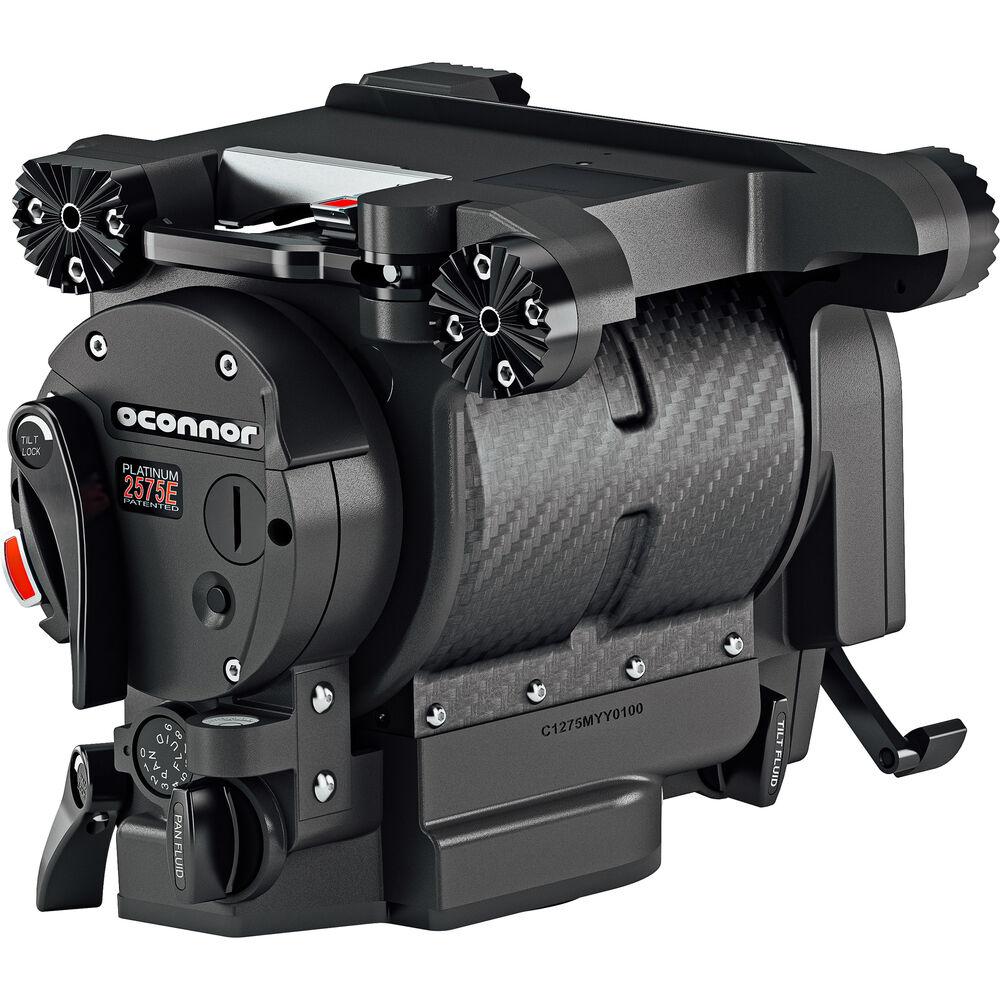

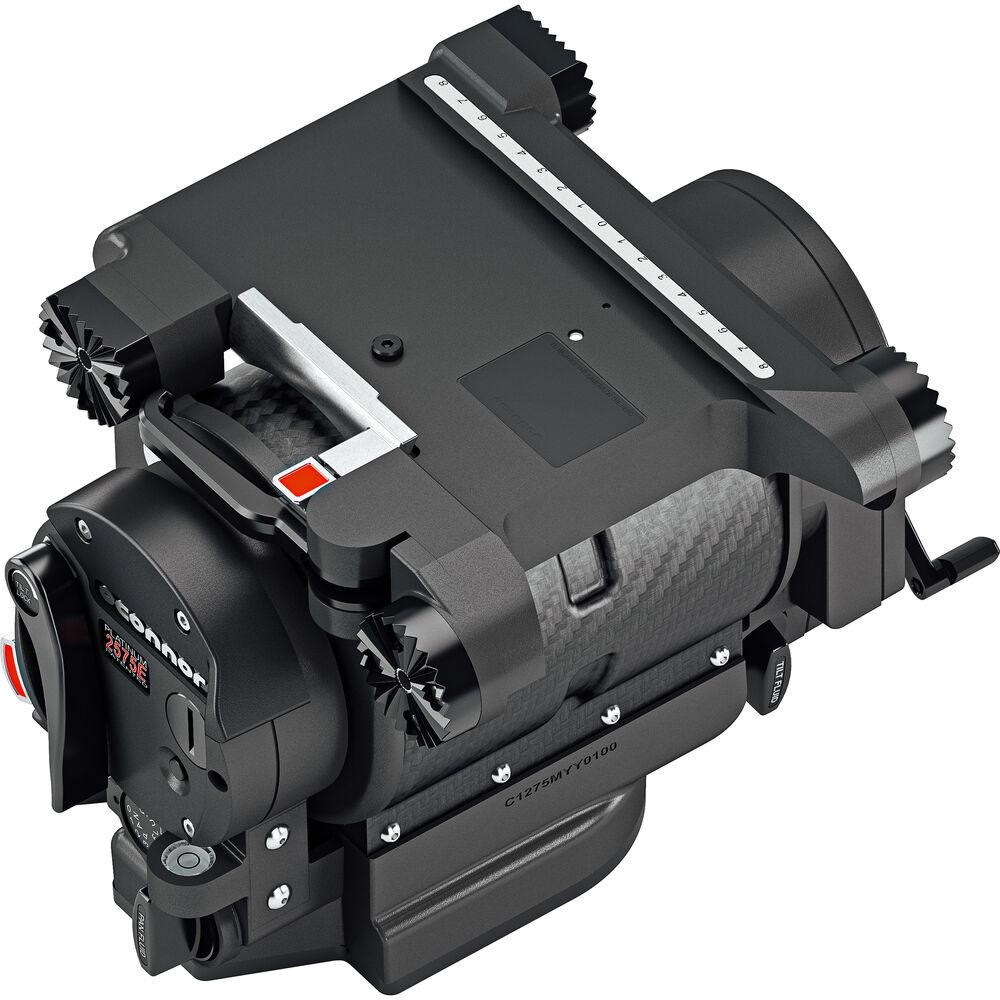

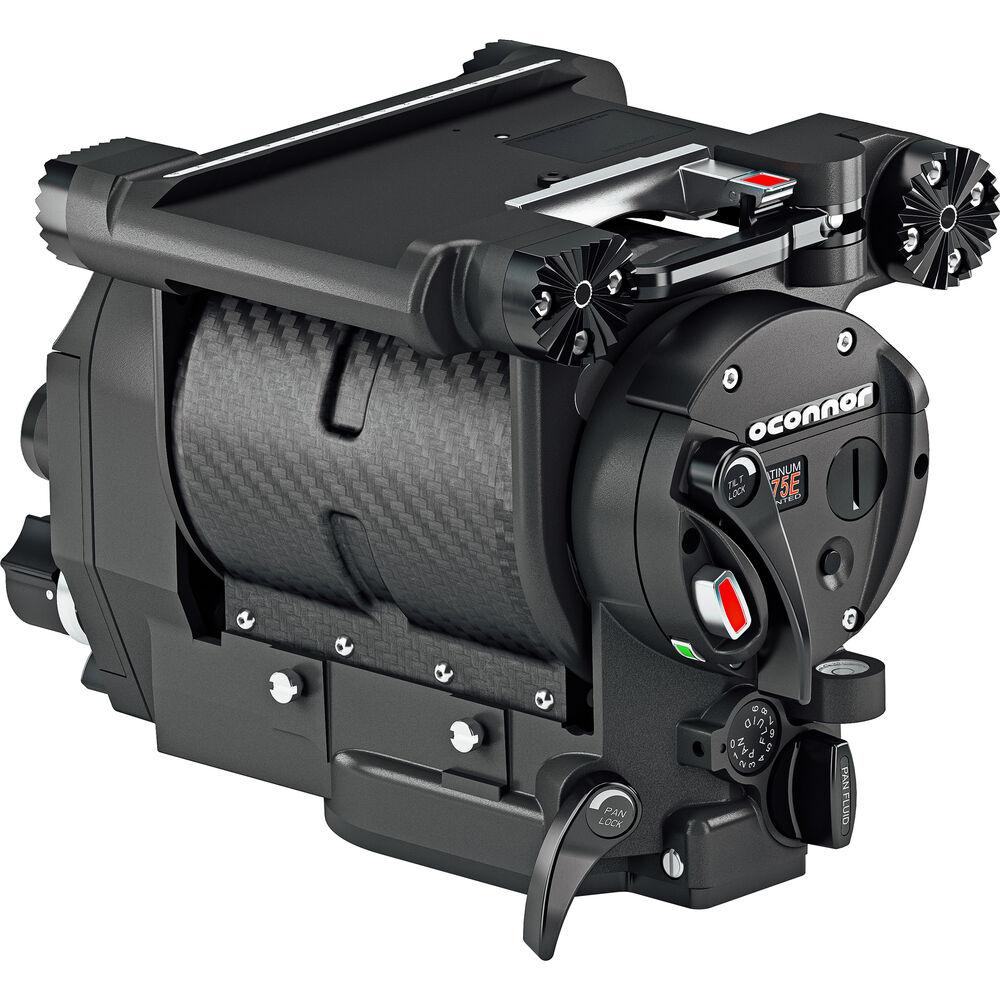

The Ultimate 2575E Fluid Head from OConnor is a versatile tripod head with a 133 lb payload capacity at a 4" center of gravity height above the platform. It features a patented sinusoidal counterbalance system, ensuring precise balance throughout the tilt range. Combined with a stepless, ultrasmooth pan and tilt fluid drag, it offers superior control and stability for cinematic shooting.

Four integrated handle mount rosettes allow the optimal positioning of an optional pan bar to suit your specific shooting style or application. With its infinite drag adjustment, the Ultimate 2575E accommodates everything from rapid whip pans to the smoothest long lens framing. Its lightweight magnesium housing provides excellent performance, power-to-weight ratio, and reliability. A lightweight carbon fiber cover shields the balance mechanism from damage and unintended access.

Features at a Glance
  • Counterbalance crank with a numerical readout
  • Operator-friendly controls conveniently placed on the operator’s side
  • Versatile platform includes four handle rosettes
  • Soft hand rest positioned on the left-hand side for comfort
  • Stainless steel center lock remains secure in both on and off positions
  • New platform release mechanism adjusts to allow for single-handed operation
  • Lightweight carbon fiber cover replaces the classic plastic cover for the balance mechanism
  • Improved bubble level illumination allows for easy viewing in any position
  • Clear Mitchell key position marker enhances setup speed

Head
Camera Mounting
Requires Separately Available Quick Release Plate
Head Type
Fluid Head
Base Mount
150 mm Half Ball or Mitchell Flat Base
Counter Balance
Continuous
Dimensions
Height: 8.4" / 21.3 cm
Base Diameter: 12.4" / 31.5 cm
Pan & Tilt
Drag Control
Yes
Independent Pan Lock
Yes
Independent Tilt Lock
Yes
Vertical Tilt
+90° to -90°
Lateral Tilt
No
General
Load Capacity
133 lb / 60.3 kg
Bubble Level
Yes (Illuminated)
Weight
24 lb / 10.9 kg
