OConnor Ultimate 2575E Fluid Head Package
OConnor Ultimate 2575E Fluid Head Package
OConnor Ultimate 2575E Fluid Head Package
OConnor Ultimate 2575E Fluid Head Package
OConnor Ultimate 2575E Fluid Head Package
OConnor Ultimate 2575E Fluid Head Package
OConnor Ultimate 2575E Fluid Head Package
OConnor Ultimate 2575E Fluid Head Package
OConnor Ultimate 2575E Fluid Head Package
OConnor Ultimate 2575E Fluid Head Package
OConnor Ultimate 2575E Fluid Head Package
OConnor Ultimate 2575E Fluid Head Package
OConnor Ultimate 2575E Fluid Head Package
OConnor Ultimate 2575E Fluid Head Package
OConnor Ultimate 2575E Fluid Head Package
OConnor Ultimate 2575E Fluid Head Package
OConnor Ultimate 2575E Fluid Head Package
OConnor Ultimate 2575E Fluid Head Package
OConnor Ultimate 2575E Fluid Head Package
OConnor Ultimate 2575E Fluid Head Package

OConnor Ultimate 2575E Fluid Head Package

Brand: OCONNOR

MFR: C1275-0001

SKU: SF-2443-ENAN

Price Available Upon Request
  • Fluid Head with 133 lb Payload Capacity
  • Sinusoidal Counterbalance System
  • Euro-Style Quick Release
  • Telescoping Pan Handle with Extension
  • Ultrasmooth Pan and Tilt Fluid Drag
  • 4 Handle Rosette Mounts
  • Lightweight Carbon Fiber Cover
  • Mitchell Base & Tie-Down Included
  • Ball Base & Tie-Down Included

Items Included

    • Limited 1-Year Manufacturer Warranty
      Registration Extension: 2-Year
    • OConnor Large Euro Plate
    • Limited 1-Year Manufacturer Warranty
    • Limited 1-Year Manufacturer Warranty
    • Limited 1-Year Manufacturer Warranty
    • Limited 1-Year Manufacturer Warranty
      Registration Extension: 2-Year
  • Mitchell Tie-Down
  • Ball Base (150mm)
  • Tie-Down Knob (150mm)
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Tripod Systems , Tripod Legs , Video Tripod Heads , Pedestals & Accessories , Monopods , Tripod Accessories , Tripod Head Accessories , Spreaders , Spikes & Rubber Feet , Tripod Cases , Straps , Hi-Hats , Base Adapters , Quick Release Plates , Quick Release Assemblies , Handles & Accessories , Handles & Accessories , Video Head Cases , Other Head Accessories , Tripods & Monopods , Tripods & Monopods , Tripod Systems , Tripod Legs , Video Tripod Heads , Pedestals & Accessories , Monopods , Tripod Accessories , Tripod Head Accessories

The Ultimate 2575E Fluid Head Package from OConnor bundles a 2575E fluid head with a Euro-style quick release plate, a telescoping pan handle with an extension handle, and both Mitchell and 150mm ball bases with respective tie-downs.

Read more about these kit components below.

OConnor Ultimate 2575E Fluid Head

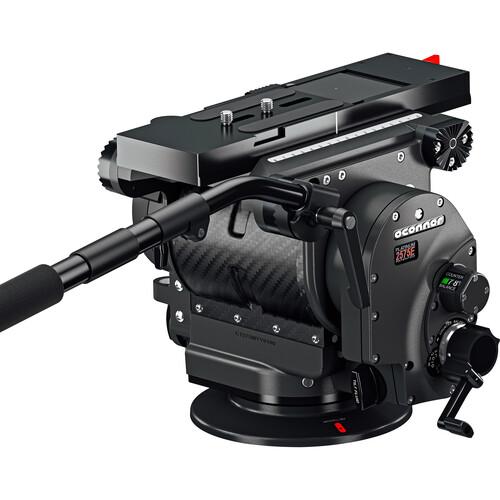

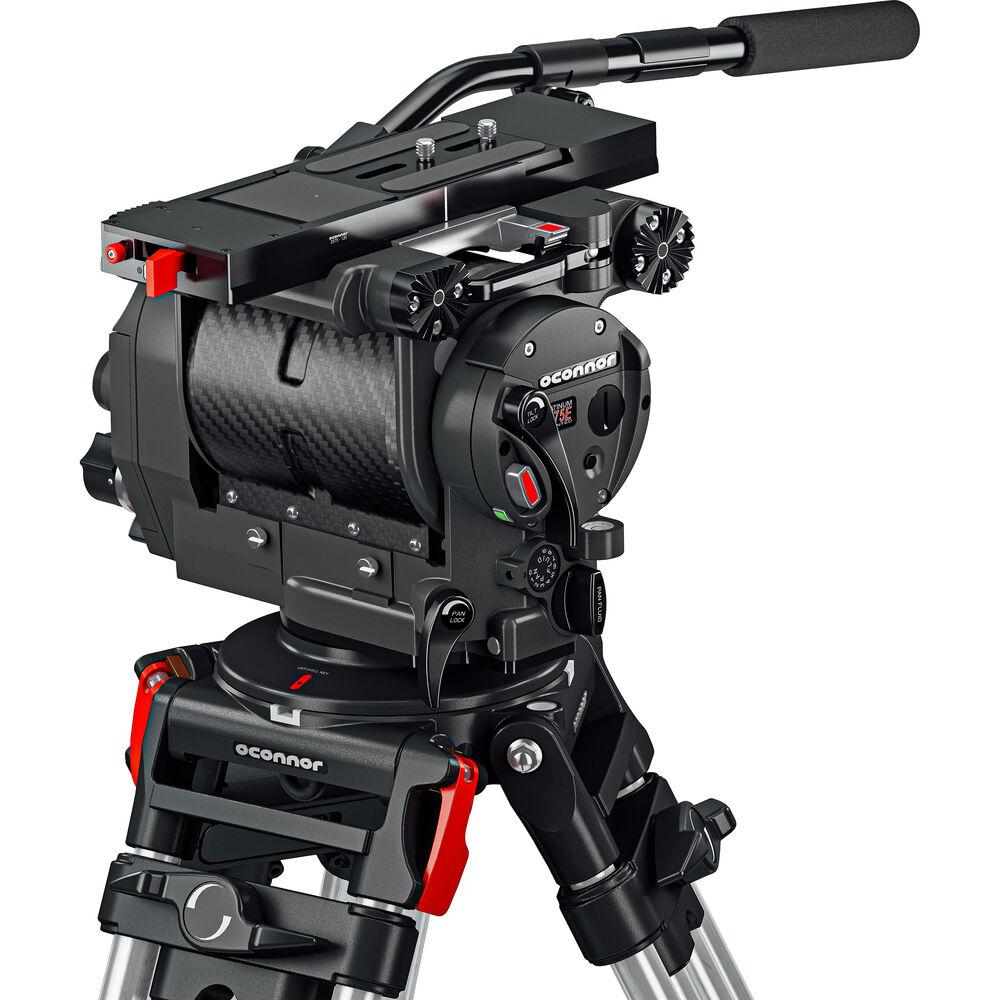

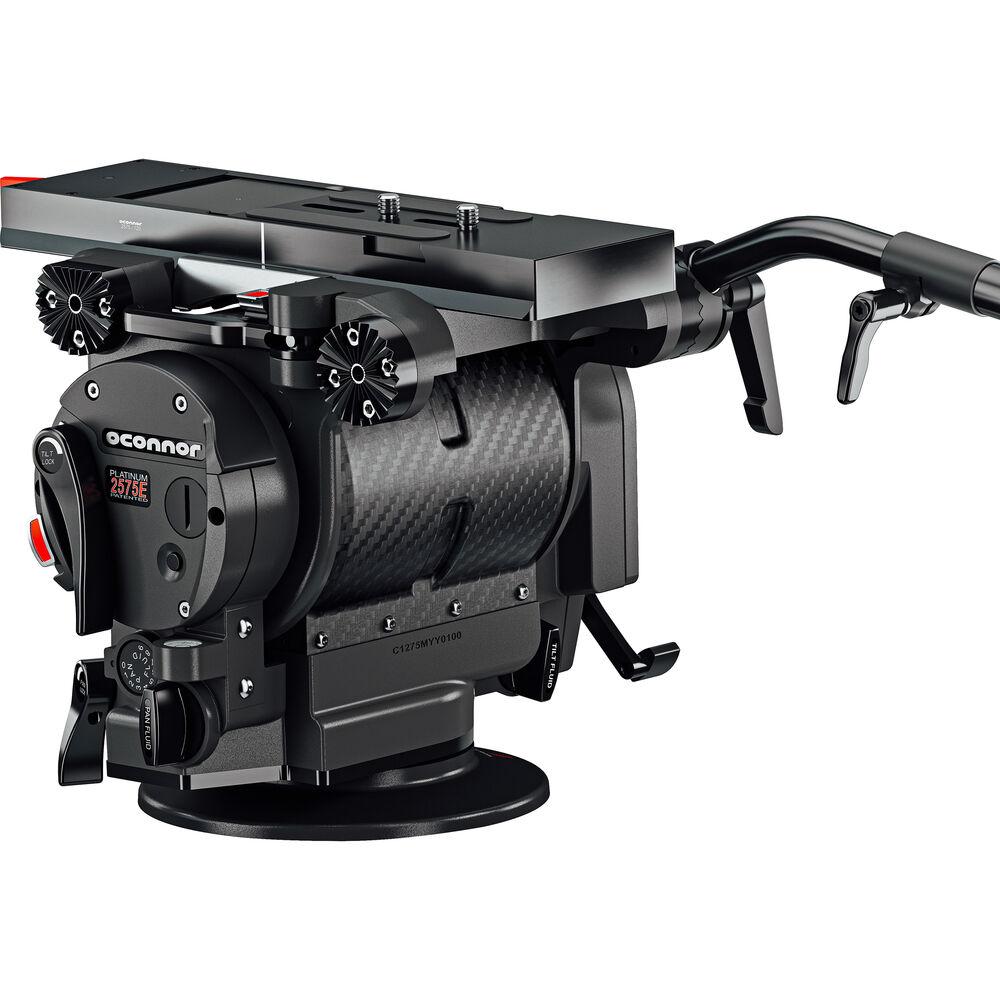

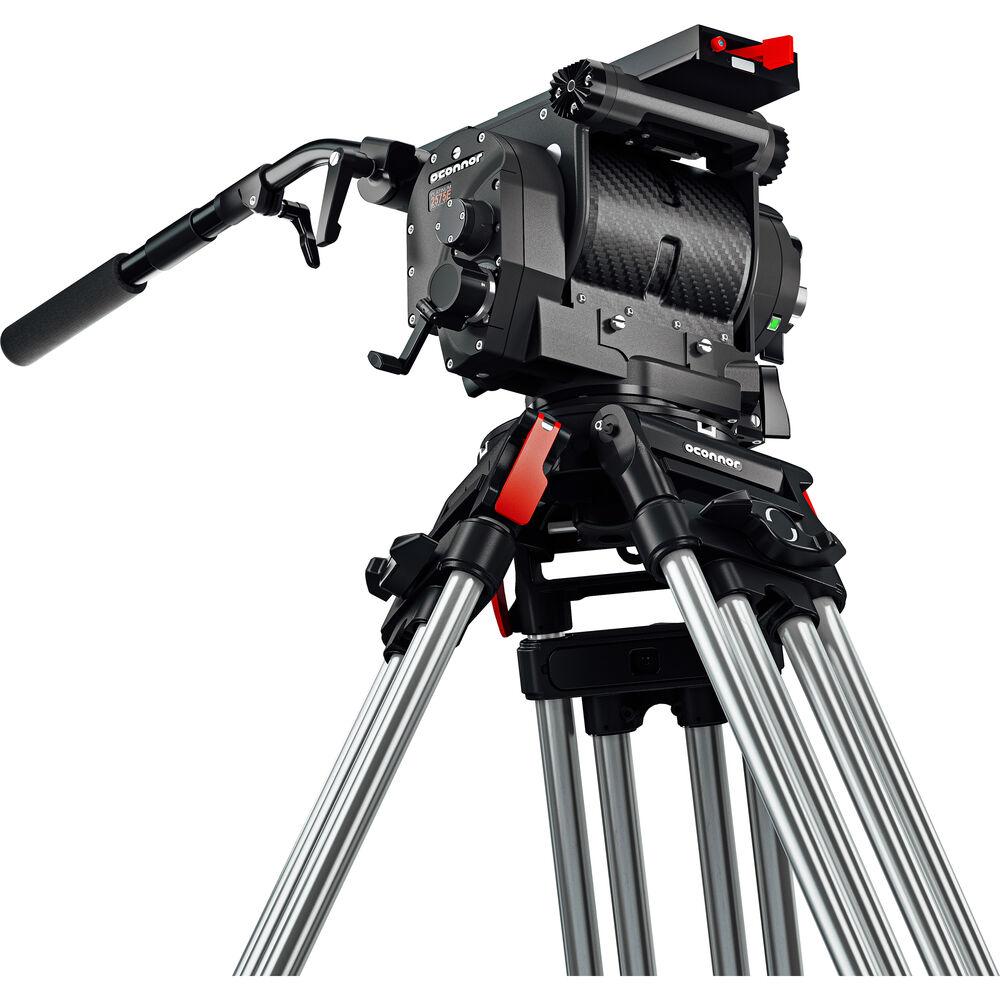

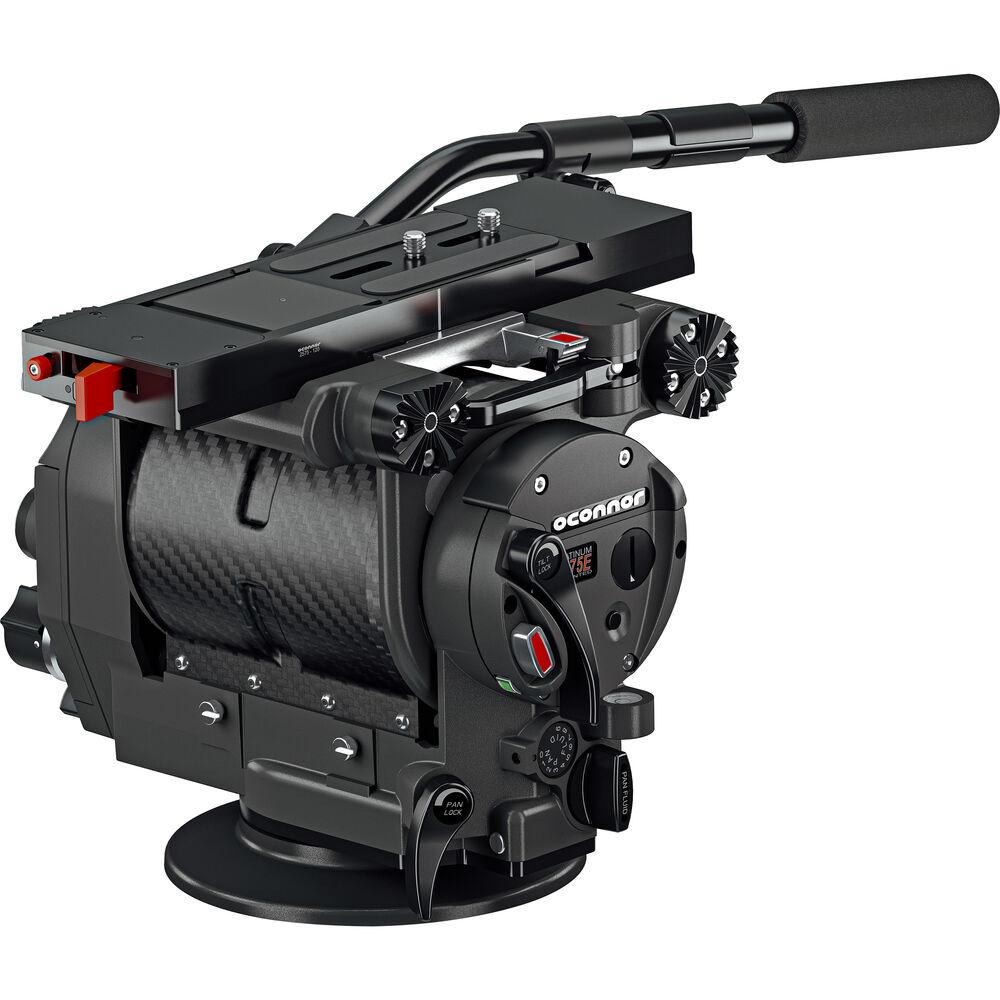

The Ultimate 2575E Fluid Head from OConnor is a versatile tripod head with a 133 lb payload capacity at a 4" center of gravity height above the platform. It features a patented sinusoidal counterbalance system, ensuring precise balance throughout the tilt range. Combined with a stepless, ultrasmooth pan and tilt fluid drag, it offers superior control and stability for cinematic shooting.

Four integrated handle mount rosettes allow the optimal positioning of an optional pan bar to suit your specific shooting style or application. With its infinite drag adjustment, the Ultimate 2575E accommodates everything from rapid whip pans to the smoothest long lens framing. Its lightweight magnesium housing provides excellent performance, power-to-weight ratio, and reliability. A lightweight carbon fiber cover shields the balance mechanism from damage and unintended access.

Features at a Glance

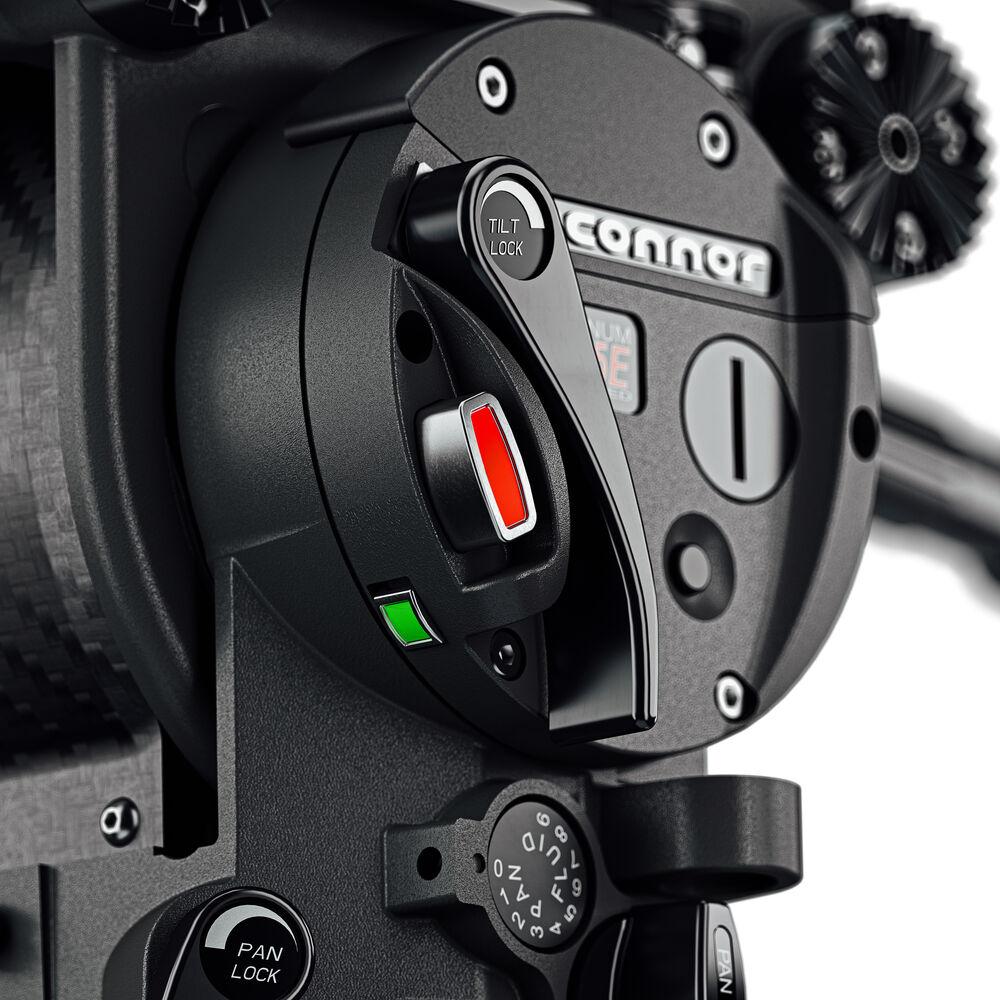

  • Counterbalance crank with a numerical readout
  • Operator-friendly controls conveniently placed on the operator’s side
  • Versatile platform includes four handle rosettes
  • Soft hand rest positioned on the left-hand side for comfort
  • Stainless steel center lock remains secure in both on and off positions

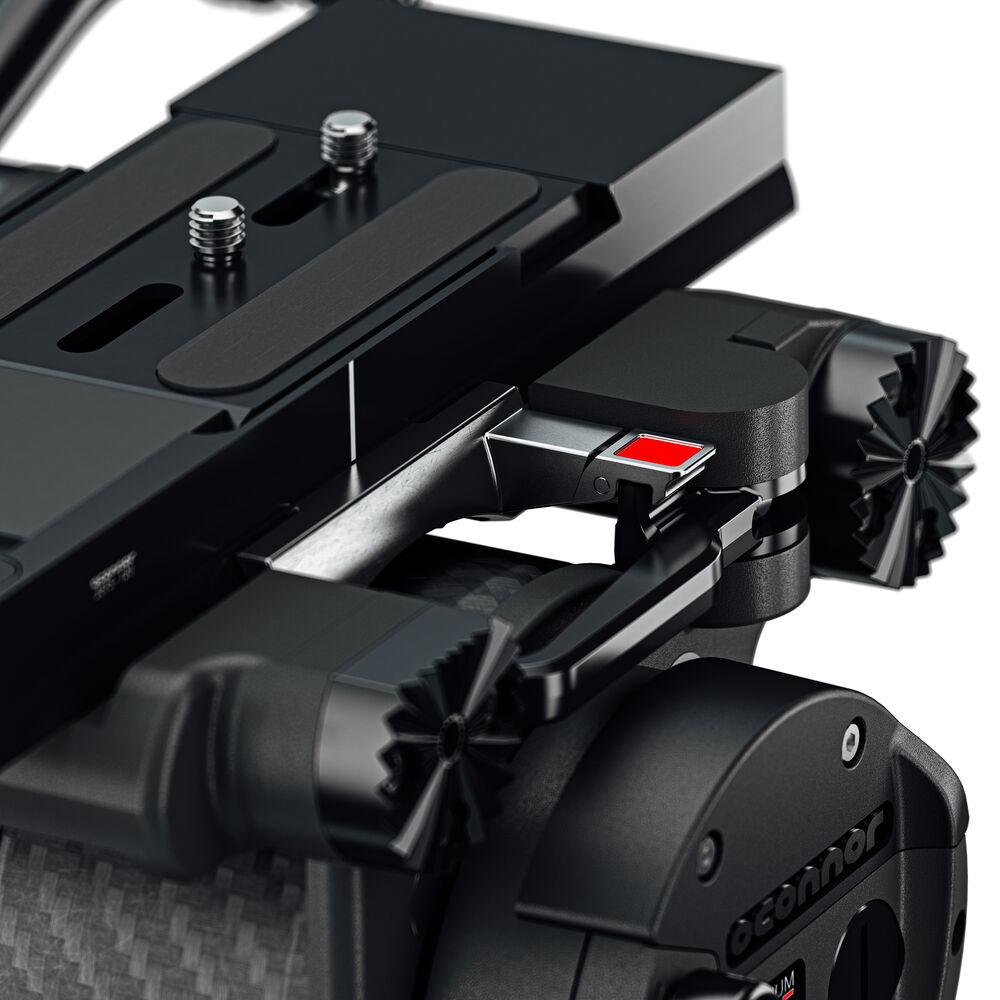

  • New platform release mechanism adjusts to allow for single-handed operation
  • Lightweight carbon fiber cover replaces the classic plastic cover for the balance mechanism

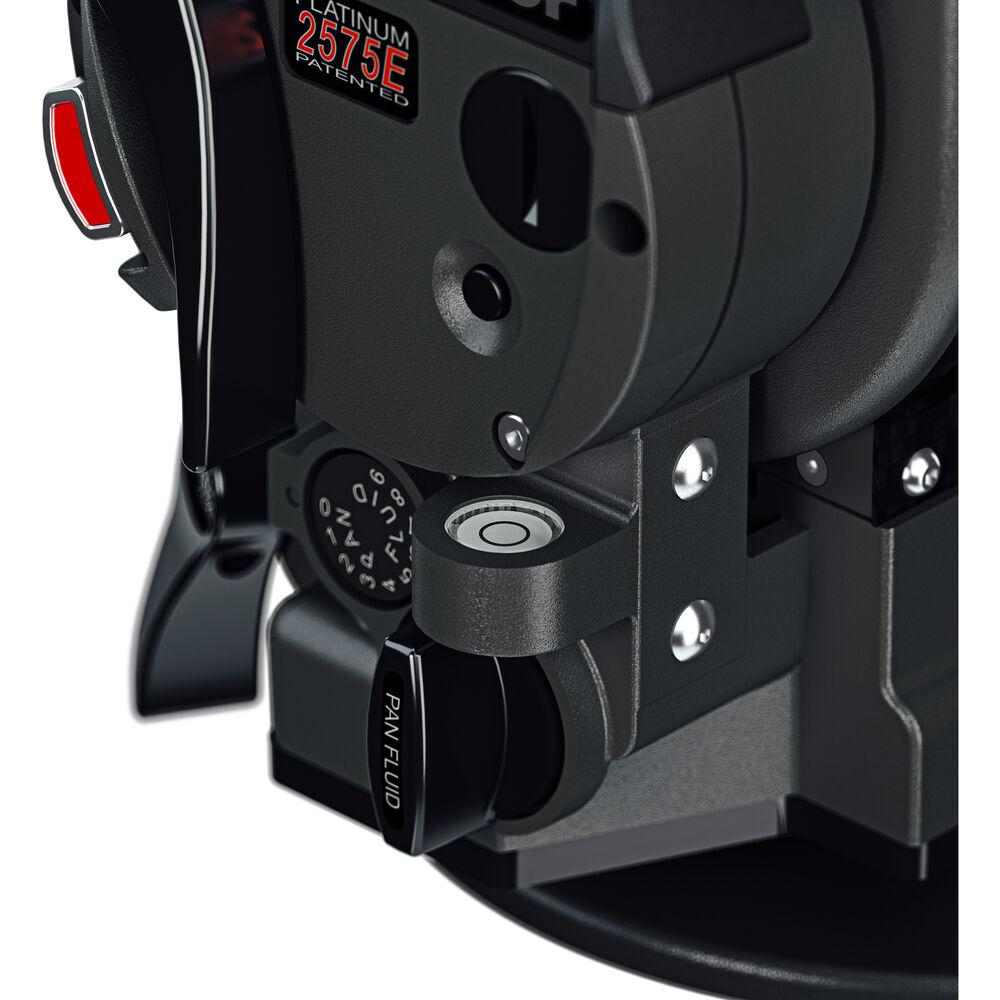

  • Improved bubble level illumination allows for easy viewing in any position

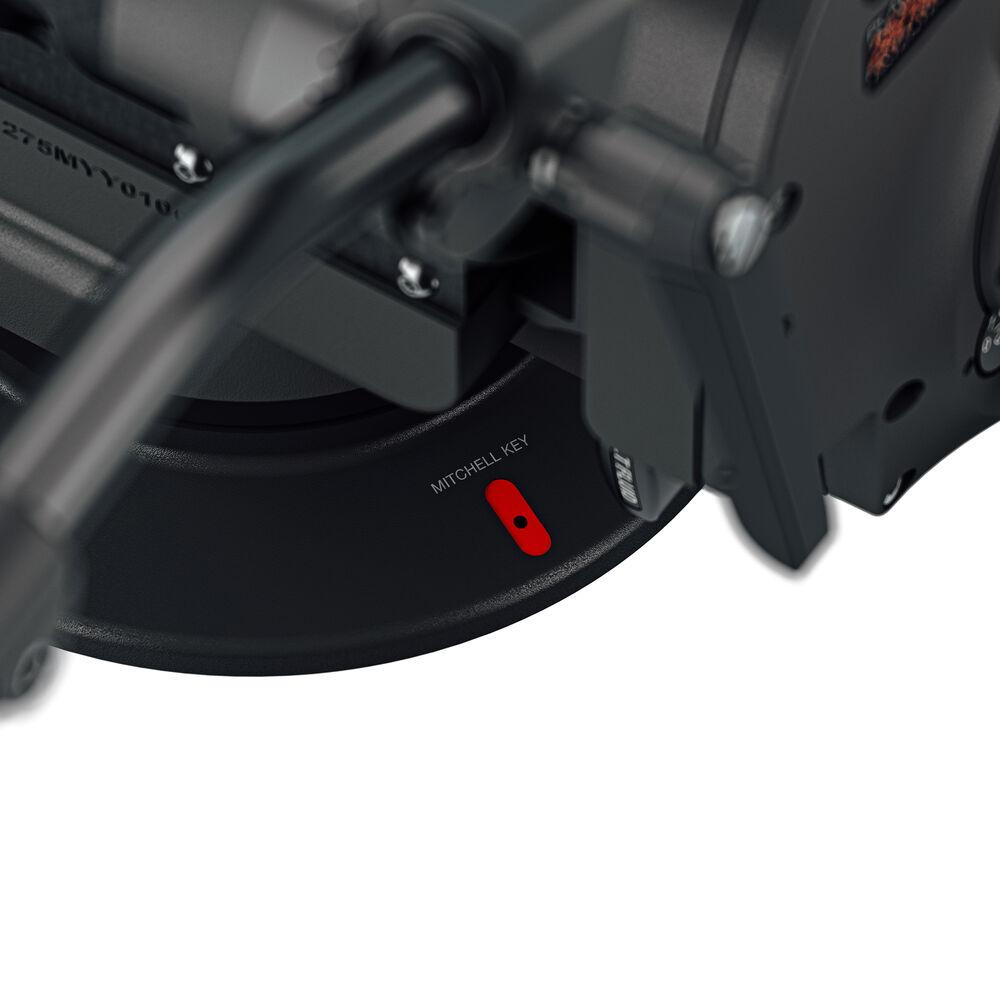

  • Clear Mitchell key position marker enhances setup speed
OConnor Euro-Style Quick Release Platform with Touch & Go Plate

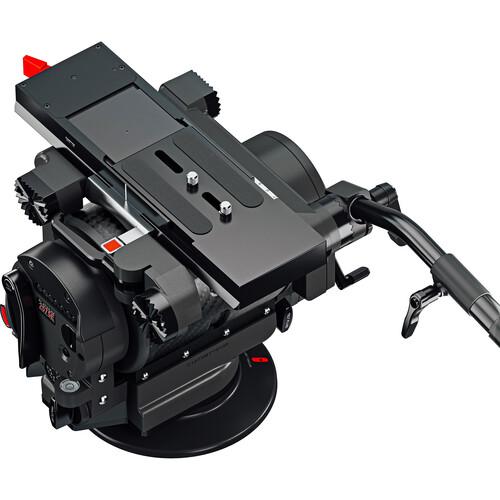

The Euro-Style Quick Release Platform from OConnor can accommodate heavy camera rigs and is designed for use with the OConnor 2575D, 120EX, 2560, and 2065 series of fluid heads. The included large European-style touch and go plate enables rapid mounting and demounting of your camera. A two-step lever at the rear of the platform locks the touch and go plate securely in place.

OConnor 2575-137 Top Half of Telescoping Pan Handle (30° Bend)

This OConnor 2575-137 Top Half of Telescoping Pan Handle is compatible with the OConnor 2065, 2575, and 120EX fluid heads. Use its lever-based screw to connect the handle to a rosette on either side of the head for right or left-handed use. A separately available, cushioned bottom handle component is required to properly use this telescoping handle. The 30°-angled pan handle can rotate within its clamp for locking at your preferred orientation.

OConnor 2575-135 Bottom Extension of Telescoping Pan Handle

The OConnor 2575-135 Bottom Handle Extension is designed to work with both 1030-246 and 2575-137 telescoping pan handles. This extension fastens onto the pan handle via a locking lever. It features a padded bottom grip for increased operating comfort.

OConnor Mitchell Base for 1040/2560/2575 Heads

Secure your fluid head onto your tripod with this Mitchell Base from OConnor. Compatible with the 1040, 2560, and 2575 heads, the base mounts onto the tripod with a separately available Mitchell base tie-down.


Head
Camera Mounting
Requires Separately Available Quick Release Plate
Head Type
Fluid Head
Base Mount
150 mm Half Ball or Mitchell Flat Base
Counter Balance
Continuous
Dimensions
Height: 8.4" / 21.3 cm
Base Diameter: 12.4" / 31.5 cm
Pan & Tilt
Drag Control
Yes
Independent Pan Lock
Yes
Independent Tilt Lock
Yes
Vertical Tilt
+90° to -90°
Lateral Tilt
No
General
Load Capacity
133 lb / 60.3 kg
Bubble Level
Yes (Illuminated)
Weight
24 lb / 10.9 kg
