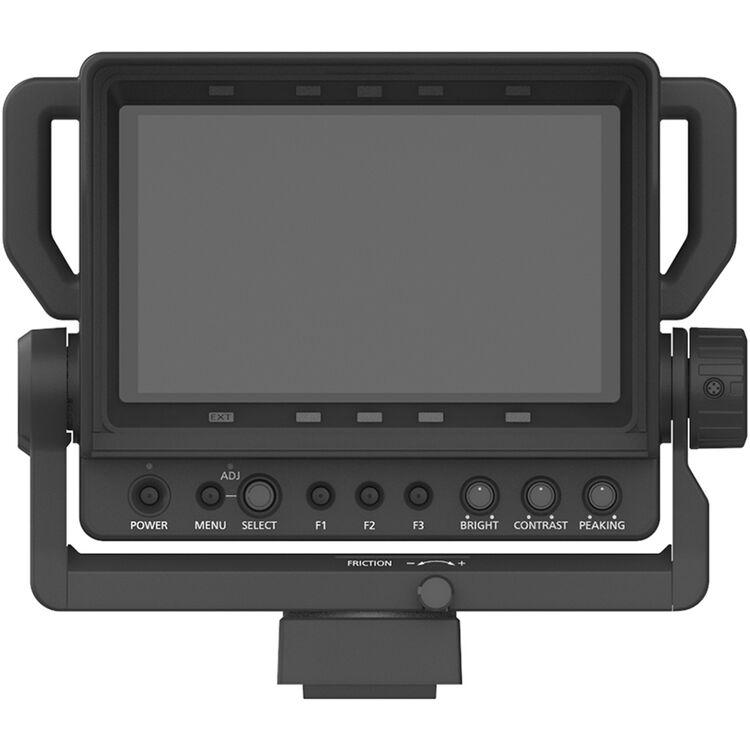

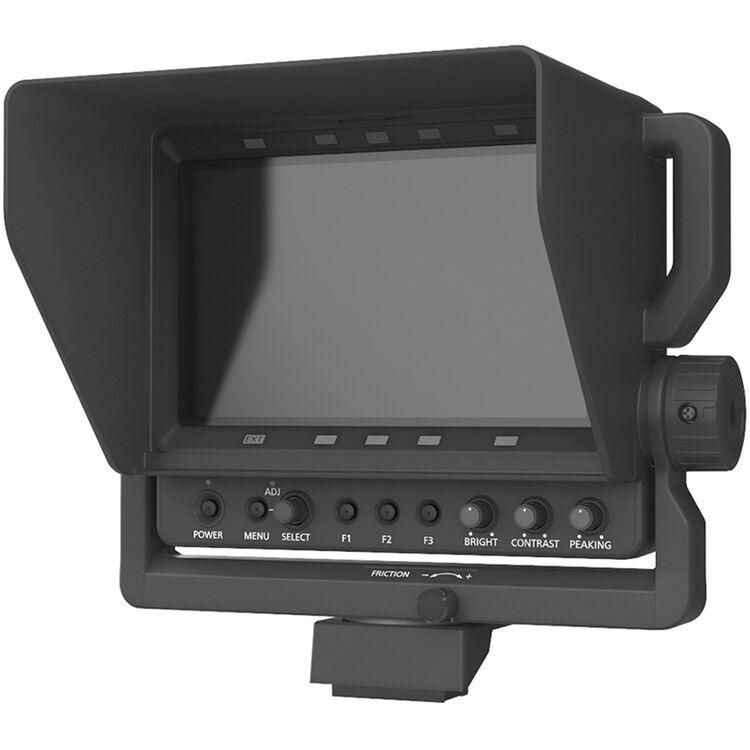

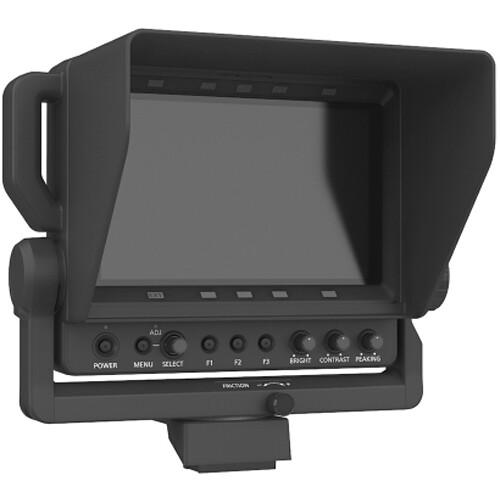

Equipped with 1280 x 800 (WXGA) resolution 7" color LCD panel. Wide horizontal/vertical viewing angle of 176°, screen brightness of 400 cd/m² and contrast of 800:1. Equipped with focus assist functions (Focus in Red, Pixel to Pixel). Direct camera menu control is possible. Equipped with three assignable function switches. Contrast, brightness, and peaking can be adjusted. Tilting (90° up, 60° down) and panning (90° left and right) is possible.
| Panel Type | LCD |
| Display Size | 7.0" / 17.8 cm |
| Screen Resolution | 1280 x 800 |
| Aspect Ratio | 16:10 |
| Viewing Angle | 176° |
| Touchscreen | No |
| Maximum Brightness | 400 nits / cd/m2 |
| Contrast Ratio | 800:1 |
| Pixels Per Inch (ppi) | 215 ppi |
| Finish | Glossy |
| Image Controls | Focus Peaking, Pixel-to-Pixel Zoom |
| Inputs/Outputs | 1x Proprietary Camera Input |
| Video Format | Proprietary 1080i: 59.94/50 |
| Input Power | 12 VDC |
| Power Consumption | 11 W |
| Operating Conditions | 32 to 113°F / 0 to 45°C at 10 to 85% Humidity |
| Storage Conditions | -4 to 140°F / -20 to 60°C |
| Dimensions | 9.6 x 8.3 x 3.3" / 243.5 x 212 x 85 mm (Excluding Sun Hood) 9.6 x 8.3 x 6.8" / 243.5 x 212 x 172 mm (Including Sun Hood) |
| Weight | 7.78 lb / 3.53 kg, Excluding Sun Hood |
| Package Weight | 6.17 lb |
| Box Dimensions (LxWxH) | 14.5 x 12.8 x 6.7" |
