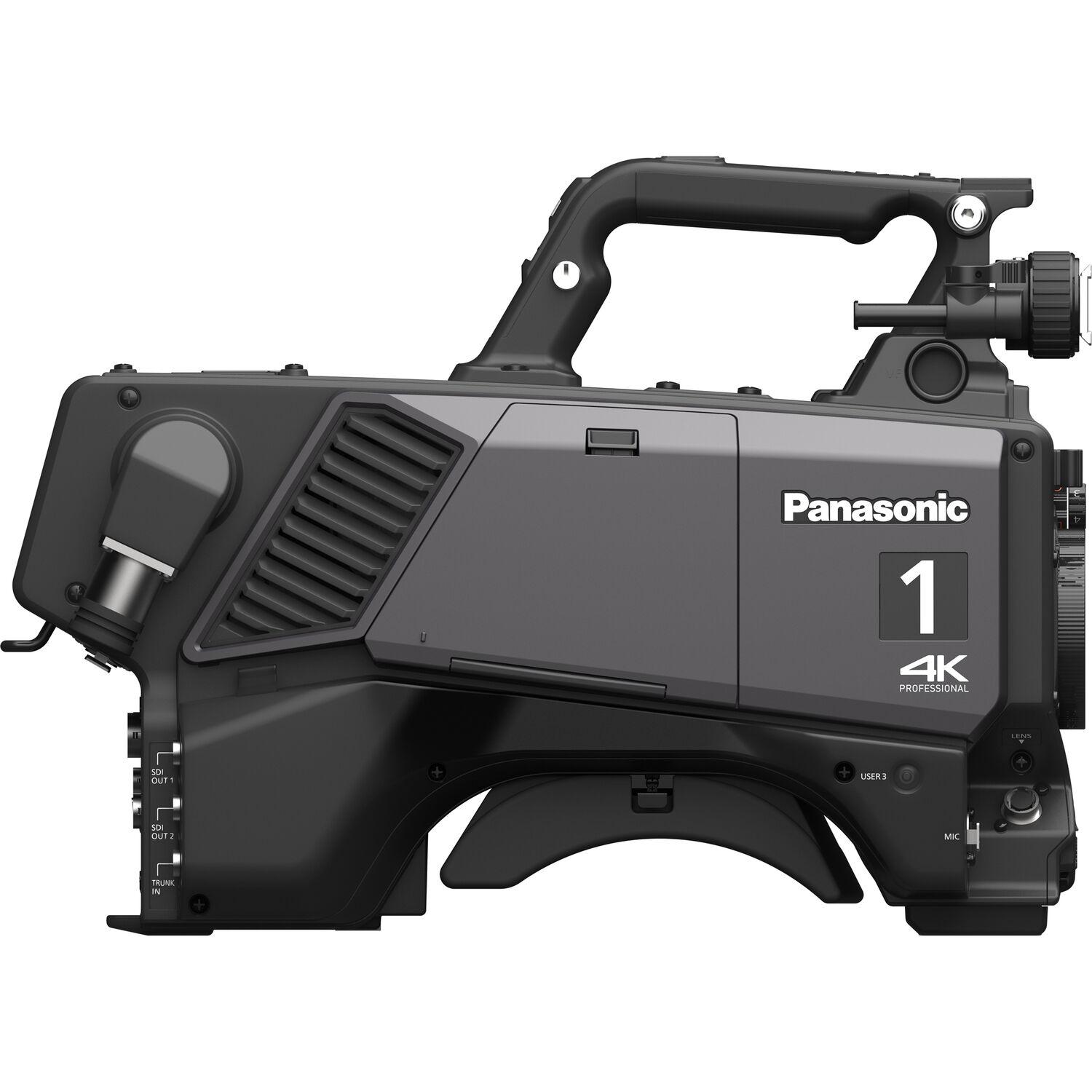

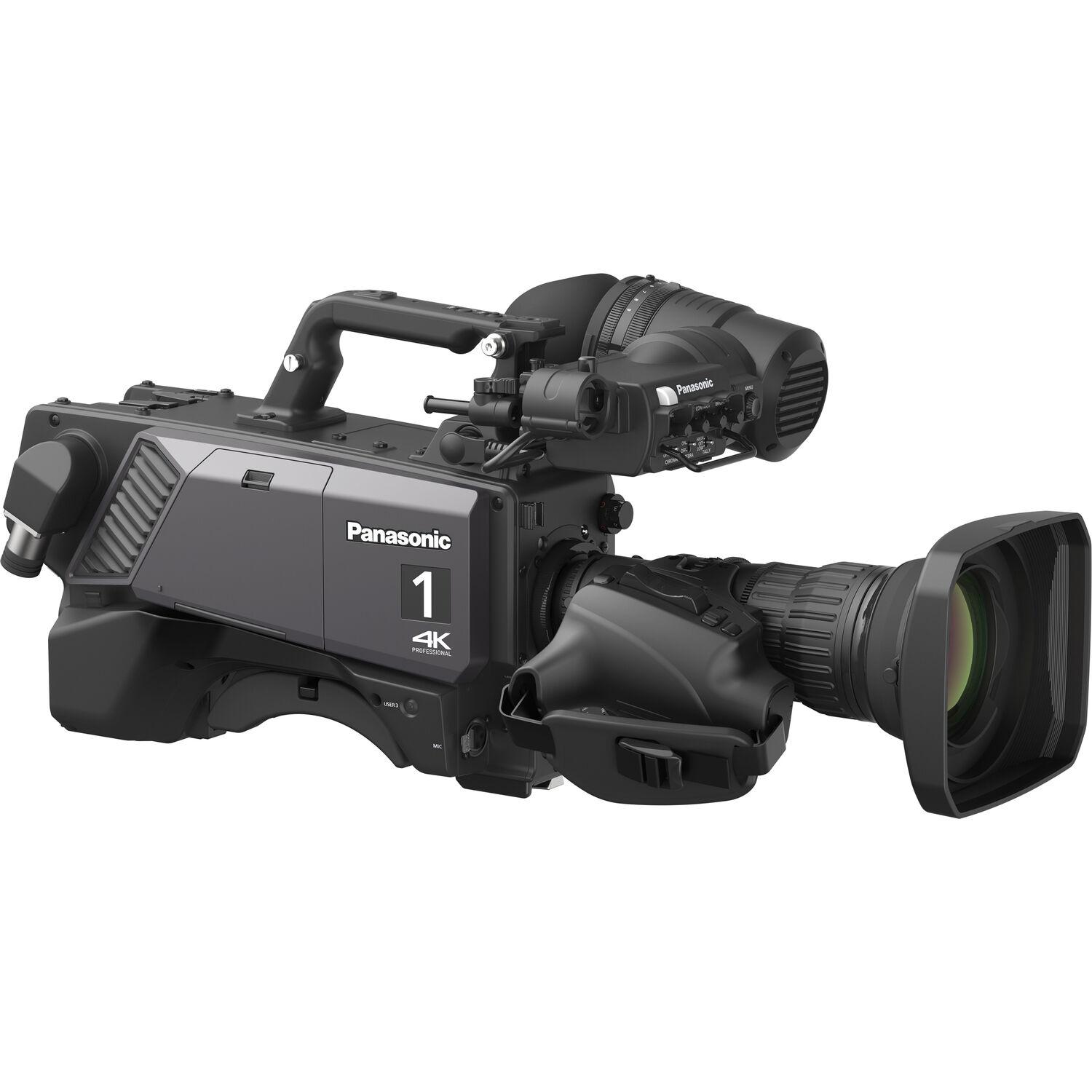

Panasonic AK-UCX100 4K HDR 12G-SDI Studio Camera
Panasonic AK-UCX100 4K HDR 12G-SDI Studio Camera
Panasonic AK-UCX100 4K HDR 12G-SDI Studio Camera
Panasonic AK-UCX100 4K HDR 12G-SDI Studio Camera
Panasonic AK-UCX100 4K HDR 12G-SDI Studio Camera
Panasonic AK-UCX100 4K HDR 12G-SDI Studio Camera
Panasonic AK-UCX100 4K HDR 12G-SDI Studio Camera
Panasonic AK-UCX100 4K HDR 12G-SDI Studio Camera
Panasonic AK-UCX100 4K HDR 12G-SDI Studio Camera
Panasonic AK-UCX100 4K HDR 12G-SDI Studio Camera
Panasonic AK-UCX100 4K HDR 12G-SDI Studio Camera
Panasonic AK-UCX100 4K HDR 12G-SDI Studio Camera

Panasonic AK-UCX100 4K HDR 12G-SDI Studio Camera

Brand: Panasonic

MFR: AK-UCX100GSJ

SKU: SF-2443-2NOL

168,326.00 ﾹ

  • 19.29MP MOS Image Sensor, B4 Mount
  • Up to UHD 4K60 12G-SDI Output
  • Independent Operation without CCU
  • Redundant Operation with ST 2110
  • 2000 TV Lines High-Resolution
  • Simultaneous HLG/BT.2020 and SDR /BT.709
  • LEMO SMPTE Hybrid Fiber Connector
  • 4K 2x and HD 2/3/4x High-Speed Modes
  • Built-In ND Filter Wheel, Optional OLPF

Items Included

  • Panasonic AK-UCX100 4K HDR 12G-SDI Studio Camera
  • Port Cap
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: Studio & EFP Equipment

Adaptable 4K HDR Camera for Live Productions
Built around a large 19MP sensor, the AK-UCX100 4K HDR 12G-SDI Studio Camera from Panasonic is ready to meet your live video demands with up to 12G-SDI output, SMPTE ST2110 redundancy, and support for NDI, ST2110, and SRT. This professional broadcast camera features a high 2000 TV-line, UHD 4K resolution video at rates up to 59.94 fps. Ideal for studio, sports broadcasting, and live event use, this versatile camera can simultaneously output HLG (BT.2020) and SDR (BT.709) and offers 2x UHD 4K and 2/3/4x HD high-speed modes. The AK-UCX100 camera offers standalone operation without requiring a CCU, outputting video via its fiber optic and 12G-SDI connectors.
Excellent Resolution
The 19MP MOS sensor uses oversampling to output highly detailed images with 2000 TV-line resolution. High F10/2000 lux sensitivity and a 62dB signal-to-noise ratio help to produce high-quality video, even in low-light scenarios.
Standalone Operation without Requiring a CCU
Providing flexible compatibility with both baseband and IP systems, the AK-UCX100 supports various IP standards, including 12G-SDI, SMPTE ST 2110, NDI High Bandwidth, and SRT, all without requiring the use of a CCU.
Fiber Adapter and CCU Compatible
Designed to accommodate different on-site needs and anticipate future ones, the AK-UCX100 works with the existing AK-UCU700 CCU series and the new AK-CFA100 camera fiber adapter.
SMPTE ST 2110 Support for IP
  • SMPTE ST 2110 compatibility enables the AK-UCX100 to transmit uncompressed 4K video for stable IP operation in both live and studio settings.
  • A future update will offer support for JPEG XS with low-latency, virtually lossless video for smooth IP output even in bandwidth-constrained environments.
  • A future upgrade will offer Tag VLAN camera management for large-network operations.
ST 2110 Redundancy
The AK-UCX100 provides SMPTE ST 2110 compatibility, enabling redundant operation and network redundancy during IP operation.
Simultaneous HLG and SDR
  • Simultaneous use of HLG (BT.2020) and SDR (BT.709) enables optimal color reproduction for virtually any content.
  • HLG (hybrid log gamma) produces finely graded light and dark areas with a wide dynamic range.
  • ITU-R BT.2020 gamut compatibility produces superior color accuracy.
4K 2x and HD 4x High Speed
Sports shooters will appreciate the AK-UCX100's ability to capture up to 2x speed in UHD 4K and 2/3/4x in HD.

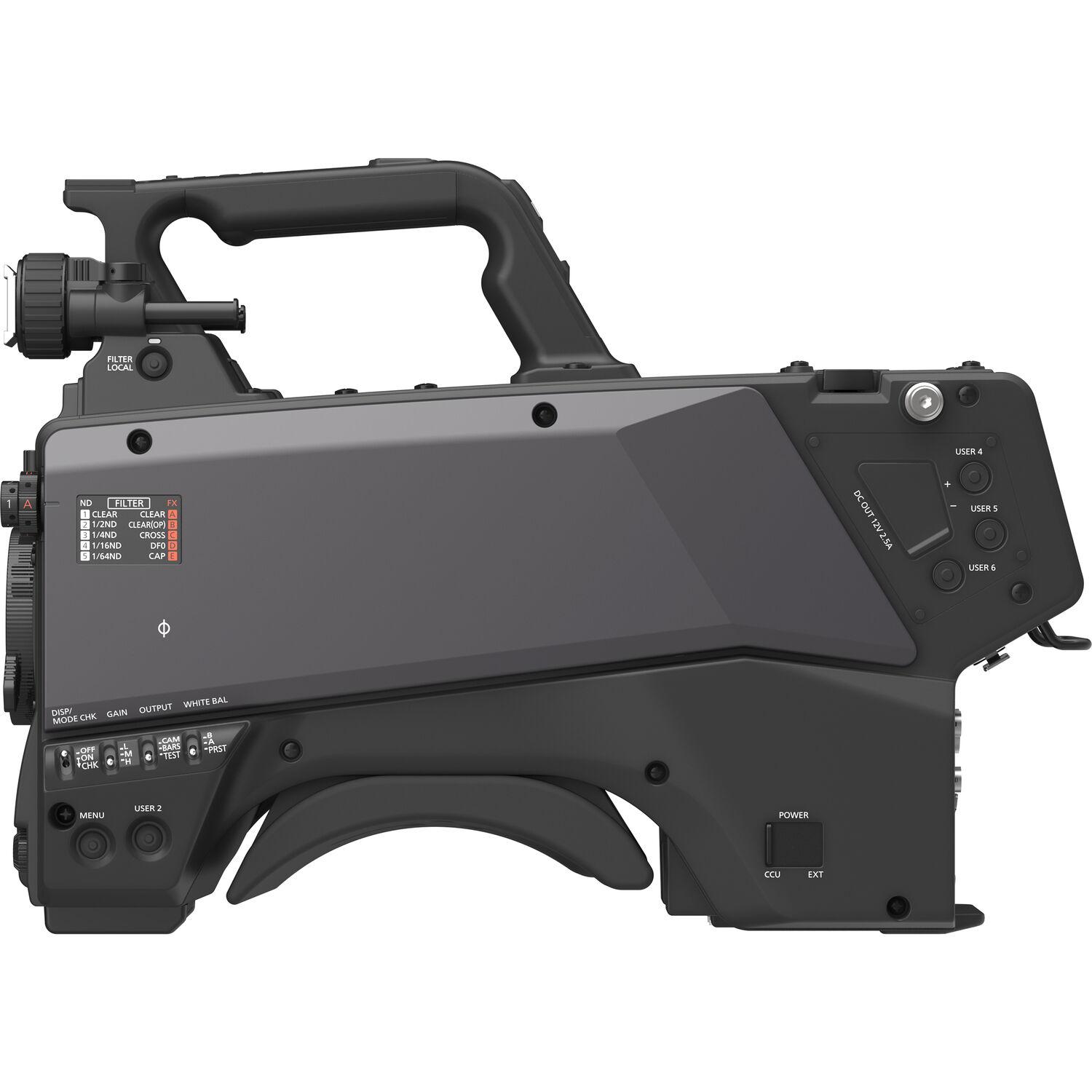

ND Filter Wheel
A built-in ND filter wheel enables you to easily adjust your exposure on the fly.
Low-Pass Filter Option
An optional OLPF (optical low-pass filter) helps to reduce any moire effects when capturing LED walls, providing clear visuals of stage shows using LED displays.
PTZ Camera Integration
Pair the AK-UCX100 with a Panasonic camera to get a multi-angle look with seamless color matching using the same ROP (remote operation panel).
Focus Assist Function
Phase-detection focus technology includes an in-focus icon in the viewfinder and a boost function for enhanced contrast of dark areas within the viewfinder.
Video and Data Trunk Transmission
Using an optical fiber cable to transmit video and data between the AK-UCX100 and a CCU enables system upgrades as the need arises. Dual 3G-SDI camera-to-CCU and camera-to-CFA connections with integrated frame synchronizers enable prompter, fixed return, and camera-side monitoring. One 3G-SDI can also be used to output video from a handheld or PTZ camera.
Additional Features
  • Two SFP28 slots enable redundant 4K connections.
  • Genlock input is provided for syncing video with external signals, and reference output is offered.
  • TSL 5.0 is provided for sending and receiving tally information.

Imaging

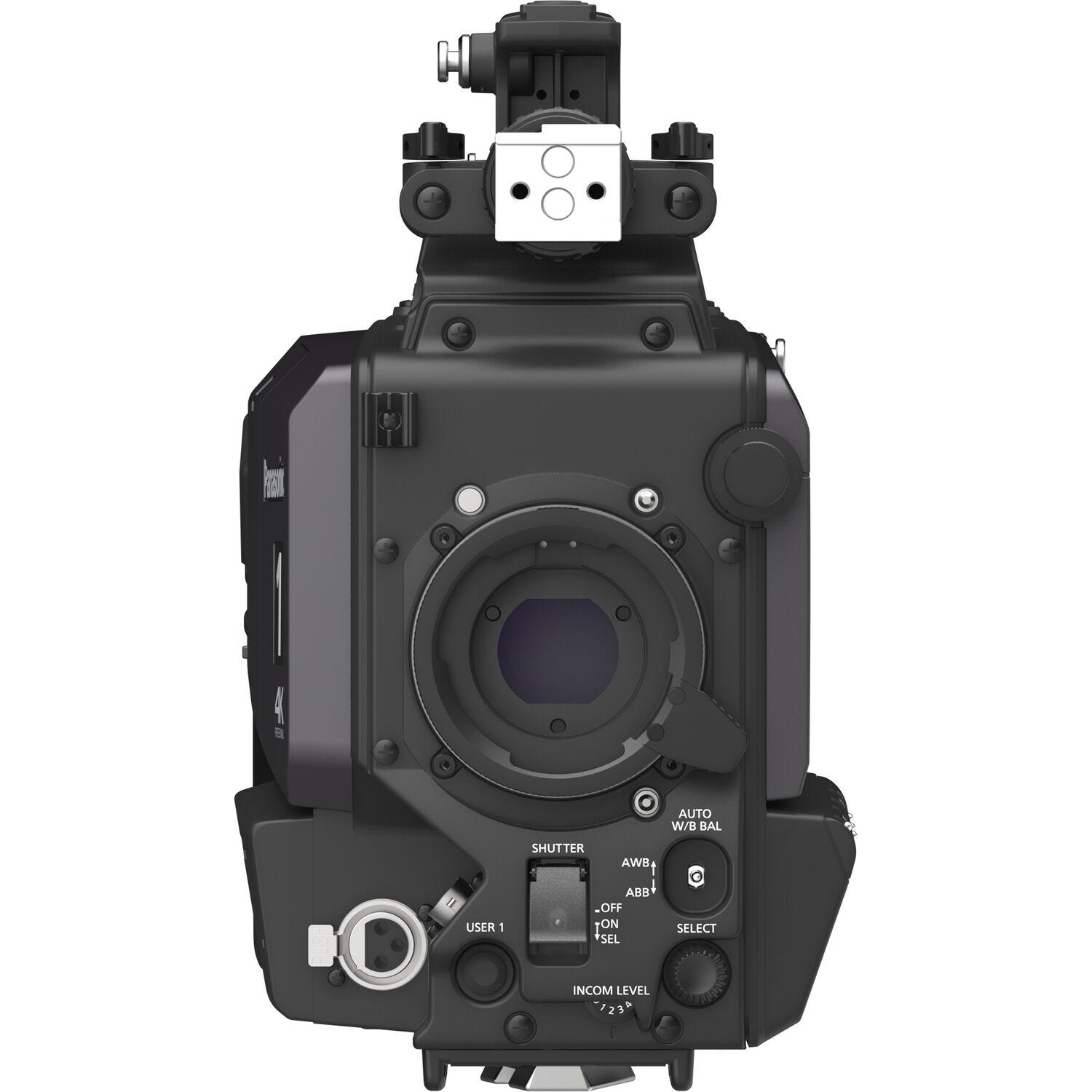

Lens Mount
B4
Image Sensor
Size-Unspecified MOS
Effective Sensor Resolution
19.29 Megapixel
Built-In ND Filter
Mechanical Filter Wheel with 6-Stop (1/64), 2-Stop (1/4), 4-Stop (1/16), Clear ND Filters
Exposure Control
Shutter Type
Electronic Rolling Shutter
Shutter Speed
1/2000 to 1/48 Second
ISO/Gain Sensitivity
Gain: -6 to 18 dB
Signal-to-Noise Ratio
62 dB
Video Capture
Internal Recording
3840 x 2160
1920 x 1080p
Video Output
via SDI/BNC / Optical Fiber
3840 x 2160 at 25/29.97/50/59.94/23.98 fps
1920 x 1080p at 59.94/23.98/25/29.97/50 fps
Gamma Curve
Rec2020, HDR-HLG, Rec709

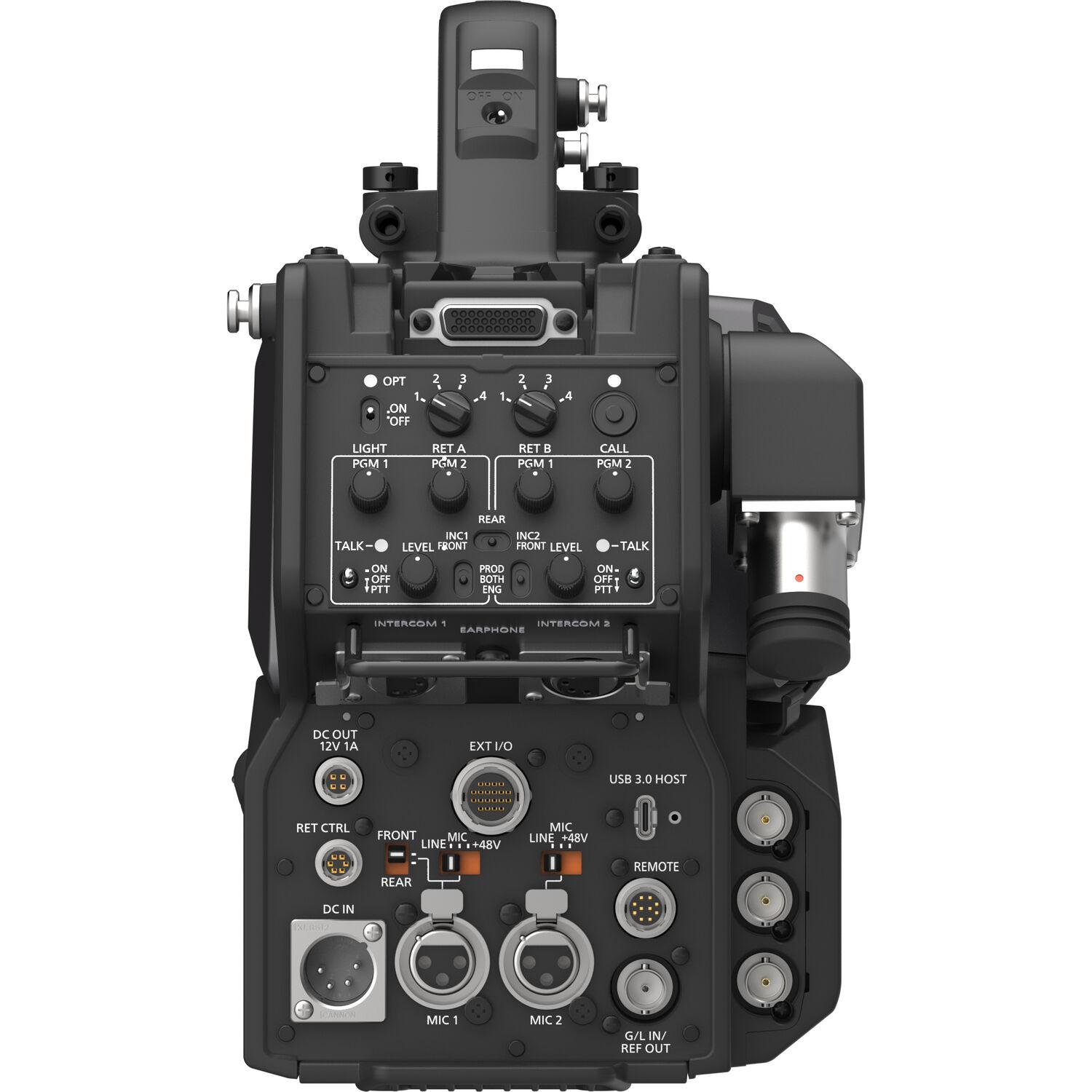

Interface
Media/Memory Card Slot
No
Internal Storage
No
CCU I/O
1x RJ45
Video I/O
2x BNC (12G-SDI) Output
1x BNC (3G-SDI) Input
Audio I/O
3x XLR 3-Pin Mic/Line Input (+48 V Phantom Power)
2x XLR 5-Pin Intercom Input/Output
1x 1/8" / 3.5 mm TRS Stereo Headphone Output
Power I/O
1x XLR 4-Pin (12VDC) Input
1x LEMO 2-Pin (12VDC at 2.5 A) Output
1x USB-C Output
Other I/O
1x BNC (Reference, Genlock, Sync) Input/Output
2x SFP Input/Output
1x 20-Pin Viewfinder
1x 29-Pin Viewfinder Output
1x Hirose 6-Pin
1x 20-Pin
1x Hirose 10-Pin Data
1x RJ45 (LAN)
Global Positioning (GPS, GLONASS, etc.)
No
Power
Power Consumption
119 W
Environmental
Operating Conditions
14 to 113°F / -10 to 45°C up to 85% Humidity
Storage Conditions
-4 to 140°F / -20 to 60°C
General

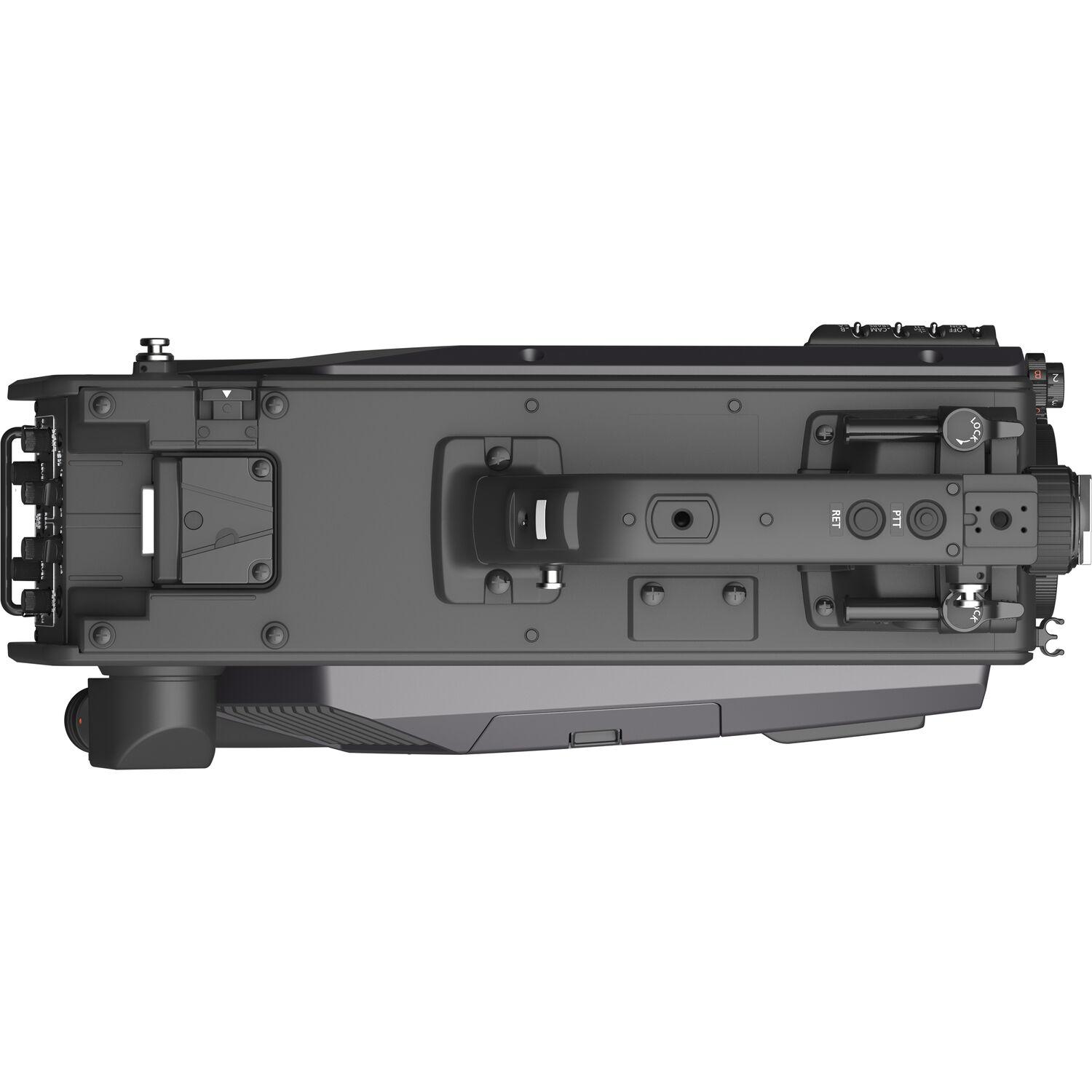

Tripod Mount
1x 1/4"-20 Female
Dimensions (W x H x D)
14.6 x 10.5 x 6.2" / 371.5 x 267 x 157 mm
Weight
10.03 lb / 4.55 kg (Body Only)
