Add pro monitoring tools to your camera rig with the LH7H-W 7" High-Bright Touchscreen Monitor from PORTKEYS. This bright, 7" on-camera touchscreen display offers 1920 x 1080 resolution, 1000 cd/m² brightness, and the ability to input and output up to DCI 4K24 or UHD 4K30 video via HDMI.
The monitor is powered using the built-in L-series battery plate with a separately available battery, or it can be powered using an optional DC power supply. Other features include 3D LUT support, vertical shooting stretching, anamorphic correction on HDMI output, cropping, and a variety of image monitoring tools, including peaking, color temperature, waveform, histogram, and more.
| Panel Type | LCD |
| Display Size | 7.0" / 17.8 cm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 170° (85/85) Vertical: 170° (85/85) |
| Touchscreen | Yes |
| Maximum Brightness | 1000 nits / cd/m2 |
| Contrast Ratio | 1000:1 |
| Color Support | 1.07 Billion Colors (8-Bit+FRC) |
| HDR Support | No |
| Image Controls | Anamorphic De-Squeeze, Check Field, Color Temperature Selection, False Color, Focus Peaking, Histogram, Image Flip, Waveform, Zebra |

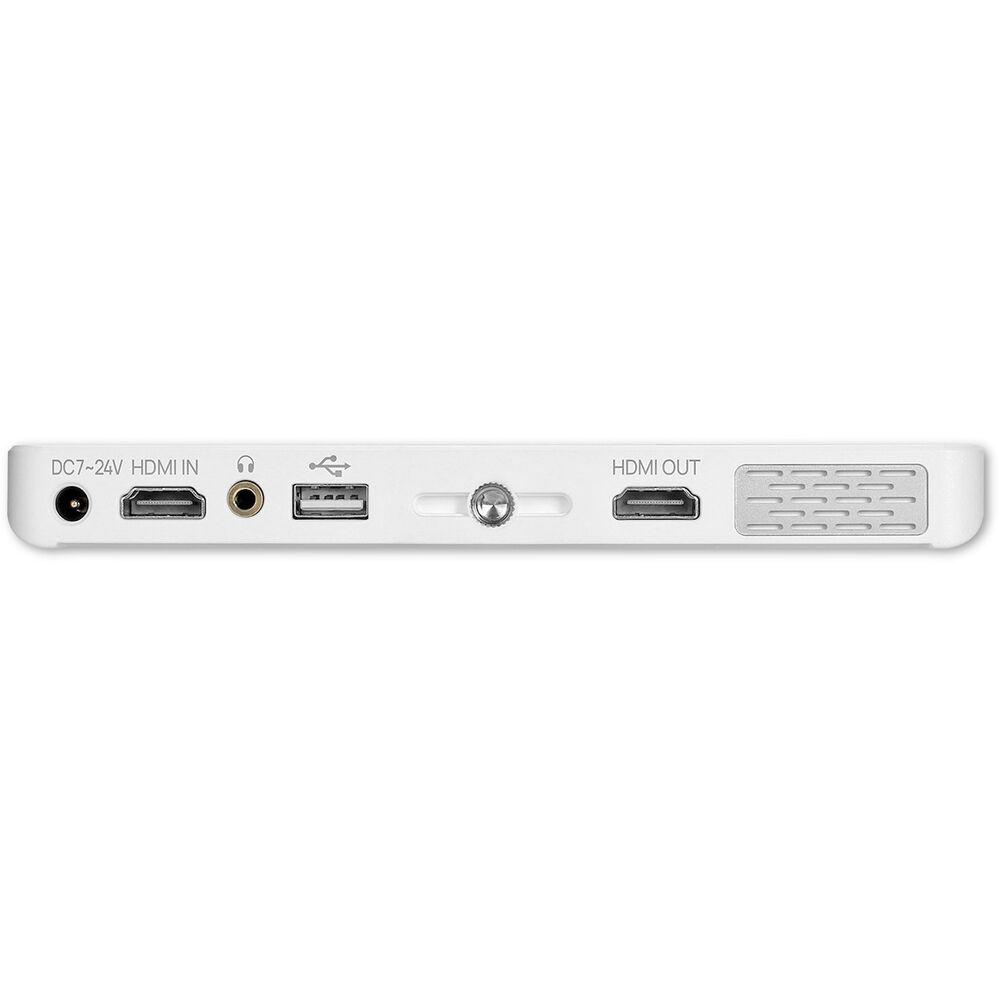

| Video I/O | 1 x HDMI 1.4 Input 1 x HDMI 1.4 Output |
| Embedded Audio | HDMI |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x Barrel (24 VDC) Input 1x USB-A (5 VDC / 2 A) Input |
| Other I/O | 1x USB-A (Firmware/LUT Upload) [Shared with USB-A Power Input] |
| Media/Memory Card Slot | No |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Video Format | HDMI DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94/50 480i: 60/59.94/50 |
| Input Power | 7 to 24 VDC |

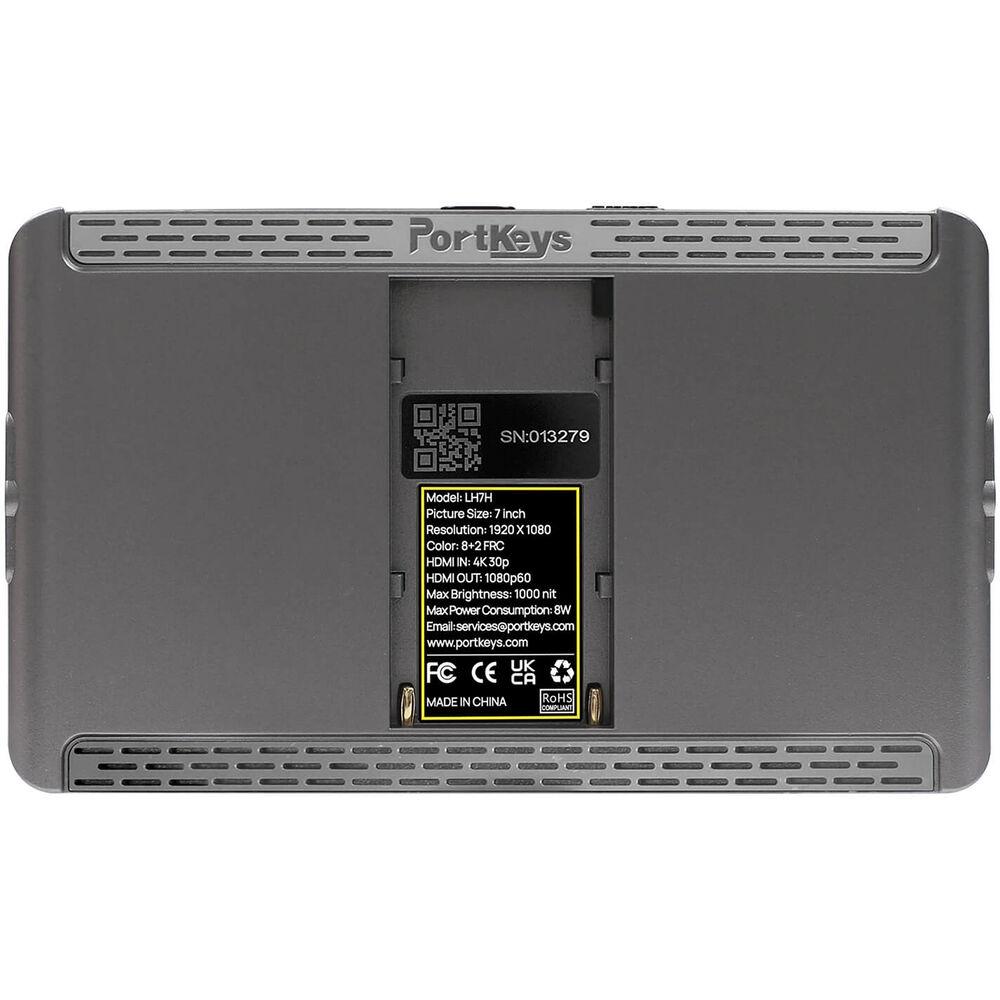

| Battery | 1x L-Series Mount on Fixed Plate |
| Power Consumption | 8 W |
| Tripod/Accessory Mounting | Bottom/Right 1x 1/4"-20 Female |
| Material of Construction | Plastic |
| Dimensions | 6.9 x 4.1 x 0.7" / 176.2 x 103.8 x 18.4 mm |
| Weight | 8.64 oz / 245.00 g |
