πΉ Key Features:
The PortKeys MT22DS 21.5β³ Dual Screen Production Monitor is available from FABT.
For pricing, availability, technical specifications, and professional broadcast or studio solutions, please contact FABT.

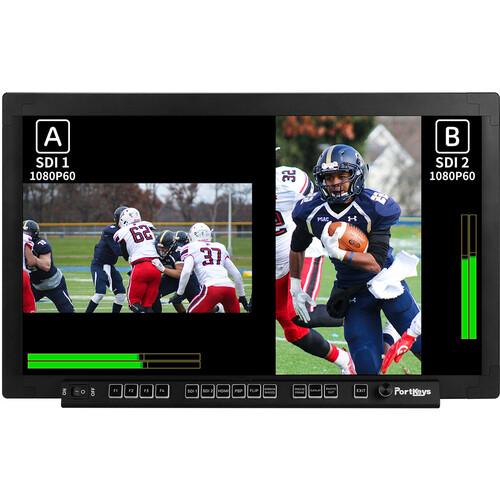

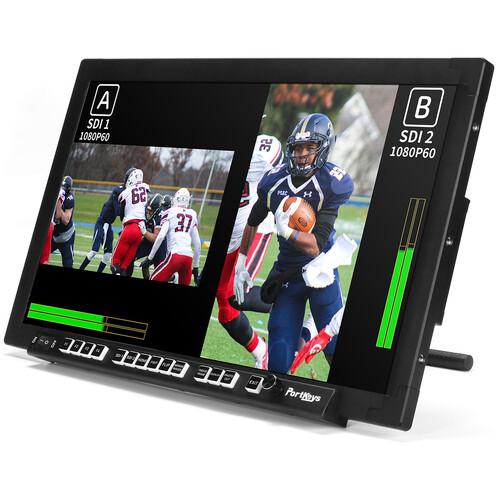

πΉ Split Screen Monitoring
Both screens can load the same 3D LUT file and support multiple cropping configurations, including:
The left and right screens can also be individually flipped and mirrored.
πΉ Custom JPG Picture Freeze Frame
Capture a reference image and compare it with real-time video using semi-transparent image overlay.
Note: The JPG image must be 16:9, 1920 Γ 1080.
πΉ Wireless Video Transmission Power Supply Plate
Supports NP-F and V-Mount batteries for wireless video transmission equipment, with adjustable positioning at 90Β° / 180Β° / 270Β°.
πΉ CNC Aluminium Alloy All-Metal Housing
Provides excellent heat dissipation, high durability, and reliable performance in professional production environments.
πΉ 3D LUT HDMI Output
Both HDMI and 3G-SDI can output video after applying a 3D LUT, providing accurate and consistent image monitoring.
πΉ Anamorphic Lens Calibration
Supports multiple anamorphic ratios:
1.00X / 1.33X / 1.42X / 1.50X / 1.60X / 1.66X / 1.85X / 2.00X / 2.35X
User-defined adjustment range: 0.25X β 4.00X
πΉ HDMI to SDI Conversion
Built-in signal conversion eliminates the need for an external HDMI-to-SDI converter.
πΉ 48V Phantom Power & SDI Audio Embedding
Supports 48V phantom power through a standard 4-pin XLR connector and embedded SDI audio output.
πΉ Brightness & RGB Signal Detection
Monitor brightness and RGB signal information before and after applying a 3D LUT for more accurate image evaluation.
πΉ Customizable Peaking Range
Adjustable peaking frame settings help achieve precise focus monitoring without interfering with camera parameters.
πΉ Custom Rectangular Image Crop
Easily crop and monitor specific areas of the image with greater clarity and precision.
πΉ Factory Colour Calibration
Calibrated to the Rec.709 colour gamut using X-Rite 1D hardware, delivering accurate colour reproduction and more intuitive professional monitoring.
